Te Arawa 3 Details

PropertyValue
Rupture Count2,052
Ruptures Above Sect Min Mag2,051
Ruptures w/ Nonzero Rates4
Magnitude Range[6.64, 8.24]
Length Range[13, 528] km
Total Rate5.4413074E-4 /yr
Multi-Fault Rate5.4413074E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults57

Table Of Contents

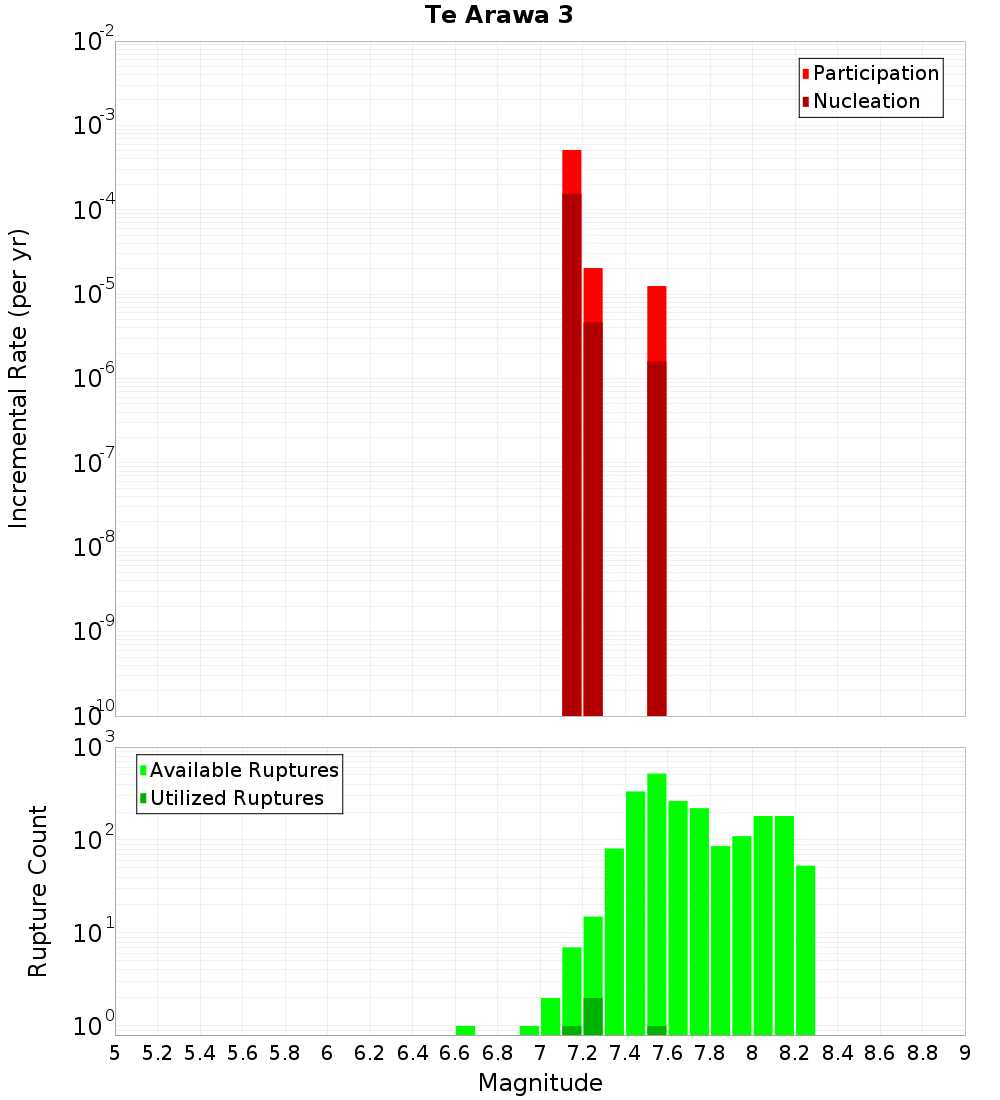

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

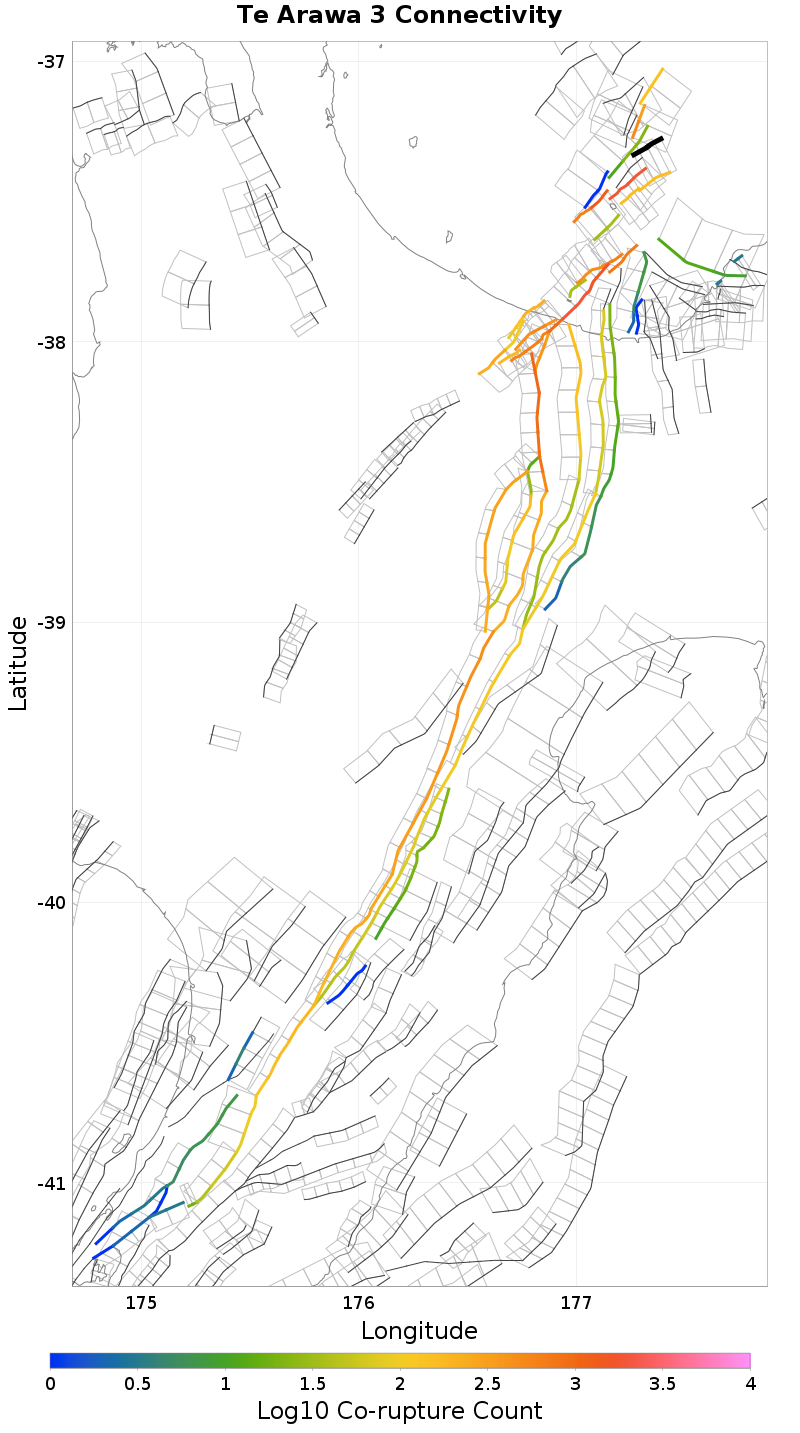

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.14 km away
Te Arawa 2, 1.69 km away
Volkner 4, 1.72 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.32 km away
Otara West 2, 8.79 km away
Tuatoru 1, 10.11 km away
Hariki, 10.93 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 15.16 km away
Otara West 3, 16.96 km away
Calypso 2, 18.58 km away

Tuatoru 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate2.0368198E-5

Te Arawa 2, 1.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate3.286268E-5

Te Arawa 1, 5.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count1,865
Co-rupture Rate5.1128236E-4

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count163
Co-rupture Rate2.0368198E-5

Hariki, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.2480189E-5

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count142
Co-rupture Rate1.2480189E-5

Whakaari 4, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1,274
Co-rupture Rate0.0

Otara West 3, 16.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate5.3165056E-4
