Uruti Ridge 2 Details

Property	Value
Rupture Count	13,214
Ruptures Above Sect Min Mag	13,186
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.29, 8.43]
Length Range	[10, 953] km
Total Rate	2.7594704E-4 /yr
Multi-Fault Rate	2.7594704E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

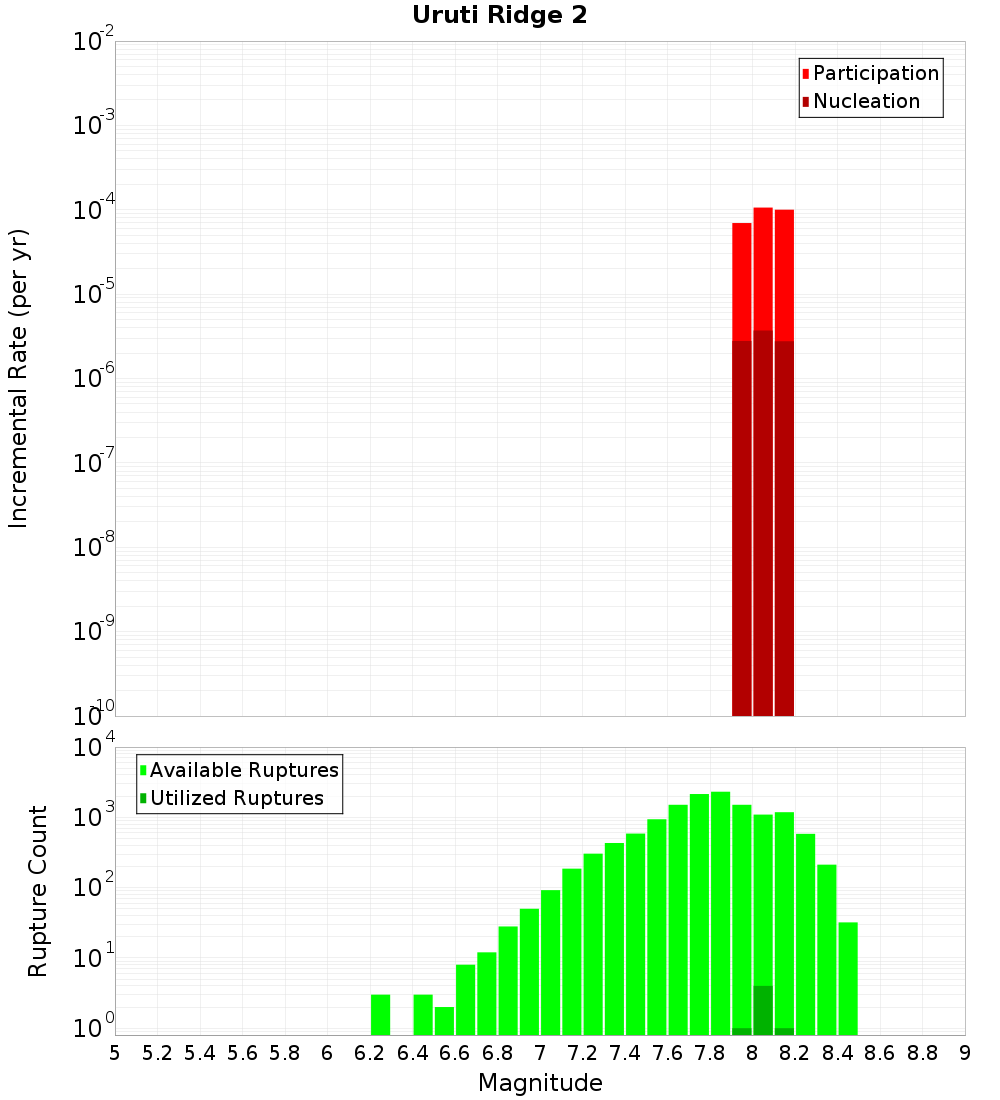

Magnitude-Frequency Distribution

Incremental	Cumulative

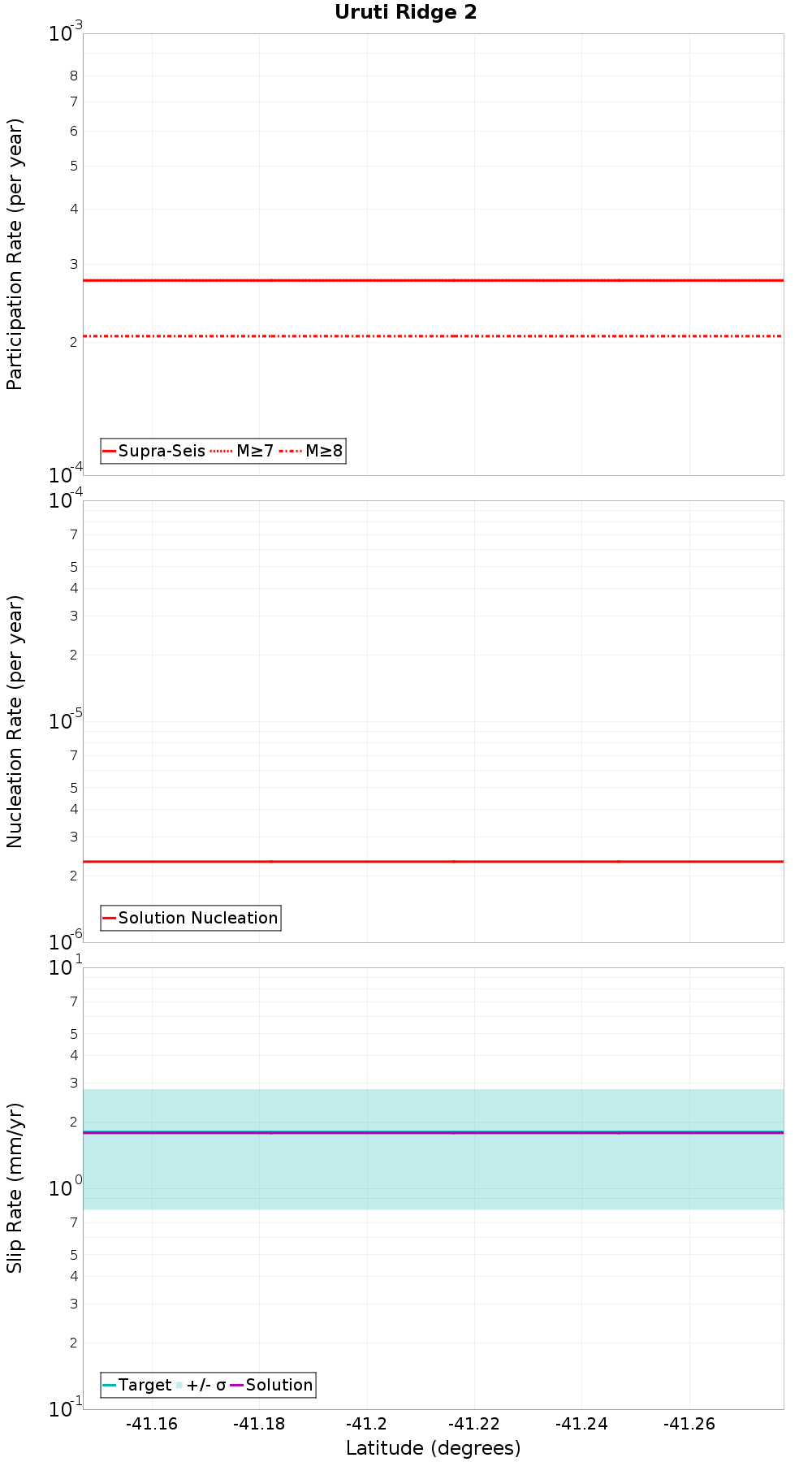

Along-Strike Values

Moment-Rates and b-Values

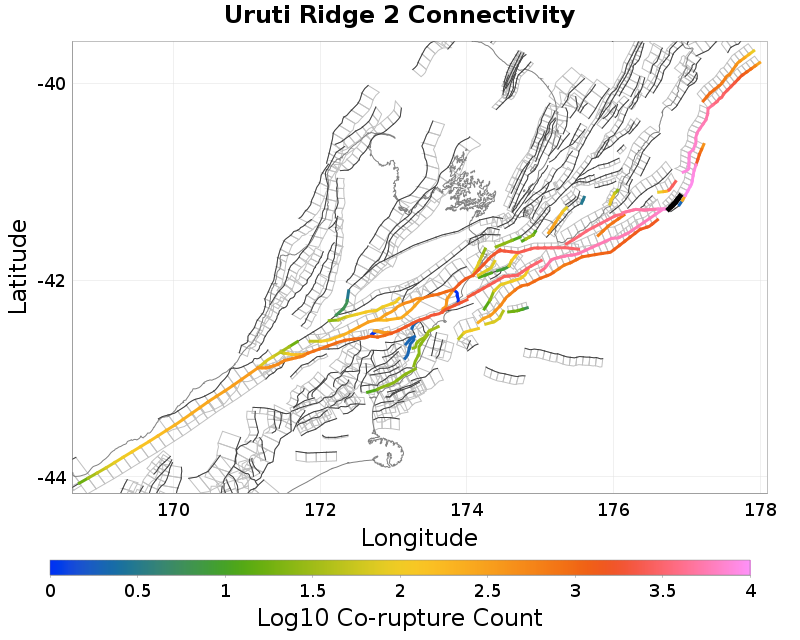

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0 km away
Uruti East - PorWest 1, 2.58 km away
Opouawe - Uruti, 4.33 km away
Uruti Basin 2, 7.74 km away
Uruti North, 8.85 km away
Pahaua, 13.52 km away
Whareama Bank, 19.64 km away

Uruti Basin, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	7,763
Co-rupture Rate	2.7594704E-4

Uruti East - PorWest 1, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	9,355
Co-rupture Rate	1.21290366E-4

Opouawe - Uruti, 4.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	7,753
Co-rupture Rate	3.6210455E-5

Uruti Basin 2, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti North, 8.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,798
Co-rupture Rate	8.50594E-5

Pahaua, 13.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,438
Co-rupture Rate	0.0

Whareama Bank, 19.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
