Wairarapa: 1 Details

PropertyValue
Rupture Count22,369
Ruptures Above Sect Min Mag22,364
Ruptures w/ Nonzero Rates38
Magnitude Range[6.70, 8.42]
Length Range[16, 758] km
Total Rate0.0015671651 /yr
Multi-Fault Rate0.0015671651 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults113

Table Of Contents

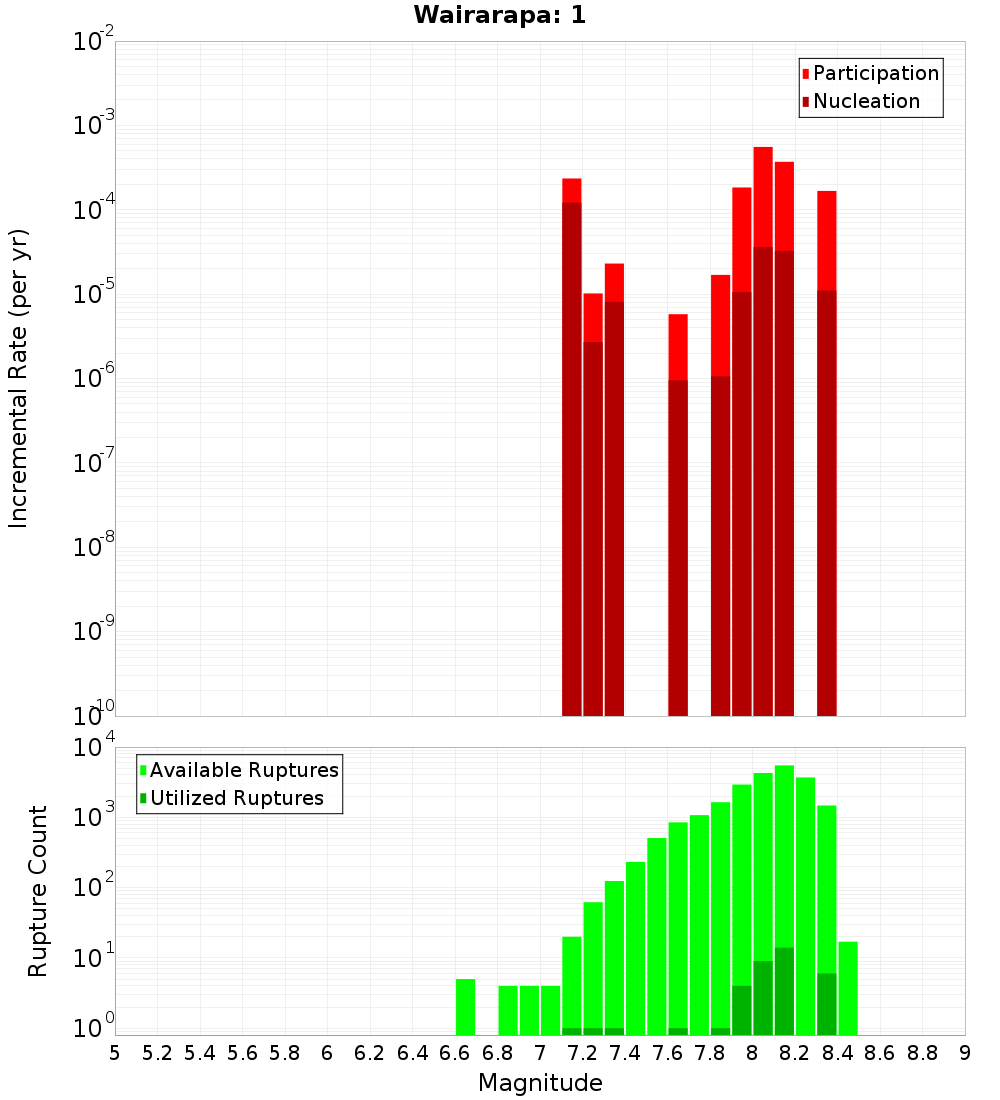

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: Needles, 0 km awayBooBoo, 14.97 km away
Wairarapa: 2, 0 km awayOhariu, 14.99 km away
Wharekauhau, 0.24 km awayWellington Hutt Valley: 1, 15.62 km away
Aotea - Evans Bay, 2.26 km awayOtaraia, 16.27 km away
Wellington Hutt Valley: 4, 3.65 km awayBidwill, 17.4 km away
Wellington Hutt Valley: 5, 4.16 km awayCampbell Bank, 17.51 km away
Whitemans Valley, 5.26 km awayDry River - Huangarua: 1, 17.77 km away
Akatarawa, 12.8 km awayWairau 3, 18.17 km away
Wellington Hutt Valley: 2, 12.99 km awayMartinborough, 18.87 km away
Wellington Hutt Valley: 3, 13.27 km awayWellington: Tararua 1, 19.11 km away
Moonshine, 13.75 km awayVernon 4, 19.89 km away

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count15,811
Co-rupture Rate9.6977013E-4

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count18,003
Co-rupture Rate6.19532E-4

Wharekauhau, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count3,315
Co-rupture Rate3.042577E-4

Aotea - Evans Bay, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 4.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count2,858
Co-rupture Rate3.164226E-4

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate0.0

Akatarawa, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 12.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

BooBoo, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate0.0

Ohariu, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 15.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 17.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count33
Co-rupture Rate0.0

Dry River - Huangarua: 1, 17.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate6.213455E-5

Wairau 3, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Martinborough, 18.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wellington: Tararua 1, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate2.3479637E-4

Vernon 4, 19.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count2,879
Co-rupture Rate2.1434743E-4
