Waitotara 8 & 9 Details

PropertyValue
Rupture Count858
Ruptures Above Sect Min Mag741
Ruptures w/ Nonzero Rates26
Magnitude Range[6.28, 7.33]
Length Range[11, 123] km
Total Rate2.78677E-4 /yr
Multi-Fault Rate2.520521E-4 /yr (90.45%)
Directly-Connected Faults7
All Co-Rupturing Faults7

Table Of Contents

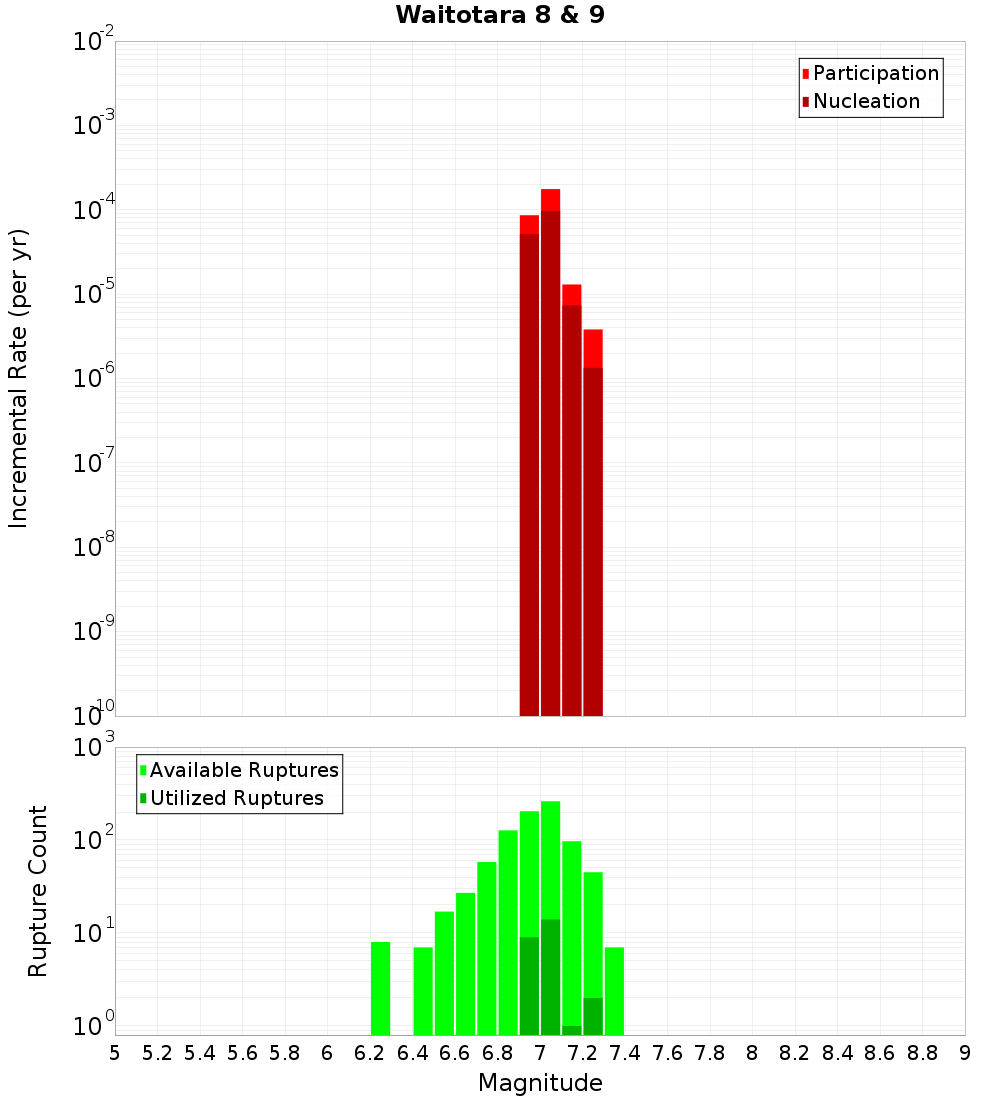

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

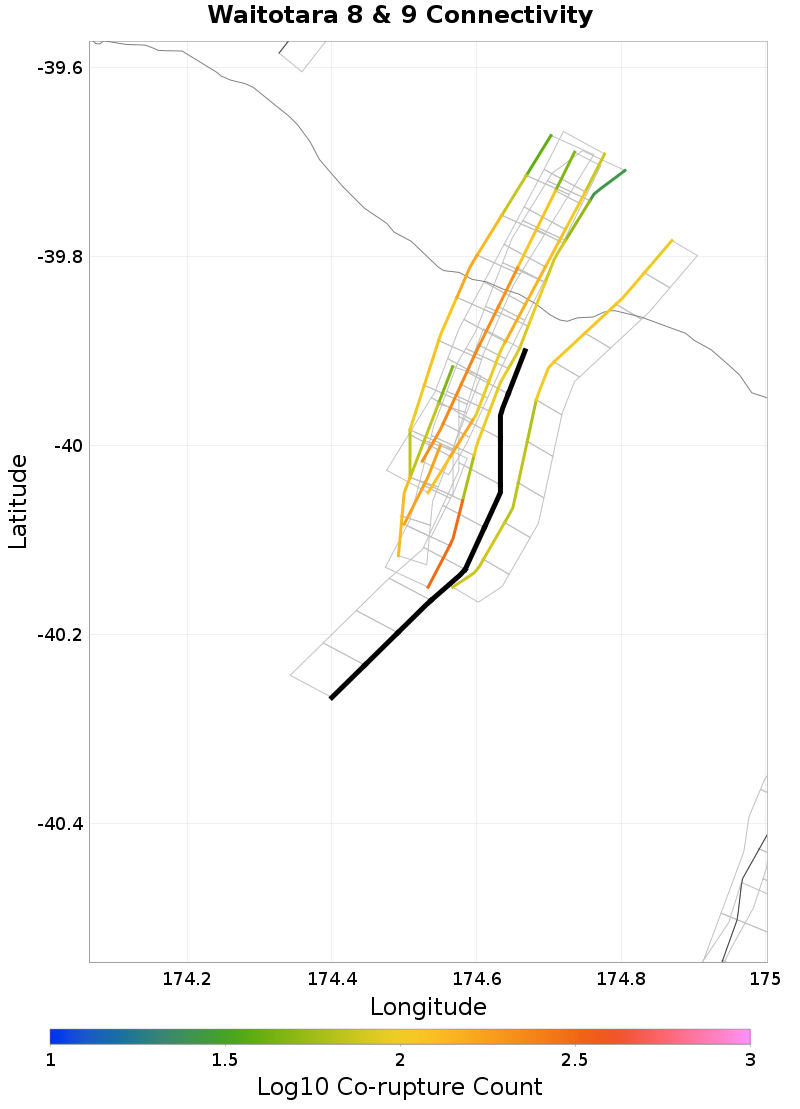

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Okaia 5, 0.04 km away
Okaia 3, 0.11 km away
Waverley - Okaia 1, 0.13 km away
Moumahaki - Okaia 4, 0.15 km away
Nukumuru - Waitotara 1-6, 0.55 km away
Waitotara 10 & 11, 0.72 km away
Ridge Road - Okaia 2, 2.25 km away

Okaia 5, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count134
Co-rupture Rate4.935041E-7

Okaia 3, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count171
Co-rupture Rate1.8048371E-5

Waverley - Okaia 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate1.8039695E-5

Moumahaki - Okaia 4, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count273
Co-rupture Rate7.3476316E-5

Nukumuru - Waitotara 1-6, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count182
Co-rupture Rate2.9591009E-5

Waitotara 10 & 11, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count410
Co-rupture Rate1.0052301E-4

Ridge Road - Okaia 2, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count270
Co-rupture Rate6.109511E-5
