Wakamarama Details
| Property | Value |
|---|---|
| Rupture Count | 78 |
| Ruptures Above Sect Min Mag | 73 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.76, 7.72] |
| Length Range | [18, 148] km |
| Total Rate | 7.0898546E-5 /yr |
| Multi-Fault Rate | 6.7577916E-5 /yr (95.32%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

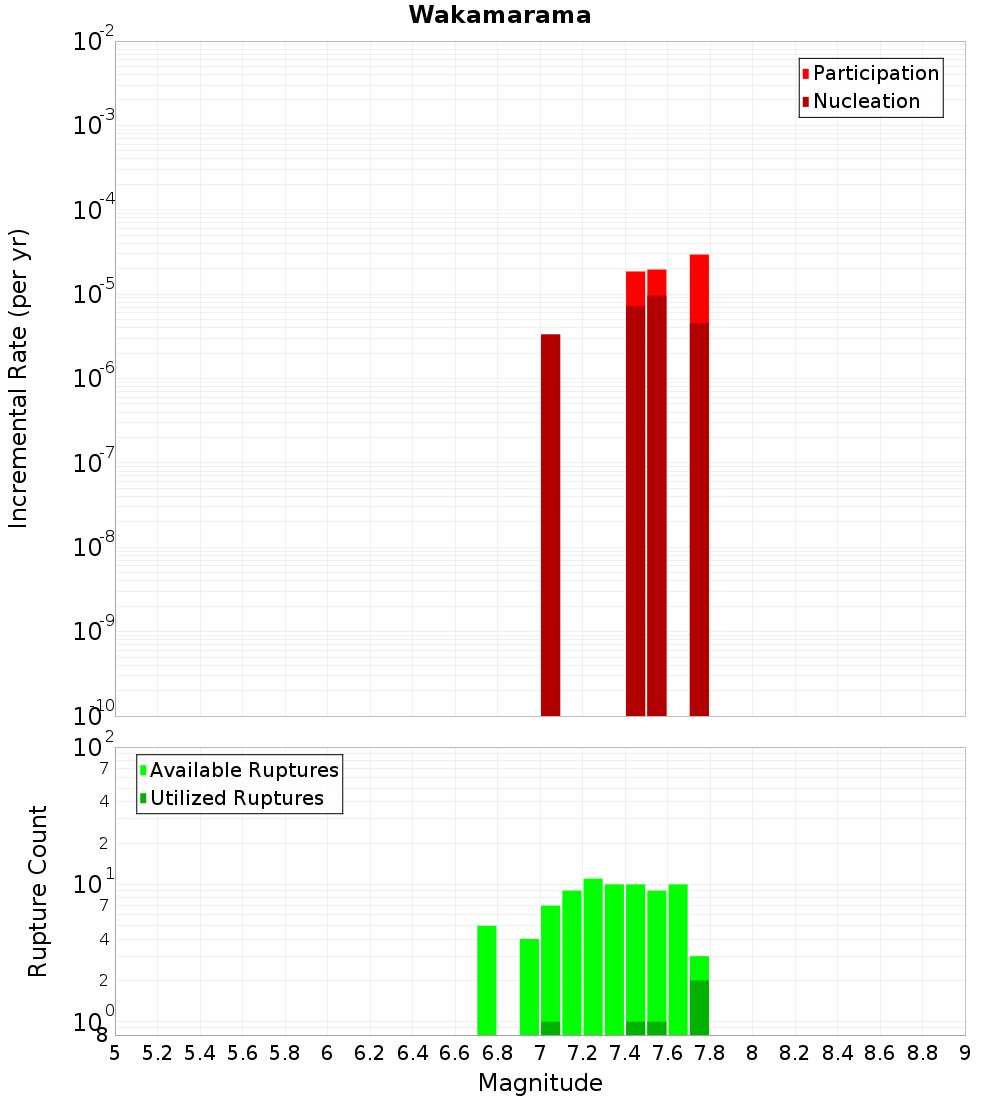

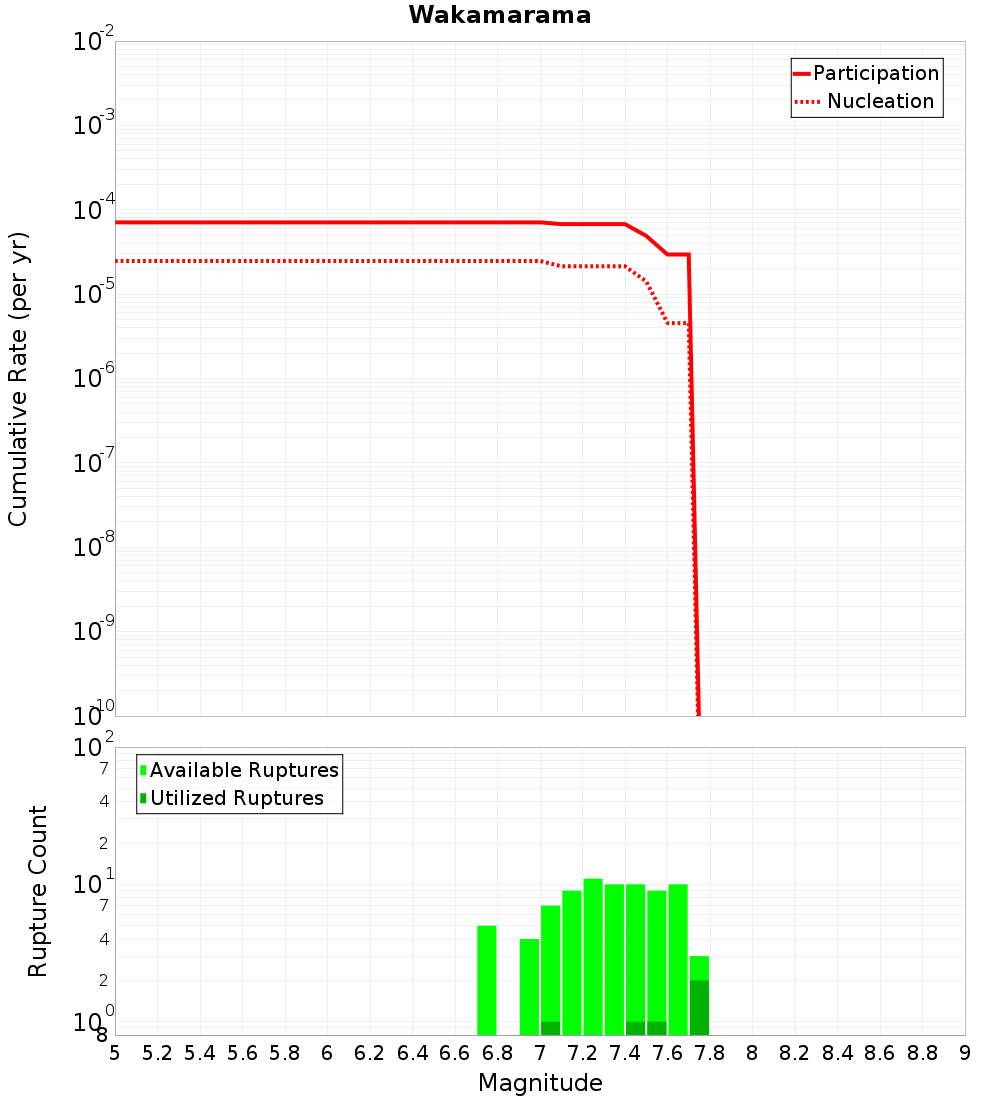

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

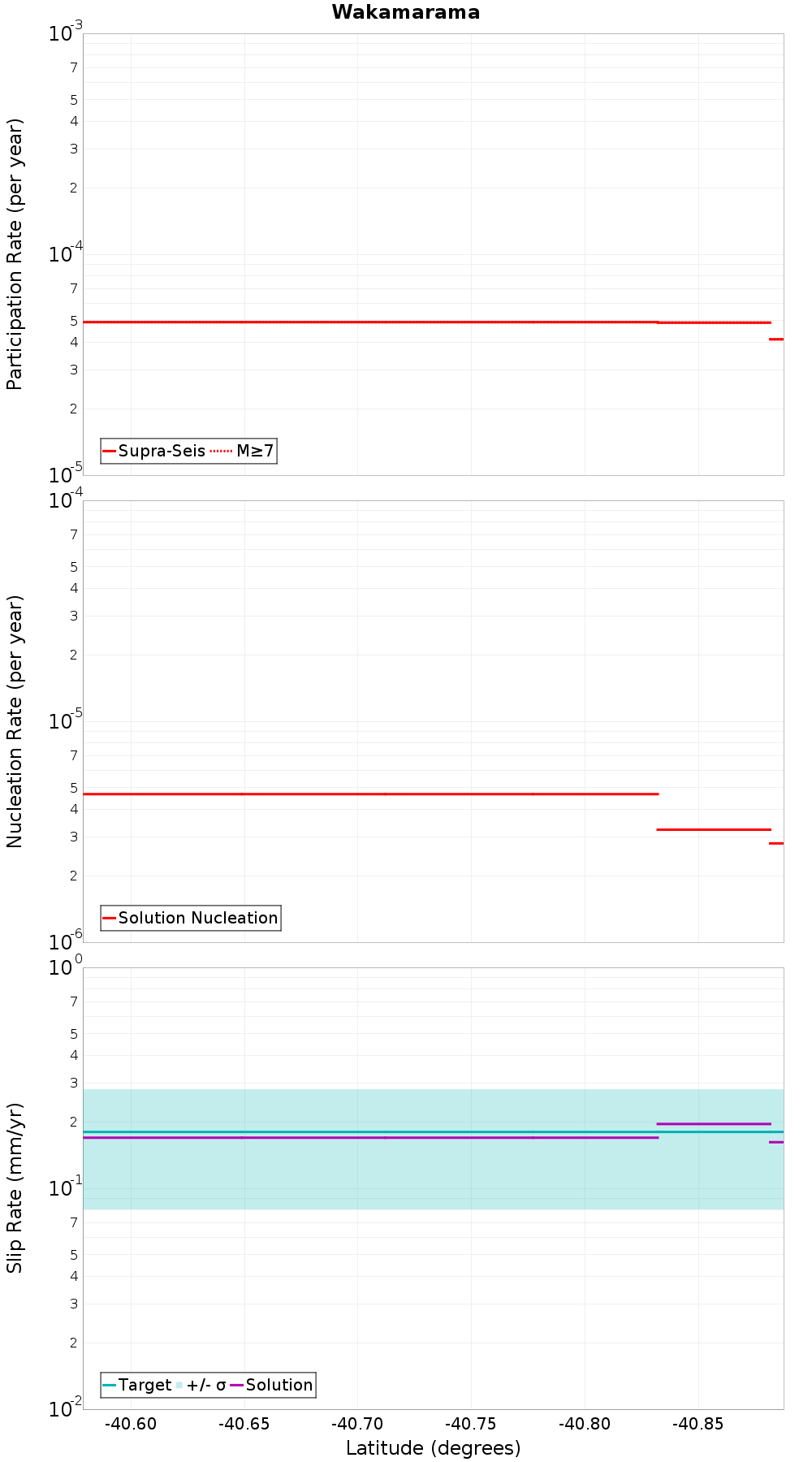

Along-Strike Values

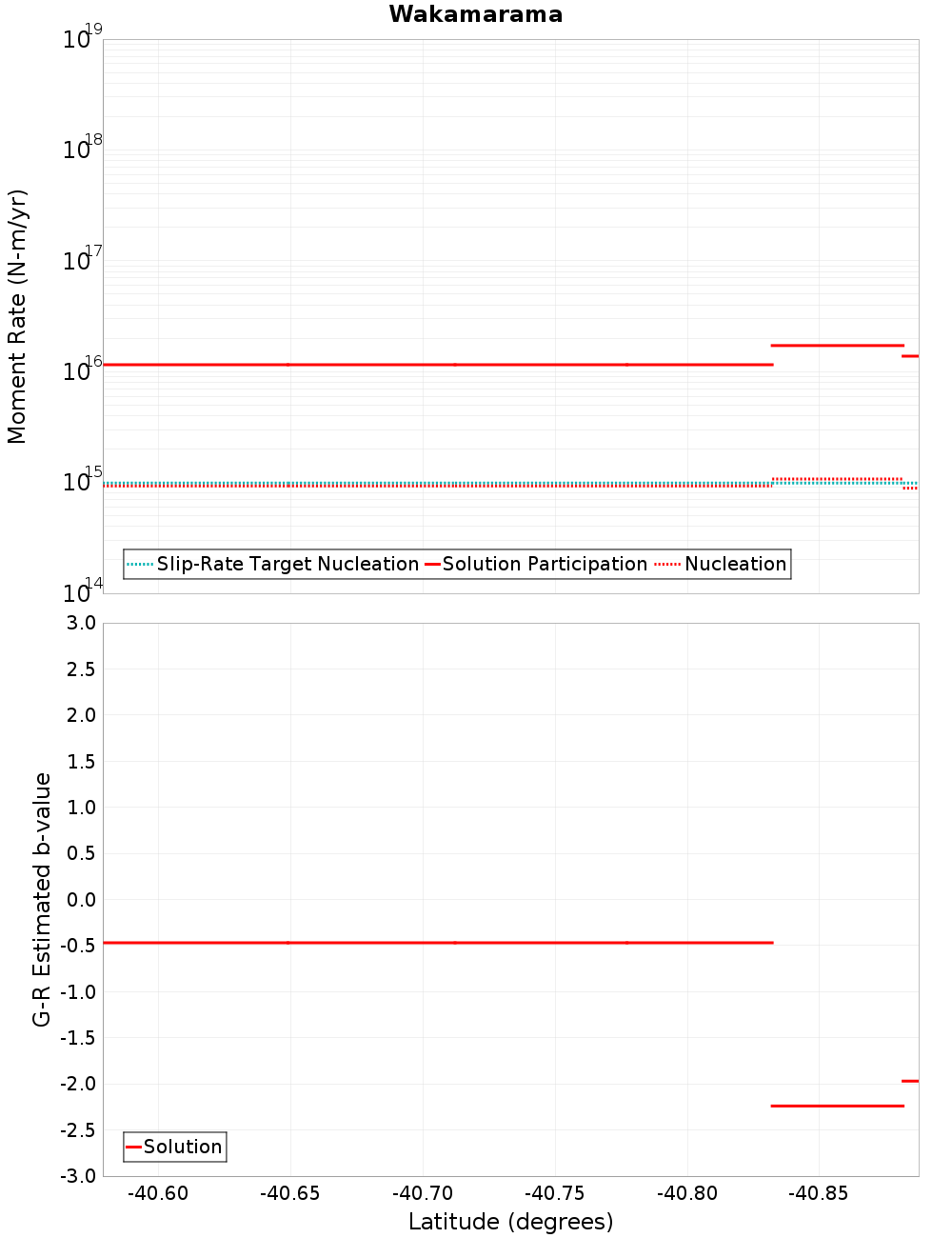

Moment-Rates and b-Values

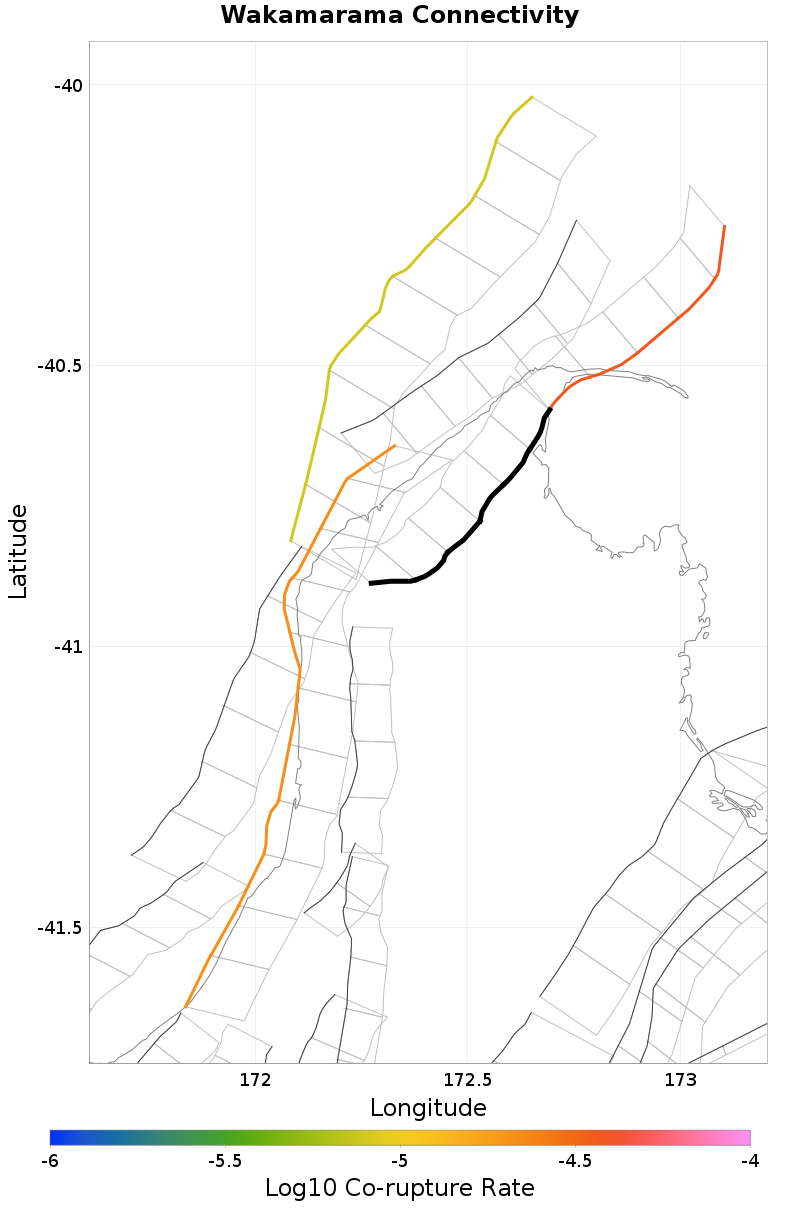

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0 km away |
| Kongahau, 0.14 km away |
| Farewell, 0.29 km away |
| Kahurangi, 0.33 km away |
| Cape Foulwind 4, 1.47 km away |
| Kohaihai, 9.33 km away |
Wakamarama Offshore, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 3.813699E-5 |
Kongahau, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 2.160976E-5 |
Farewell, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Kahurangi, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 7.831169E-6 |
Cape Foulwind 4, 1.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Kohaihai, 9.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
