Whakatane: North Details

PropertyValue
Rupture Count9,311
Ruptures Above Sect Min Mag9,305
Ruptures w/ Nonzero Rates20
Magnitude Range[6.71, 8.39]
Length Range[18, 681] km
Total Rate3.550178E-4 /yr
Multi-Fault Rate3.550178E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults90

Table Of Contents

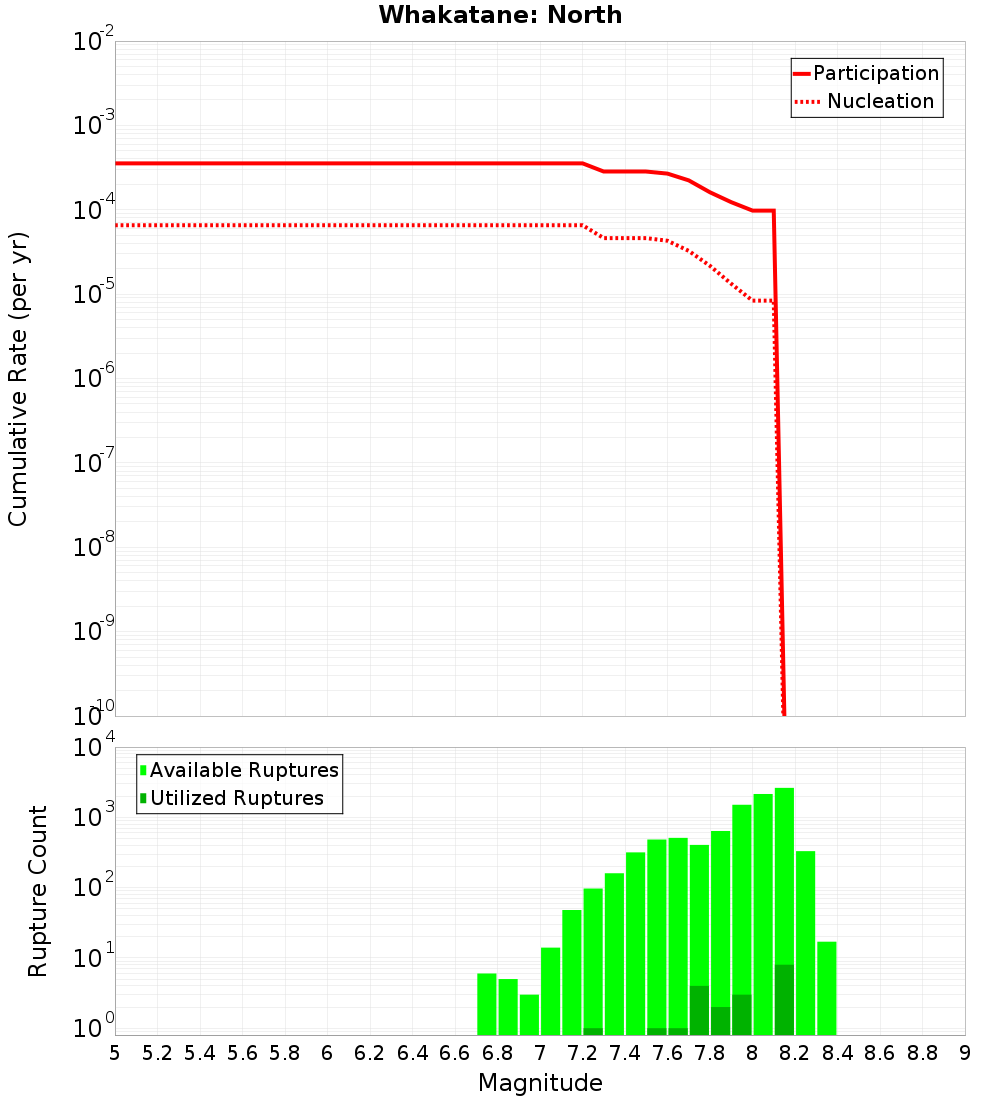

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakatane: South, 0 km awayWaiohau: South, 10.6 km away
Otakiri, 0.26 km awayWaiotahi: South, 10.84 km away
White Island 1, 3.09 km awayRangitaiki 1, 11.12 km away
Edgecumbe Coastal, 3.09 km awayWaiohau: North, 12.32 km away
Braemar, 6.02 km awayTe Whaiti North, 13.54 km away
Edgecumbe 1987, 7.16 km awayTe Whaiti South, 14.42 km away
Waimana: North, 7.34 km awayRotoitipakau, 14.47 km away
Awakeri, 7.56 km awayRangitaiki 2, 16.94 km away
Waimana: South, 8.54 km awayWheao: North, 17.43 km away
Matata, 8.83 km awayWaimana - Waikaremoana, 18.17 km away
Waiotahi: North, 10.39 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count2,709
Co-rupture Rate8.053375E-5

Otakiri, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count563
Co-rupture Rate7.1389564E-5

White Island 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count6,026
Co-rupture Rate1.14548355E-4

Edgecumbe Coastal, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count278
Co-rupture Rate7.1389564E-5

Braemar, 6.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate7.1389564E-5

Edgecumbe 1987, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Waimana: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Awakeri, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count4,568
Co-rupture Rate1.1682093E-4

Matata, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count196
Co-rupture Rate0.0

Waiotahi: North, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count628
Co-rupture Rate1.4131142E-5

Waiotahi: South, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate0.0

Waiohau: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count256
Co-rupture Rate0.0

Te Whaiti North, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count664
Co-rupture Rate1.9818975E-5

Te Whaiti South, 14.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count655
Co-rupture Rate1.9818975E-5

Rotoitipakau, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate7.1389564E-5

Rangitaiki 2, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count957
Co-rupture Rate0.0

Wheao: North, 17.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0

Waimana - Waikaremoana, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
