Hope: Seaward Details

PropertyValue
Rupture Count47,040
Ruptures Above Sect Min Mag47,035
Ruptures w/ Nonzero Rates139
Magnitude Range[6.62, 8.54]
Length Range[16, 1,156] km
Total Rate5.0968863E-4 /yr
Multi-Fault Rate5.0968863E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults108

Table Of Contents

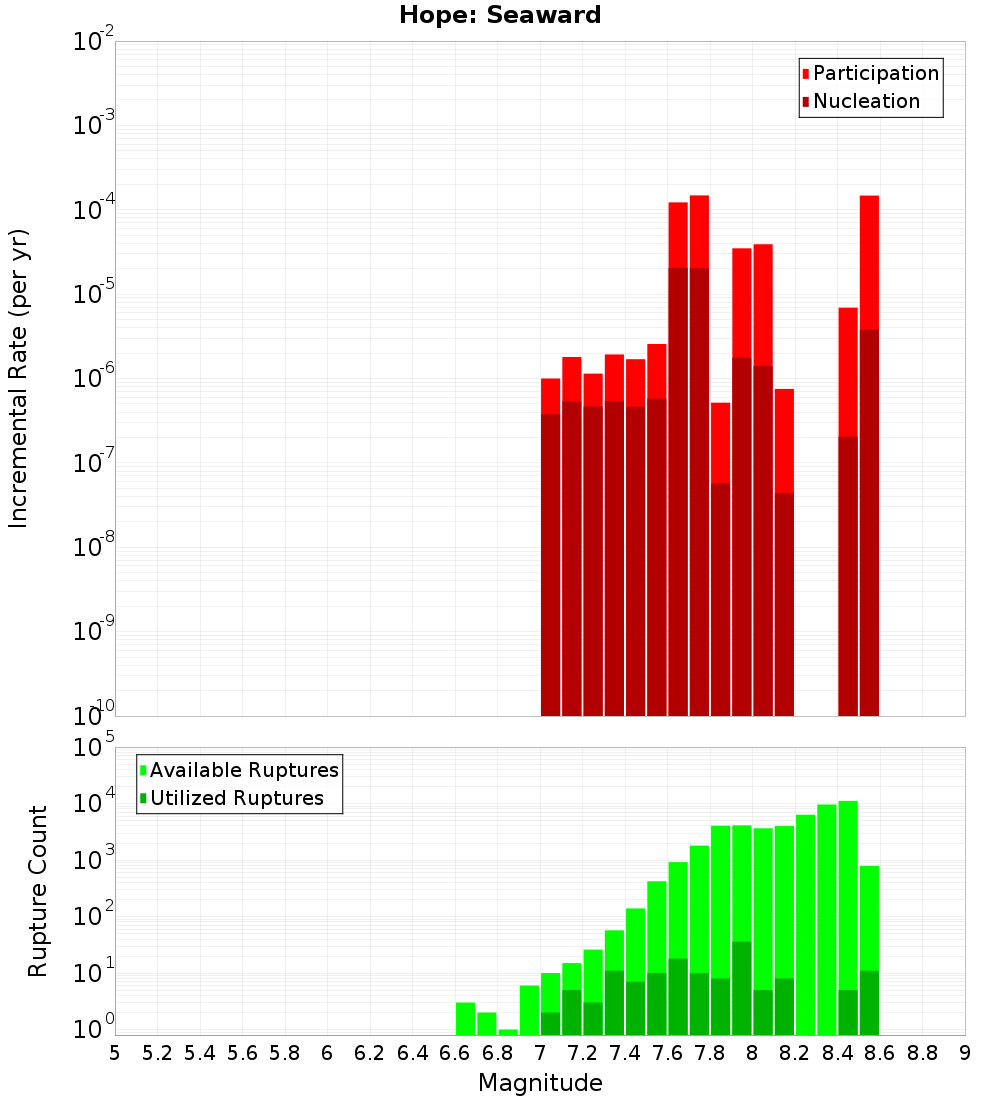

Magnitude-Frequency Distribution

(top)

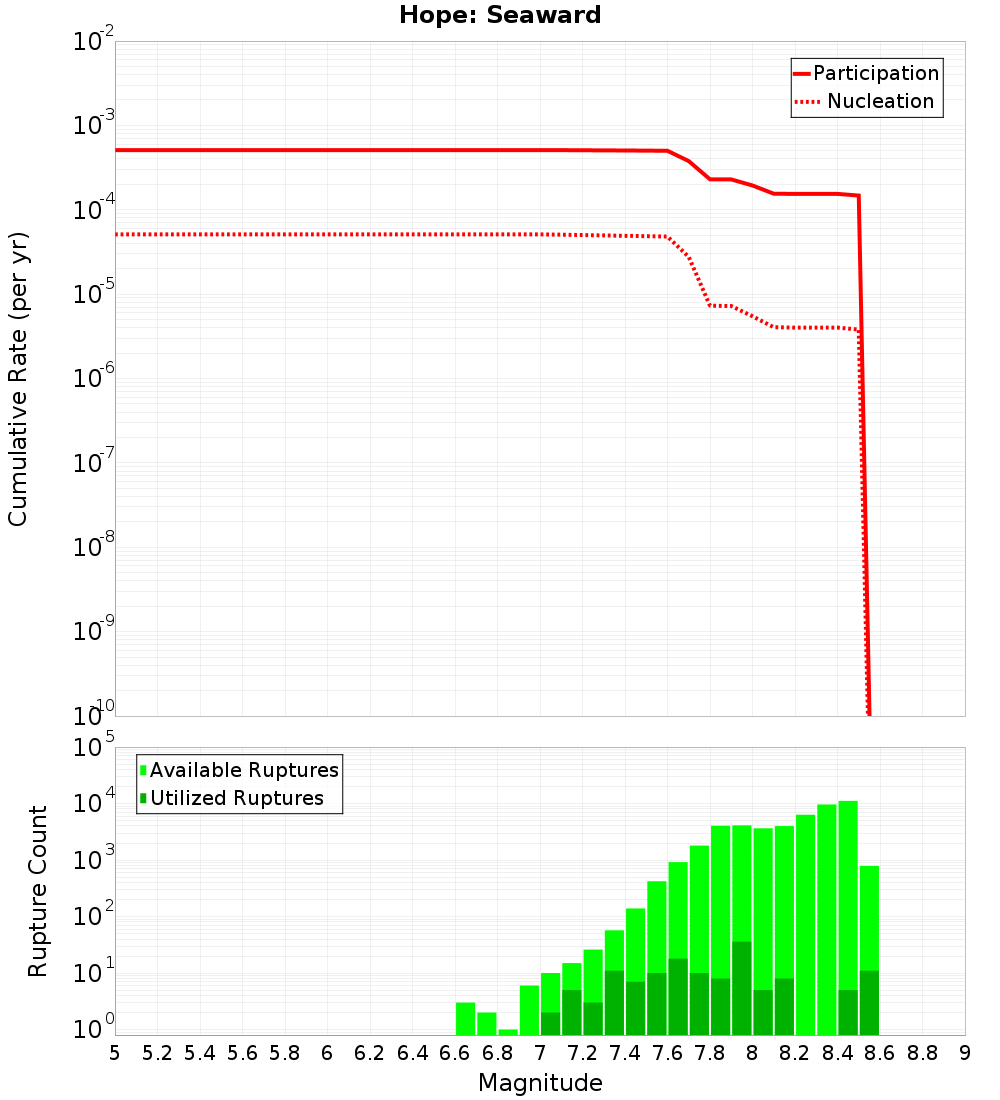

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

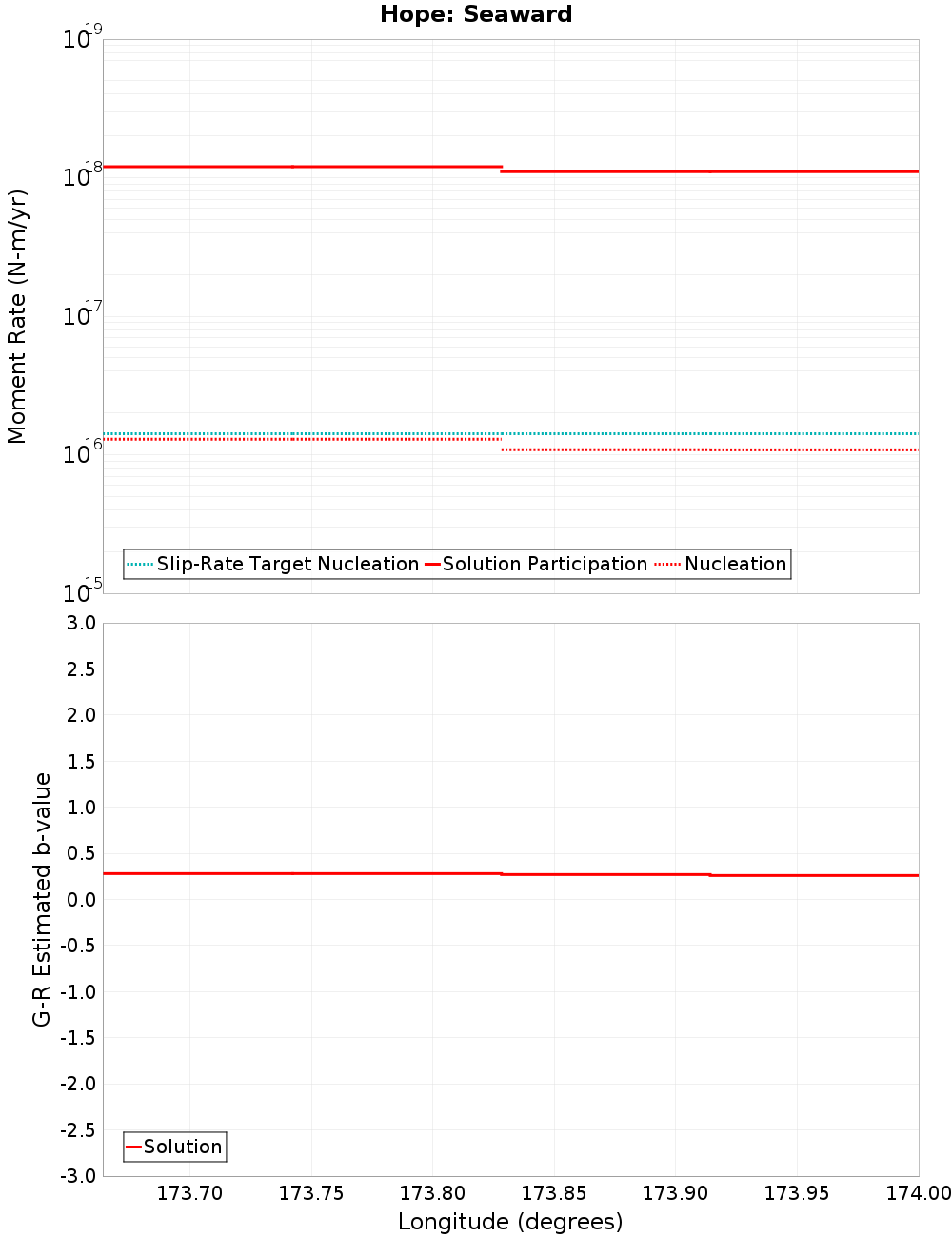

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Kaikoura - Mangamaunu, 1.03 km away
Hope: Te Rapa, 3.47 km away
Upper Slope, 10.05 km away
Fidget, 13.66 km away
Hundalee, 15.42 km away
Kekerengu 1, 16.34 km away
Kekerengu Bank, 17.79 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?true
Co-rupture Count46,246
Co-rupture Rate4.1909807E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate9.059055E-5

Papatea, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate9.500778E-7

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.0548873E-6

Hope: Te Rapa, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?true
Co-rupture Count38,607
Co-rupture Rate3.996329E-4

Upper Slope, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count874
Co-rupture Rate2.1803774E-6

Fidget, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?true
Co-rupture Count583
Co-rupture Rate0.0

Hundalee, 15.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count353
Co-rupture Rate2.489065E-6

Kekerengu 1, 16.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate9.059055E-5

Kekerengu Bank, 17.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1TTjZ5
Connected?true
Directly Connected?false
Co-rupture Count376
Co-rupture Rate9.99013E-6
