Alpine: Resolution - Charles Details

PropertyValue
Rupture Count43,899
Ruptures Above Sect Min Mag43,898
Ruptures w/ Nonzero Rates116
Magnitude Range[6.53, 8.54]
Length Range[10, 1,154] km
Total Rate0.0015460721 /yr
Multi-Fault Rate0.0015460721 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults83

Table Of Contents

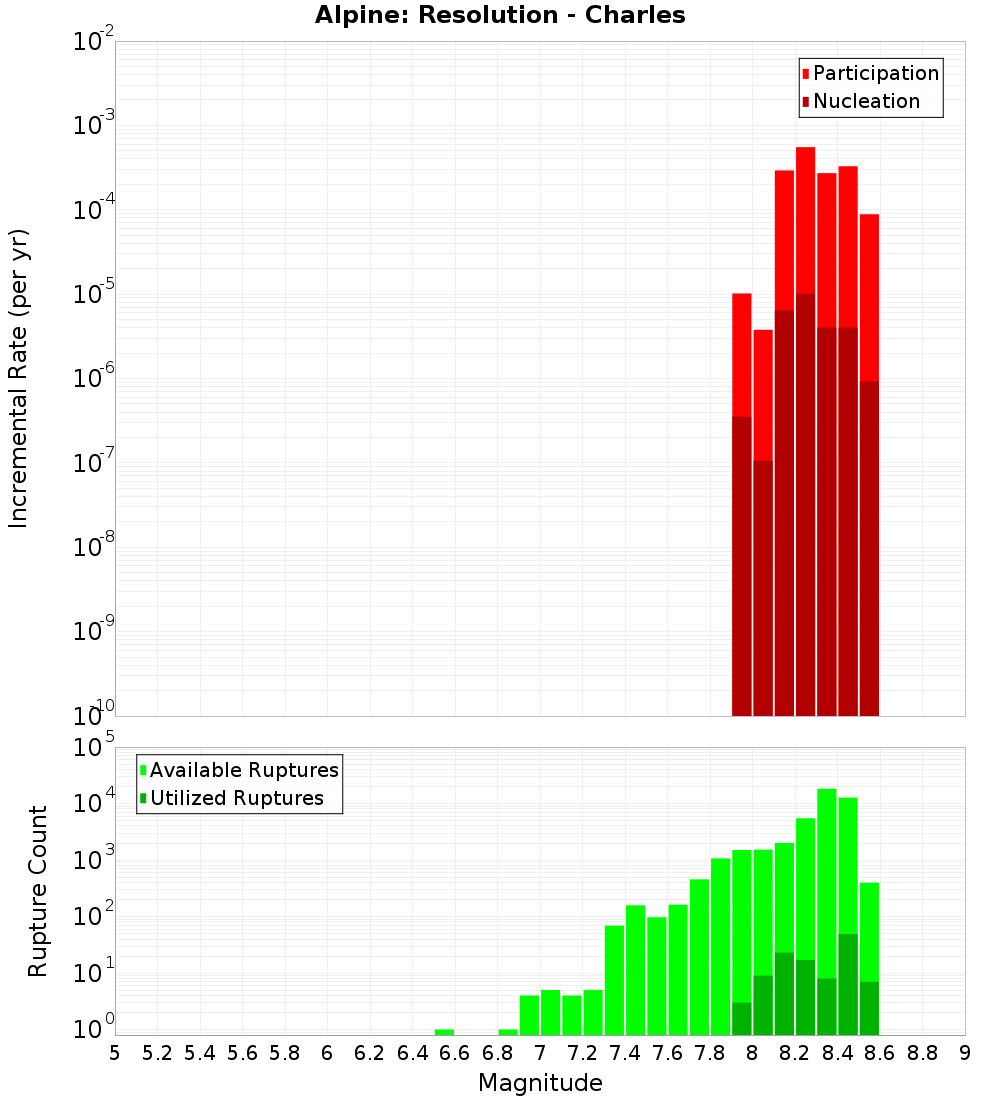

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

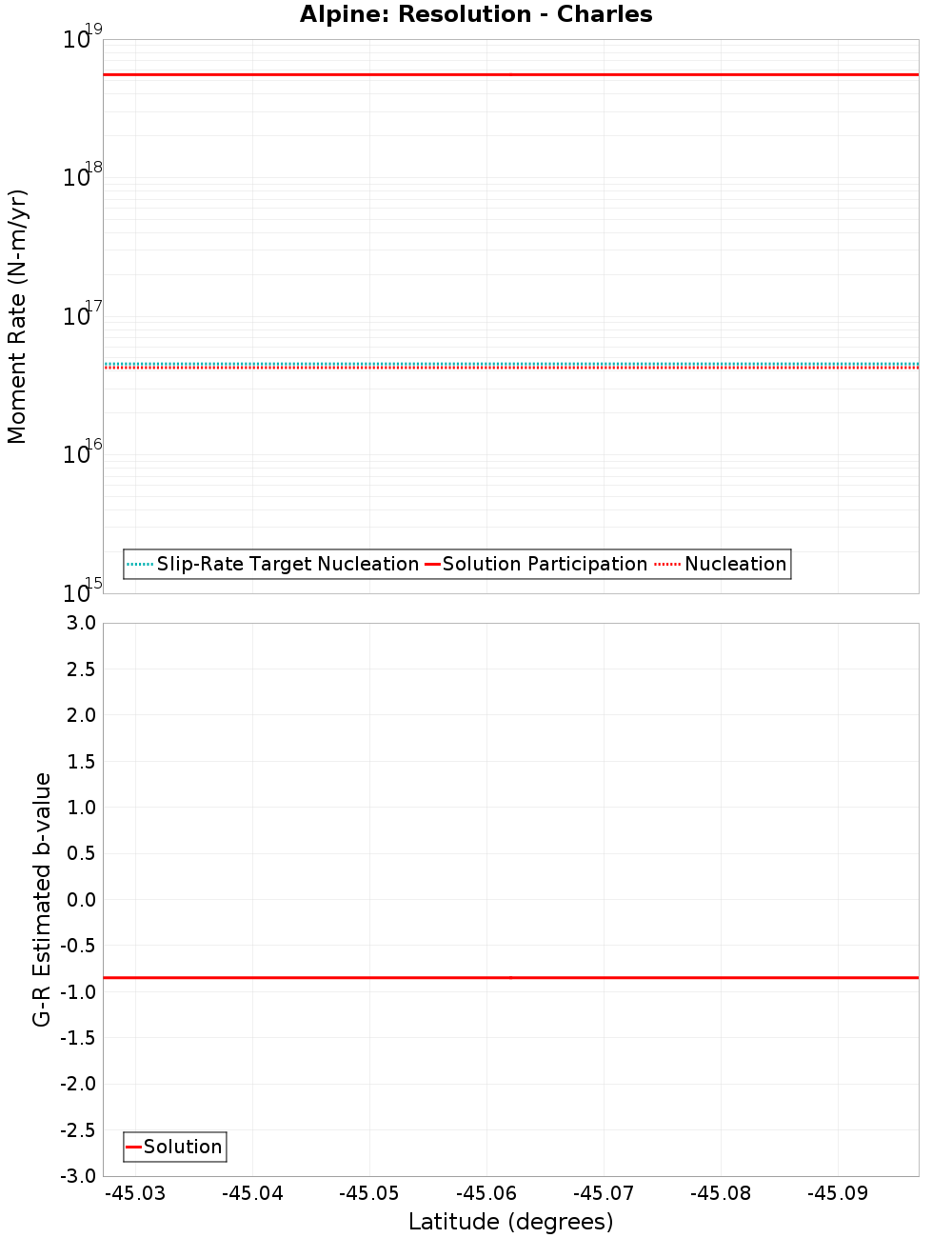

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Dagg, 0 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 3.34 km away
Central Wedge 1 & 2 & 3, 3.34 km away
South Wedge 2, 4.8 km away
Central Wedge 4 - South Wedge 411, 6.29 km away
South Wedge 1, 10.6 km away
South Wedge 3-6-10, 18.31 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?true
Co-rupture Count42,384
Co-rupture Rate0.0015460721

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?true
Co-rupture Count376
Co-rupture Rate0.0

Alpine: Caswell, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?true
Co-rupture Count43,482
Co-rupture Rate0.0015460721

Central Wedge 1 & 2 & 3, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?true
Co-rupture Count277
Co-rupture Rate0.0

South Wedge 2, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?false
Co-rupture Count1,608
Co-rupture Rate1.3785831E-4

Central Wedge 4 - South Wedge 411, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?false
Co-rupture Count1,114
Co-rupture Rate5.5614895E-5

South Wedge 1, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?false
Co-rupture Count378
Co-rupture Rate0.0

South Wedge 3-6-10, 18.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTUuMG1tNmlD
Connected?true
Directly Connected?false
Co-rupture Count3,997
Co-rupture Rate1.5594237E-4
