Blue Mountain Details

PropertyValue
Rupture Count952
Ruptures Above Sect Min Mag951
Ruptures w/ Nonzero Rates22
Magnitude Range[7.18, 8.29]
Length Range[26, 379] km
Total Rate3.636674E-5 /yr
Multi-Fault Rate3.636674E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults43

Table Of Contents

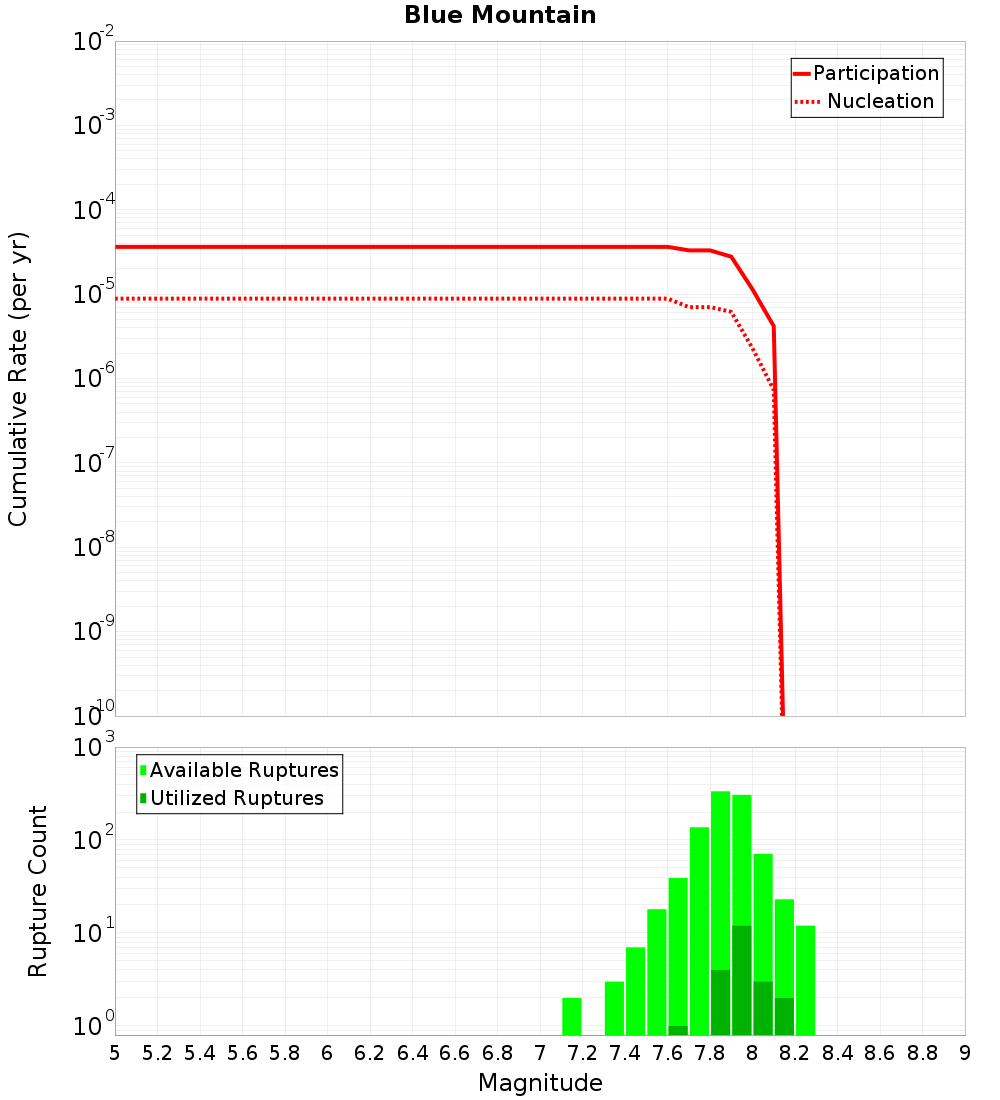

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

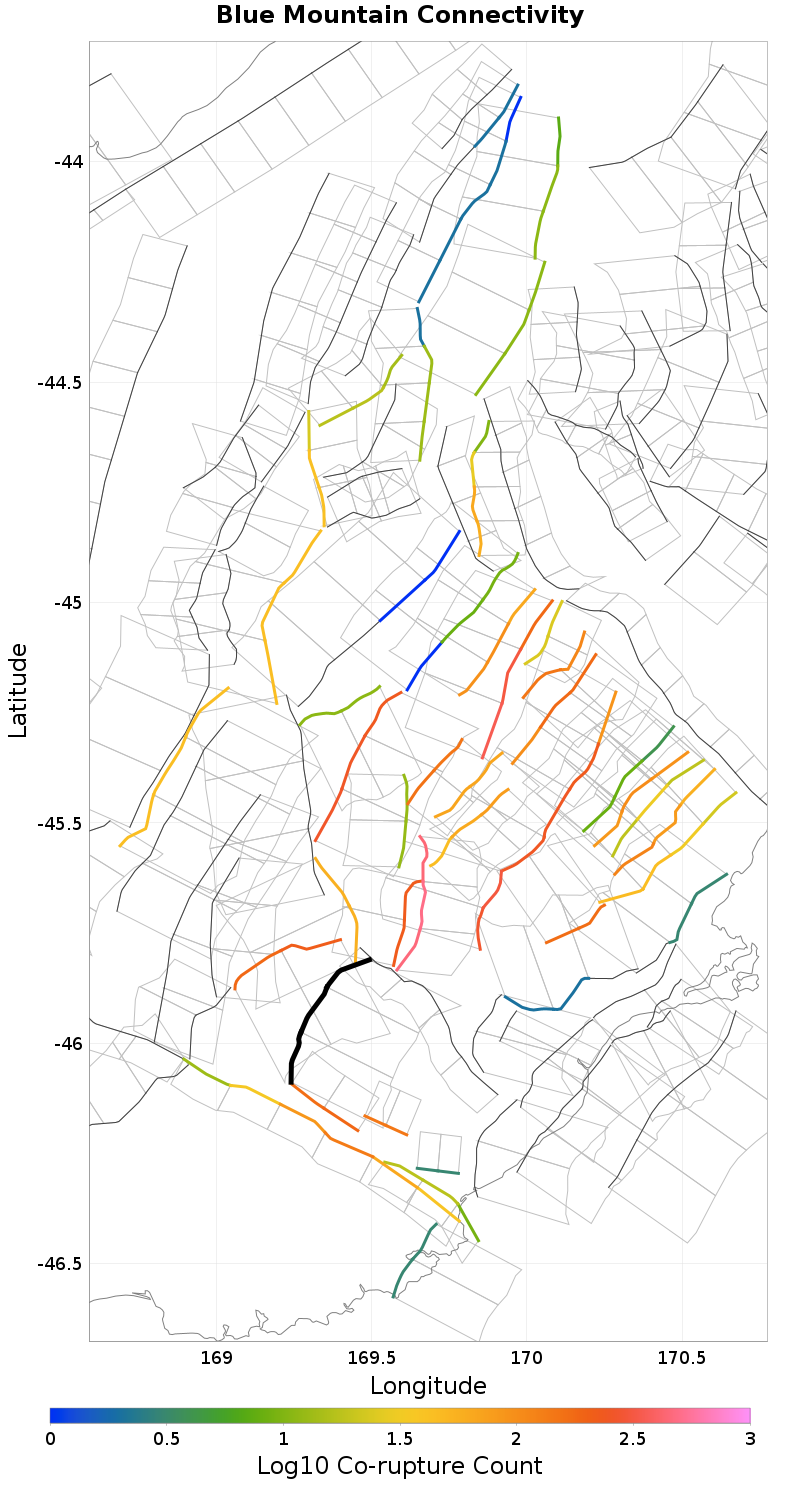

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Beacon Hill, 0.09 km away
Tuapeka, 0.19 km away
Clifton, 0.25 km away
Teviot, 0.77 km away
Backbone, 1 km away
Beaumont River, 3.49 km away
Spylaw, 3.92 km away
Hillfoot, 6.17 km away
Otanomomo, 9.29 km away
Hyde South - The Twins, 12.86 km away
Little Hillfoot, 14.2 km away
Maungatua - North Taieri, 18.09 km away
Old Man, 19.27 km away

Beacon Hill, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate7.827183E-6

Tuapeka, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clifton, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count143
Co-rupture Rate1.3616556E-5

Teviot, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate3.625257E-7

Backbone, 1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count223
Co-rupture Rate7.854714E-6

Beaumont River, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count490
Co-rupture Rate7.762211E-6

Spylaw, 3.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate1.6756912E-5

Hillfoot, 6.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count150
Co-rupture Rate1.076706E-5

Otanomomo, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate7.19158E-6

Hyde South - The Twins, 12.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count305
Co-rupture Rate1.7443946E-5

Little Hillfoot, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate2.0749769E-7

Maungatua - North Taieri, 18.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Old Man, 19.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
