Fisherman 1 Details

PropertyValue
Rupture Count37
Ruptures Above Sect Min Mag37
Ruptures w/ Nonzero Rates5
Magnitude Range[6.87, 7.73]
Length Range[16, 152] km
Total Rate2.2896918E-4 /yr
Multi-Fault Rate2.2896918E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults8

Table Of Contents

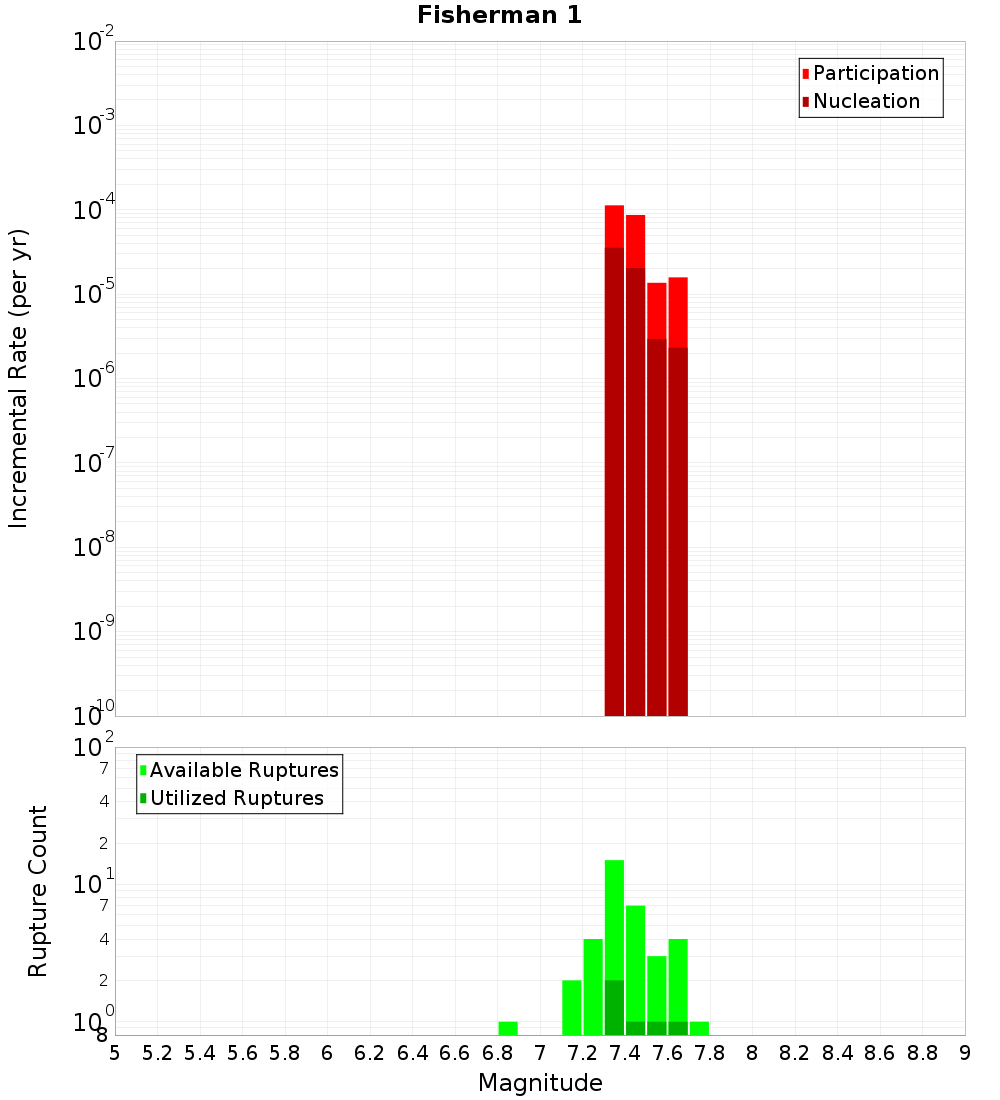

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

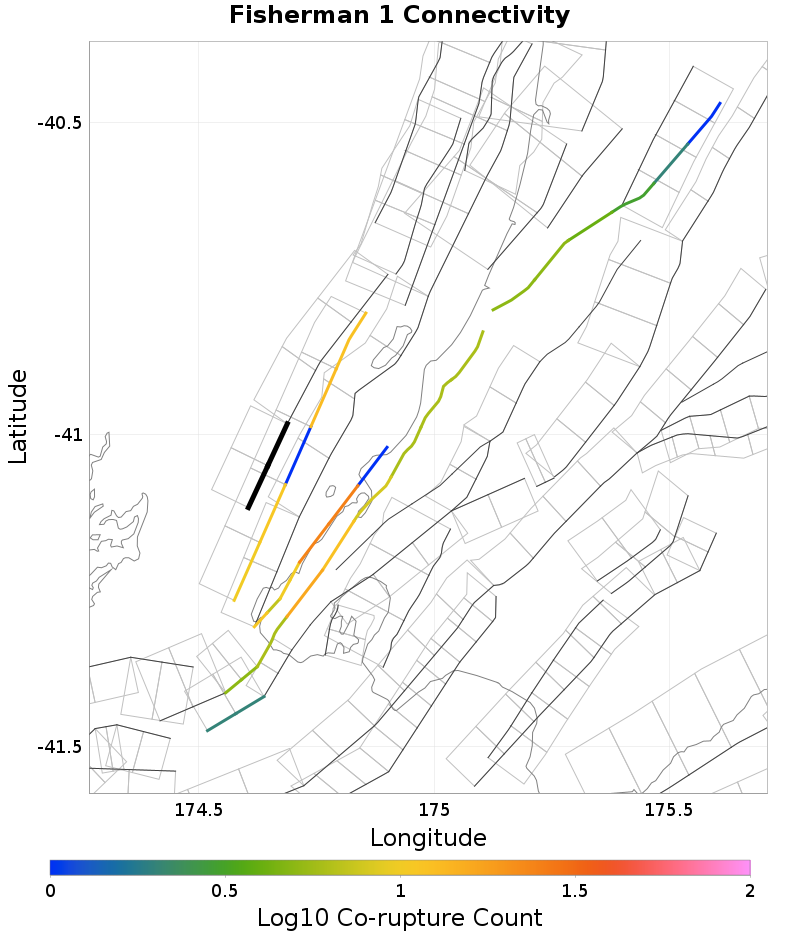

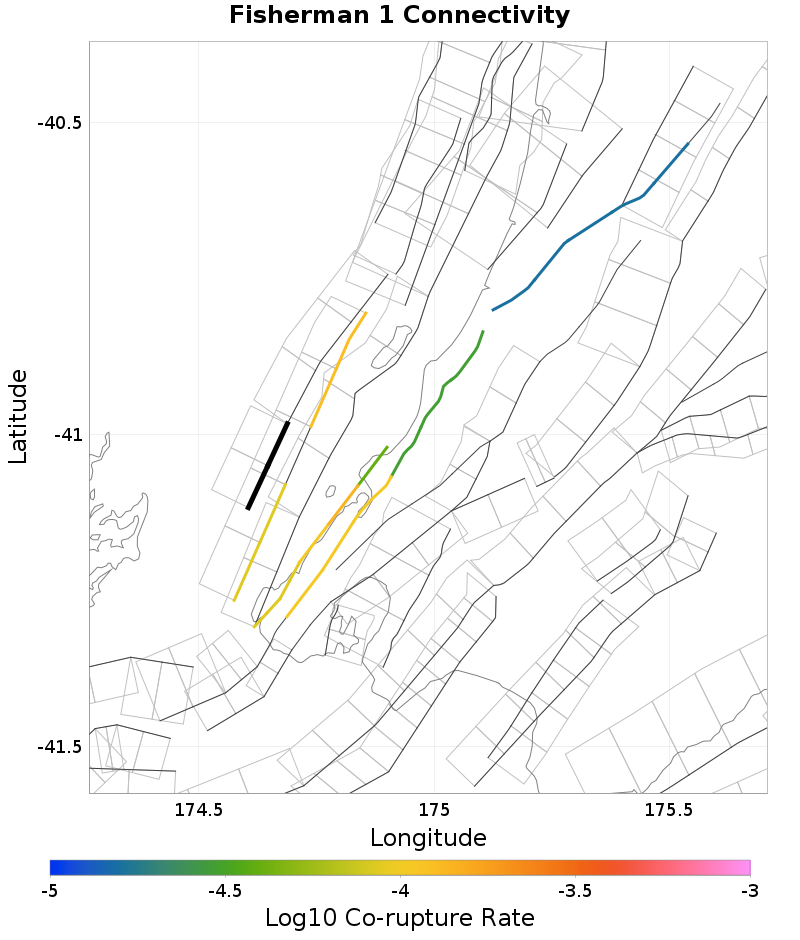

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fisherman 2, 0 km away
Okupe 1, 3.93 km away
Shepherds Gully - Mana, 8.62 km away
Otaheke South, 8.64 km away
Pukerua - Shepherds Gully: 3, 13.16 km away
Pukerua - Shepherds Gully: 2, 13.34 km away
Ohariu, 17.14 km away
Pukerua - Shepherds Gully: 1, 17.2 km away
Moonshine, 19.14 km away

Fisherman 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate2.1200262E-4

Shepherds Gully - Mana, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate1.4225183E-4

Pukerua - Shepherds Gully: 2, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate8.671735E-5

Ohariu, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate1.0368392E-4

Pukerua - Shepherds Gully: 1, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate8.671735E-5

Moonshine, 19.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
