Little Valley Details

PropertyValue
Rupture Count467
Ruptures Above Sect Min Mag466
Ruptures w/ Nonzero Rates4
Magnitude Range[7.15, 8.09]
Length Range[29, 255] km
Total Rate8.361903E-6 /yr
Multi-Fault Rate8.361903E-6 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults29

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

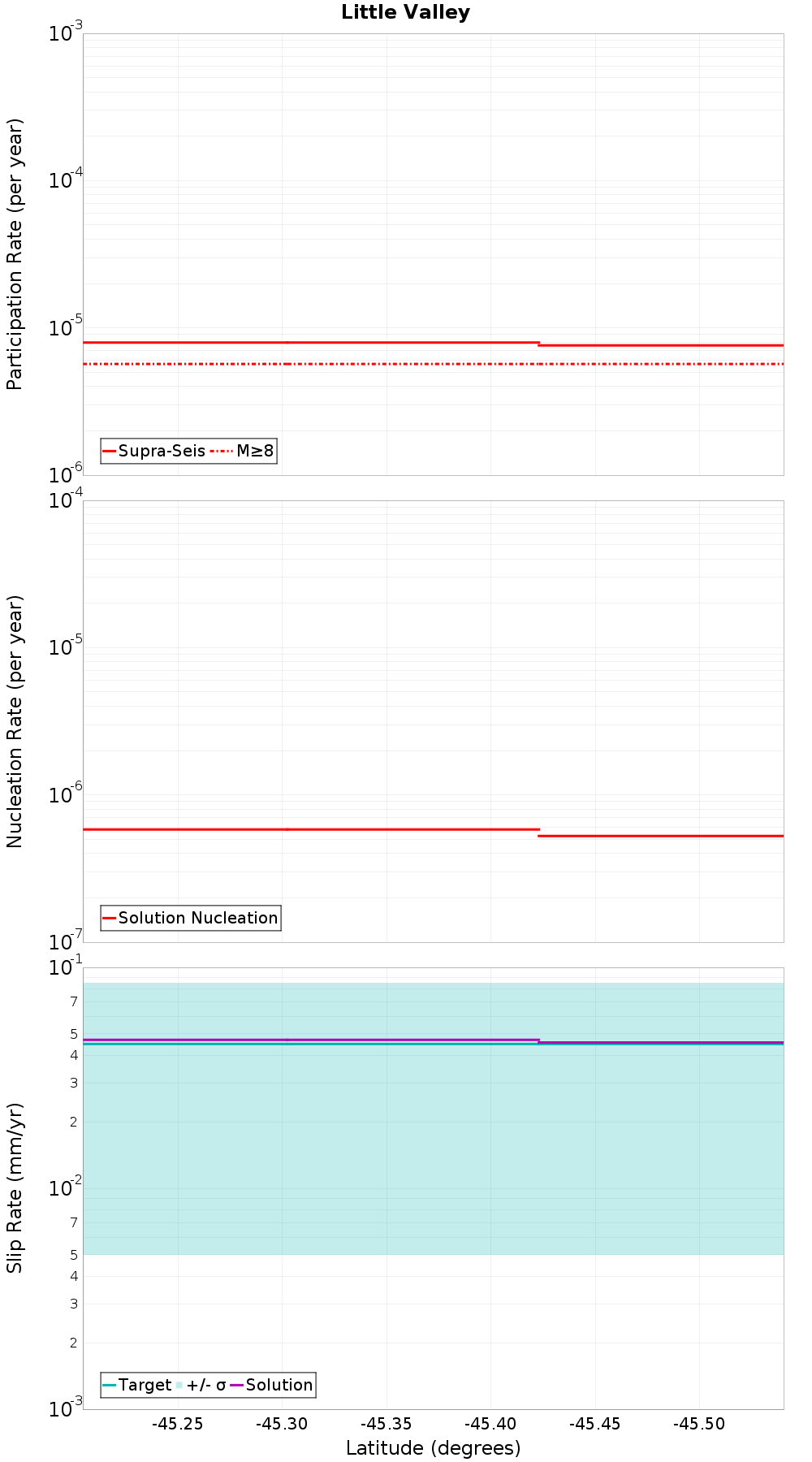

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

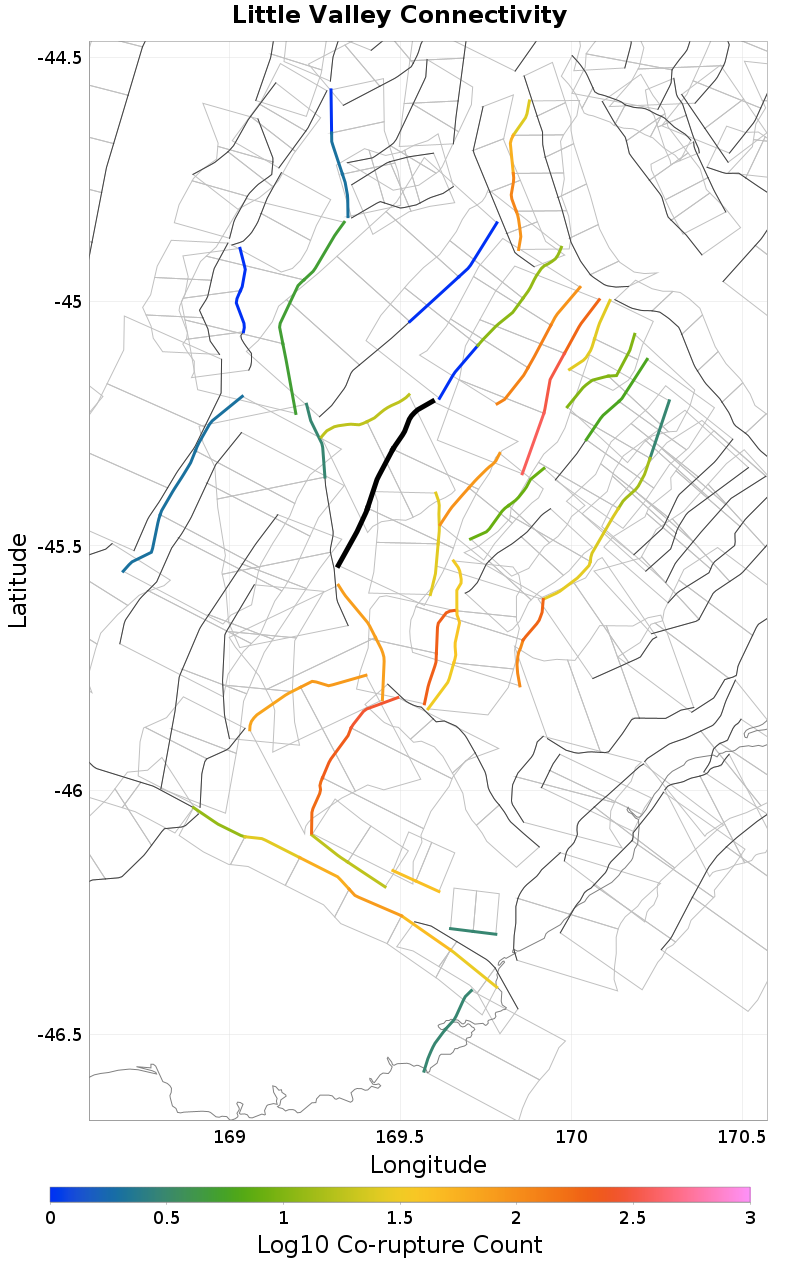

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Gimmerburn, 0.18 km awayLong Valley, 6.27 km away
Lake Onslow, 0.28 km awayGaribaldi, 6.55 km away
Backbone, 0.48 km awayBeaumont River, 11.44 km away
Old Man, 1.17 km awayPylap, 12.8 km away
Hyde South - The Twins, 1.41 km awayWaikaia, 15.33 km away
Raggedy - Blackstone, 1.45 km awayDunstan, 16.36 km away
Hyde North, 2.72 km awayLogan Burn, 16.5 km away
Galloway, 2.75 km awayWendon Valley, 17.29 km away
Teviot, 4.31 km awayHorse Flat, 17.63 km away

Gimmerburn, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count366
Co-rupture Rate8.361903E-6

Lake Onslow, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate7.595013E-7

Backbone, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count206
Co-rupture Rate7.6024025E-6

Old Man, 1.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Hyde South - The Twins, 1.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count187
Co-rupture Rate4.1082248E-7

Raggedy - Blackstone, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Hyde North, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Galloway, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate0.0

Teviot, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?true
Co-rupture Count77
Co-rupture Rate0.0

Long Valley, 6.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count93
Co-rupture Rate4.1082248E-7

Garibaldi, 6.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate5.6818444E-6

Beaumont River, 11.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate0.0

Pylap, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Waikaia, 15.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 16.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Logan Burn, 16.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
