Maimai Details

Property	Value
Rupture Count	135
Ruptures Above Sect Min Mag	135
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.99, 8.04]
Length Range	[25, 313] km
Total Rate	3.2758416E-4 /yr
Multi-Fault Rate	3.2758416E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

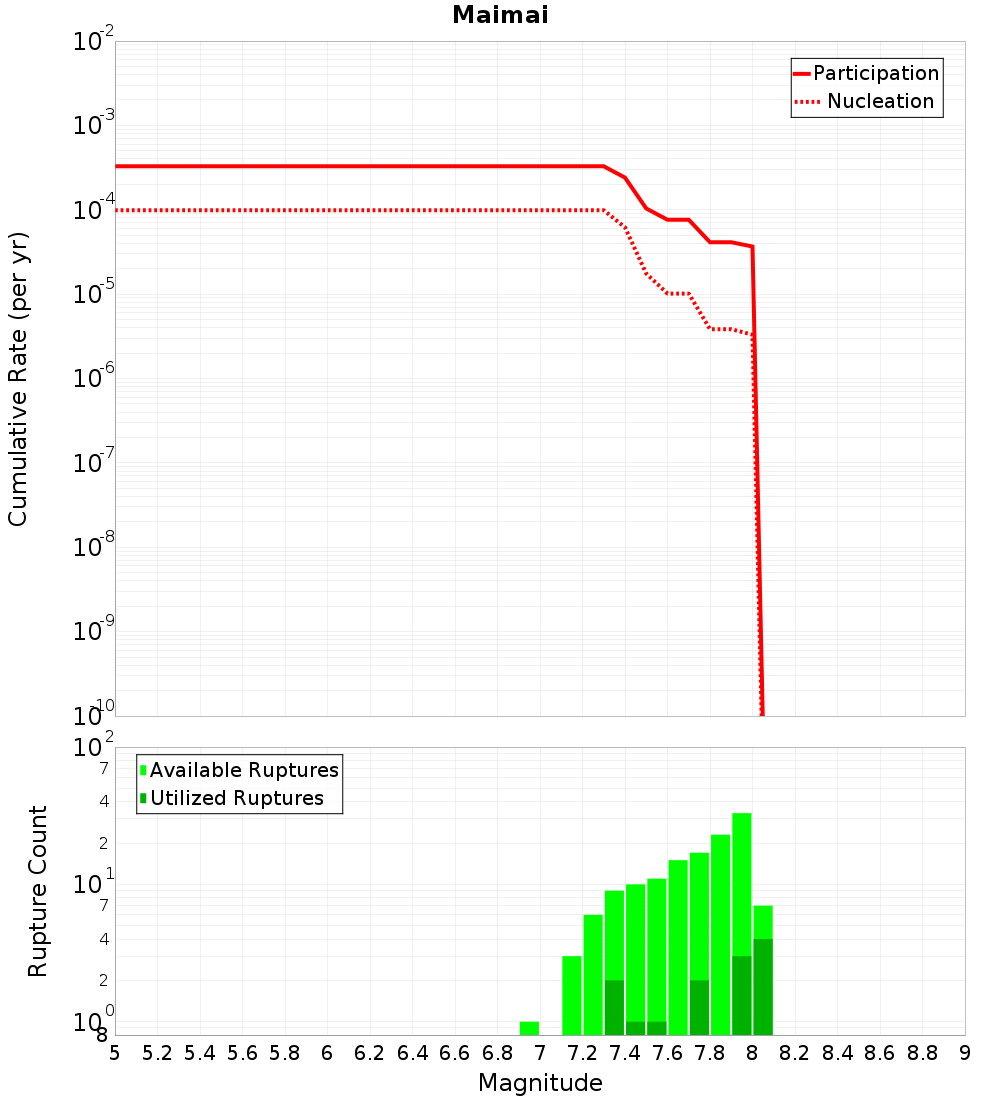

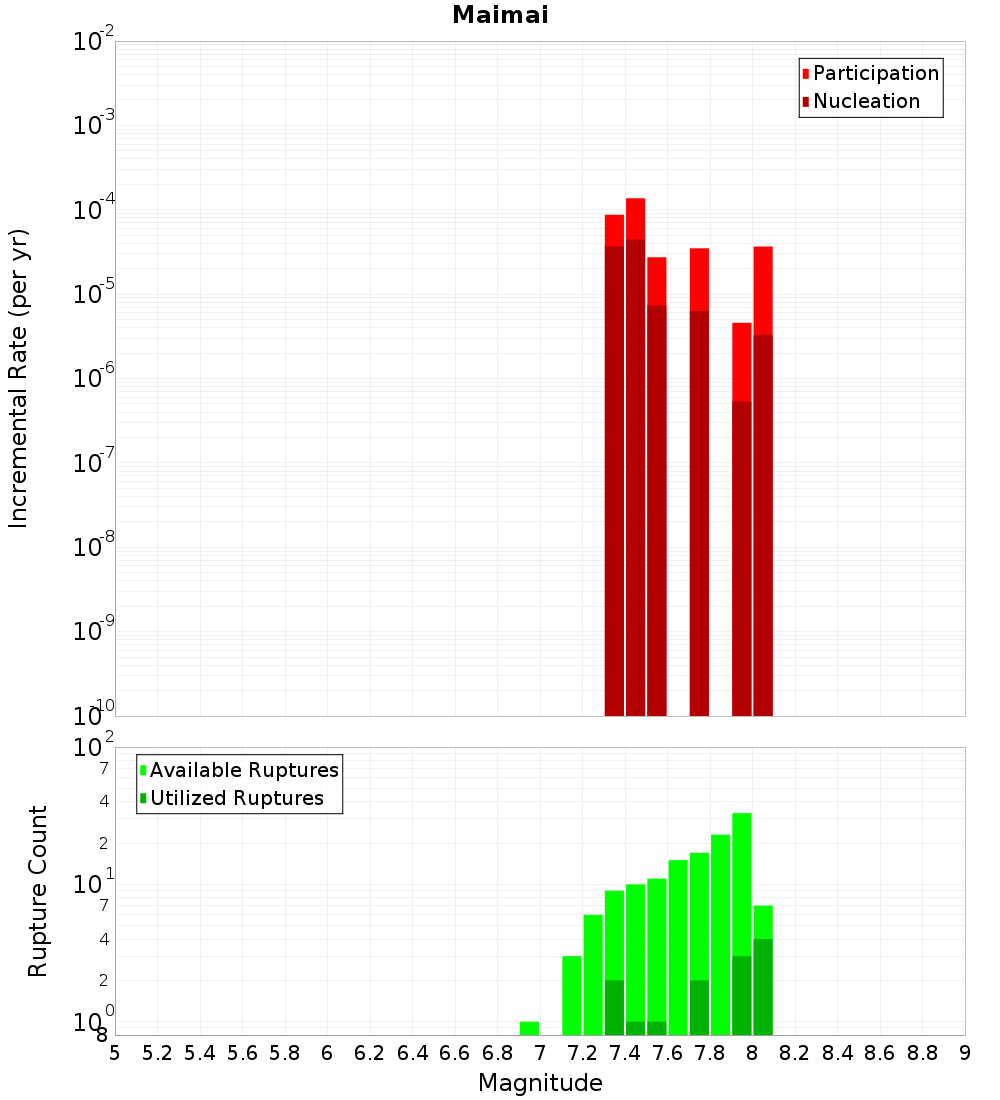

Magnitude-Frequency Distribution

Incremental	Cumulative

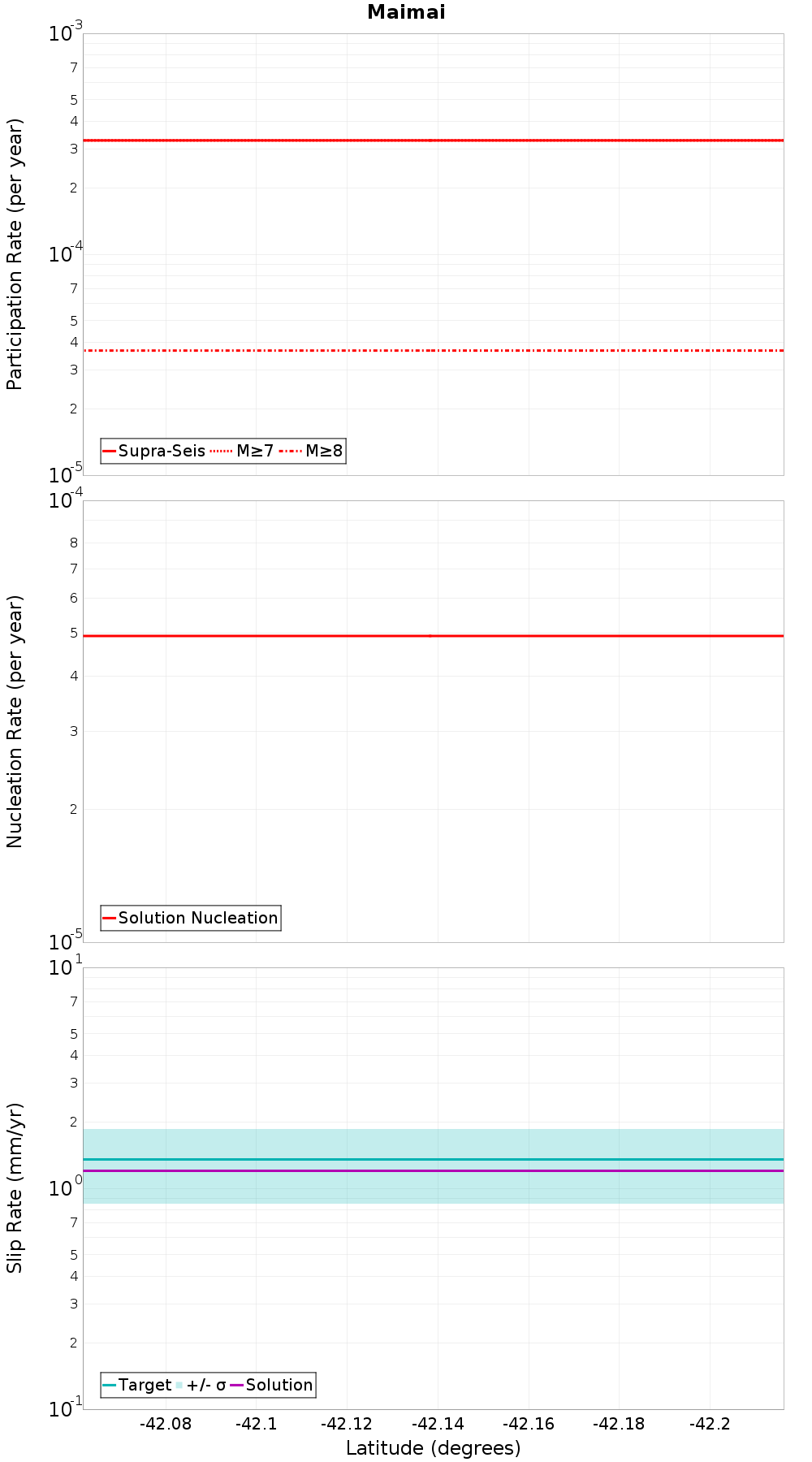

Along-Strike Values

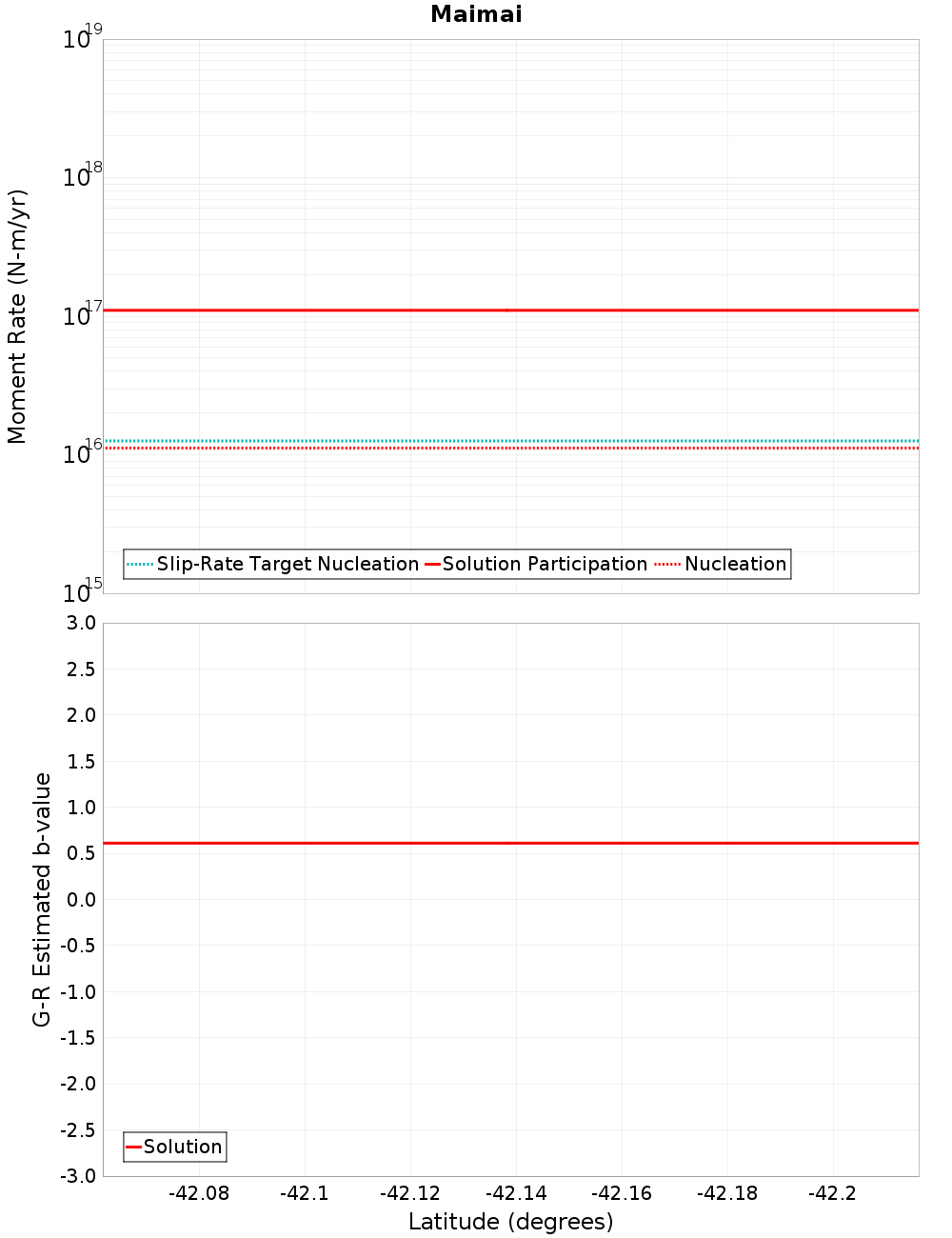

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.18 km away
Cape Foulwind 2, 0.28 km away
Cape Foulwind 1, 4.81 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	1.4047959E-4

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	0.0

Paparoa West, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	2.7524948E-4

Cape Foulwind 2, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Foulwind 1, 4.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	true
Directly Connected?	true
Co-rupture Count	87
Co-rupture Rate	4.1219126E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	3.49236E-5
