Nichols Rock Details
| Property | Value |
|---|---|
| Rupture Count | 401 |
| Ruptures Above Sect Min Mag | 401 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.94, 8.10] |
| Length Range | [18, 259] km |
| Total Rate | 9.852699E-6 /yr |
| Multi-Fault Rate | 9.852699E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

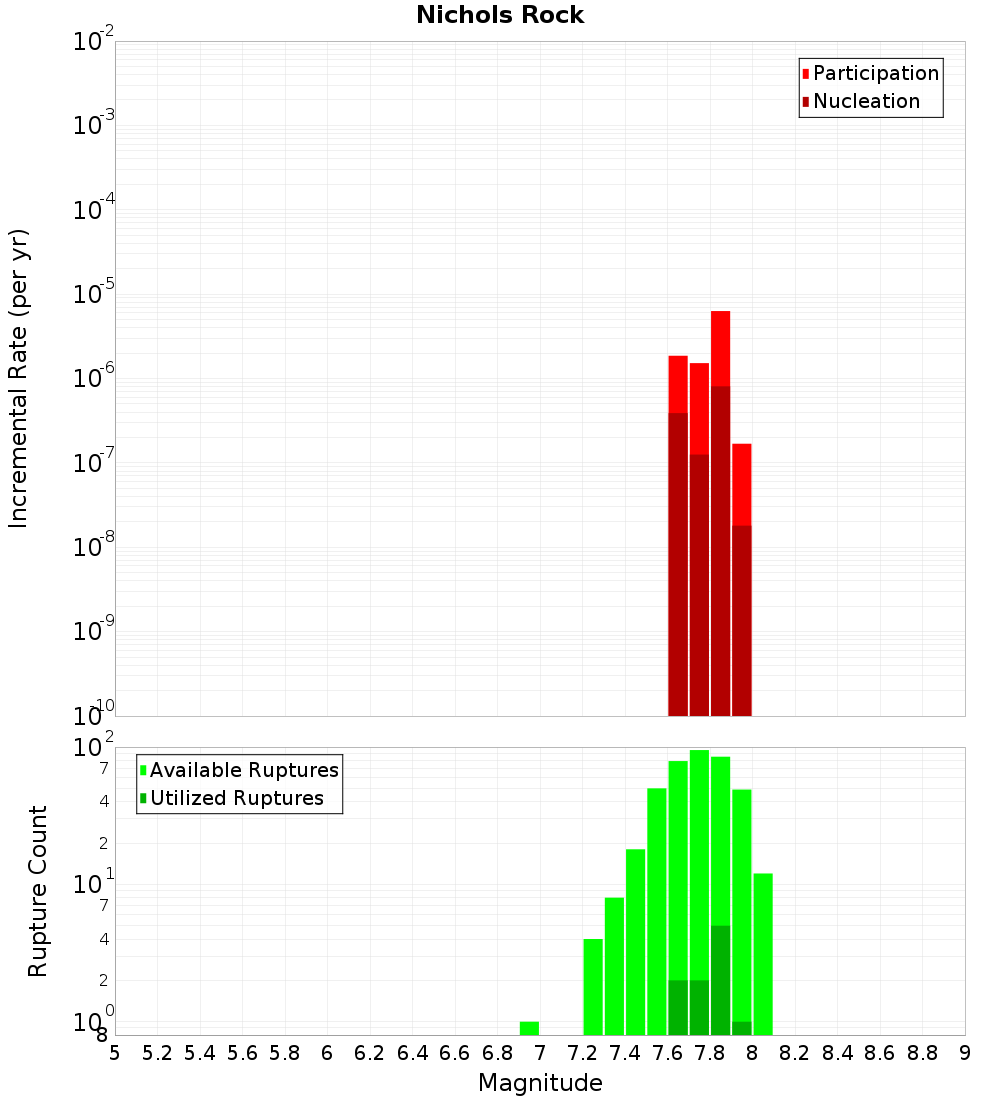

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

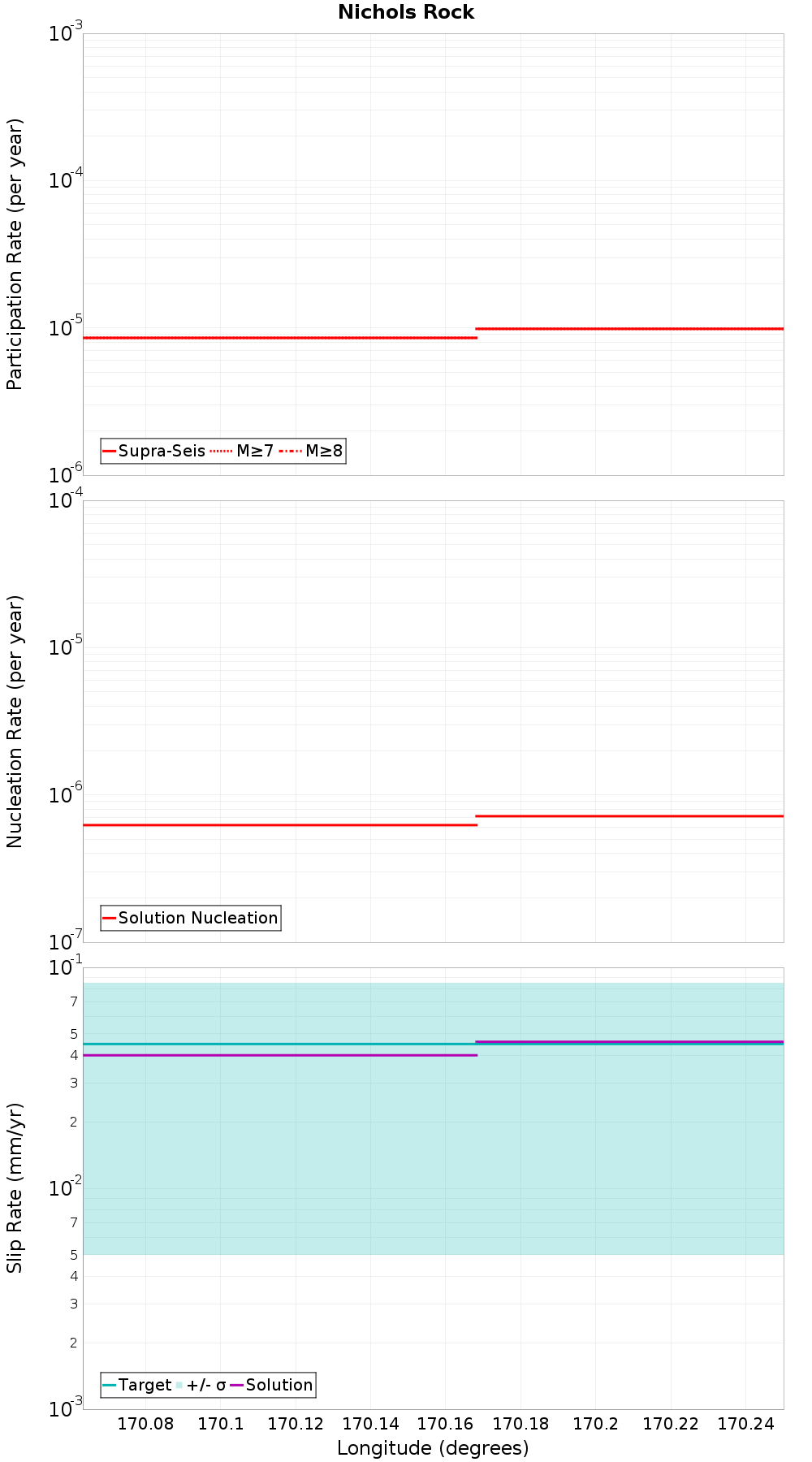

Along-Strike Values
Moment-Rates and b-Values

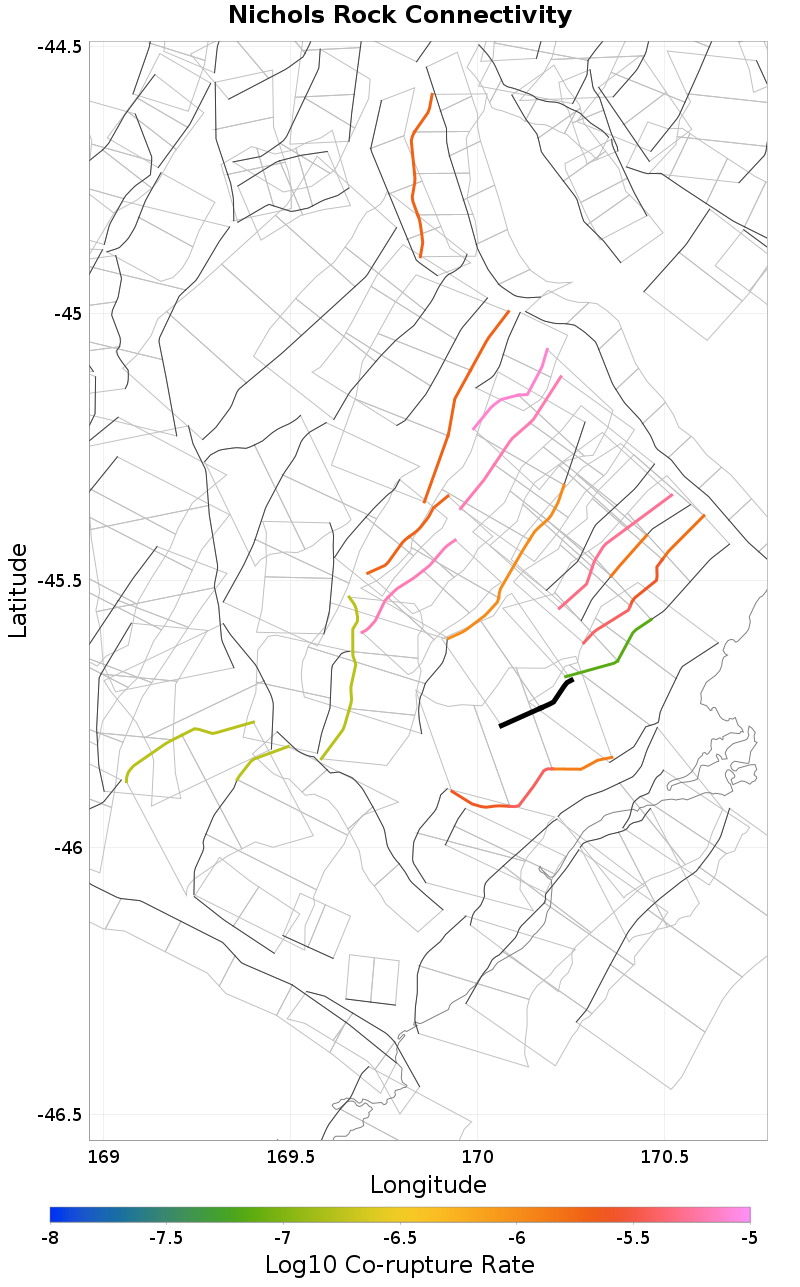

Connectivity
 |  |
|---|
Nearby Sections
Flat Stream - Glenpark, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 6.986219E-8 |
Logan Burn, 1.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 162 |
| Co-rupture Rate | 7.823021E-6 |
Dunback Hill, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 229 |
| Co-rupture Rate | 3.893891E-6 |
Beaumont River, 4.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 219 |
| Co-rupture Rate | 1.6870531E-7 |
Pylap, 7.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.9625063E-6 |
Murphys Creek, 7.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 50 |
| Co-rupture Rate | 1.452256E-6 |
Maungatua - North Taieri, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 44 |
| Co-rupture Rate | 3.7078837E-6 |
Waipiata, 8.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 195 |
| Co-rupture Rate | 6.437937E-6 |
Billys Ridge, 9.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 88 |
| Co-rupture Rate | 5.228617E-6 |
Sliver Stream - Merton, 12.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Horse Flat, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Hyde South - The Twins, 12.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Hyde North, 13.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 1.0406148E-6 |
Long Valley, 15.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitahuna 1, 16.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitahuna 2, 18.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
