Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t

Num Ruptures	332,000
Num Single-Stranded Ruptures	332,000 (100.00%)
Total Supra-Seis Rupture Rate	0.03262384
Total Supra-Seis Recurrence Interval	30.65 yrs
Total Moment Rate	3.0527527e19 N-m/yr
Deformation Model Total Moment Rate	2.7523217e19 N-m/yr
Magnitude Range	[5.77,8.73]
Length Range	[1.86,1204.33] km
Rupture Section Count Range	[2,124]

Logic Tree Branch
Solution MFDs
- Total Target MFDs
- NZ_RECTANGLE Gridded Region
Simulated Annealing Energy
Rupture Rate Distribution
Participation Rates
Section b-values
- Subsection b-values
- Parent Section b-values
Rupture Scalar Histograms
Attached Modules
- Rupture Set Modules
- Solution Modules
Fault Section Connections
- Connected Clusters
Slip Rates
Paleoseismic Data Comparison
Jump Counts Over Distance
Hazard Maps
- PGA Hazard Maps
- 1s SA Hazard Maps
Parent Section Detail Pages

Logic Tree Branch

(top)

Level	Choice
Fault Model	(N/A)
Fault Regime	Fault Regime
NZSHM22_SpatialSeisPDF	NZSHM22_1346
Slip Along Rupture Model (Dsr)	Uniform
Inversion Model	Characteristic (Constrained)
NZSHM22_ScalingRelationship	NZSHM22_ScalingRelationship
NZSHM22_FaultPolyParameters	NZSHM22_FaultPolyParameters
NZSHM22_MagBounds	NZSHM22_MagBounds
NZSHM22_SlipRateFactors	NZSHM22_SlipRateFactors
NZSHM22_Regions	NZSHM22_Regions
NZSHM22_DeformationModel	FAULT_MODEL

Solution MFDs

(top)

Total Target MFDs

(top)

Incremental MFDs	Cumulative MFDs

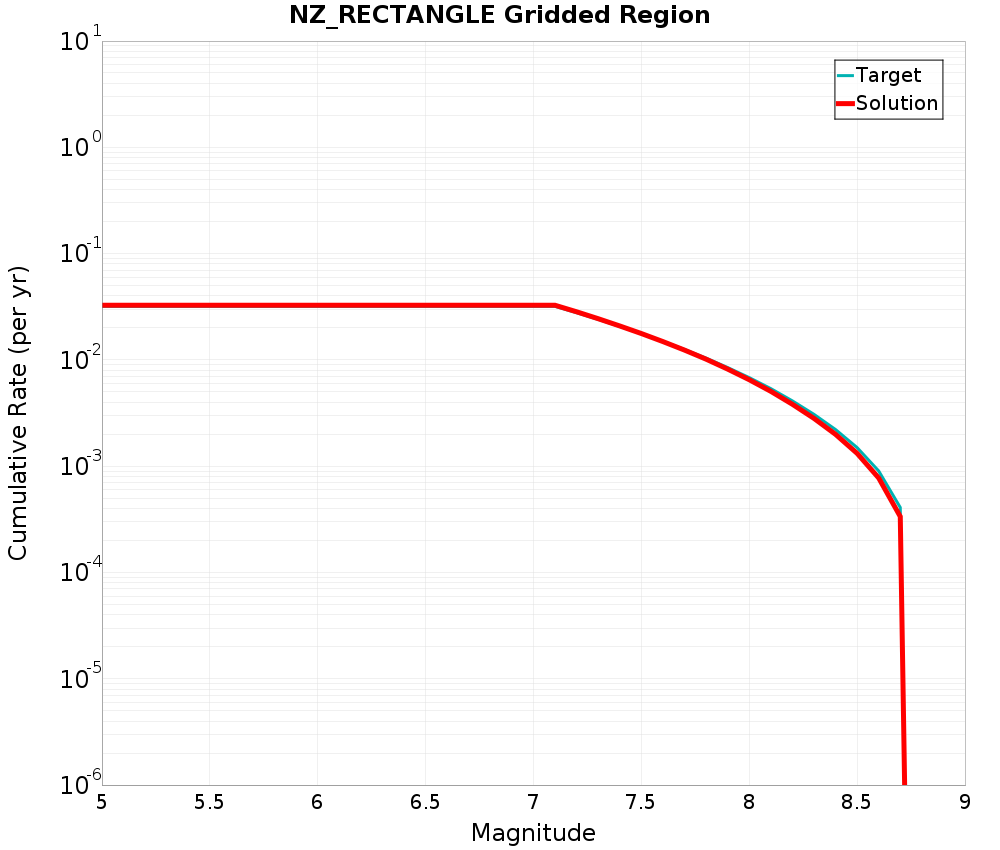

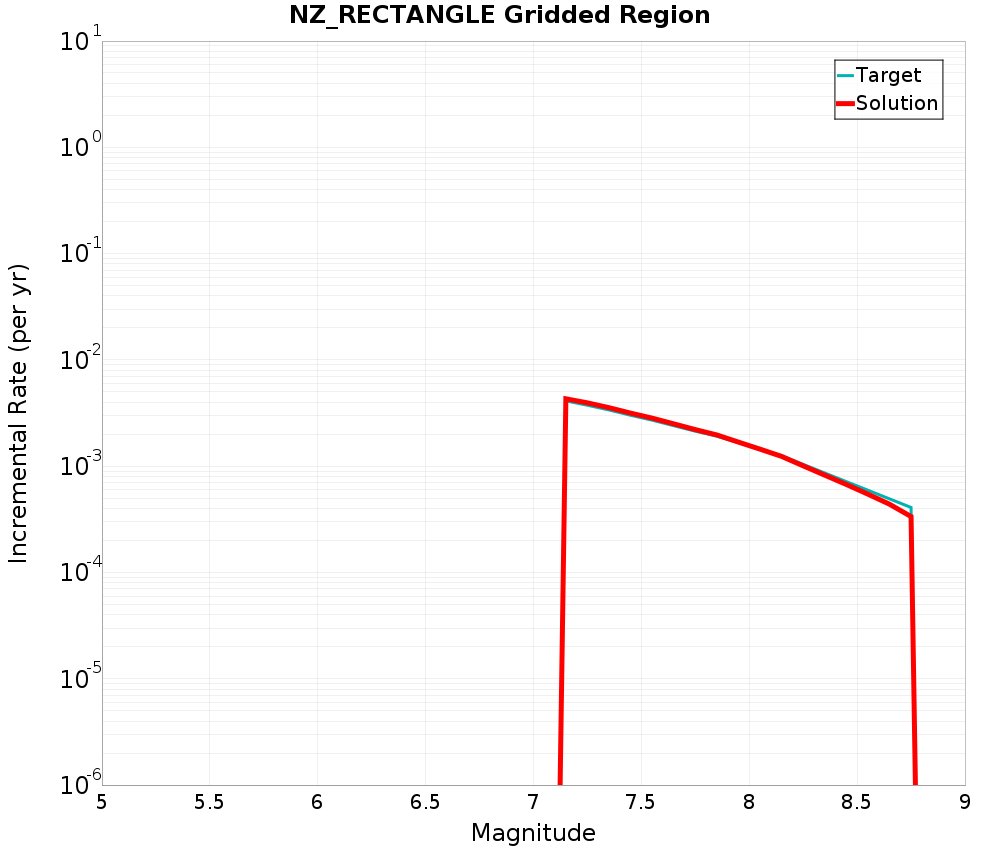

NZ_RECTANGLE Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

Simulated Annealing Energy

(top)

Iterations	3,238,488,112
Time	2 hours 0.3 mins
Iterations Per Sec.	448,637
Perturbations	9,733,589
# Worse Pertubations Kept	587,268
Iterations Per Perturb.	333
Total Energy	2577.8396

Final Energies

(top)

Energy Type	Final Energy (2 hours 0.3 mins)	% of Total	After 30 mins	1 hour	1 hour 30 mins
Total Energy	2577.8396		2584.593	2580.0322	2578.366
Equality Energy	2577.8396	100.00%	2584.593	2580.0322	2578.366
Entropy Energy	0.0	0.00%	0.0	0.0	0.0
Inequality Energy	0.0	0.00%	0.0	0.0	0.0
Uncertain Slip Rate	1239.1914	48.07%	1239.7317	1238.6207	1238.9083
Paleoseismic Event Rate	1052.3446	40.82%	1057.4486	1054.9303	1053.0574
Laplacian Smoothing (43 parents)	1.8520243E-5	0.00%	1.6231847E-5	1.8142522E-5	1.845715E-5
Rupture Rate Minimization	0.0	0.00%	0.0	0.0	0.0
Uncertain MFD Equality	286.30368	11.11%	287.41235	286.48117	286.40024

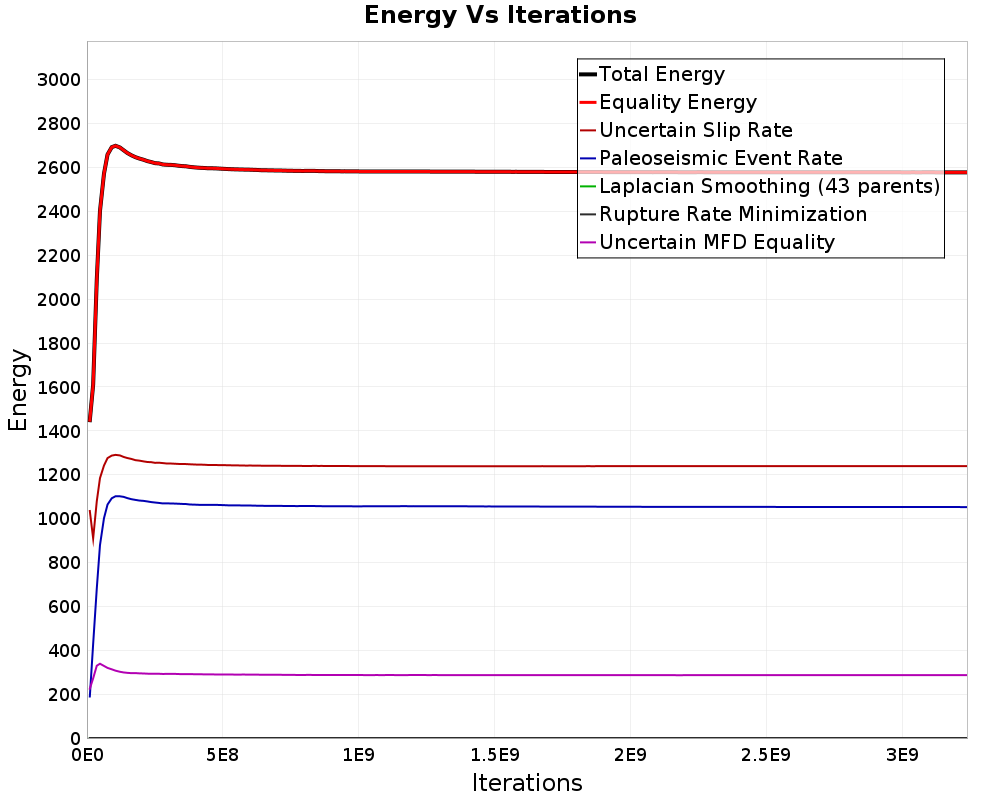

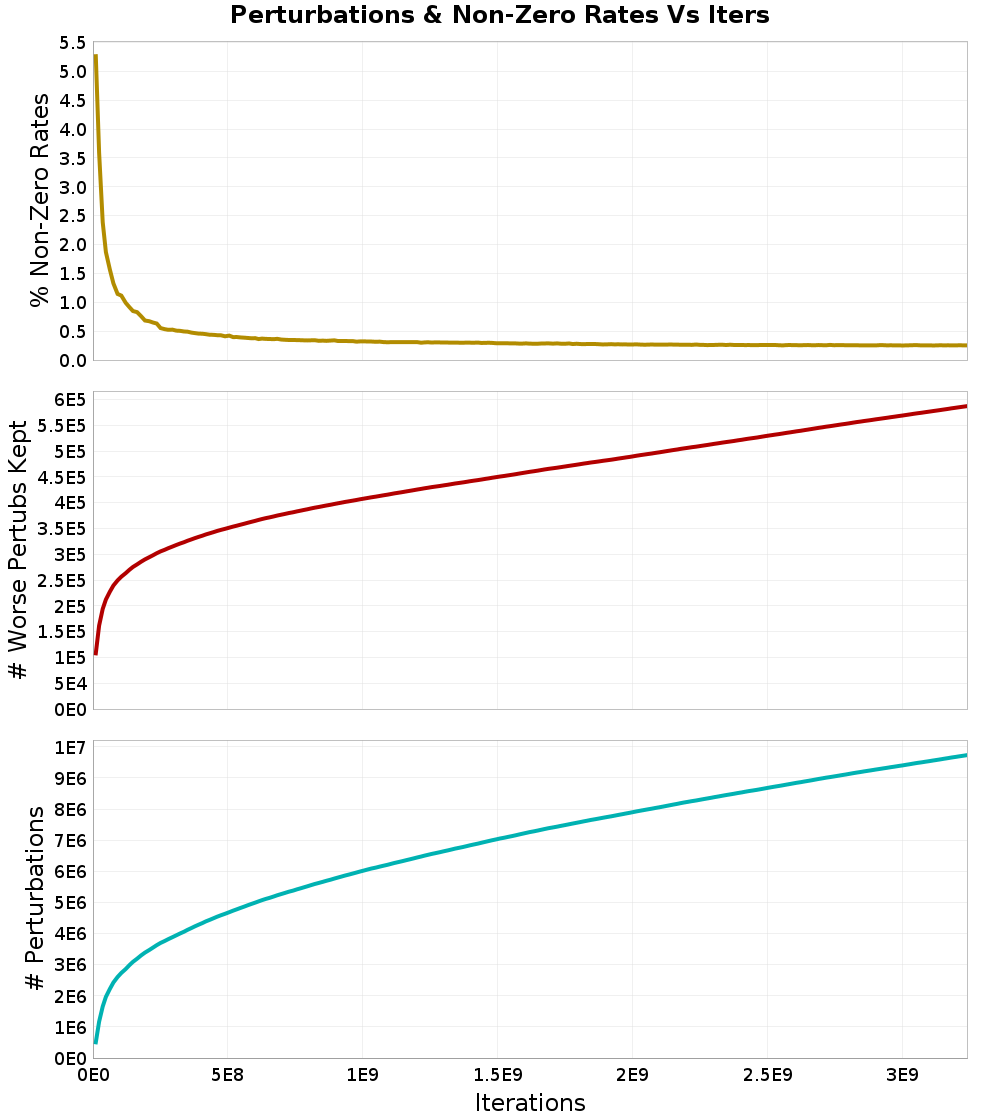

Energy Progress

(top)

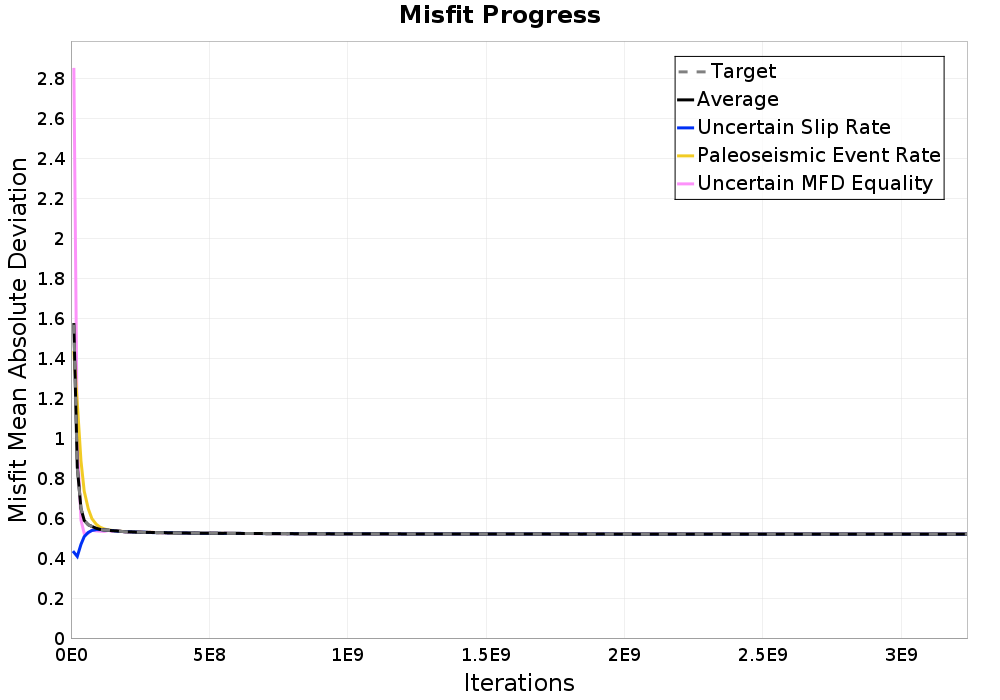

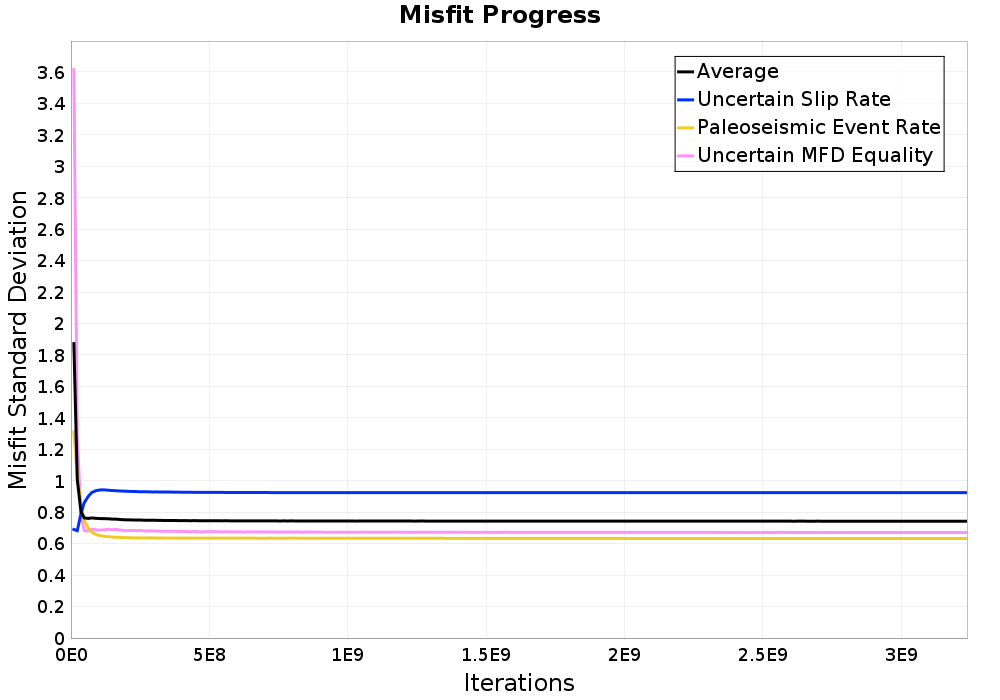

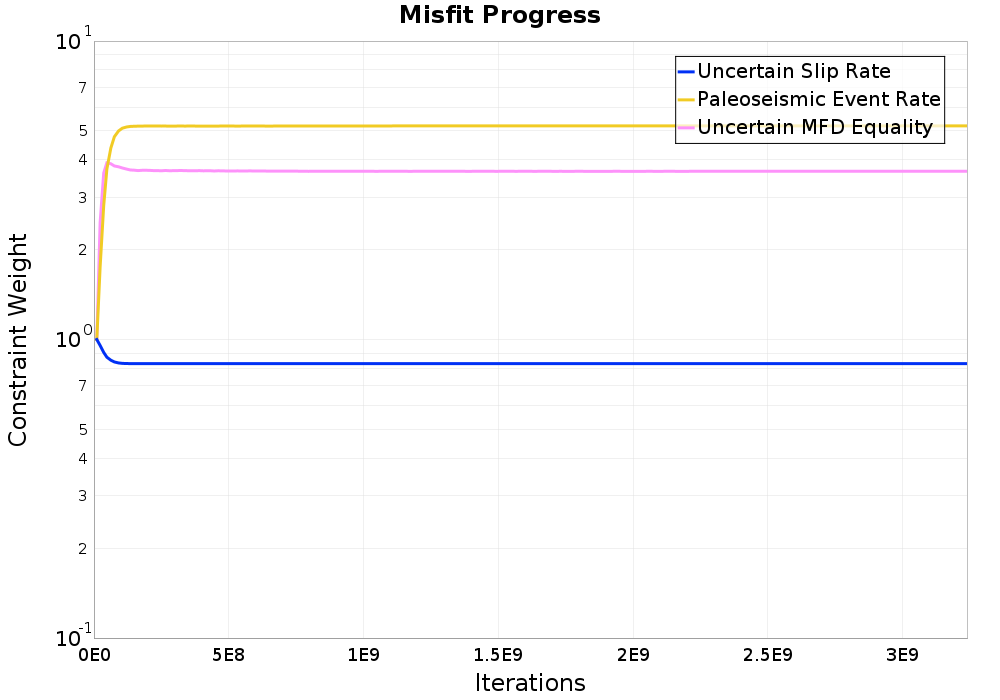

Constraint Misfit Progress

(top)

Rupture Rate Distribution

(top)

Non-zero ruptures	838 (0.25%)
Avg. # perturbations per rupture	29.318039
Avg. # perturbations per non-zero rupture	11615.262

Participation Rates

(top)

Supra-Seismogenic	Range: M≤6

Download GeoJSON	Download GeoJSON
M≥6	Range: M∈[6, 7]

Download GeoJSON	Download GeoJSON
M≥7	Range: M∈[7, 8]

Download GeoJSON	Download GeoJSON
M≥8

Download GeoJSON

Section b-values

(top)

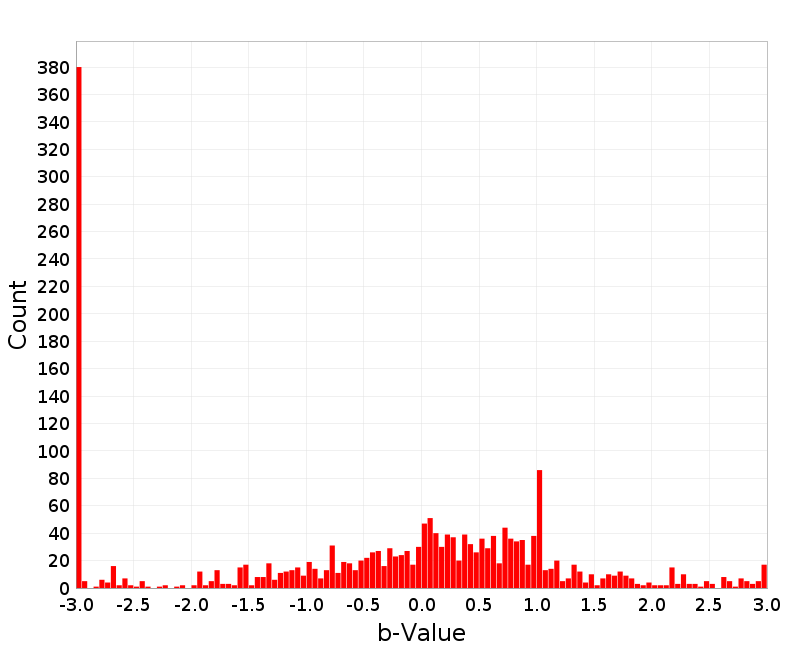

Subsection b-values

(top)

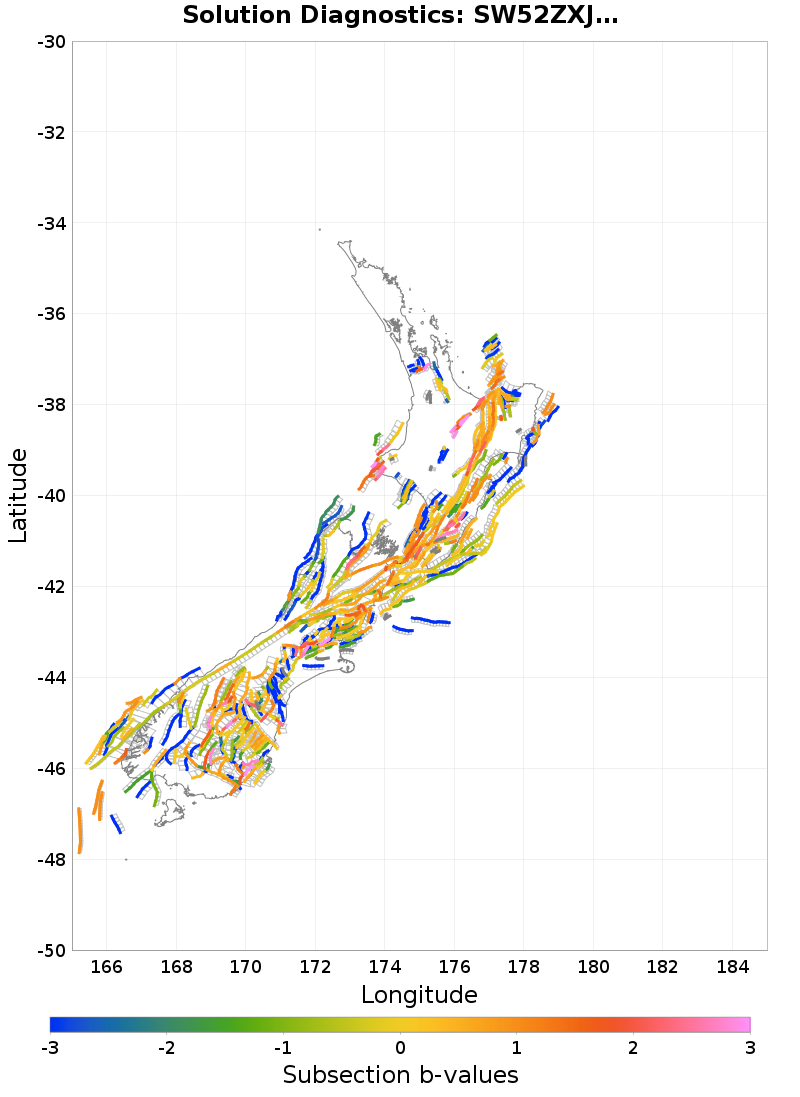

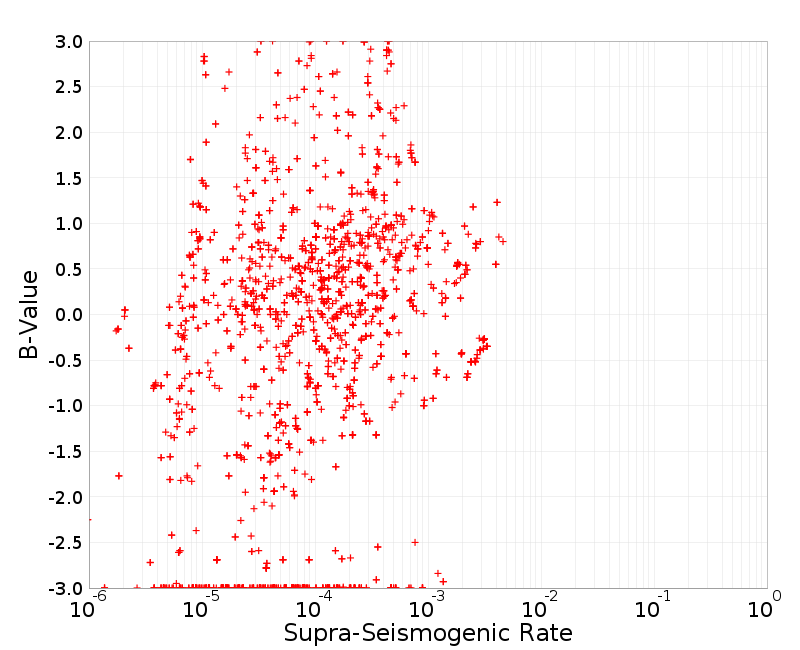

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Download b-value CSV file: sect_b_values.csv

b-Value Distribution	b-Value Rate-Dependence

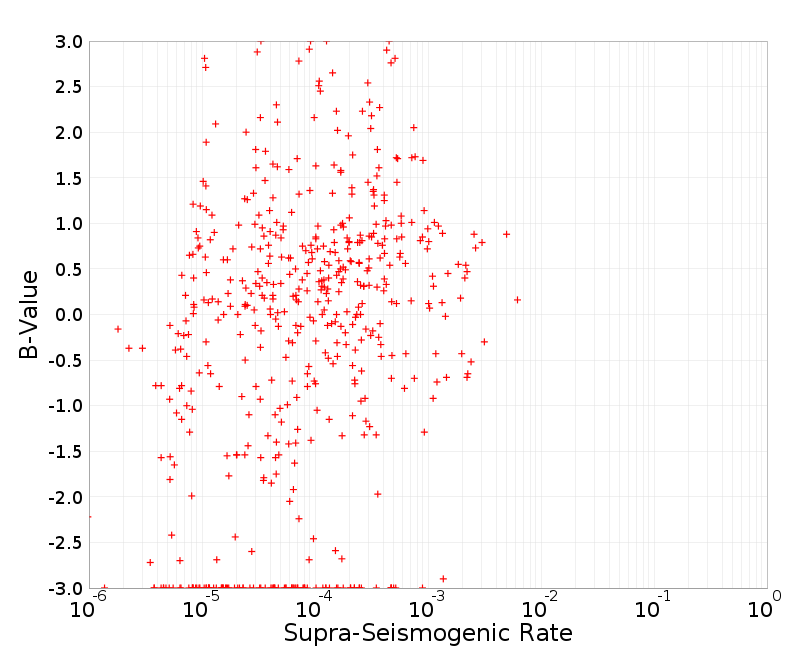

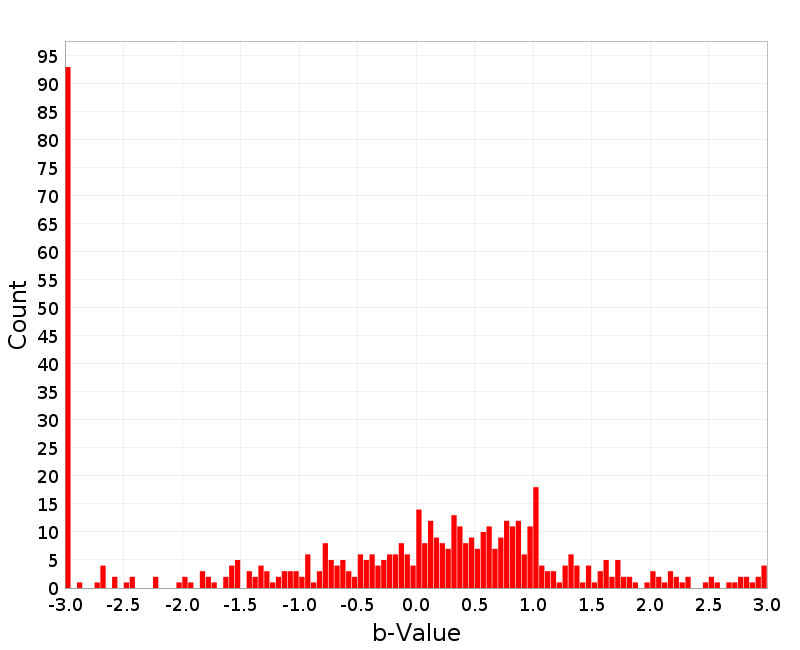

Parent Section b-values

(top)

Download b-value CSV file: parent_sect_b_values.csv

b-Value Distribution	b-Value Rate-Dependence

Rupture Scalar Histograms

(top)

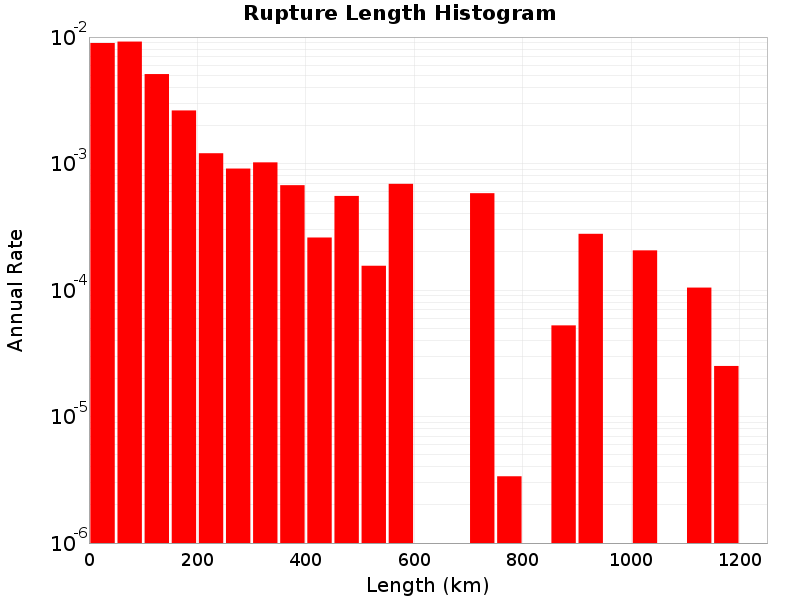

Rupture Length

(top)

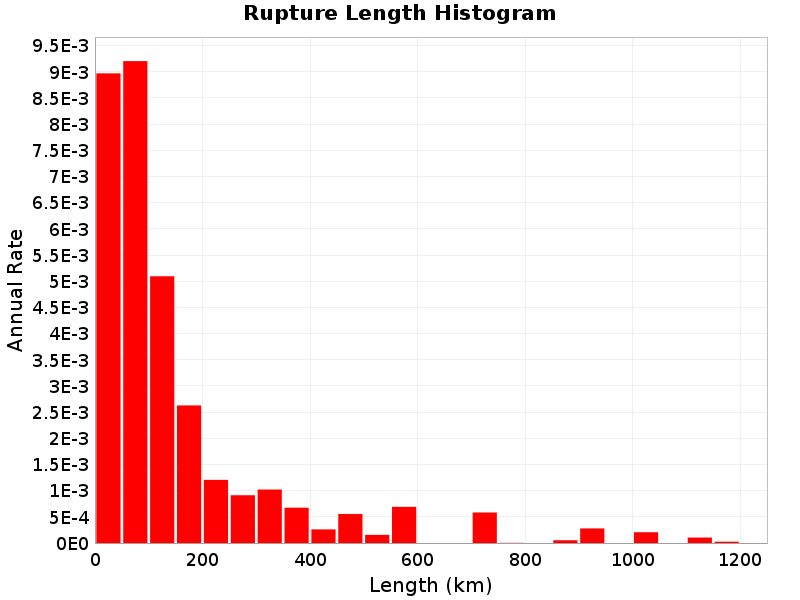

Total length (km) of the rupture, not including jumps or gaps.

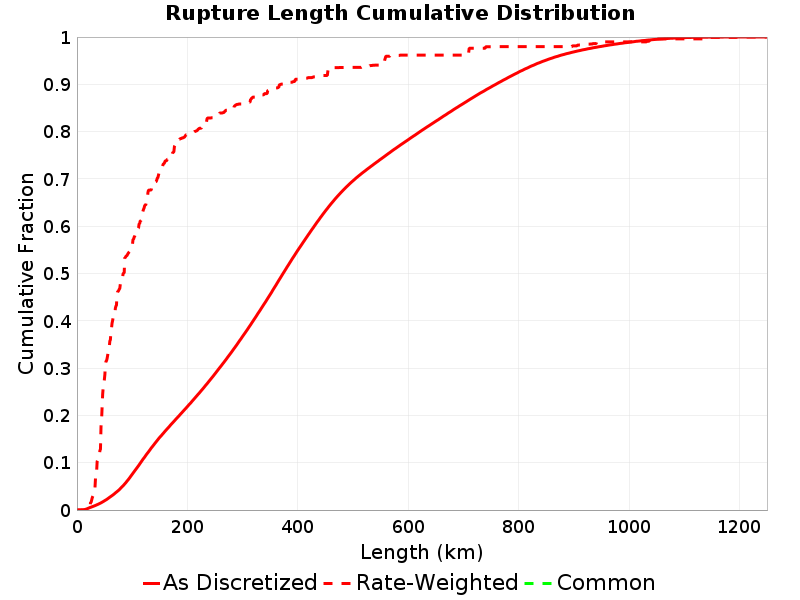

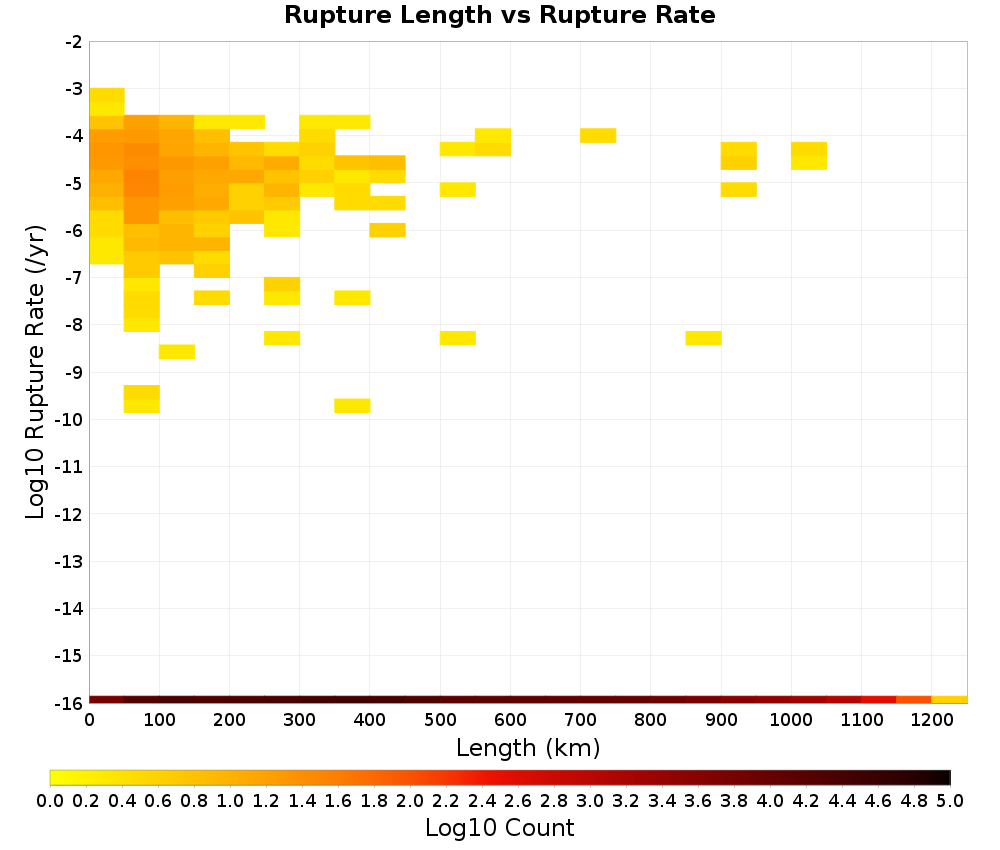

Rupture Length vs Rupture Rate

(top)

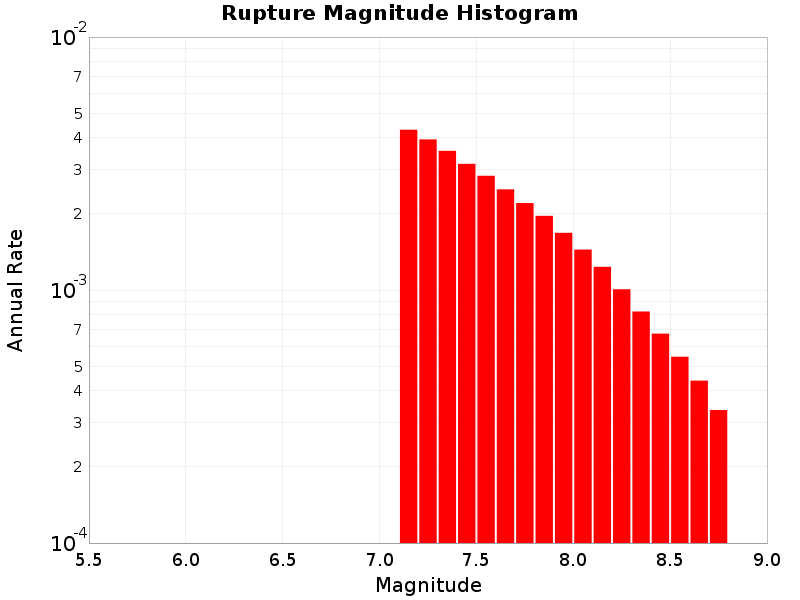

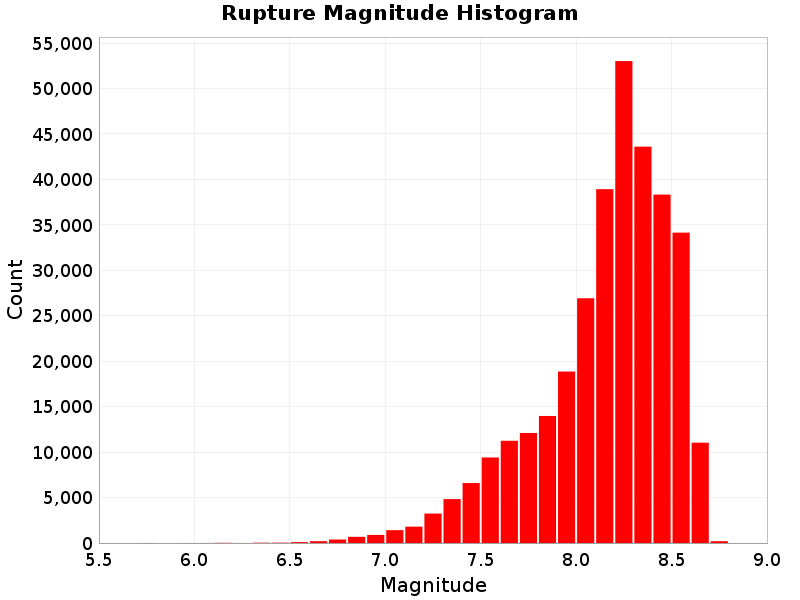

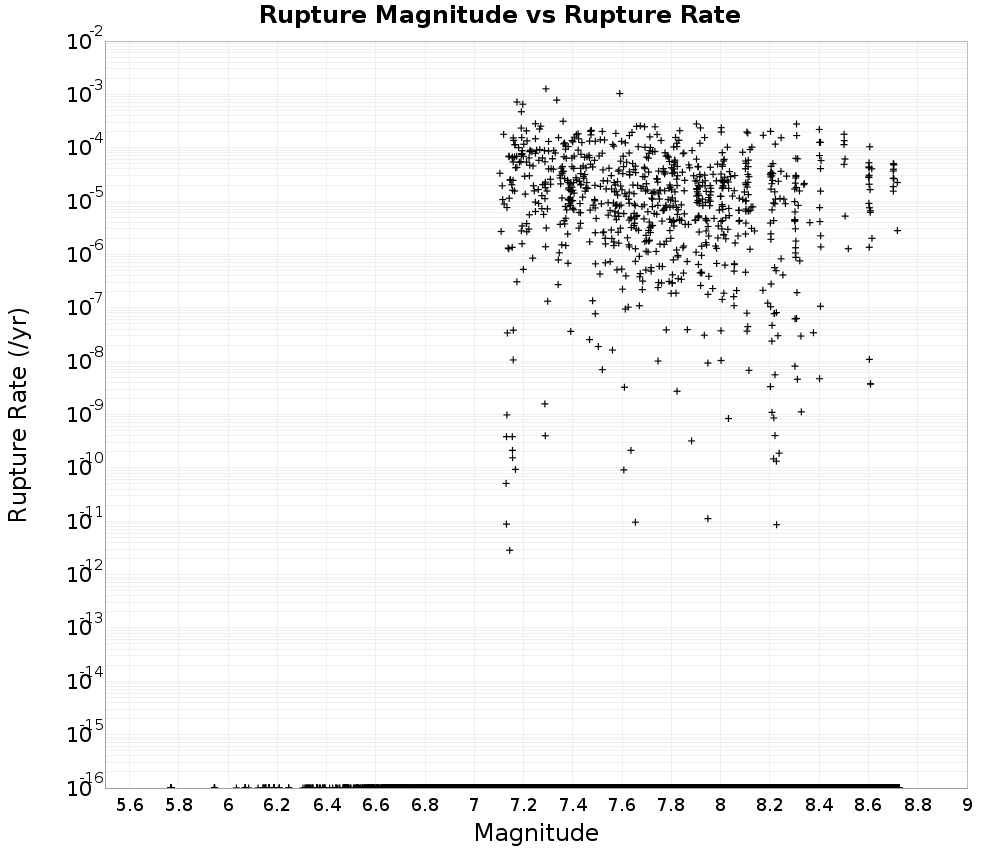

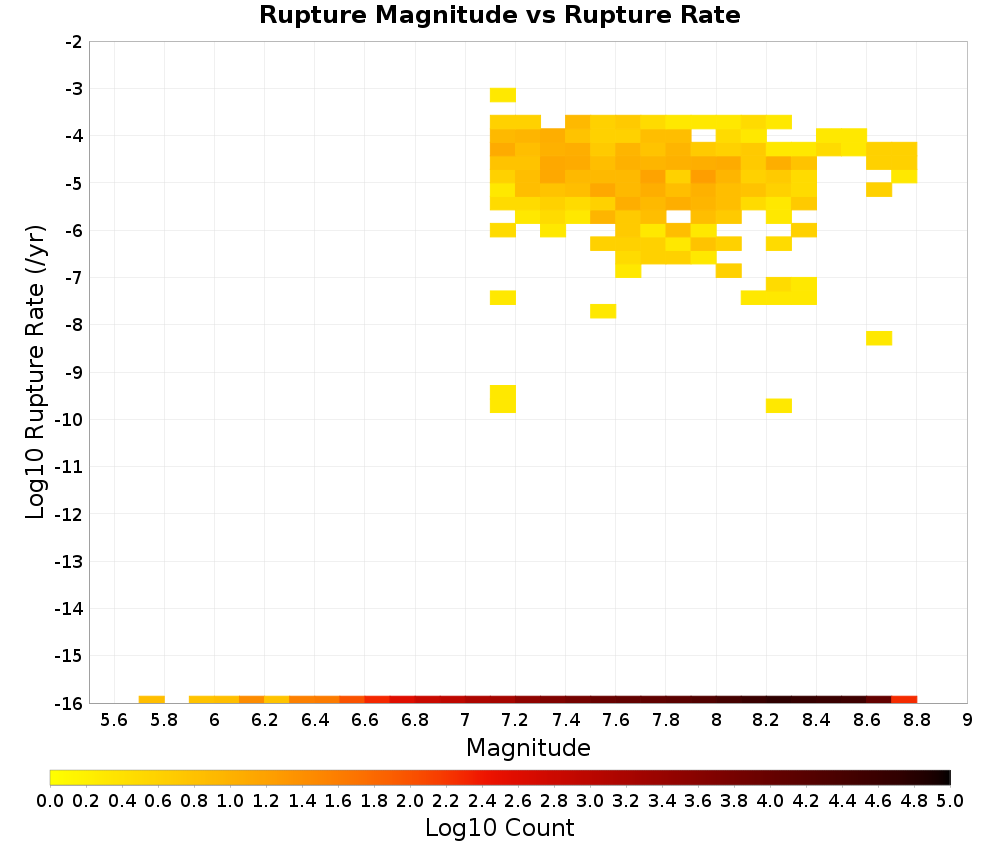

Rupture Magnitude

(top)

Magnitude of the rupture.

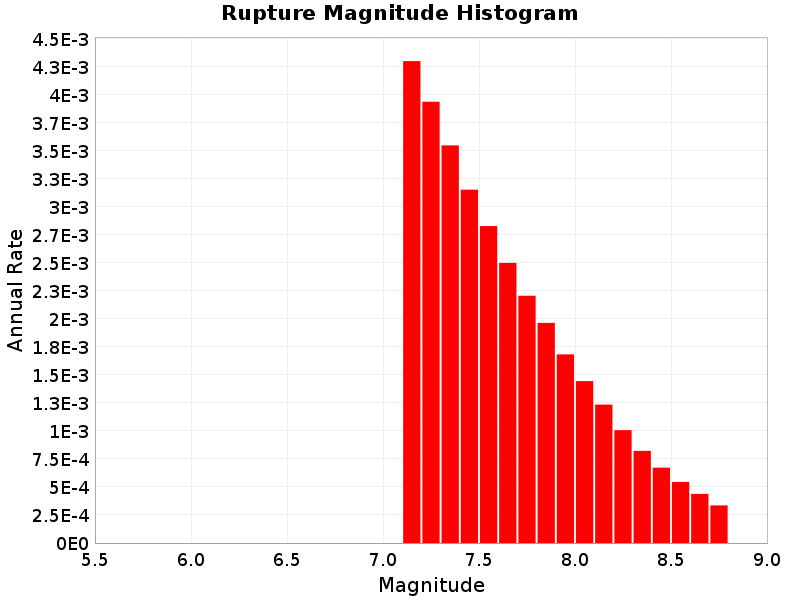

Rupture Magnitude vs Rupture Rate

(top)

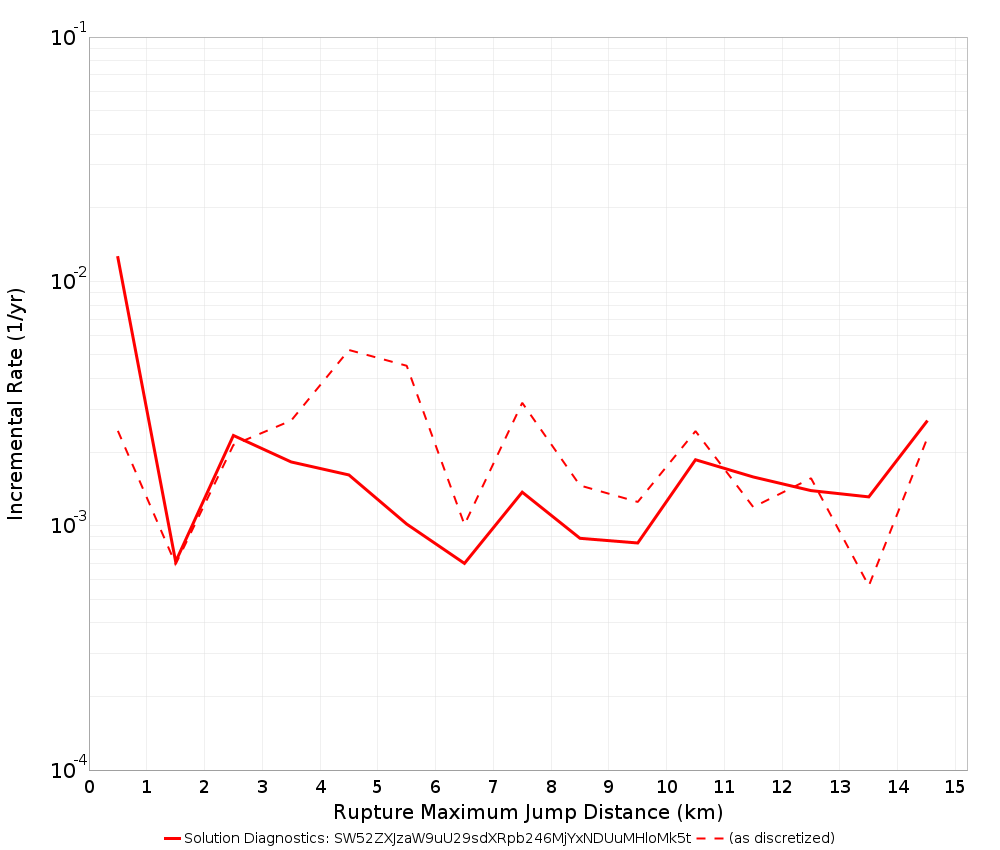

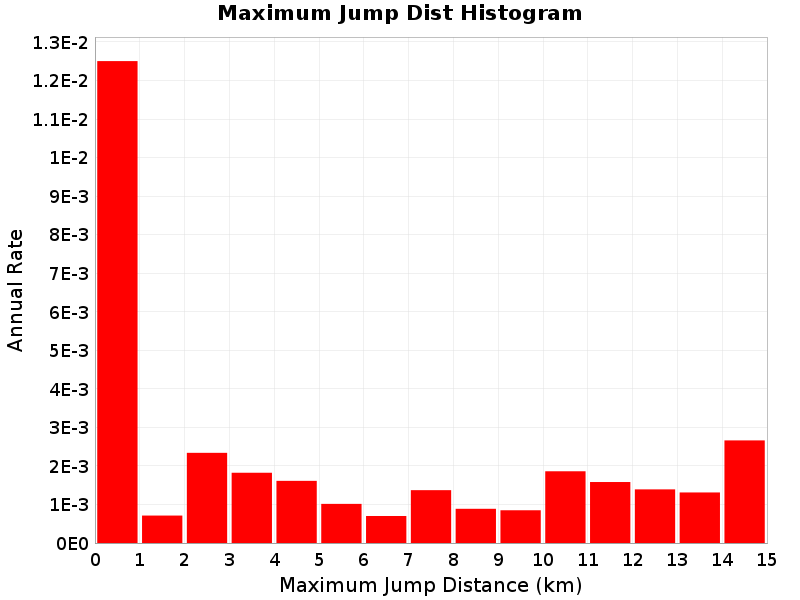

Maximum Jump Dist

(top)

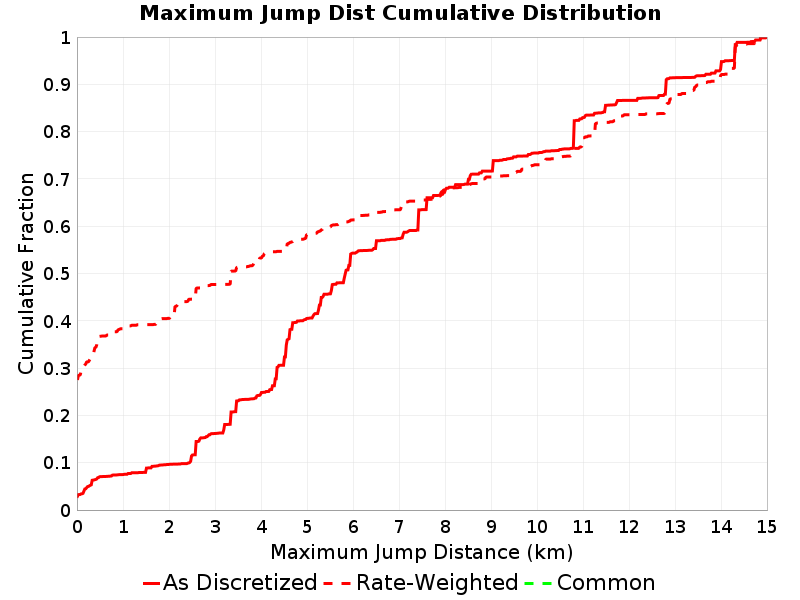

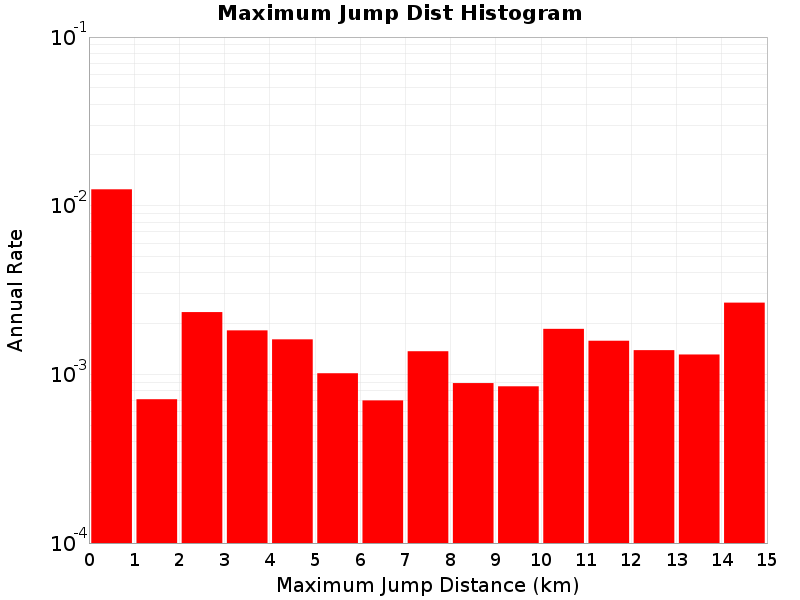

The maximum jump distance in the rupture.

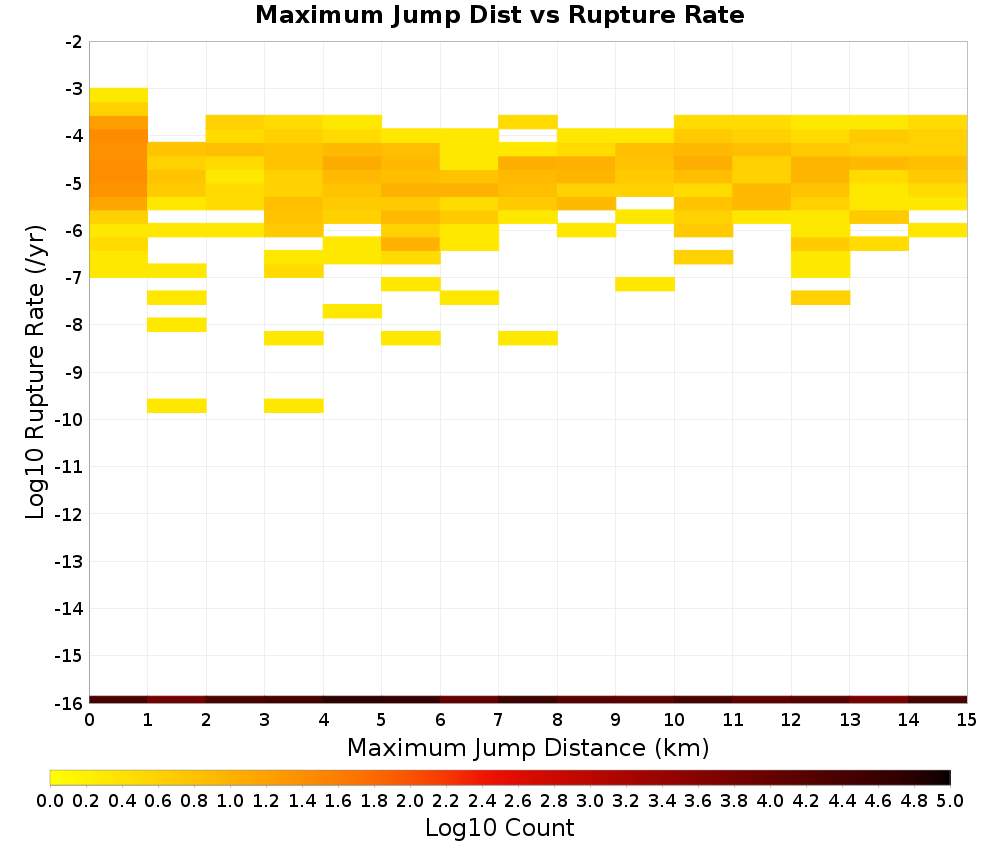

Maximum Jump Dist vs Rupture Rate

(top)

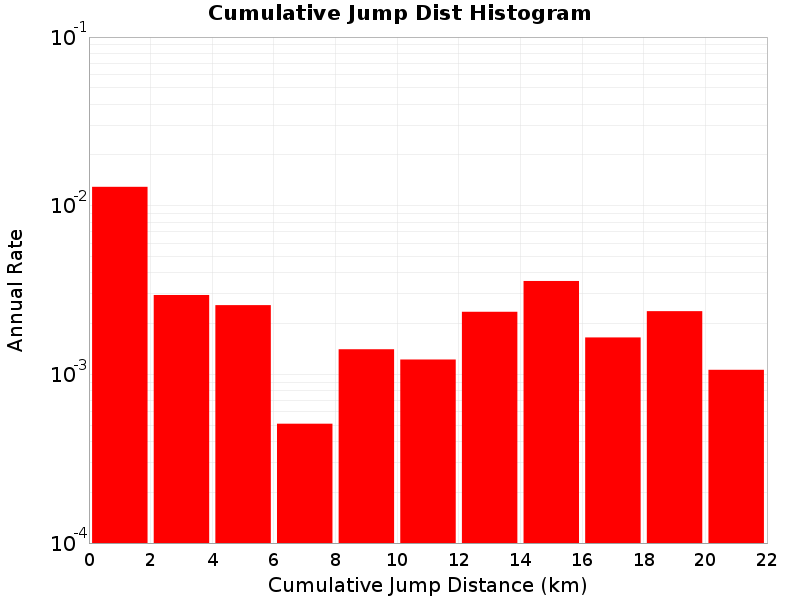

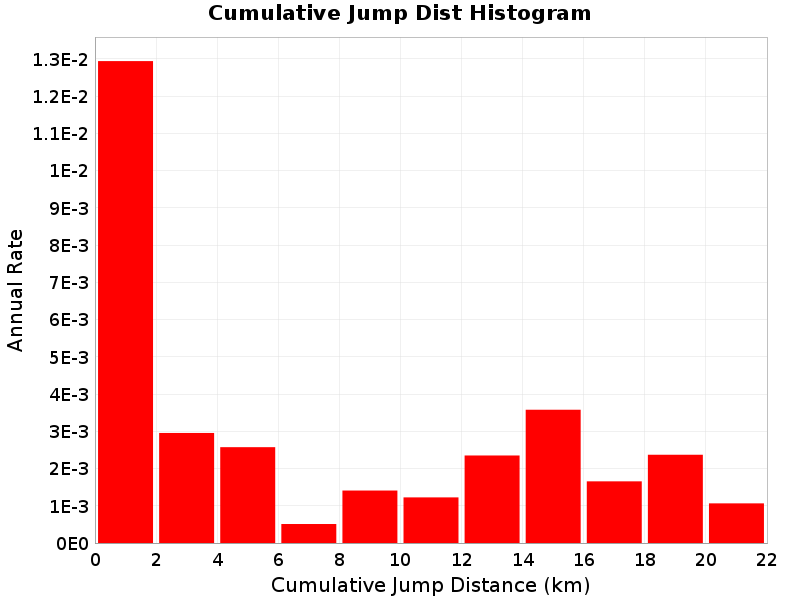

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

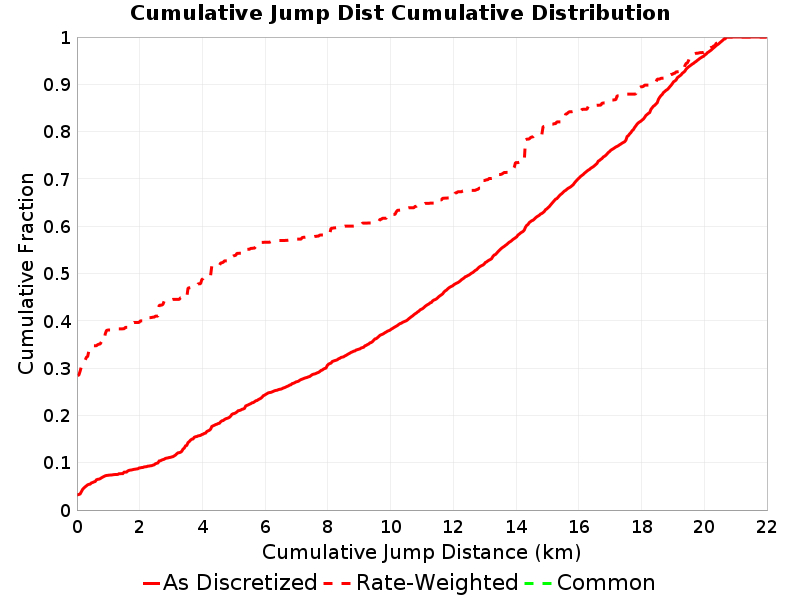

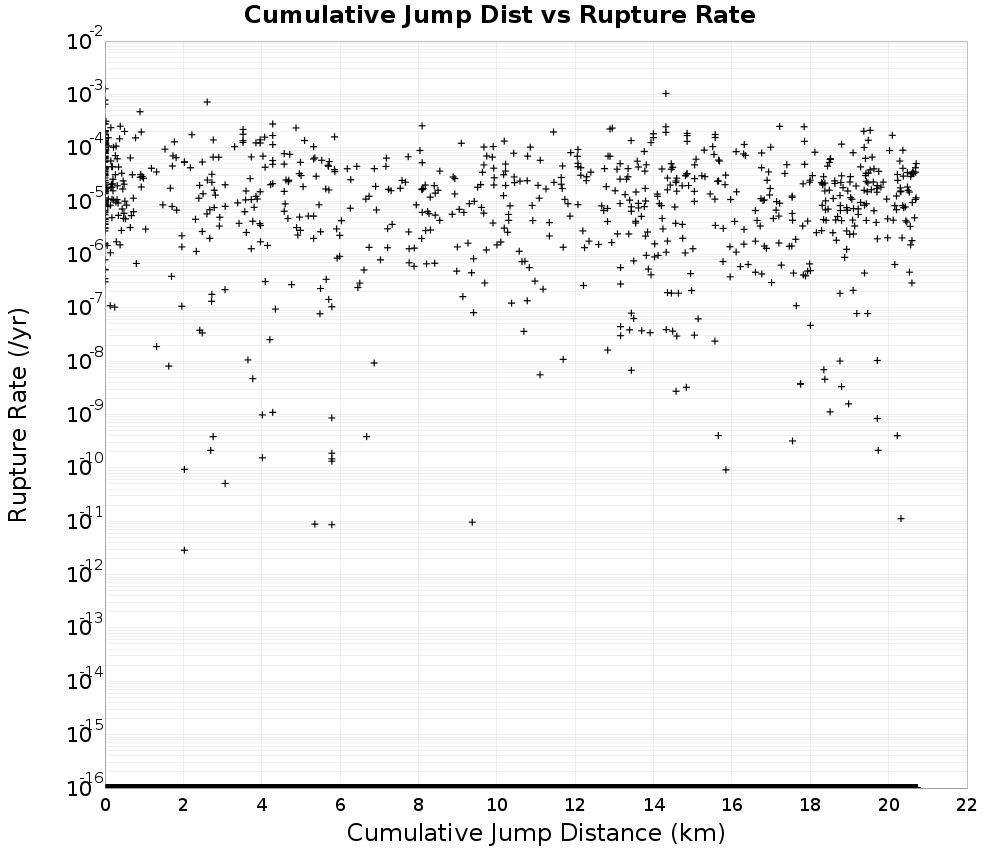

Cumulative Jump Dist vs Rupture Rate

(top)

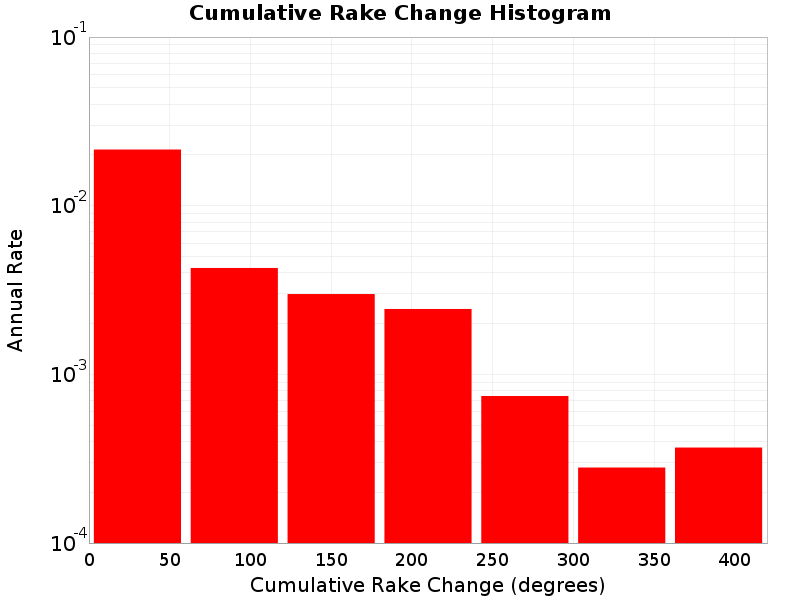

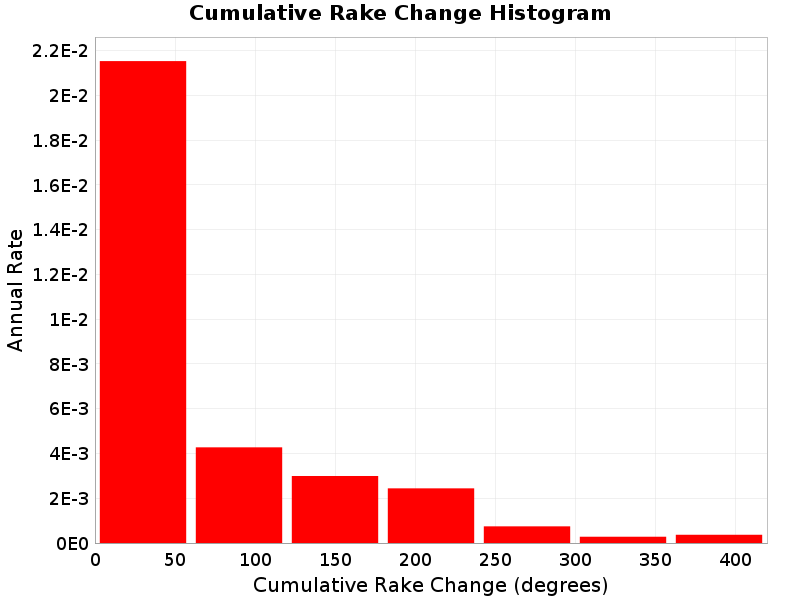

Cumulative Rake Change

(top)

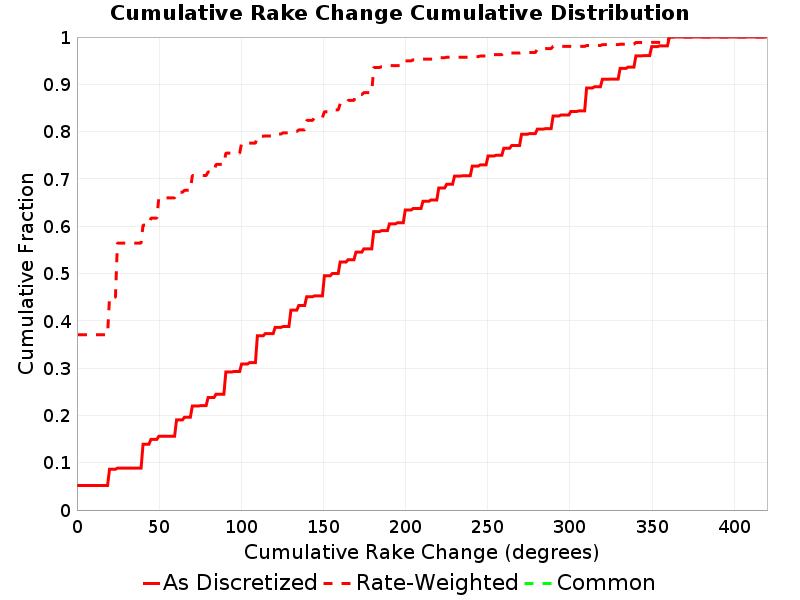

Cumulative rake change for this rupture.

Cumulative Rake Change vs Rupture Rate

(top)

Max Slip Rate Difference

(top)

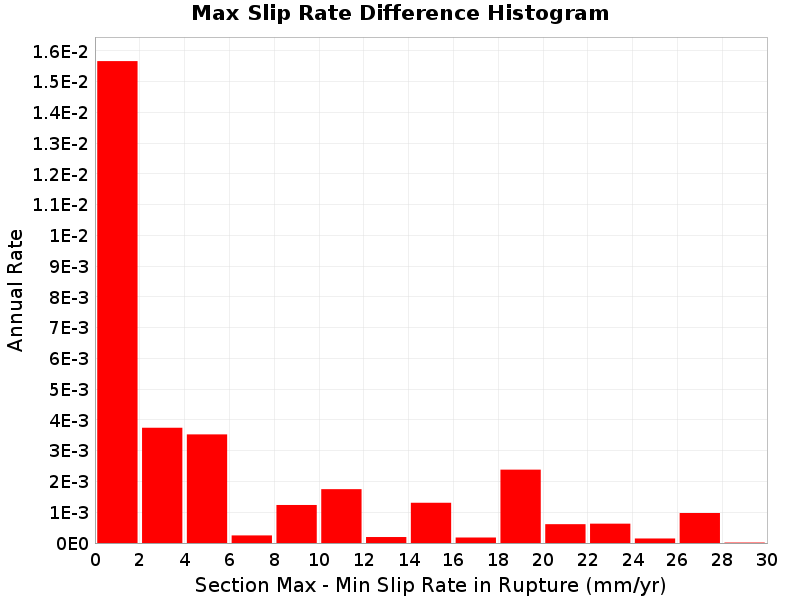

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

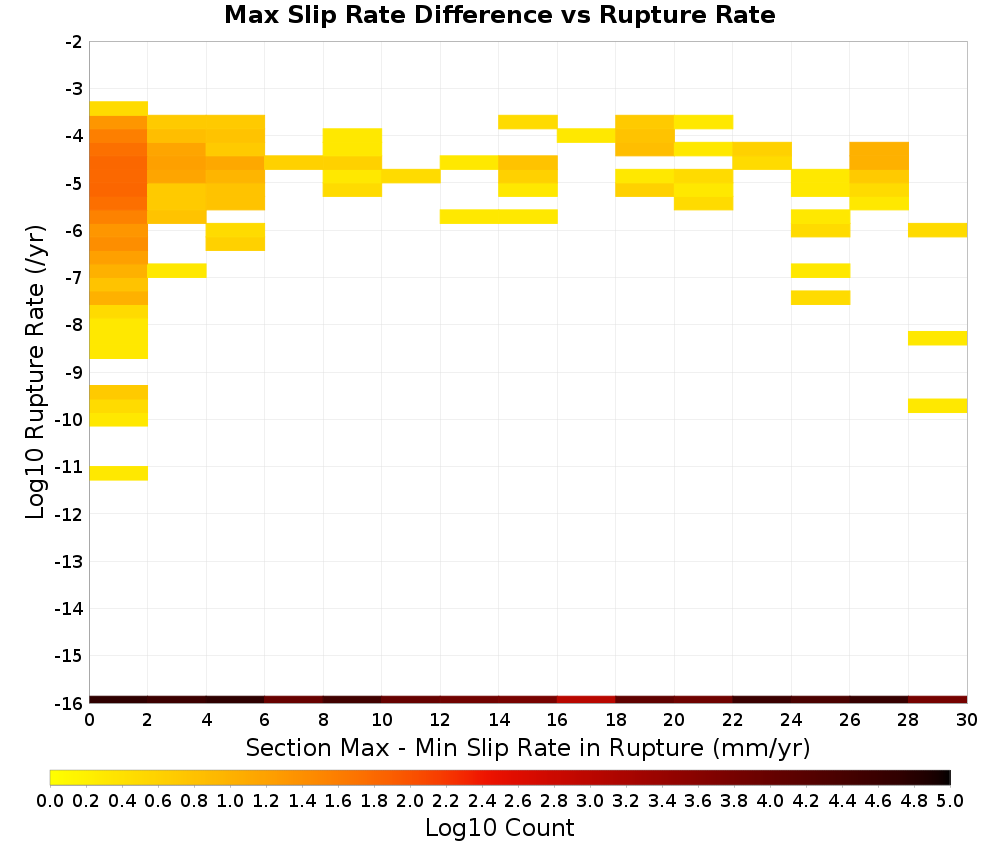

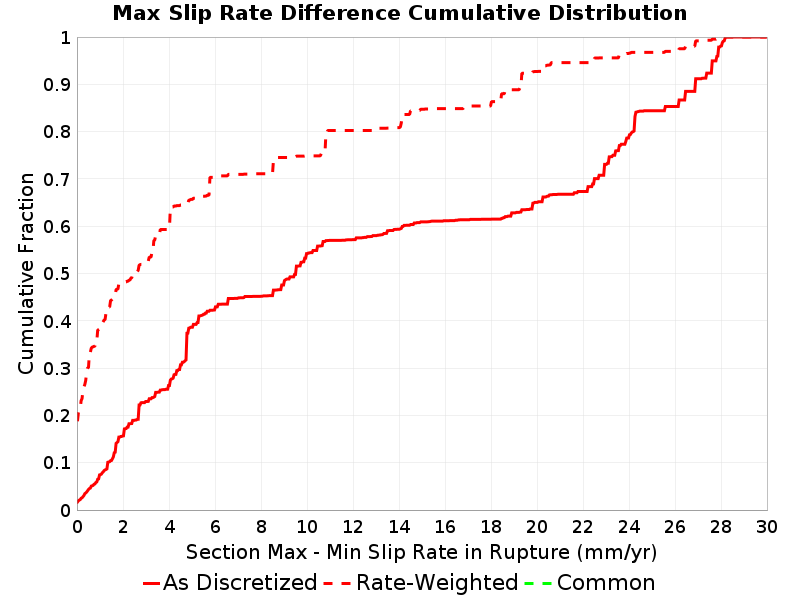

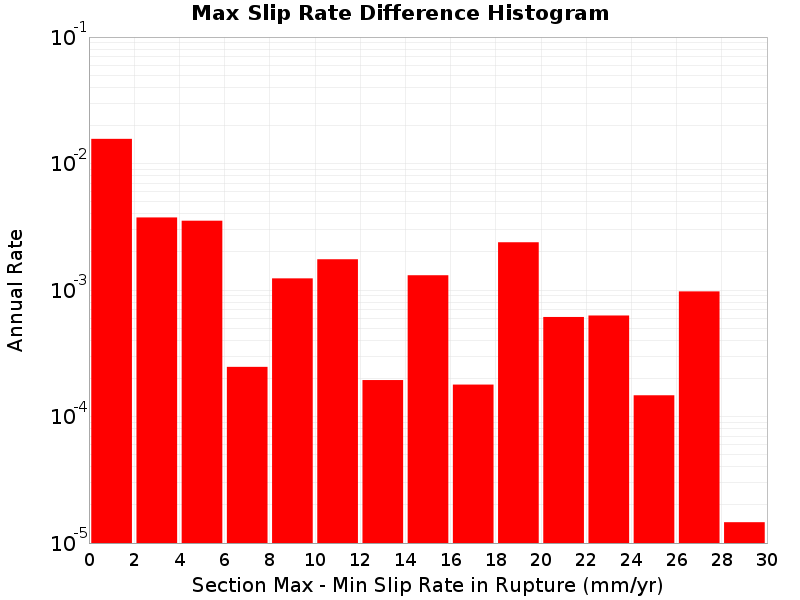

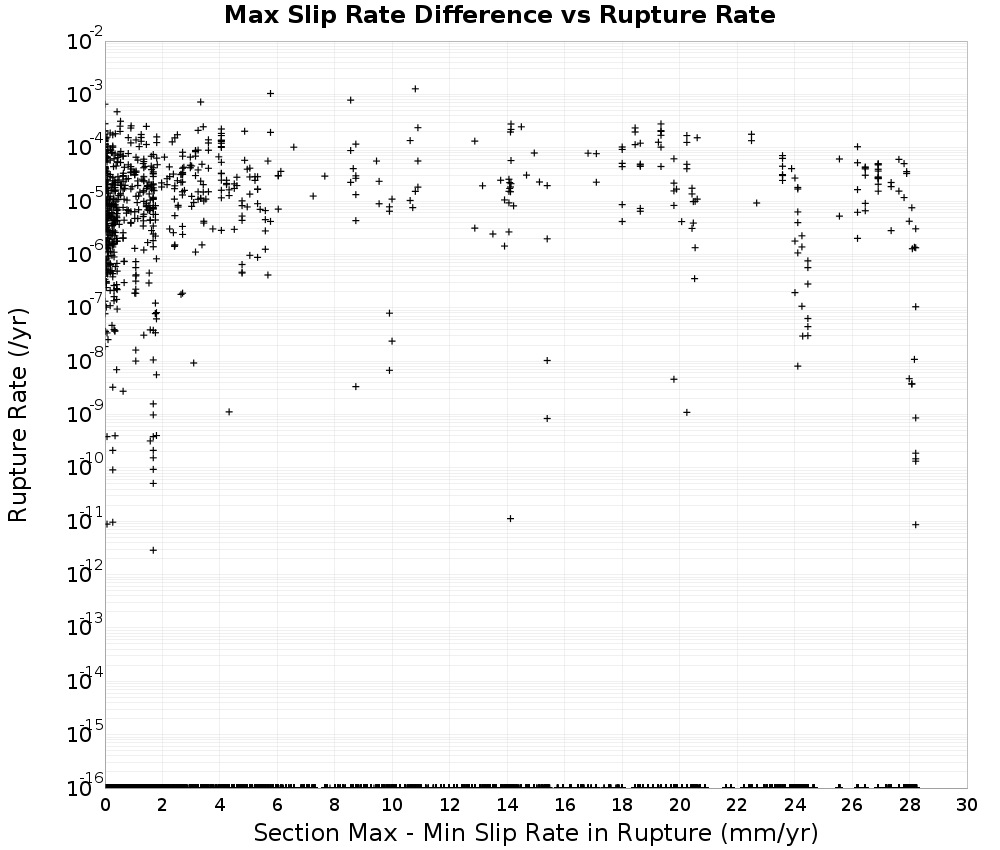

Max Slip Rate Difference vs Rupture Rate

(top)

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

Name	Implementing Class
Single-Strand Cluster Ruptures	`ClusterRuptures$SingleStranded`
Section Distance-Azimuth Calculator	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator`
Logic Tree Branch	`nz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch`
Polygon Fault Grid Associations	`PolygonFaultGridAssociations$Precomputed`
Rupture Connection Search	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch`
Section Slip Rates	`SectSlipRates$Precomputed`
Section Areas	`SectAreas$Default`
Inversion Target MFDs	`InversionTargetMFDs$Precomputed`
Precomputed Average Slips	`AveSlipModule$Precomputed`
Modified Section Minimum Magnitudes	`ModSectMinMags$Precomputed`
OpenSHA Build Information	`BuildInfoModule`
Uniform Slip Along Rupture	`SlipAlongRuptureModel$Uniform`
Paleoseismic Constraint Data	`PaleoseismicConstraintData`

Solution Modules

(top)

Name	Implementing Class
Annealing Progress	`org.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress`
Inversion Misfit Progress	`InversionMisfitProgress`
OpenSHA Build Information	`BuildInfoModule`
Sub-Seismogenic On-Fault MFDs	`SubSeismoOnFaultMFDs`

Fault Section Connections

(top)


Download GeoJSON

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted, with smaller clusters plotted in gray, and fully isolated faults plotted in black.


Download GeoJSON

Rank	Sections	Parent Sections	Ruptures
1	1,691 (80.79%)	443 (79.53%)	329,883 (99.36%)
2	48 (2.29%)	13 (2.33%)	314 (0.09%)
3	39 (1.86%)	15 (2.69%)	691 (0.21%)
4	27 (1.29%)	10 (1.80%)	174 (0.05%)
5	26 (1.24%)	5 (0.90%)	134 (0.04%)
6	26 (1.24%)	9 (1.62%)	107 (0.03%)
7	21 (1.00%)	2 (0.36%)	104 (0.03%)
8	19 (0.91%)	6 (1.08%)	112 (0.03%)
9	12 (0.57%)	2 (0.36%)	55 (0.02%)
10	12 (0.57%)	3 (0.54%)	51 (0.02%)
11->13	20 (0.96%)	7 (1.26%)	37 (0.01%)
42 isolated	152 (7.26%)	42 (7.54%)	338 (0.10%)

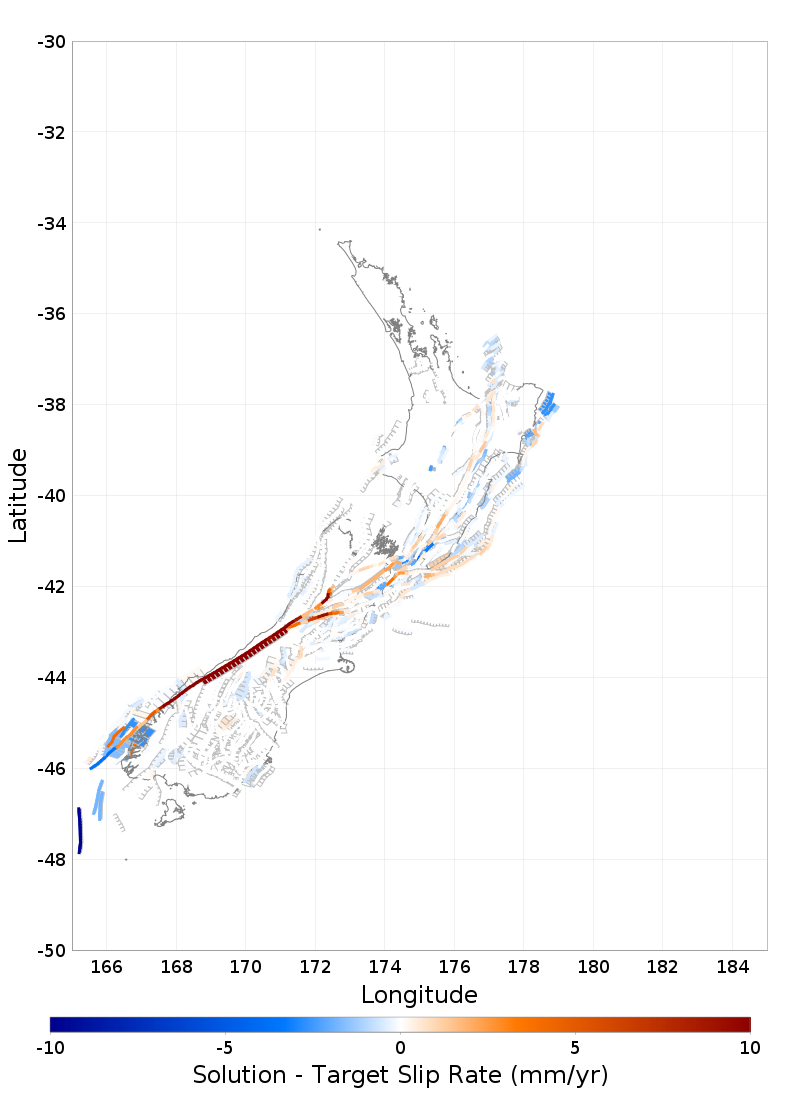

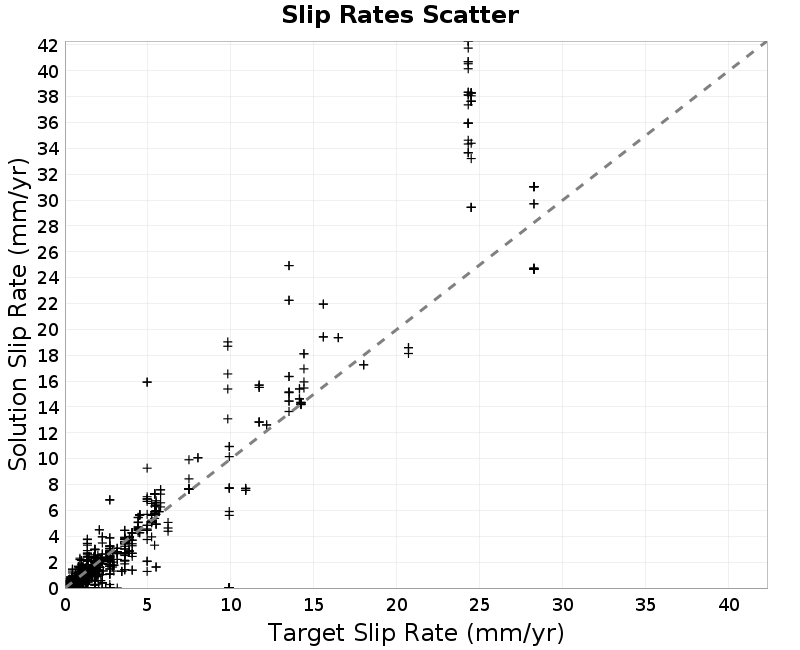

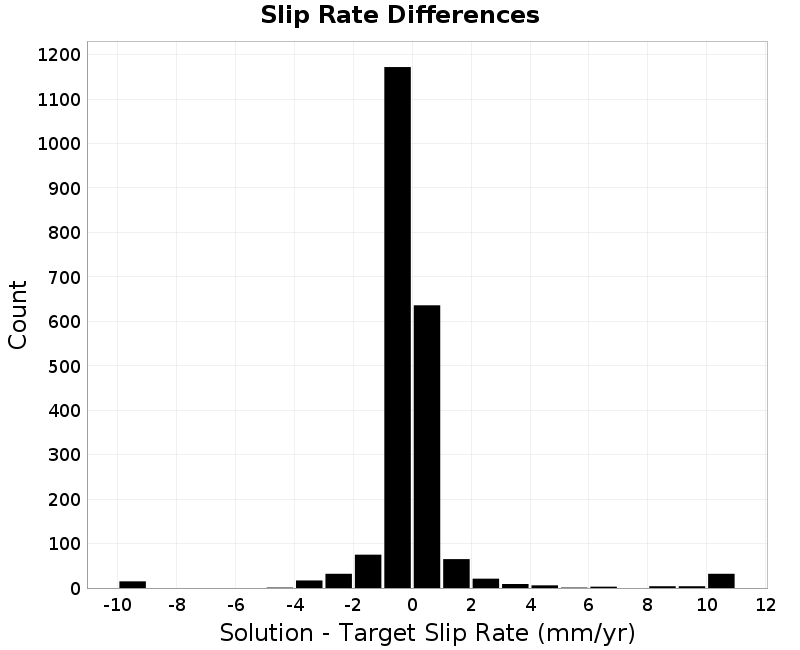

Slip Rates

(top)

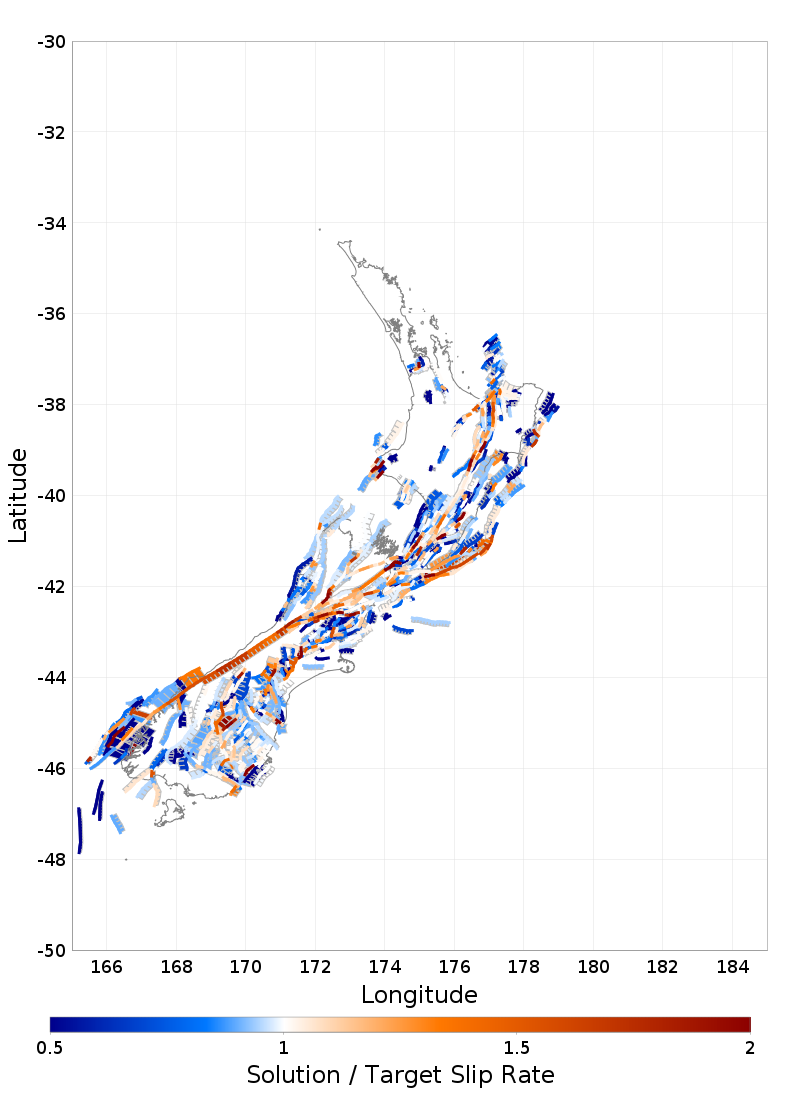

Linear Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

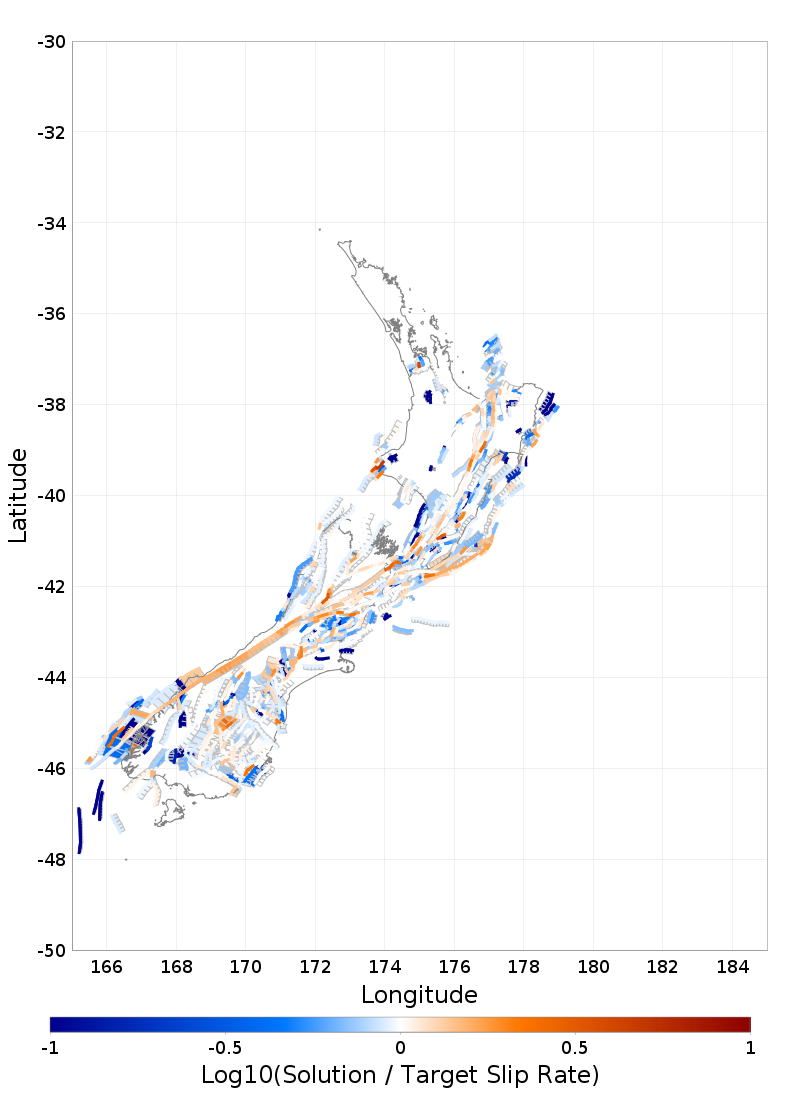

Log10 Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON

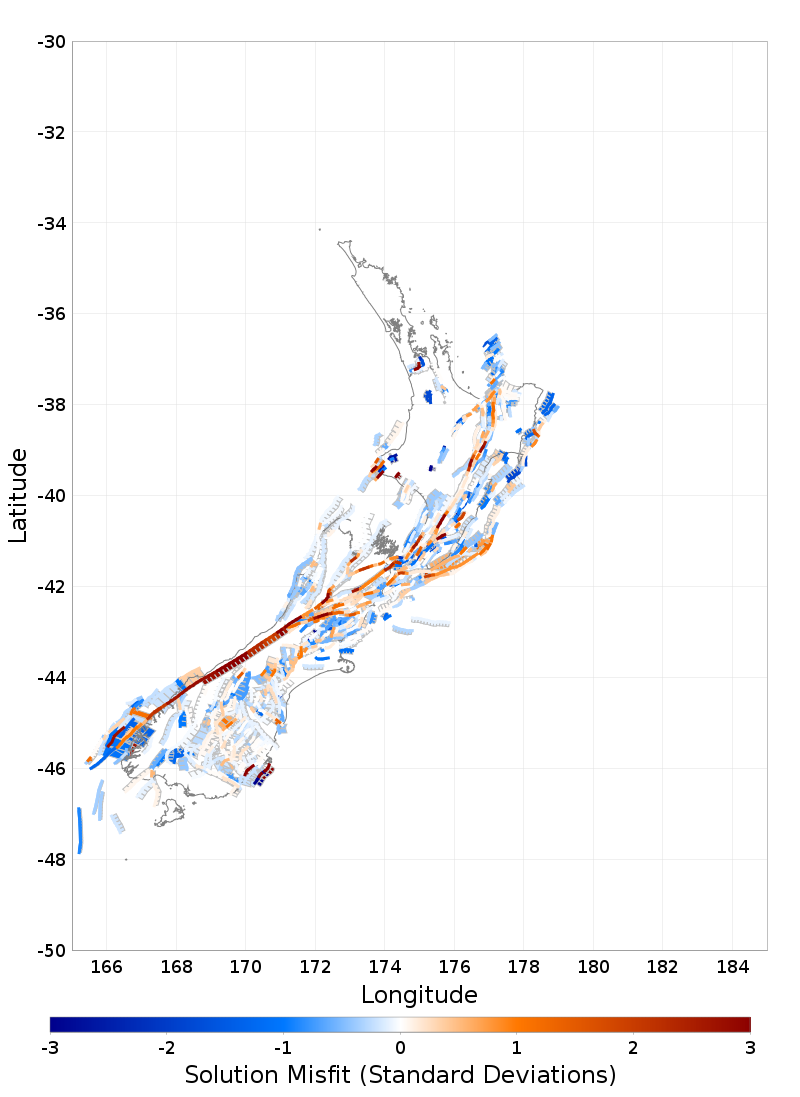

Slip Rate Std Dev Plots

(top)


Download GeoJSON	Download GeoJSON

Paleoseismic Data Comparison

(top)

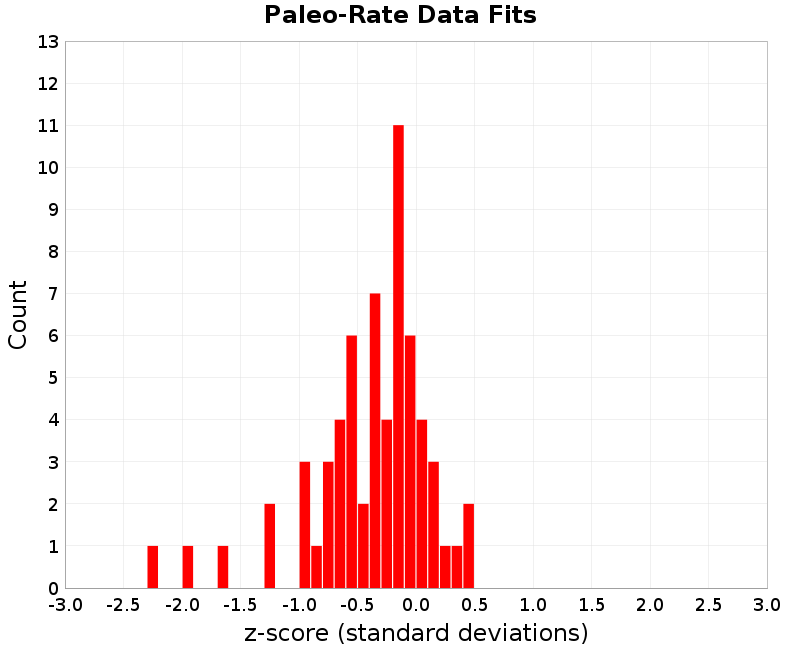

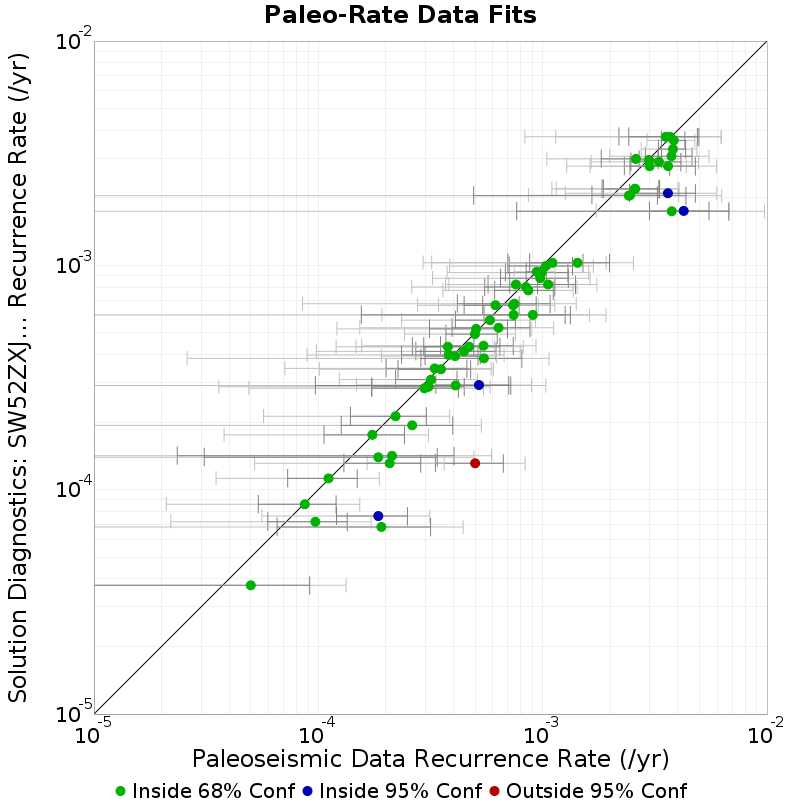

Paleo data comparison table. For the solution column, text is bold if within 68% bounds, italicized if within 95% bounds, and otherwise plain text. Download CSV here.

Site Name	Mapped Subsection ID	Mapped Parent Section	Constraint Mean Rate	68% Bounds	Constraint 95% Bounds	Std. Dev	Solution Rate	z-score
Alpine George to Jacksons - Hokuri Creek sections	33	Alpine: George to Jacksons	0.00298	[0.0026925, 0.0032675]	[0.002405, 0.003555]	2.875E-4	0.0029478963	-0.11166506
Akatore - Big Creek trench	8	Akatore	8.7E-5	[5.4E-5, 1.2E-4]	[2.1E-5, 1.53E-4]	3.3E-5	8.605701E-5	-0.028575545
Alpine George to Jacksons - Lake Ellery cores	39	Alpine: George to Jacksons	0.003751	[0.0028695, 0.0046325]	[0.001988, 0.005514]	8.815E-4	0.0030654136	-0.77774984
Alpine George to Jacksons - John O'Groats Wetland	32	Alpine: George to Jacksons	0.0033	[0.002473, 0.004127]	[0.001646, 0.004954]	8.27E-4	0.0028905924	-0.49505135
Alpine Jacksons to Kaniere - Lake Paringa cores	45	Alpine: Jacksons to Kaniere	0.003842	[0.0033795, 0.0043045]	[0.002917, 0.004767]	4.625E-4	0.003608035	-0.50587046
Alpine Jacksons to Kaniere - Lake Mapourika cores	53	Alpine: Jacksons to Kaniere	0.002998	[0.0023125, 0.0036835]	[0.001627, 0.004369]	6.855E-4	0.00276464	-0.34042302
Alpine Jacksons to Kaniere - Staples 2 trench	60	Alpine: Jacksons to Kaniere	0.003541	[0.002187, 0.004895]	[8.33E-4, 0.006249]	0.001354	0.0037409817	0.14769694
Alpine Jacksons to Kaniere - Staples 3 trench	60	Alpine: Jacksons to Kaniere	0.003695	[0.0024195, 0.0049705]	[0.001144, 0.006246]	0.0012755	0.0037409817	0.036049906
Alpine Jacksons to Kaniere - Haast South trench	42	Alpine: Jacksons to Kaniere	0.002605	[0.001824, 0.003386]	[0.001043, 0.004167]	7.81E-4	0.0029807931	0.48116916
Alpine Kaniere to Springs Junction - Lake Kaniere cores	70	Alpine: Kaniere to Springs Junction	0.003809	[0.003279, 0.004339]	[0.002749, 0.004869]	5.3E-4	0.0032960789	-0.9677757
Alpine Kaniere to Springs Junction - Lake Brunner cores	67	Alpine: Kaniere to Springs Junction	0.003622	[0.002451, 0.004793]	[0.00128, 0.005964]	0.001171	0.0027683042	-0.7290315
Alpine Springs Junction to Tophouse - Maruia Trench-1	89	Alpine: Springs Junction to Tophouse	0.00258	[0.001865, 0.003295]	[0.00115, 0.00401]	7.15E-4	0.0021926814	-0.5417042
Alpine Springs Junction to Tophouse - Maruia Trench-2	89	Alpine: Springs Junction to Tophouse	0.00258	[0.0018395, 0.0033205]	[0.001099, 0.004061]	7.405E-4	0.0021926814	-0.52304995
Awatere Northeast 1 - Upcot 1 trench	128	Awatere: Northeast 1	9.89E-4	[6.82E-4, 0.001296]	[3.75E-4, 0.001603]	3.07E-4	9.282315E-4	-0.19794296
Clarence Northeast - Ravine Stream exposure	348	Clarence: Northeast	4.99E-4	[3.705E-4, 6.275E-4]	[2.42E-4, 7.56E-4]	1.285E-4	4.9365836E-4	-0.041569
Cloudy 2 - Cloudy seismic lines	365	Cloudy 2	3.18E-4	[2.21E-4, 4.15E-4]	[1.24E-4, 5.12E-4]	9.7E-5	3.0947456E-4	-0.08789116
Dunstan - T04/2	424	Dunstan	2.21E-4	[1.39E-4, 3.03E-4]	[5.7E-5, 3.85E-4]	8.2E-5	2.1241841E-4	-0.104653545
Te Ikaarongamai - Pakarae River mouth	1669	Te Ikaarongamai	8.63E-4	[6.11E-4, 0.001115]	[3.59E-4, 0.001367]	2.52E-4	7.7337323E-4	-0.35566175
Gable End North - Puatai Beach trench	510	Gable End North	0.001034	[7.095E-4, 0.0013585]	[3.85E-4, 0.001683]	3.245E-4	9.933336E-4	-0.12531994
Inglewood - Egmont Road trenches	713	Inglewood	1.65E-4	[1.0E-4, 2.3E-4]	[3.5E-5, 2.95E-4]	6.5E-5	0.0	-2.5384614
Inglewood - Everett Park trench	712	Inglewood	1.65E-4	[1.005E-4, 2.295E-4]	[3.6E-5, 2.94E-4]	6.45E-5	0.0	-2.5581396
Kekerengu 1 - Kekerengu Trench 1	769	Kekerengu 1	0.002452	[0.001658, 0.003246]	[8.64E-4, 0.00404]	7.94E-4	0.0020526168	-0.5030014
Kina - Kina Fault trench	1200	Oaonui	5.0E-4	[3.325E-4, 6.675E-4]	[1.65E-4, 8.35E-4]	1.675E-4	1.3111054E-4	-2.202325
Lachlan 3 - Table Cape trenches	865	Lachlan 3	8.42E-4	[5.515E-4, 0.0011325]	[2.61E-4, 0.001423]	2.905E-4	8.0013444E-4	-0.14411548
Mohaka South - McCool 1 Trench	1058	Mohaka: South	3.3E-4	[2.005E-4, 4.595E-4]	[7.1E-5, 5.89E-4]	1.295E-4	3.4724645E-4	0.13317727
Mokonui Southwest - Viewfield Trench	1065	Mokonui Southwest	5.2E-4	[3.34E-4, 7.06E-4]	[1.48E-4, 8.92E-4]	1.86E-4	2.9275985E-4	-1.2217213
Oaonui - Oaonui coastal cliff exposure	1200	Oaonui	2.08E-4	[1.3E-4, 2.86E-4]	[5.2E-5, 3.64E-4]	7.8E-5	1.3111054E-4	-0.9857623
Ohariu - Taupo Swamp	1211	Ohariu	6.36E-4	[3.945E-4, 8.775E-4]	[1.53E-4, 0.001119]	2.415E-4	5.269775E-4	-0.45143872
Ohariu - MacKays Crossing Trench	1209	Ohariu	4.46E-4	[2.72E-4, 6.2E-4]	[9.8E-5, 7.94E-4]	1.74E-4	4.1355082E-4	-0.18648948
Pihama - Pihama coastal cliff exposure	1403	Pihama	1.85E-4	[1.205E-4, 2.495E-4]	[5.6E-5, 3.14E-4]	6.45E-5	7.6281765E-5	-1.685554
Porters Pass - Porters Pass Trench 1	1423	Porters Pass	5.82E-4	[4.085E-4, 7.555E-4]	[2.35E-4, 9.29E-4]	1.735E-4	5.697499E-4	-0.070605606
Ruahine North - Davis Trenches	1528	Ruahine: North	5.45E-4	[3.505E-4, 7.395E-4]	[1.56E-4, 9.34E-4]	1.945E-4	4.3824493E-4	-0.5488692
Titri Central - Clarendon T16/03 trench	1703	Titri Central	9.7E-5	[5.95E-5, 1.345E-4]	[2.2E-5, 1.72E-4]	3.75E-5	7.193197E-5	-0.6684807
Waimana North - Moana trench	1829	Waimana: North	3.1E-4	[1.73E-4, 4.47E-4]	[3.6E-5, 5.84E-4]	1.37E-4	2.8742684E-4	-0.16476755
Waimana North - Te Hoe / Hautapu Trench	1835	Waimana: South	5.47E-4	[2.865E-4, 8.075E-4]	[2.6E-5, 0.001068]	2.605E-4	3.8497953E-4	-0.62195957
Waimana North - Ahirau 1 trench	1831	Waimana: North	2.97E-4	[1.73E-4, 4.21E-4]	[4.9E-5, 5.45E-4]	1.24E-4	2.8309977E-4	-0.11209856
Waipukaka - Hendricksen Trench 1	1884	Waipukaka	2.62E-4	[1.265E-4, 3.975E-4]	[-9.0E-6, 5.33E-4]	1.355E-4	1.9354137E-4	-0.5052297
Wairarapa - Turakirae Head	1894	Wairarapa: 1	3.78E-4	[2.625E-4, 4.935E-4]	[1.47E-4, 6.09E-4]	1.155E-4	4.3377958E-4	0.48294
Wairarapa - Lake Kohangapiripiri KP99-1&2	1894	Wairarapa: 1	4.7E-4	[2.95E-4, 6.45E-4]	[1.2E-4, 8.2E-4]	1.75E-4	4.3377958E-4	-0.20697388
Wairarapa 3 - Tea Creek Road	1902	Wairarapa: 3	3.81E-4	[2.35E-4, 5.27E-4]	[8.9E-5, 6.73E-4]	1.46E-4	3.9863496E-4	0.12078742
Wairau - Wadsworth Trench	1917	Wairau	9.04E-4	[5.48E-4, 0.00126]	[1.92E-4, 0.001616]	3.56E-4	6.0104823E-4	-0.85098815
Wairau - Dillon Trench	1916	Wairau	5.05E-4	[3.13E-4, 6.97E-4]	[1.21E-4, 8.89E-4]	1.92E-4	5.2093365E-4	0.082987666
Wairau 2 - Wairau seismic lines	1924	Wairau 2	4.07E-4	[2.99E-4, 5.15E-4]	[1.91E-4, 6.23E-4]	1.08E-4	3.9386147E-4	-0.12165306
Wellington Hutt Valley 3 - Te Kopahou-1 Trenches	1979	Wellington Hutt Valley: 3	7.48E-4	[4.165E-4, 0.0010795]	[8.5E-5, 0.001411]	3.315E-4	6.745603E-4	-0.22153759
Wellington Hutt Valley 5 - KAF-1	1983	Wellington Hutt Valley: 5	7.6E-4	[5.71E-4, 9.49E-4]	[3.82E-4, 0.001138]	1.89E-4	8.215608E-4	0.32571837
Wellington Hutt Valley 5 - KAF-3	1983	Wellington Hutt Valley: 5	0.001057	[7.13E-4, 0.001401]	[3.69E-4, 0.001745]	3.44E-4	8.215608E-4	-0.68441635
Wellington Pahiatua - Dougan-1	1988	Wellington: Pahiatua	0.001106	[6.995E-4, 0.0015125]	[2.93E-4, 0.001919]	4.065E-4	0.001026513	-0.19553995
Wellington Pahiatua - Hughes-1 Trench	1986	Wellington: Pahiatua	9.75E-4	[6.49E-4, 0.001301]	[3.23E-4, 0.001627]	3.26E-4	8.7627536E-4	-0.30283627
Wellington Pahiatua - Dougan-2	1988	Wellington: Pahiatua	0.00143	[8.75E-4, 0.001985]	[3.2E-4, 0.00254]	5.55E-4	0.001026513	-0.7270036
Whakatane North - Te Whetu trench	2023	Whakatane: North	1.11E-4	[7.3E-5, 1.49E-4]	[3.5E-5, 1.87E-4]	3.8E-5	1.1228648E-4	0.033854745
Whakatane South - Thalassa trench	2029	Whakatane: South	3.52E-4	[2.265E-4, 4.775E-4]	[1.01E-4, 6.03E-4]	1.255E-4	3.4413795E-4	-0.06264583
Awatere Northeast 1 - Combined Taylors Pass Road trenches and Lake Jasper cores	133	Awatere: Northeast 1	9.41E-4	[8.44E-4, 0.001038]	[7.47E-4, 0.001135]	9.7E-5	9.360792E-4	-0.050729986
Hope Conway - Combined Greenburn East and West trenches	614	Hope: Conway	0.004253	[0.002992, 0.005514]	[0.001731, 0.006775]	0.001261	0.0017484291	-1.9861783
Hope Hope River - Hope Shelter trenches combined	627	Hope: Hope River	0.003617	[0.002439, 0.004795]	[0.001261, 0.005973]	0.001178	0.0020957973	-1.2913435
Poukawa - Combined Poukawa trenches	1888	Waipukurau - Poukawa	1.74E-4	[1.06E-4, 2.42E-4]	[3.8E-5, 3.1E-4]	6.8E-5	1.7555425E-4	0.022856671
Wairarapa 2 - Cross Creek South combined (1- 4)	1898	Wairarapa: 2	7.38E-4	[5.405E-4, 9.355E-4]	[3.43E-4, 0.001133]	1.975E-4	6.6426885E-4	-0.37332222
Wairarapa 2 - Cross Creek North combined (2- 3)	1898	Wairarapa: 2	6.16E-4	[4.465E-4, 7.855E-4]	[2.77E-4, 9.55E-4]	1.695E-4	6.6426885E-4	0.28477207
Flaxmore - Waimea - Tahunanui_5507_Wairoa-2 trench	492	Flaxmore - Waimea - Tahunanui	1.91E-4	[6.55E-5, 3.165E-4]	[-6.0E-5, 4.42E-4]	1.255E-4	6.820469E-5	-0.9784487
Fox Peak_4035_Trench 4	505	Fox Peak	4.09E-4	[9.7E-5, 7.21E-4]	[-2.15E-4, 0.001033]	3.12E-4	2.9144733E-4	-0.37677136
Hope Conway_666-675_Combined	615	Hope: Conway	0.003762	[7.66E-4, 0.006758]	[-0.00223, 0.009754]	0.002996	0.0017423399	-0.6741189
Hope Hope River_648_Matagouri Flat	629	Hope: Hope River	0.002422	[4.925E-4, 0.0043515]	[-0.001437, 0.006281]	0.0019295	0.0020440132	-0.1958988
The Humps_5565-5696_Combined	1693	The Humps	2.13E-4	[2.35E-5, 4.025E-4]	[-1.66E-4, 5.92E-4]	1.895E-4	1.4157325E-4	-0.3769221
Wairau_5519-5522_Combined Zinke	1917	Wairau	7.42E-4	[1.555E-4, 0.0013285]	[-4.31E-4, 0.001915]	5.865E-4	6.0104823E-4	-0.24032699
Waitawhiti_5369-5379_Combined	1941	Waitawhiti	1.85E-4	[3.1E-5, 3.39E-4]	[-1.23E-4, 4.93E-4]	1.54E-4	1.3945295E-4	-0.29576007
Whitemans Valley_1023_Whitemans Valley trench	2090	Whitemans Valley	5.0E-5	[8.5E-6, 9.15E-5]	[-3.3E-5, 1.33E-4]	4.15E-5	3.746941E-5	-0.30194193

Jump Counts Over Distance

(top)

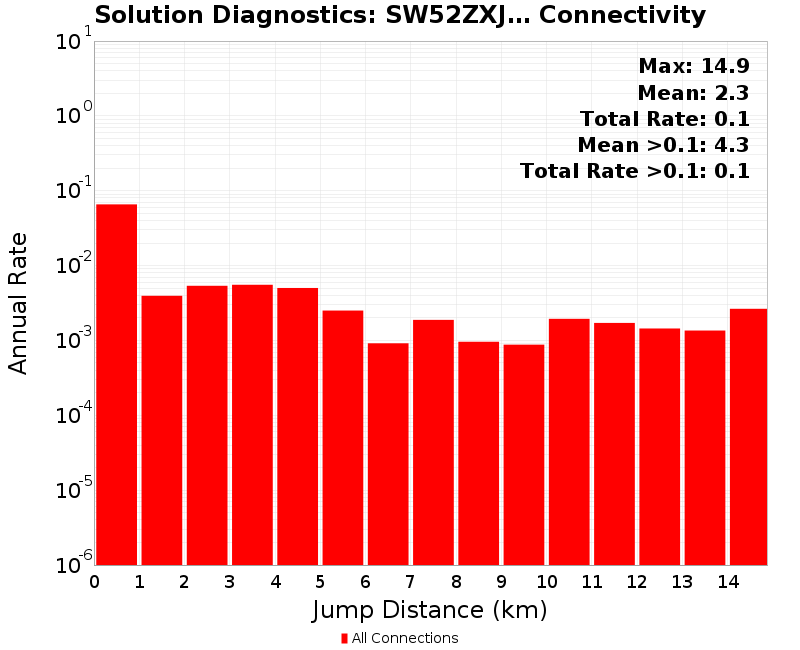

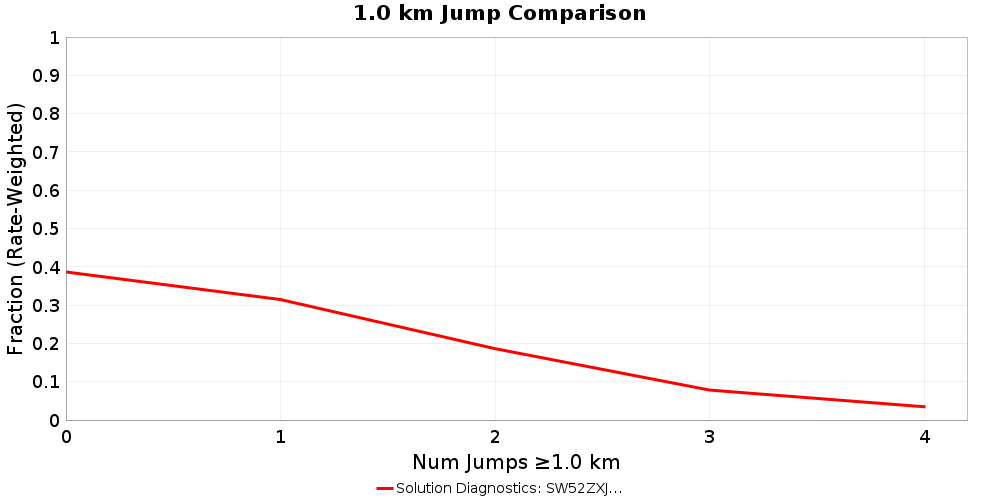

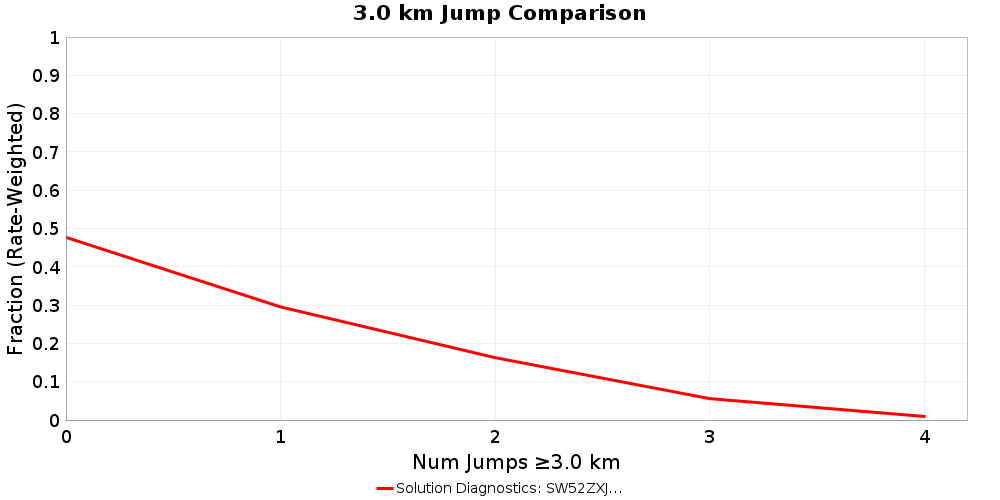

Supra-seismogenic Jump Counts

(top)

As Discretized	Rate Weighted

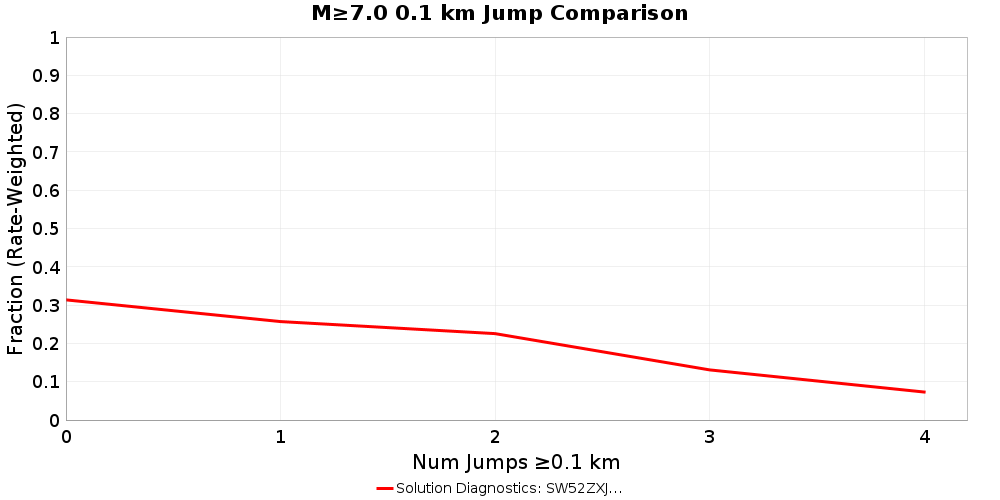

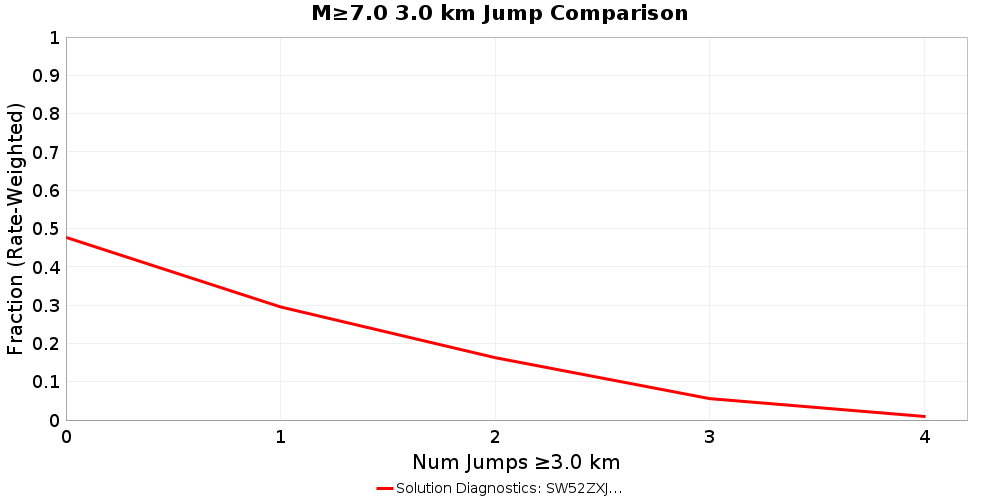

M≥7 Jump Counts

(top)

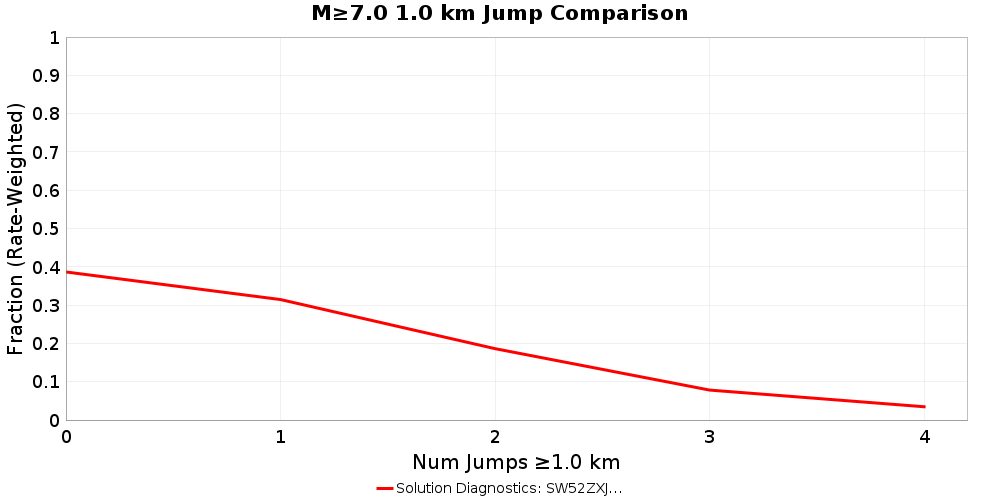

As Discretized	Rate Weighted

Max Jump Distance Distribution

(top)

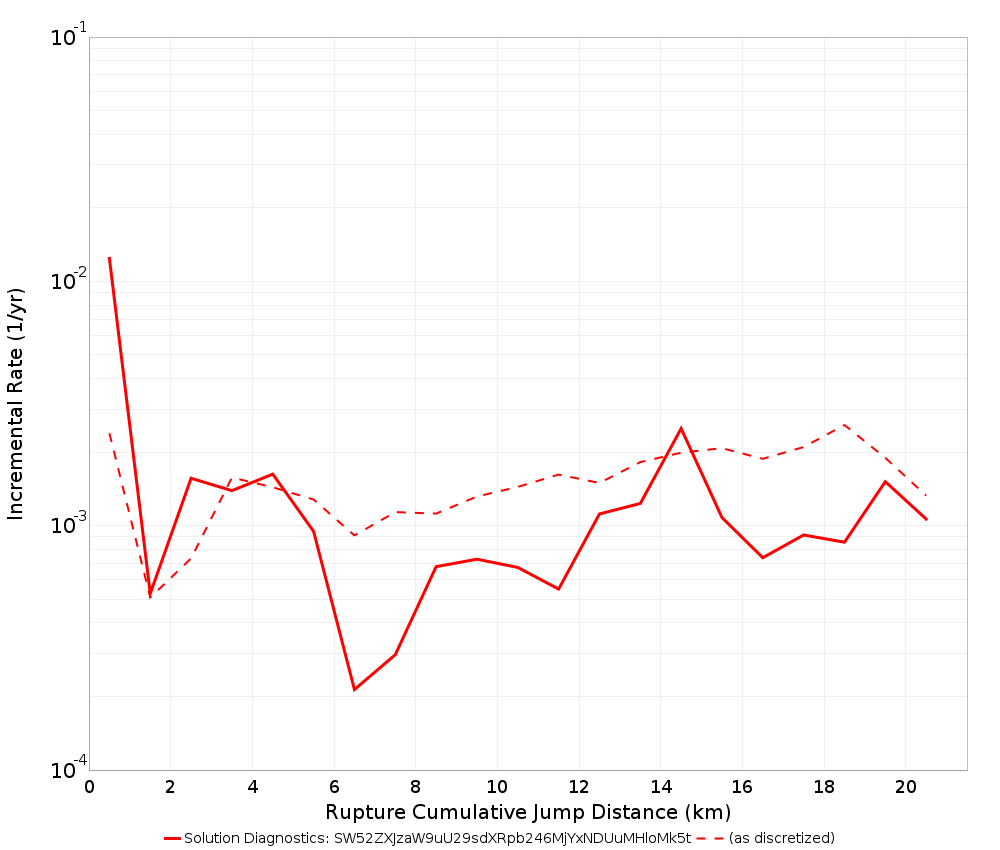

Cumulative Jump Distance Distribution

(top)

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (400 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

Parent Section Detail Pages

(top)

Fault Section	Fault Section	Fault Section
Acton	Kaikorai	Poutu
Aka Aka	Kaikoura - Mangamaunu	Poverty Bay
Akatarawa	Kairakau 2	Pukekohe
Akatore	Kairakau North	Pukerua - Shepherds Gully: 1
Albury	Kairakau South	Pukerua - Shepherds Gully: 2
Alexander	Kaiwara North	Pukerua - Shepherds Gully: 3
Alfredton North	Kaiwara South	Puketerata
Alfredton South	Kakapo	Puketerata North
Alpine: Caswell	Kaumingi	Pylap
Alpine: Caswell - South George	Kaweka	Raggedy - Blackstone
Alpine: George landward	Kekerengu 1	Rahotu
Alpine: George seaward	Kekerengu Bank	Rakaia
Alpine: George to Jacksons	Kelly	Ranfurly
Alpine: Jacksons to Kaniere	Kerepehi Awaiti	Rangefront
Alpine: Kaniere to Springs Junction	Kerepehi Elstow	Rangitaiki 1
Alpine: Nancy	Kerepehi Offshore	Rangitaiki 2
Alpine: Resolution - Charles	Kerepehi Okoroire	Rangitikei Offshore 1
Alpine: Resolution - Dagg	Kerepehi Te Poi	Rapuwai
Alpine: Resolution - Five Fingers	Kerepehi Waitoa	Raukumara 16
Alpine: Springs Junction to Tophouse	Kereu	Raukumara 17
AmberBlyth	Kidnappers Ridge	Raukumara 18
Aotea - Evans Bay	Kiri	Raukumara 20
Ararata	Kirkliston	Raukumara 21
Ariel Bank	Klondyke Moor	Raukumara 24
Ariel Bank 2	Knowles Top	Raukumara 25
Ariel East	Kohaihai	Raukumara 9
Awahokomo	Kohaihai South	Rauoterangi
Awakeri	Kongahau	Redcliffe
Awamoa	Kotare - Moutuhora	Repongaere
Awanui	Kowai - View Hill	Ridge Road - Okaia 2
Awatere: Northeast 1	Kututaruhe	Riversdale
Awatere: Northeast 2	Lachlan 1 & 2	Riversdale North
Awatere: Southwest	Lachlan 3	Roaring Lion
Backbone	Lake Heron	Roaring Meg
Balmoral	Lake Onslow	Ruahine: Central
Barefell	Leader: Central	Ruahine: North
Barn	Leader: North	Ruahine: South
Barrier Range	Leader: South	Ruataniwha
Beacon Hill	Leedstown	Ruatoria South 3
Beaumont River	Lees Valley	Ruatoria South 4
Ben McLeod	Leithfield - NCVI - NCVII	Ruby Bay - Moutere
Bidwill	Leonard Mound	Sailor
Big Ben	Levin Anticline	Saunders Road
Billys Ridge	Lindis River	Settlement
Black Hill	Little Hillfoot	Shepherds Gully - Mana
Blue Lake	Little Valley	Skippers
Blue Mountain	Livingstone	Sliver Stream - Merton
Boby Stream	Logan Burn	Snares
BooBoo	London Hill	Solander
Braemar	Long Valley	South Wedge 1
Brothers	Lowry	South Wedge 2
Browning Pass	Lyell	South Wedge 3-6-10
Calypso 2	Lyell South	South Wedge 5
Campbell Bank	Madagascar	Spey - Mica Burn
Campbell Hills	Madden Banks	Springbank
Cape Egmont: Central	Mahia 2	Spylaw
Cape Egmont: North	Maimai	St Stephens
Cape Egmont: South	Maimai: Brunner Anticline	Starvation - Ashley
Cape Foulwind 1	Maimai: North	StoneJug
Cape Foulwind 2	Maimai: South	Stonewall
Cape Foulwind 4	Makuri - Waewaepa	Sugarloaf
Cardrona - Hawea	Maleme	Surville
Carterton	Manahi 1	Takapu
Caswell 211	Manahi 2	Taonui
Caswell High 1	Mangatangi	Tauranga Trough East 2
Caswell High 10	Marlborough Slope 11	Tauranga Trough West 2
Caswell High 3	Marlborough Slope 2	Tauru
Caswell High 4	Marlborough Slope 3	Te Anau
Caswell High 5	Marlborough Slope 4	Te Arawa 1
Caswell High 67	Marlborough Slope 9	Te Arawa 2
Caswell High 8	Martinborough	Te Arawa 3
Caswell High 9	Mascarin	Te Heka
Catherine	Masterton	Te Ikaarongamai
CenPeg1n2	Mataikona	Te Puninga
Central Balleny	Mataikona East	Te Rapa 1
Central Wedge 1 & 2 & 3	Matata	Te Rapa 2
Central Wedge 4 - South Wedge 411	Maunga	Te Tatua o Wairere
Chamberlain	Maungati	Te Whaiti North
Chancet	Maungatua - North Taieri	Te Whaiti South
Cheeseman	McKerchar	Teviot
Clarence: Central	Mid Dome	The Humps
Clarence: Northeast	Middle Range	Timaru Creek
Clarence: Southwest	Milford Basin 5 to George R2	Tin Hut
Clear Hills - Waikopiro	Mohaka: North	Tirohanga
Clifton	Mohaka: South	Titri Central
Cloudy 1	Mokonui Northeast	Titri North
Cloudy 2	Mokonui Southwest	Titri South
Cloudy 3	Monowai	Tokomaru
Cluden	Moonlight North	Torlesse
Conway Trough East	Moonlight South	Tuakana 6
Conway Trough West	Moonshine	Tuakana 7
Cross Eden	Mossburn	Tuapeka
Dalgety	Motatapu	Tuatoru 1
Darran	Motu	Tuatoru 2
Dingle	Motu River	Tukituki Thrust
Doctors	Motu o Kura East	Turi: Central
Double Hill	Motu o Kura Ridge	Turi: North
Dreyers Rock	Motunau	Turi: South
Dromedary	Motuokura North	Tutaki
Drury	Moumahaki - Okaia 4	Upper Slope
Dry River - Huangarua: 1	Mt Arden	Uruti Basin
Dry River - Huangarua: 2	Mt Culverden	Uruti Basin 2
Dry River - Huangarua: 3	Mt Lawry	Uruti East - PorWest 1
Dryburgh	Mt Stewart	Uruti North
Dunback Hill	Mt Sutton	Uruti Point
Dunstan	Murphys Creek	Uruti Ridge 2
EarthquakeFlat - Tumunui	NW Cardrona North	Vernon 1
Edgecumbe 1987	NW Cardrona South	Vernon 2
Edgecumbe Coastal	Needles	Vernon 3
Edith	Needles East 2	Vernon 4
Elliott	Nevis	Virginia
Esk North	Ngatoro South 2	Volkner 3
Esk South	Ngatoro South 5	Volkner 4
Falstone	Nichols Rock	Waewaepa
Farewell	Norfolk	Waihemo
Fern Gully	North Branch	Waihi South
Fidget	North Canterbury Shelf 11	Waihi West
Fisherman 1	North Canterbury Shelf 2	Waikaia
Fisherman 2	North Canterbury Shelf 4	Waikaka
Fisherman 3	North Mernoo E2-1	Waikuku
Five Fingers	North Mernoo K2	Waimana: North
Flat Stream - Glenpark	North Mernoo K3	Waimana: South
Flaxmore - Waimea - Tahunanui	Northern Ohariu	Waimanawa - Waikaremoana
Fowlers	Nukumuru - Waitotara 1-6	Waimarama 1 & 2
Fox Peak	Oaonui	Waimarama 3 & 4
Gable End North	Ohae 1	Waimate
Gable End South	Ohae 2	Waimea Offshore
Galloway	Ohae 3	Waiohau: North
Garibaldi	Ohariu	Waiohau: South
Garvie	Ohariu South 1	Waiotahi: North
Gibson	Ohariu South 2	Waiotahi: South
Gimmerburn	Ohena 2	Waipiata
Glenbrook	Ohena 3	Waipukaka
Goodger	Ohena 4	Waipukurau - Poukawa
Grampian	Ohiwa 1	Wairarapa: 1
Grandview	Okaia 3	Wairarapa: 2
Green Island	Okaia 5	Wairarapa: 3
Greendale	Okupe 1	Wairarapa: Needles
Hanmer	Old Man	Wairata
Hariki	Omarama Saddle	Wairau
Harris Road	OmihiLwrHuru	Wairau 2
Hauroko: North	Onepoto	Wairau 3
Hauroko: South	Opape 1	Wairoa North
Hawkdun	Opawa	Waitahuna 1
Hawke Bay 1	Opotiki 2	Waitahuna 2
Hawke Bay 4	Opotiki 3	Waitaki
Hawke Bay 5 & 11	Opouawe - Uruti	Waitangi
Hawke Bay 8	Orakeikorako	Waitawhiti
Hawkswood	Oruawharo - Mangatoro	Waitotara 10 & 11
Hedgehope	Ostler North	Waitotara 8 & 9
High Peak - Sheffield	Ostler South	Wakamarama
Hillfoot	Otaheke North	Wakamarama Offshore
Himatangi	Otaheke South	Wakarara
Hokonui	Otaki Forks: 1	Wanaka
Hollyford	Otaki Forks: 2	Warea
Honeycomb	Otakiri	Waverley - Okaia 1
Hope: Conway	Otanomomo	Wellington Hutt Valley: 1
Hope: Hamner SE	Otara East 1	Wellington Hutt Valley: 2
Hope: Hamner SW	Otara East 2	Wellington Hutt Valley: 3
Hope: Hanmer NW	Otara West 1	Wellington Hutt Valley: 4
Hope: Hope River	Otara West 2	Wellington Hutt Valley: 5
Hope: Hurunui	Otara West 3	Wellington: Pahiatua
Hope: Kakapo-2-Hamner	Otaraia	Wellington: Tararua 1
Hope: Seaward	Pa Valley	Wellington: Tararua 2
Hope: Taramakau	Paddys Ridge	Wellington: Tararua 3
Hope: Te Rapa	Paeroa	Wendon Valley
Hopkins	Pahaua	West Balleny
Hororata	Pahiatua	West Wakatipu
Horse Flat	Pakarae	Whakaari 4
Houtunui	Palliser - Kaiwhata	Whakatane: North
Hump Ridge	Pancake	Whakatane: South
Hundalee	Paparoa West	Whangamata West
Hunter Valley	Paparoa West: North	Whangamoa
Hunters	Papatea	Wharanui
Hurunui Peak	Parihaka	Whareama Bank
Hutt Peel	Patoka - Rangiora	Wharekauhau
Huxley	Pegasus Bay	Wheao: North
Hyde North	Pihama	Wheao: South
Hyde South - The Twins	Pisa	White Creek
Ihaia	Pohangina	White Creek - buried
Inangahua	Point Gibson	White Hill
Inglewood	Pokeno	White Island 1
Irishman Creek	Pongaroa - Weber	White Island 2
Jordan	Poroutawhao	Whitemans Valley
Kahurangi	Porters Pass	Woodville
Kaiapo	Poulter

Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t

Table Of Contents

Logic Tree Branch

Solution MFDs

Total Target MFDs

NZ_RECTANGLE Gridded Region

Simulated Annealing Energy

Final Energies

Energy Progress

Constraint Misfit Progress

Rupture Rate Distribution

Participation Rates

Section b-values

Subsection b-values

Parent Section b-values

Rupture Scalar Histograms

Rupture Length

Rupture Length vs Rupture Rate

Rupture Magnitude

Rupture Magnitude vs Rupture Rate

Maximum Jump Dist

Maximum Jump Dist vs Rupture Rate

Cumulative Jump Dist

Cumulative Jump Dist vs Rupture Rate

Cumulative Rake Change

Cumulative Rake Change vs Rupture Rate

Max Slip Rate Difference

Max Slip Rate Difference vs Rupture Rate

Attached Modules

Rupture Set Modules

Solution Modules

Fault Section Connections

Connected Clusters

Slip Rates

Linear Slip Rate Plots

Log10 Slip Rate Plots

Slip Rate Std Dev Plots

Paleoseismic Data Comparison

Jump Counts Over Distance

Supra-seismogenic Jump Counts

M≥7 Jump Counts

Max Jump Distance Distribution

Cumulative Jump Distance Distribution

Hazard Maps

PGA Hazard Maps

PGA, 2% in 50 year Hazard Maps

PGA, 10% in 50 year Hazard Maps

1s SA Hazard Maps

1s SA, 2% in 50 year Hazard Maps

1s SA, 10% in 50 year Hazard Maps

Parent Section Detail Pages
