Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDgw

Table Of Contents

• Logic Tree Branch
• Solution MFDs
  • Total Target MFDs
  • NZ_RECTANGLE Gridded Region
• Simulated Annealing Energy
  • Final Energies
  • Energy Progress
  • Constraint Misfit Progress
• Rupture Rate Distribution
• Participation Rates
• Section b-values
  • Subsection b-values
  • Parent Section b-values
• Rupture Scalar Histograms
  • Rupture Length
  • Rupture Magnitude
  • Maximum Jump Dist
  • Cumulative Jump Dist
  • Cumulative Rake Change
  • Max Slip Rate Difference
• Attached Modules
  • Rupture Set Modules
  • Solution Modules
• Fault Section Connections
  • Connected Clusters
• Slip Rates
  • Linear Slip Rate Plots
  • Log10 Slip Rate Plots
  • Slip Rate Std Dev Plots
• Jump Counts Over Distance
  • Supra-seismogenic Jump Counts
  • M≥7 Jump Counts
  • Max Jump Distance Distribution
  • Cumulative Jump Distance Distribution
• Hazard Maps
  • PGA Hazard Maps
  • 1s SA Hazard Maps
• Named Fault Detail Pages
• Parent Section Detail Pages

Logic Tree Branch

(top)

Solution MFDs

(top)

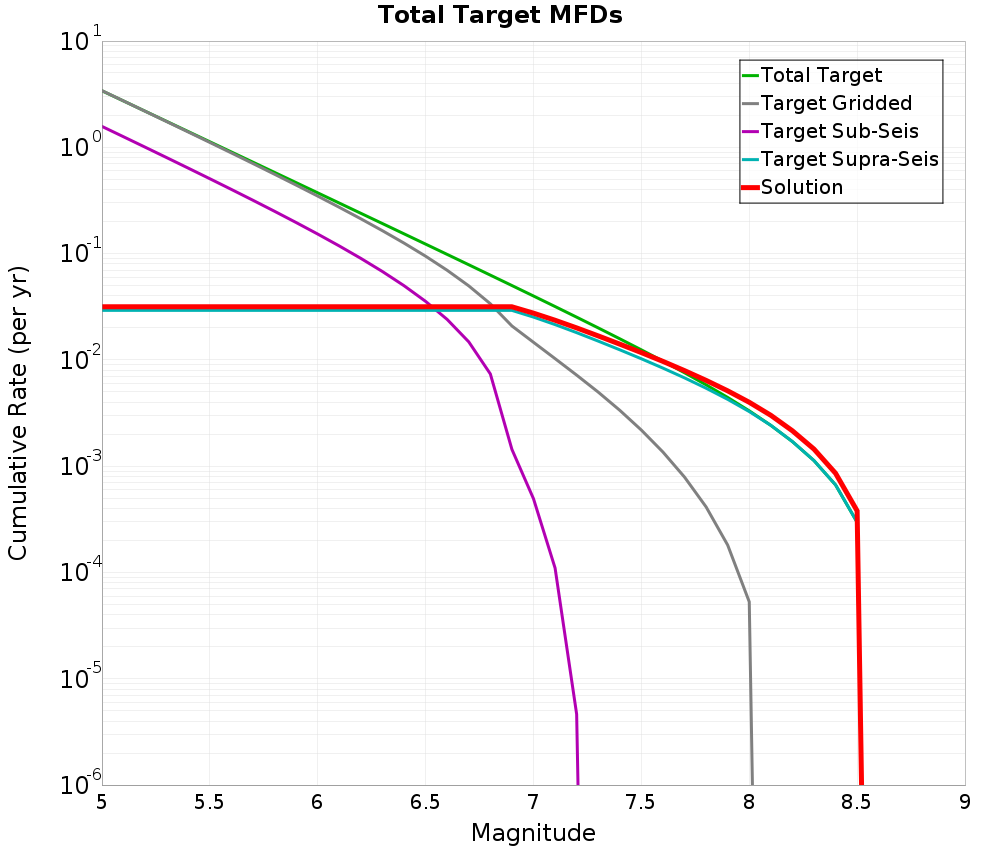

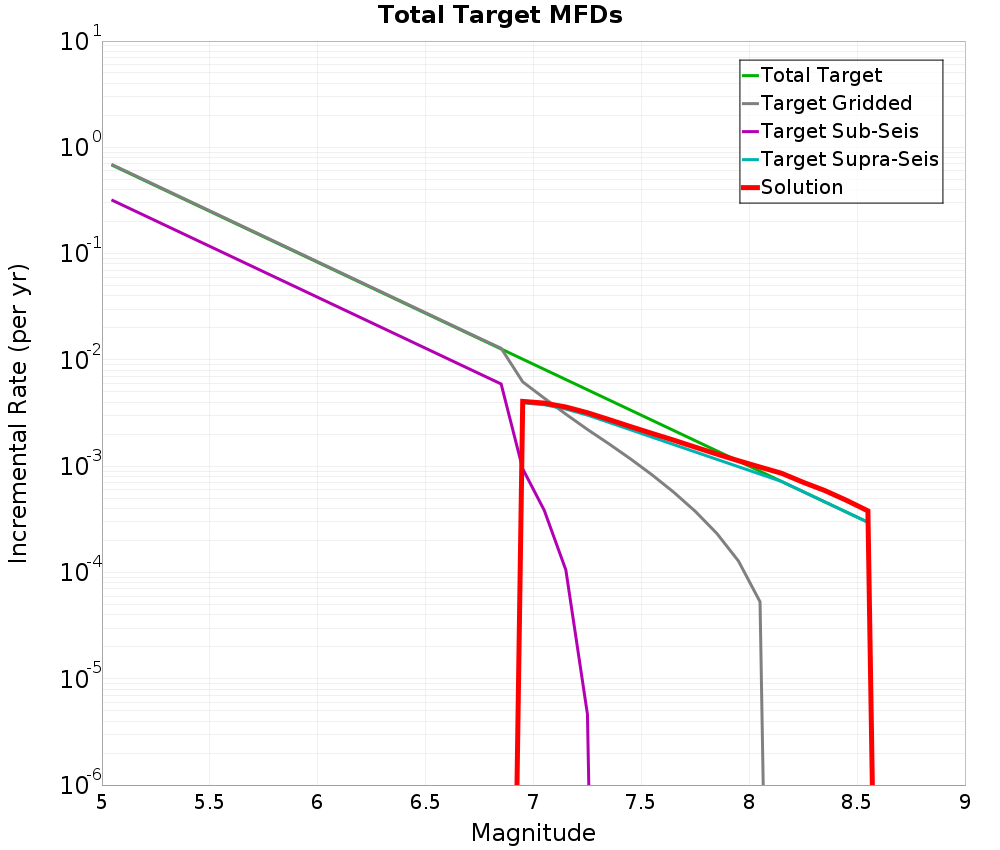

Total Target MFDs

(top)

Incremental MFDs	Cumulative MFDs

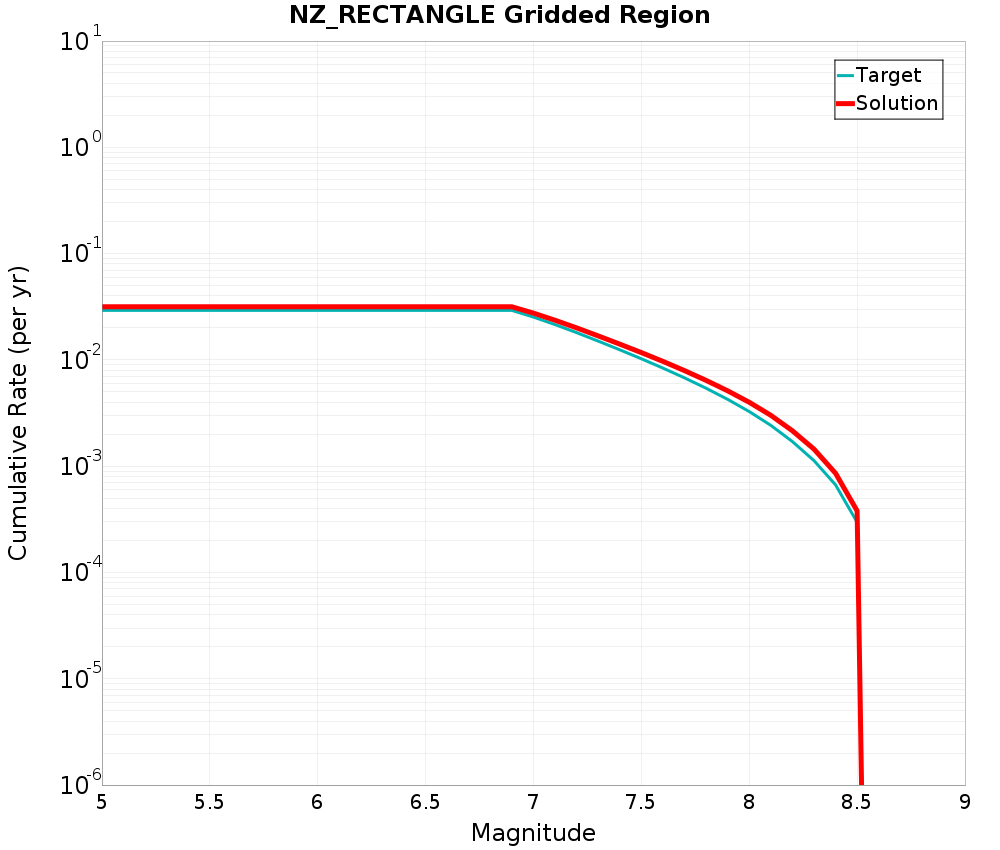

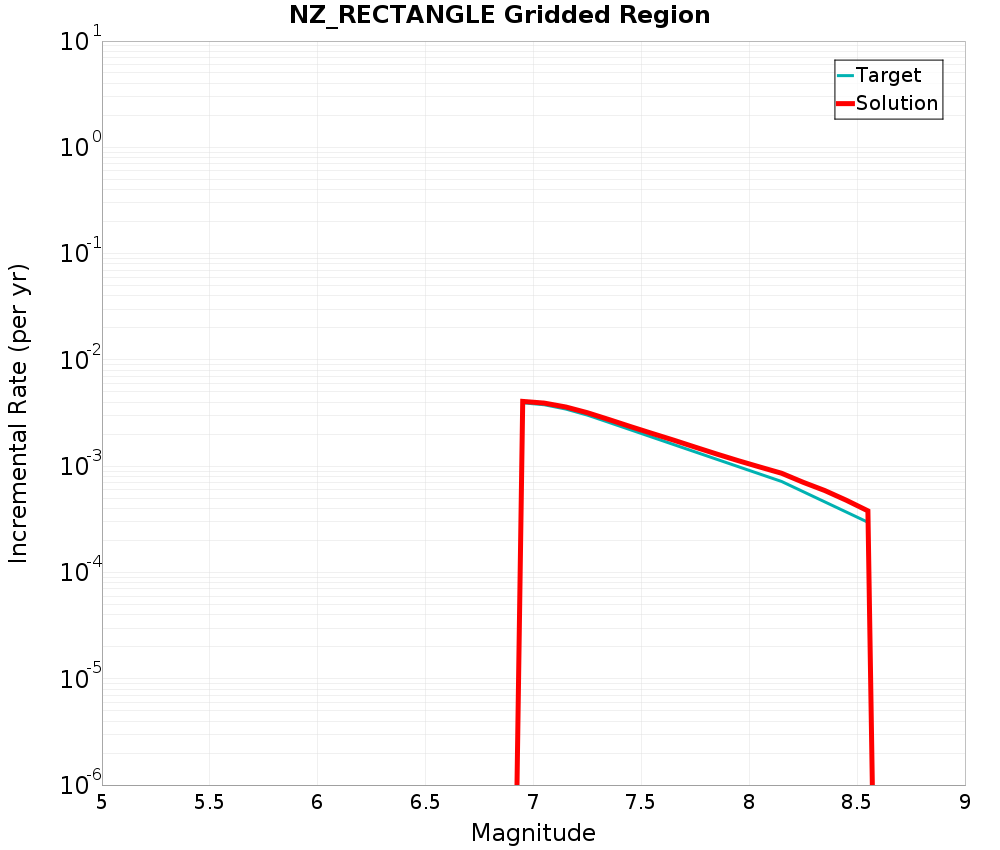

NZ_RECTANGLE Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

Simulated Annealing Energy

(top)

Final Energies

(top)

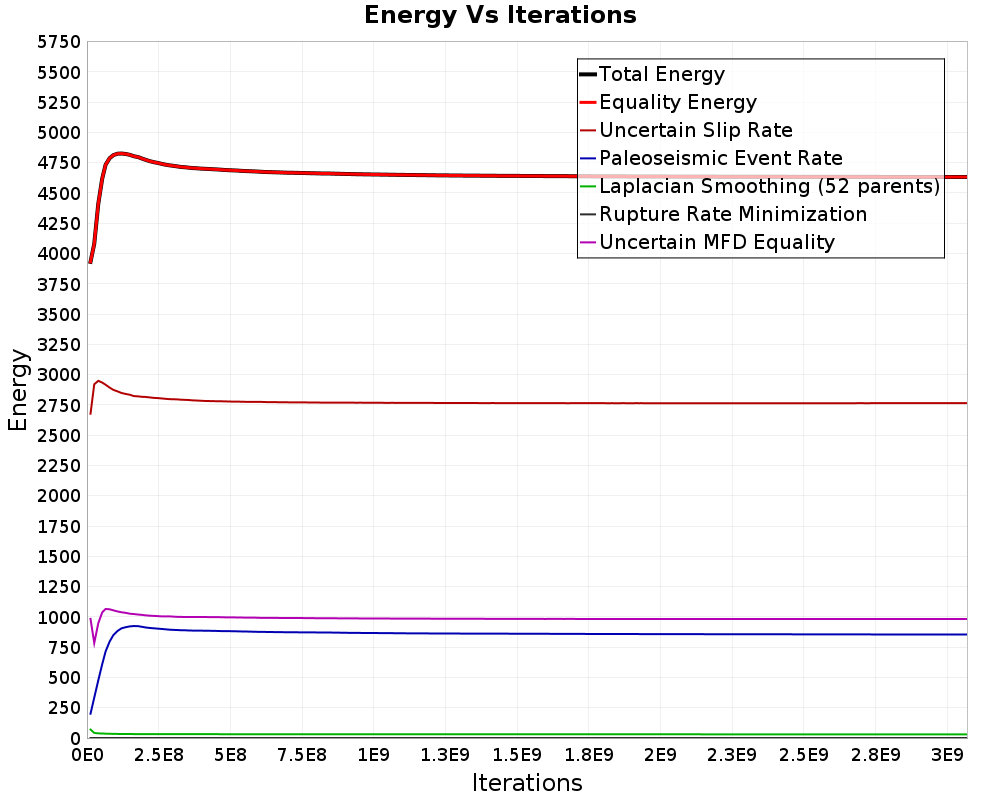

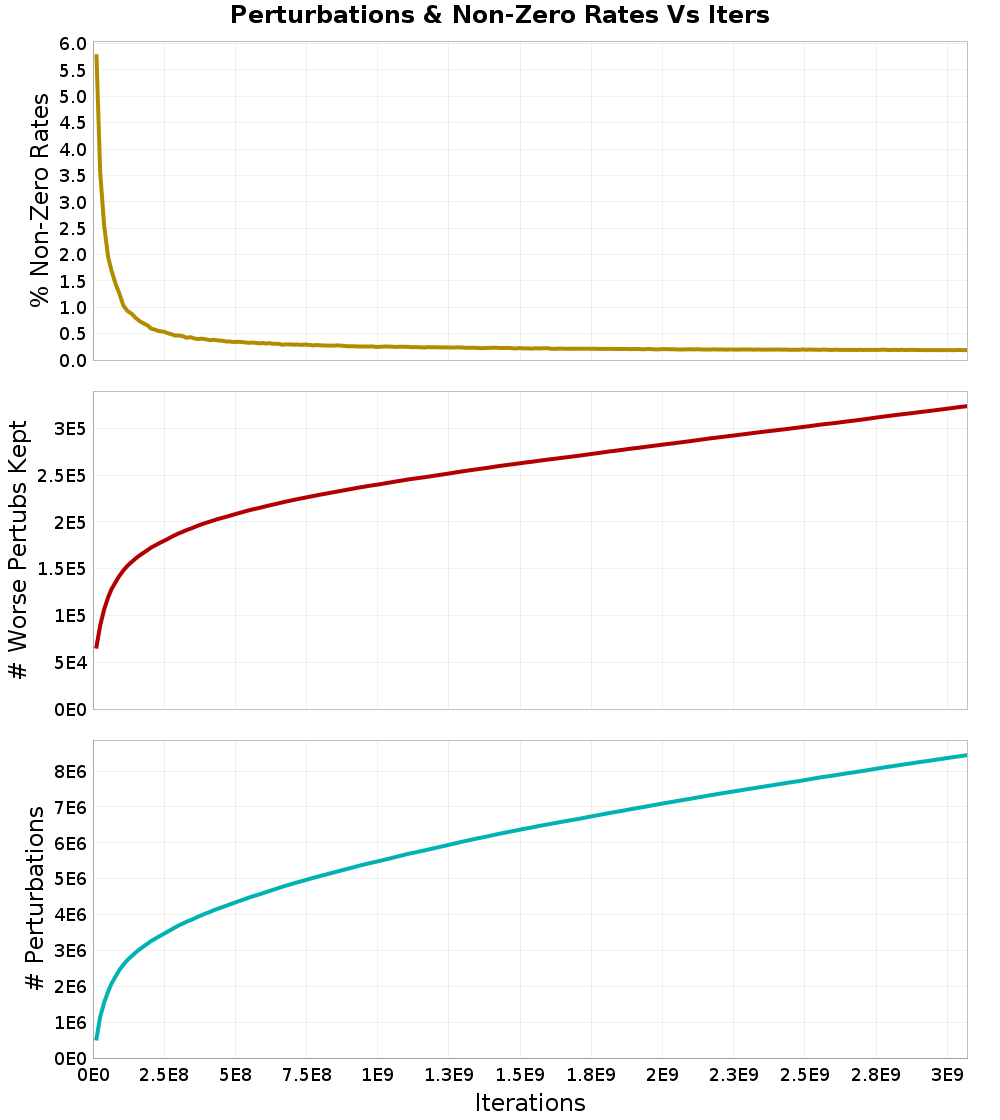

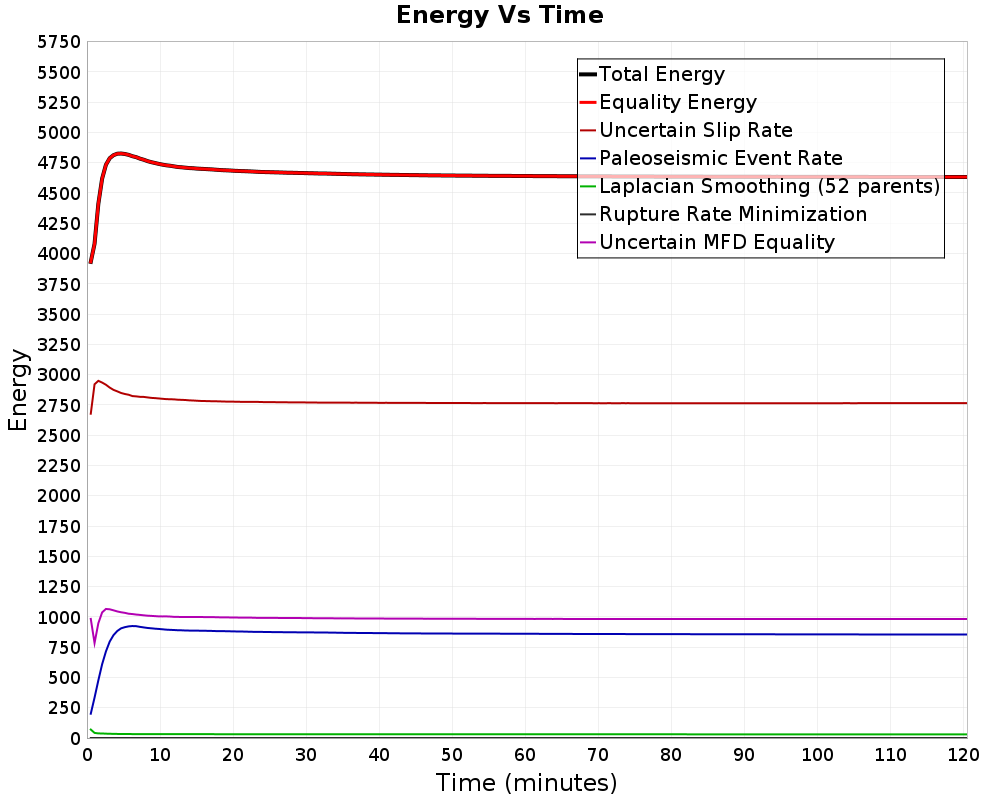

Energy Progress

(top)

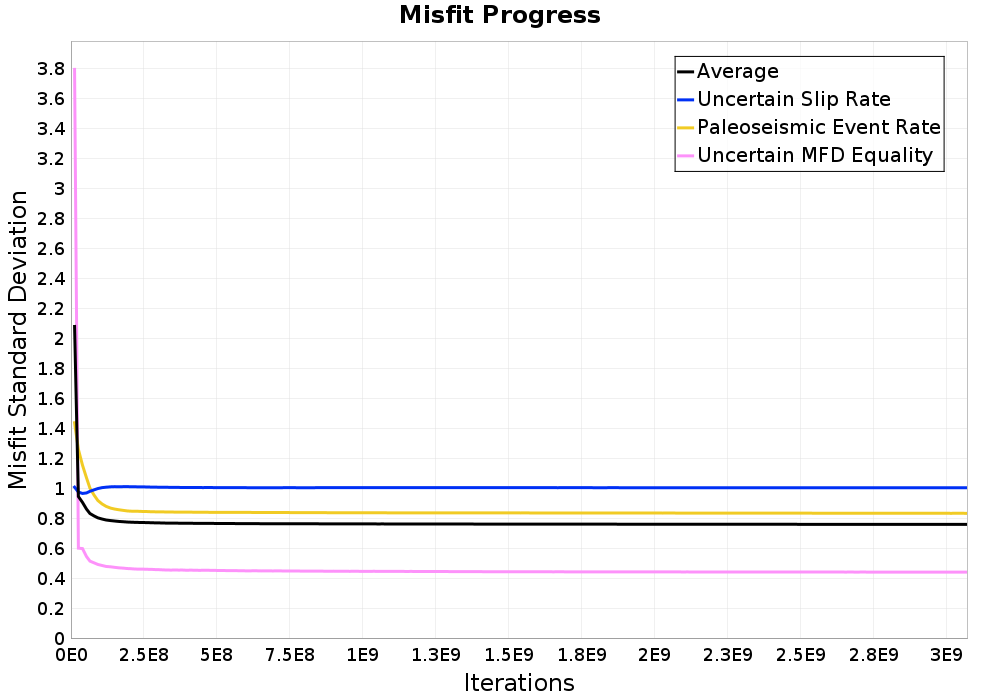

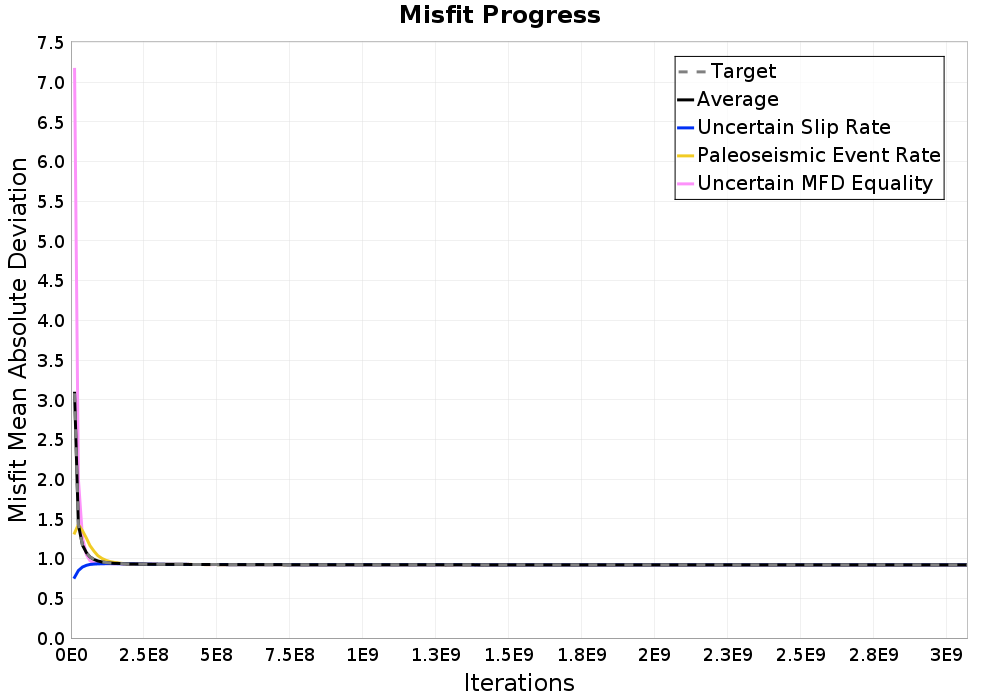

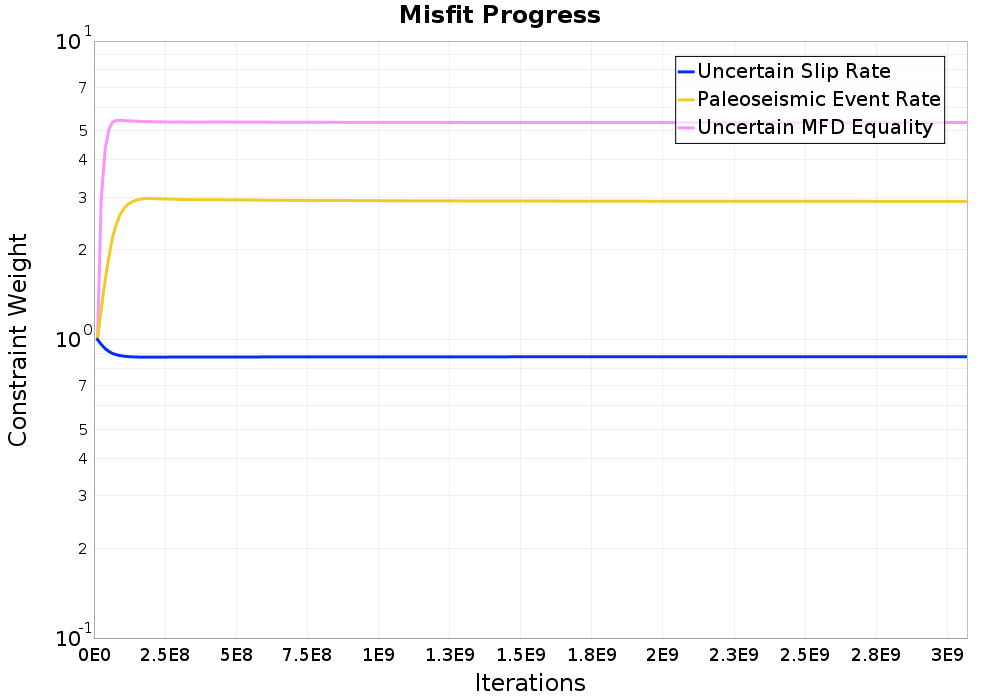

Constraint Misfit Progress

(top)

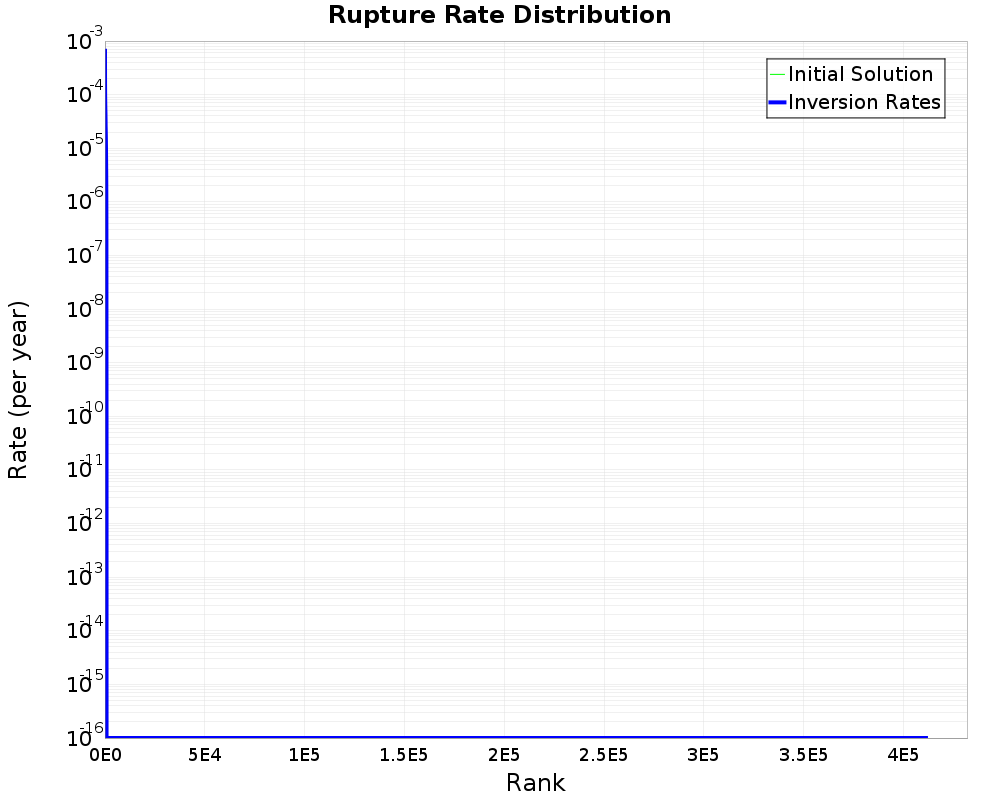

Rupture Rate Distribution

(top)

Participation Rates

(top)

Supra-Seismogenic	Range: M≤6
Download GeoJSON	Download GeoJSON
M≥6	Range: M∈[6, 7]
Download GeoJSON	Download GeoJSON
M≥7	Range: M∈[7, 8]
Download GeoJSON	Download GeoJSON
M≥8
Download GeoJSON

Section b-values

(top)

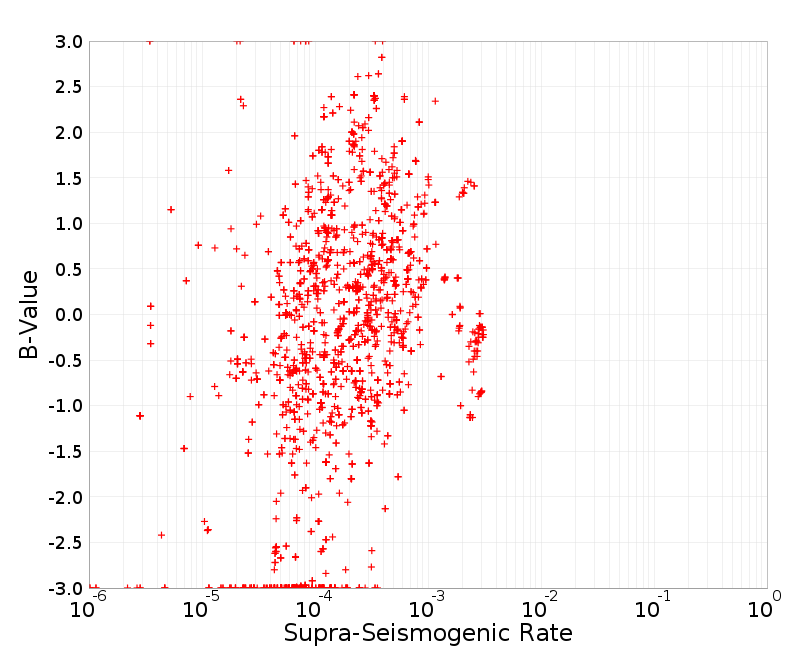

Subsection b-values

(top)

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Download b-value CSV file: sect_b_values.csv

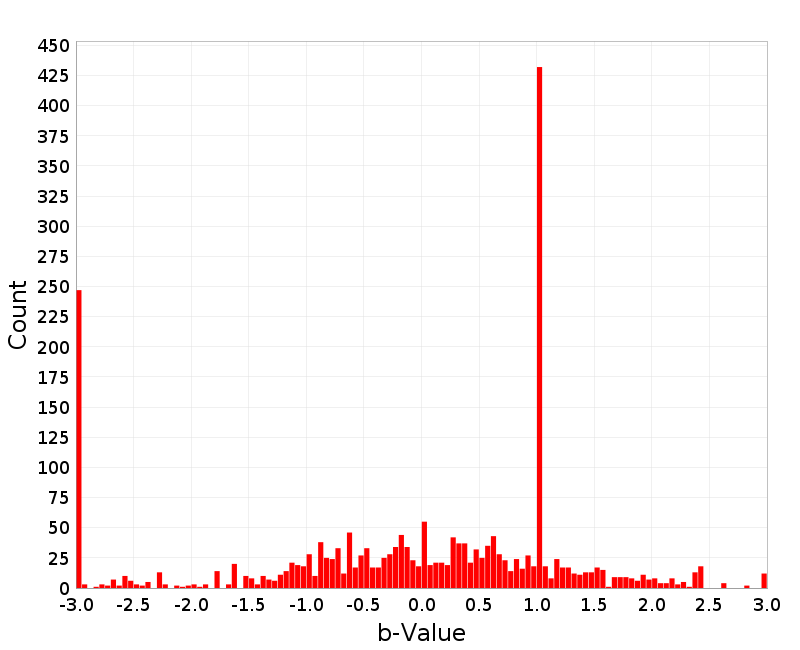

b-Value Distribution	b-Value Rate-Dependence

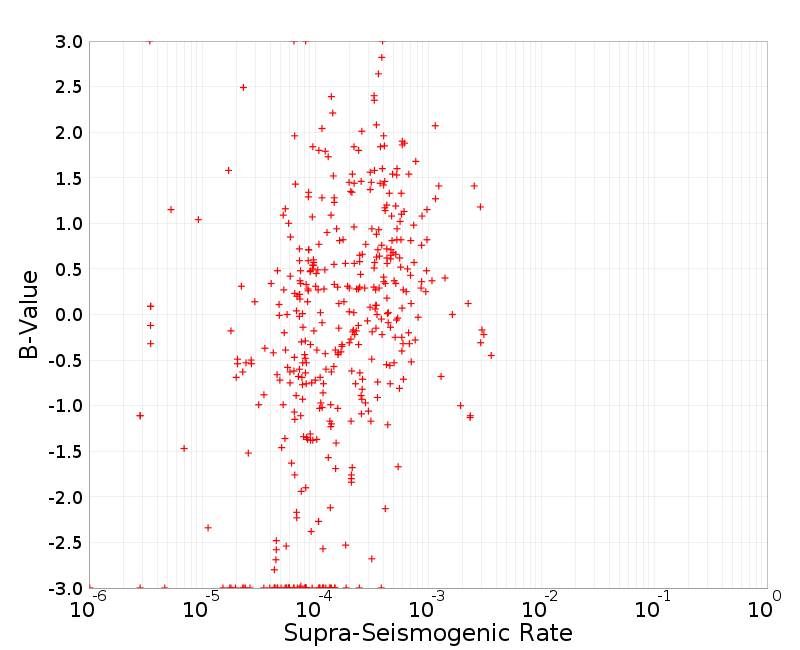

Parent Section b-values

(top)

Download b-value CSV file: parent_sect_b_values.csv

b-Value Distribution	b-Value Rate-Dependence

Rupture Scalar Histograms

(top)

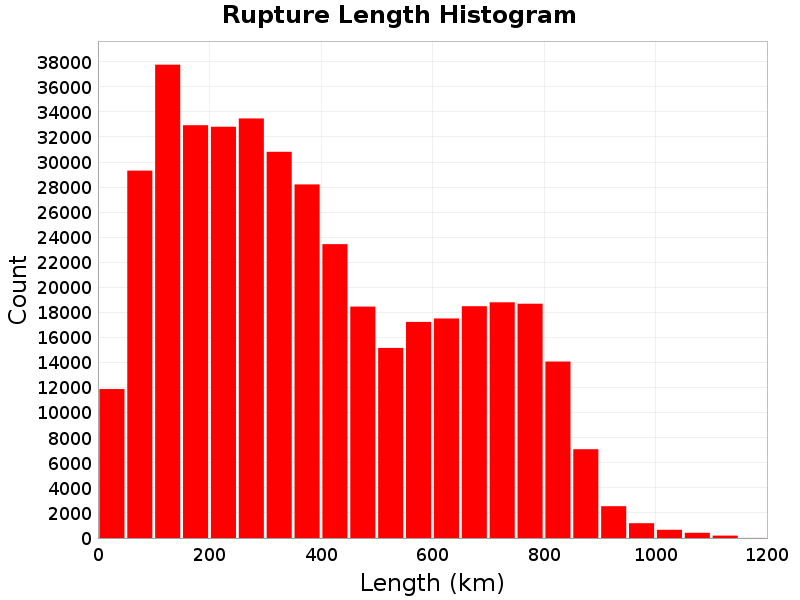

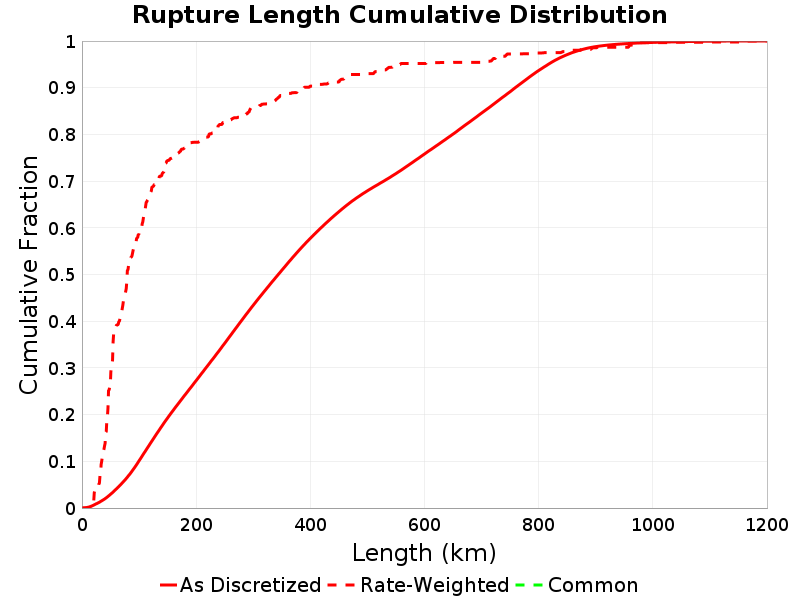

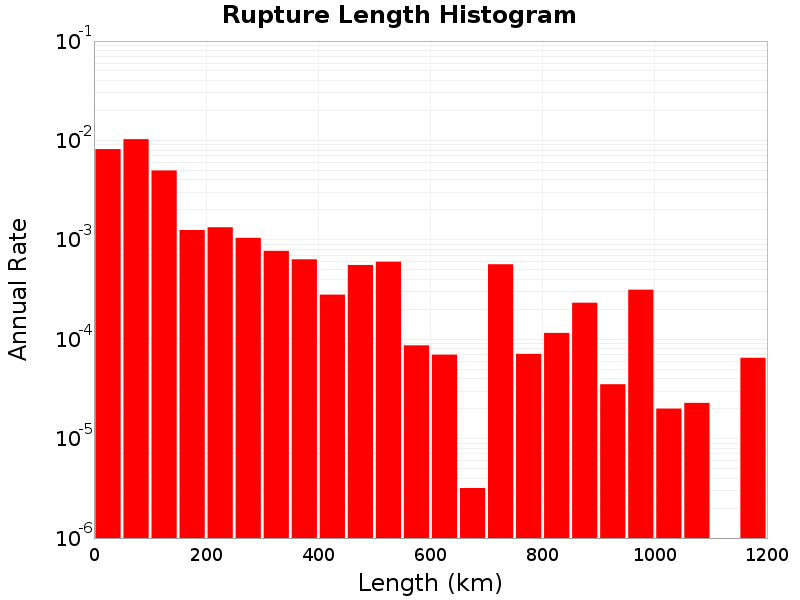

Rupture Length

(top)

Total length (km) of the rupture, not including jumps or gaps.

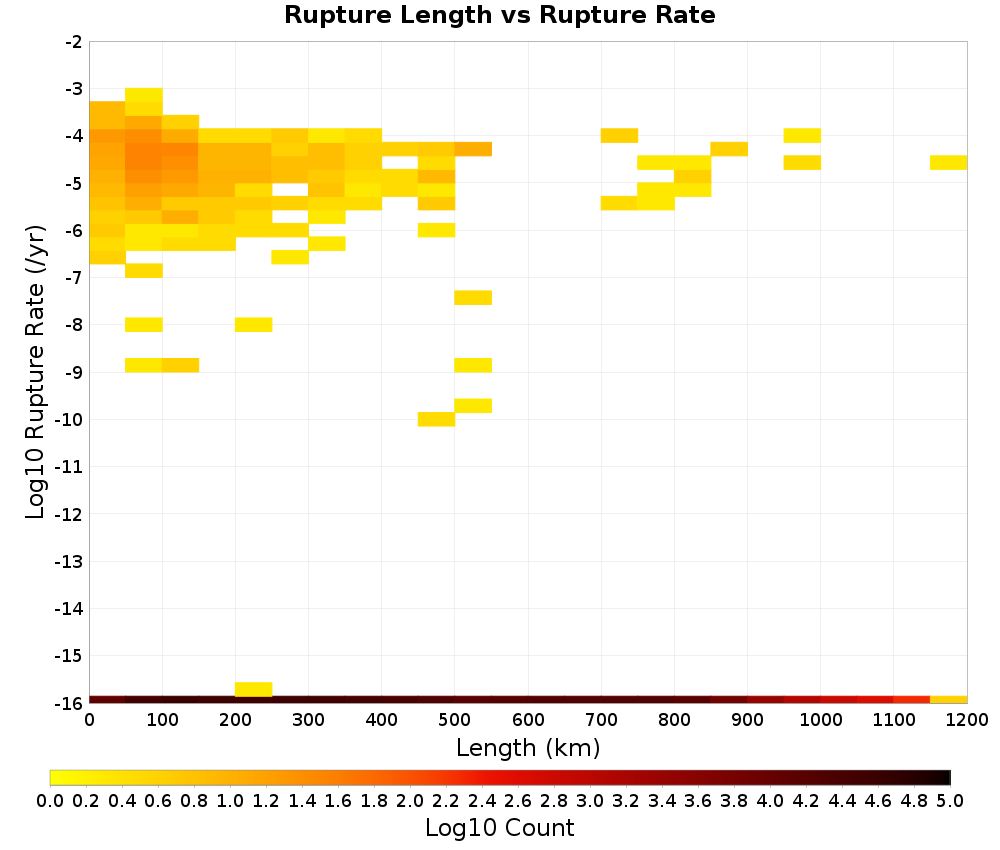

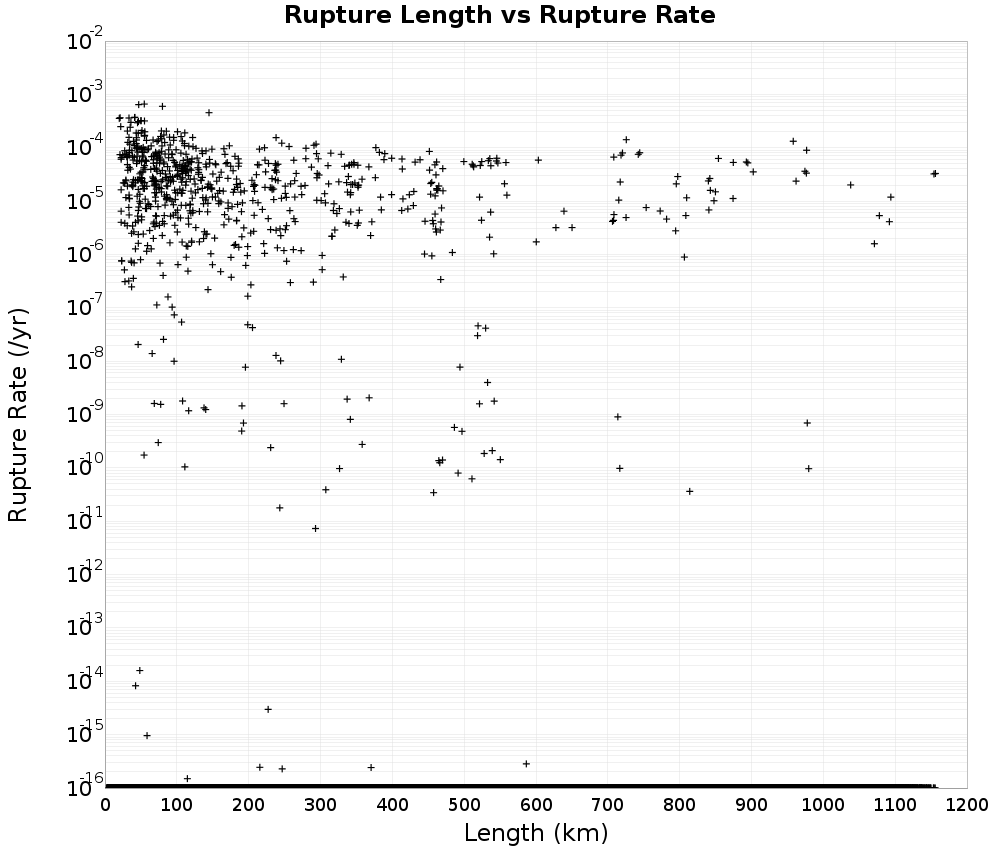

Rupture Length vs Rupture Rate

(top)

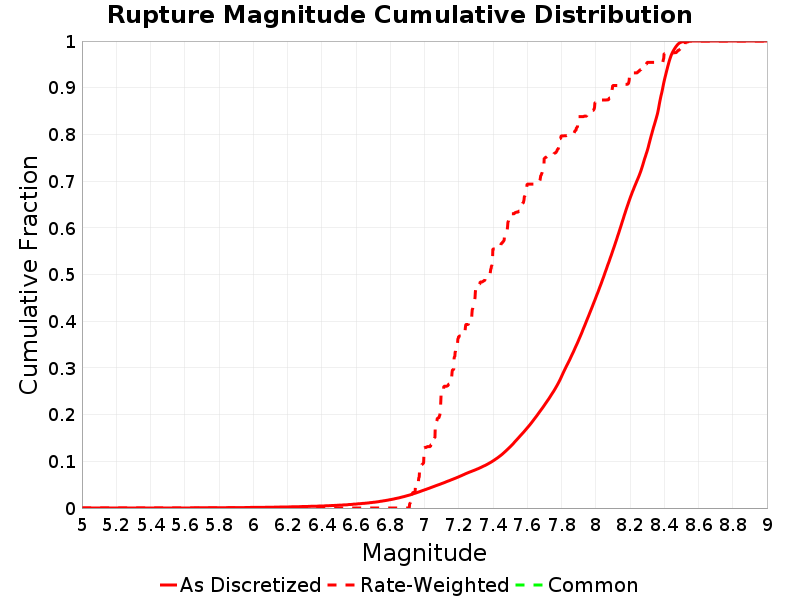

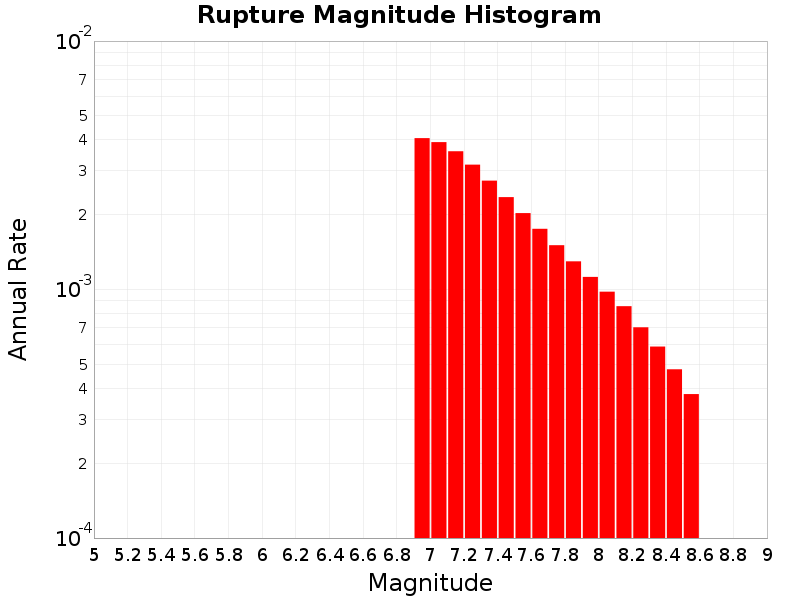

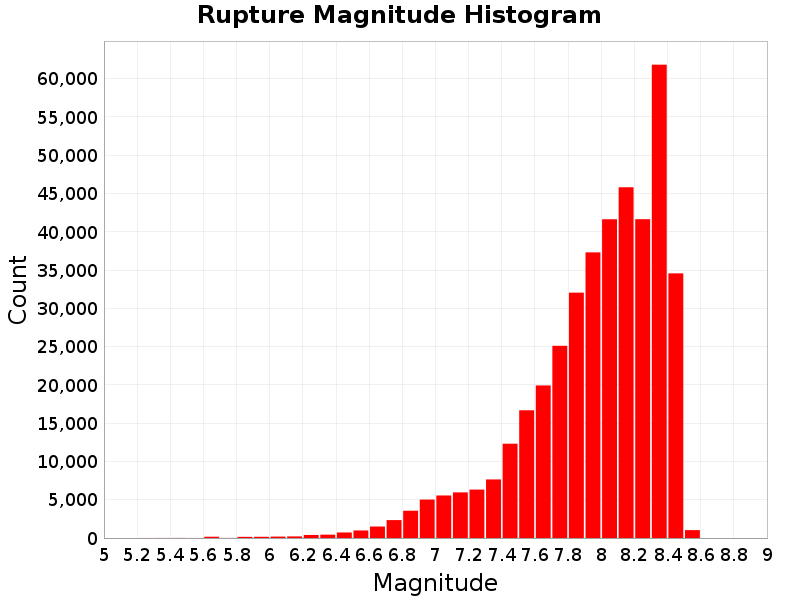

Rupture Magnitude

(top)

Magnitude of the rupture.

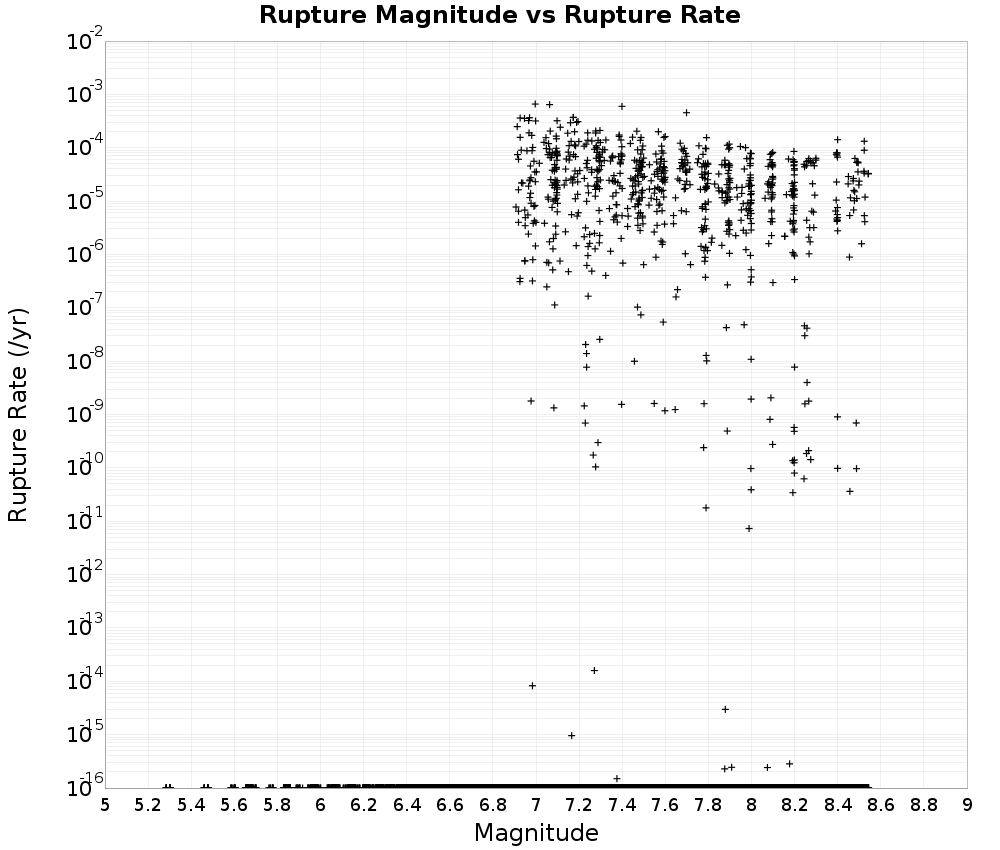

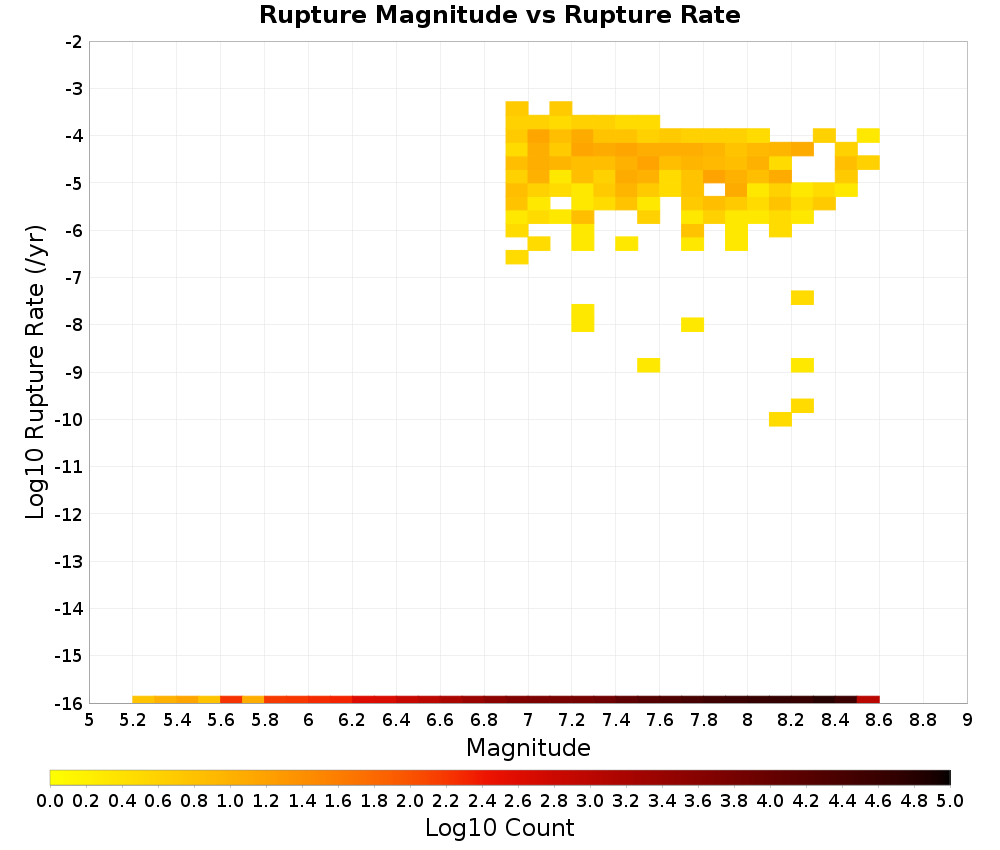

Rupture Magnitude vs Rupture Rate

(top)

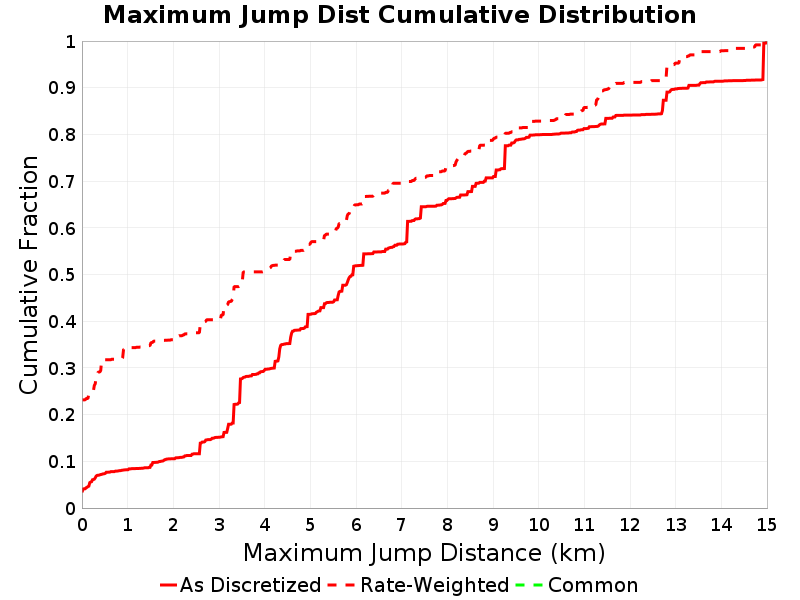

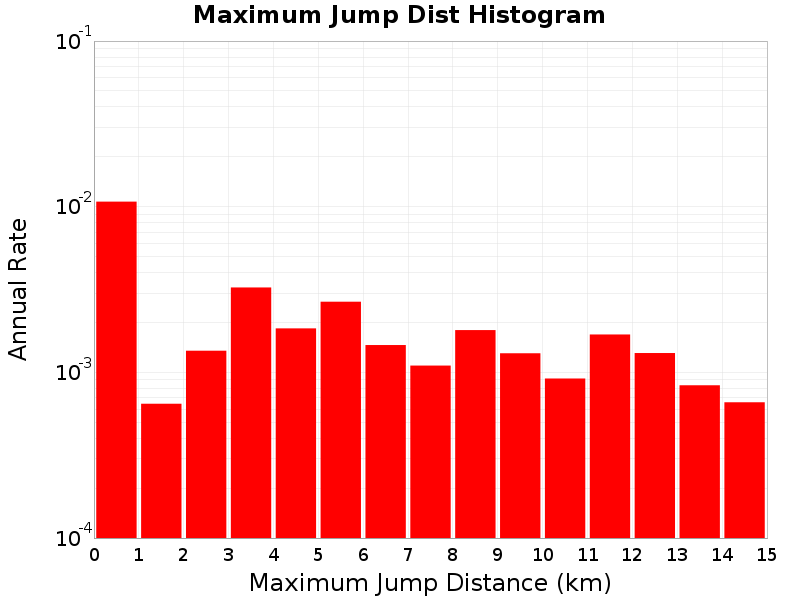

Maximum Jump Dist

(top)

The maximum jump distance in the rupture.

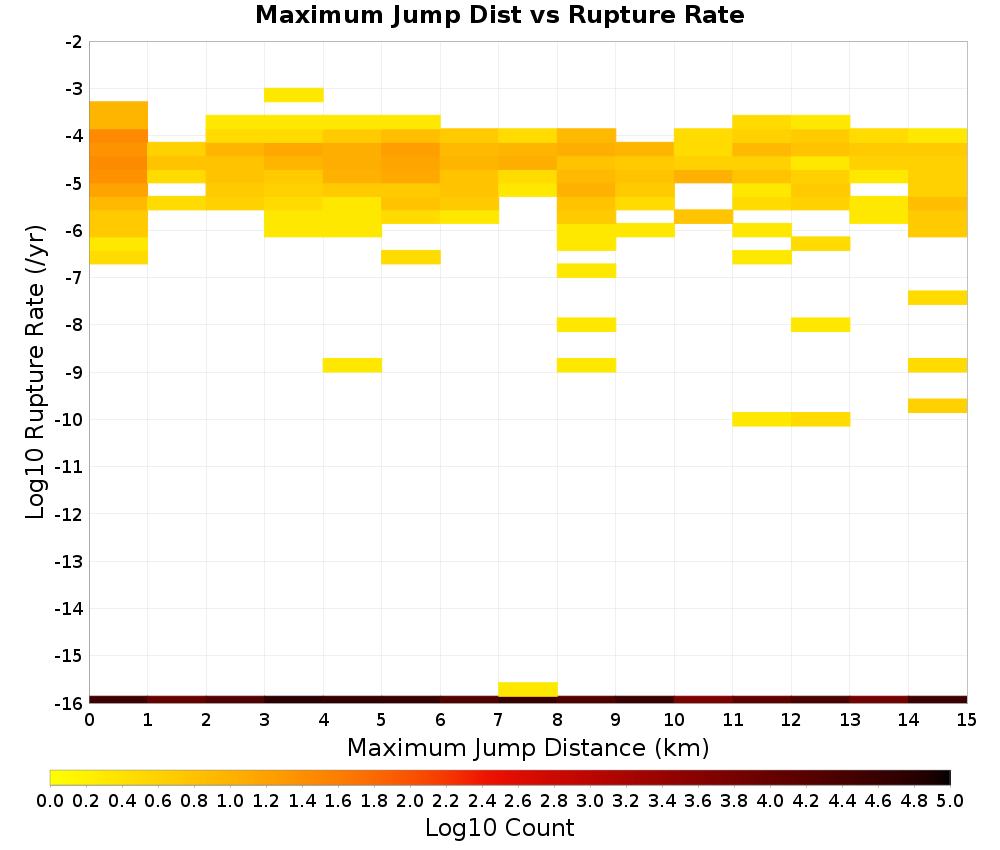

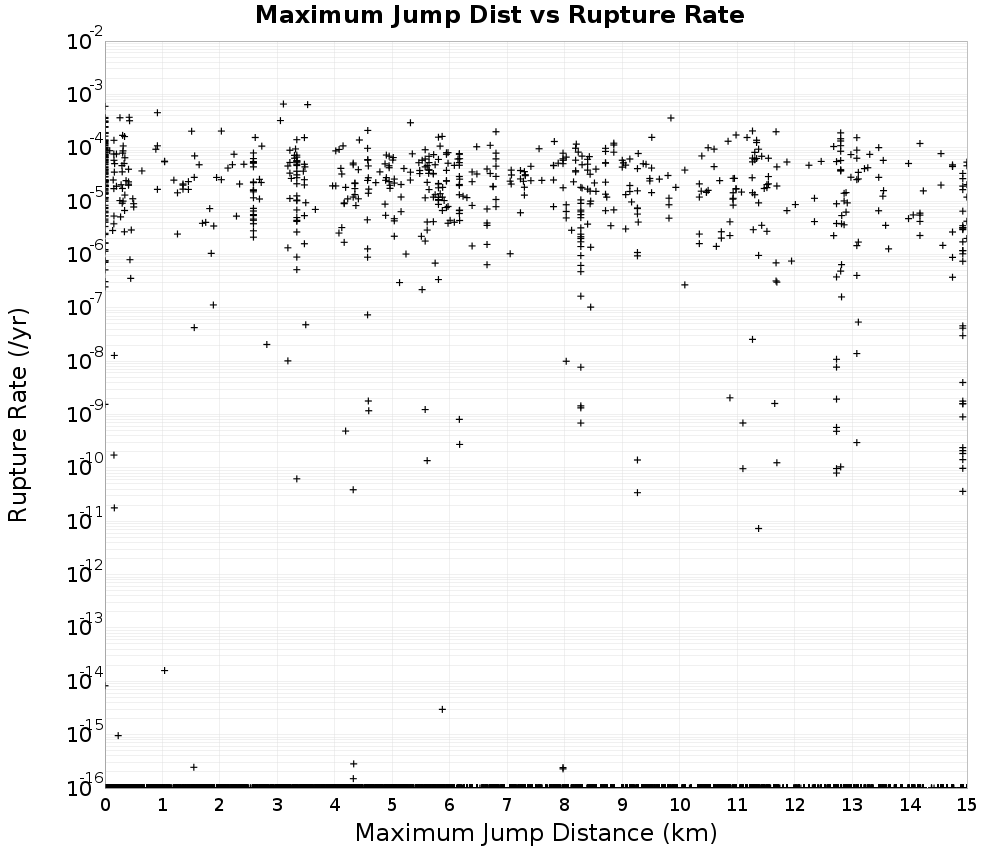

Maximum Jump Dist vs Rupture Rate

(top)

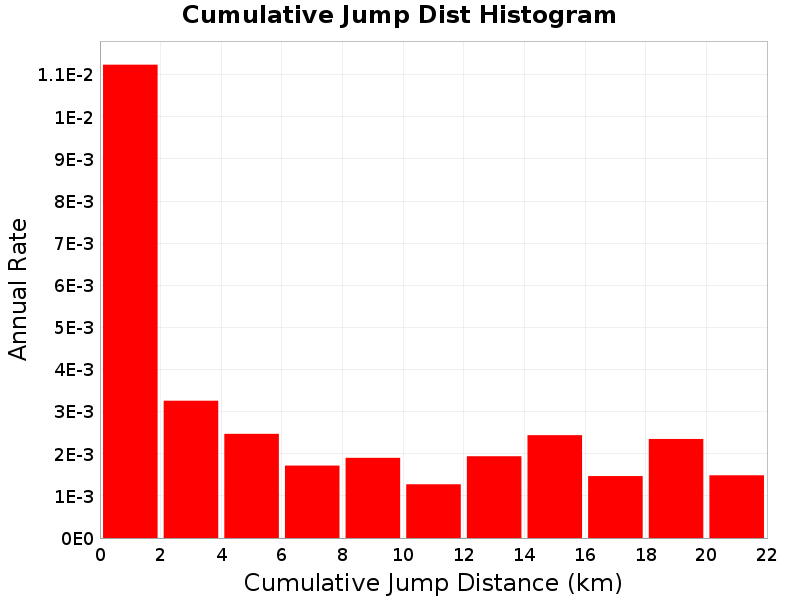

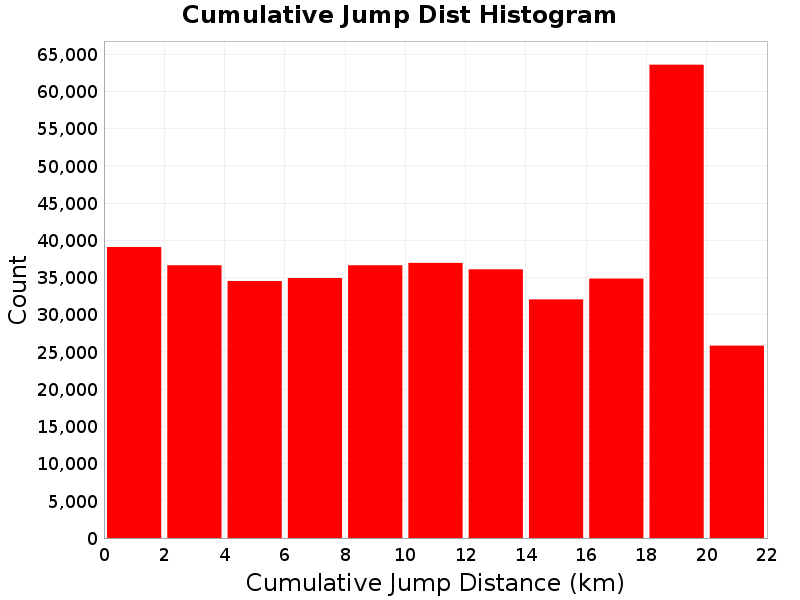

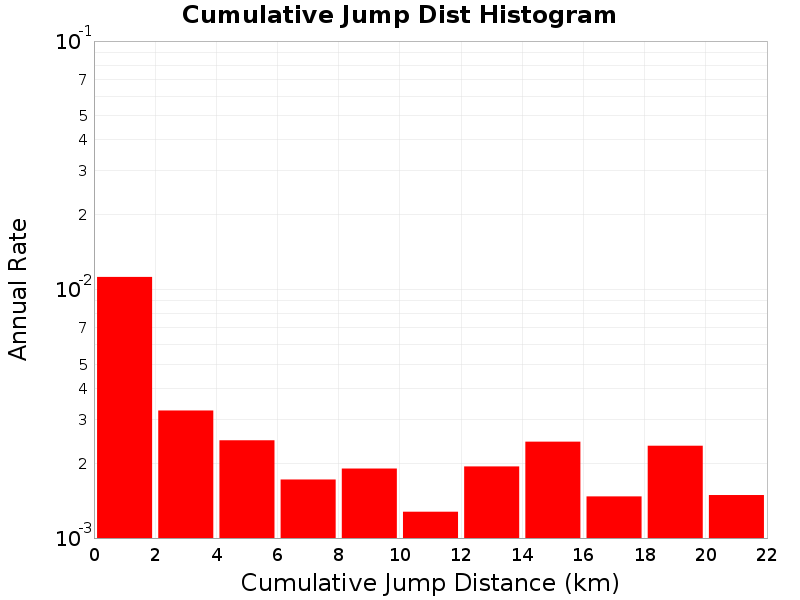

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

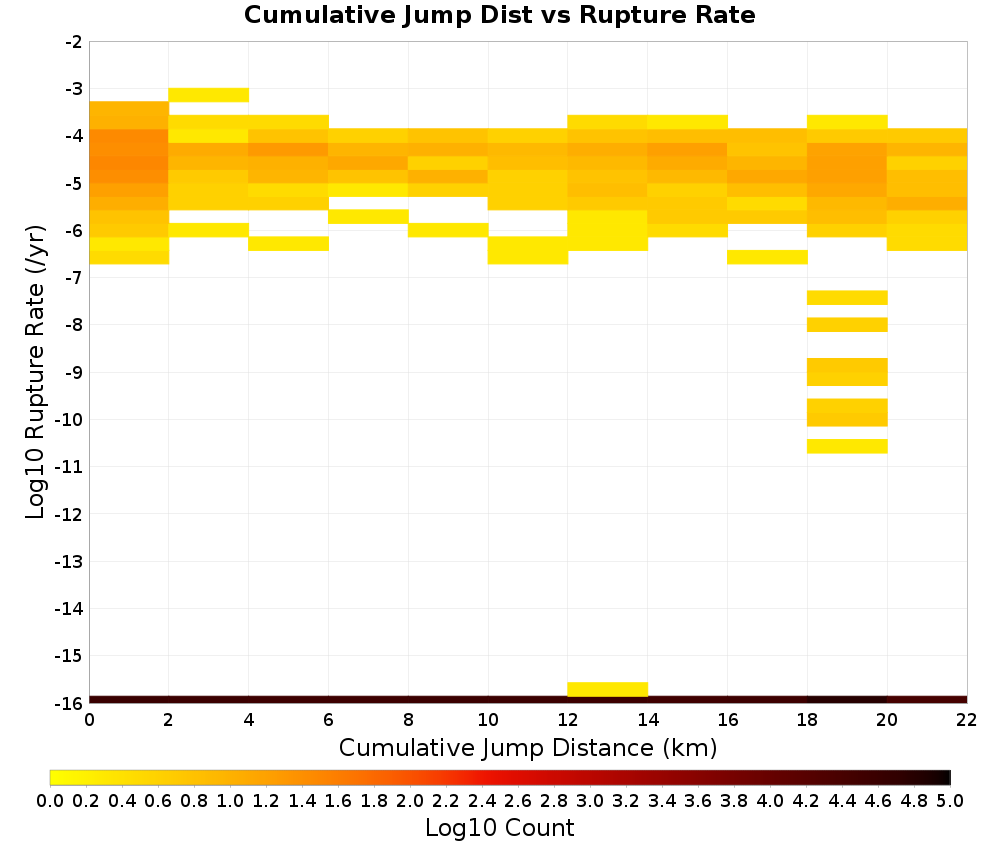

Cumulative Jump Dist vs Rupture Rate

(top)

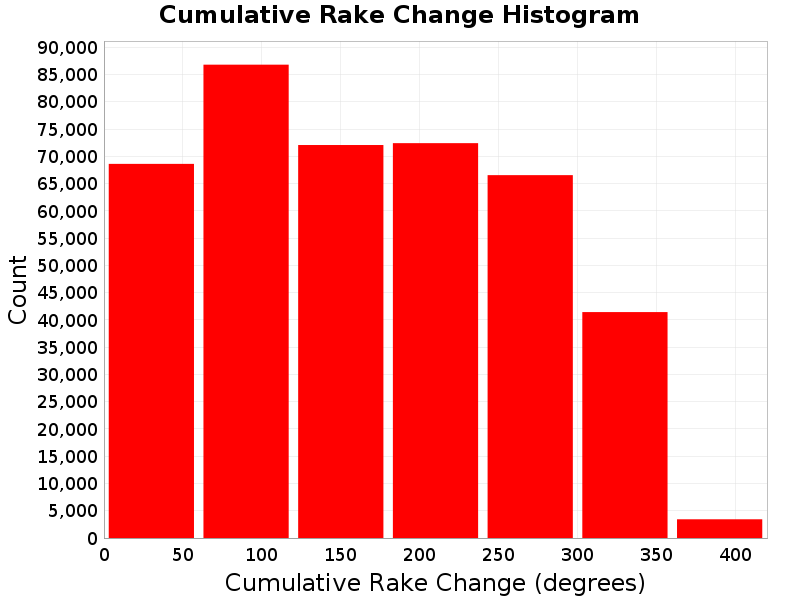

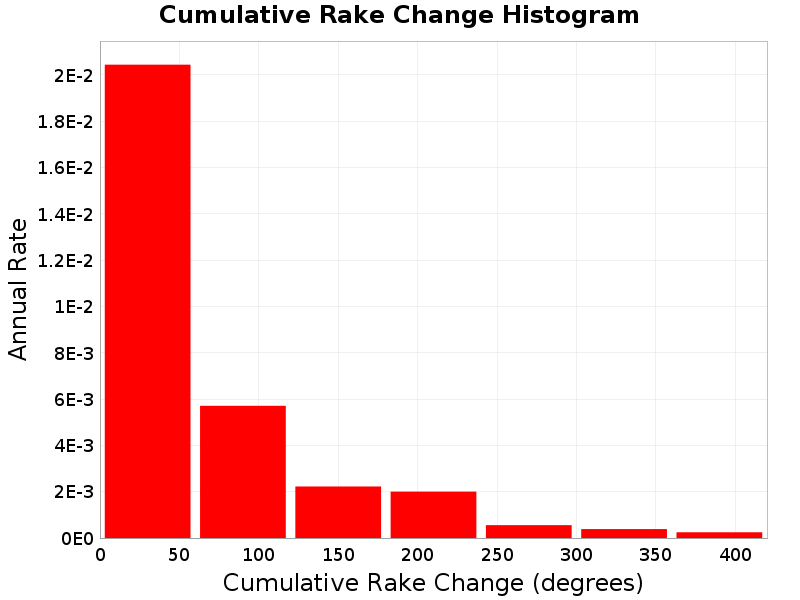

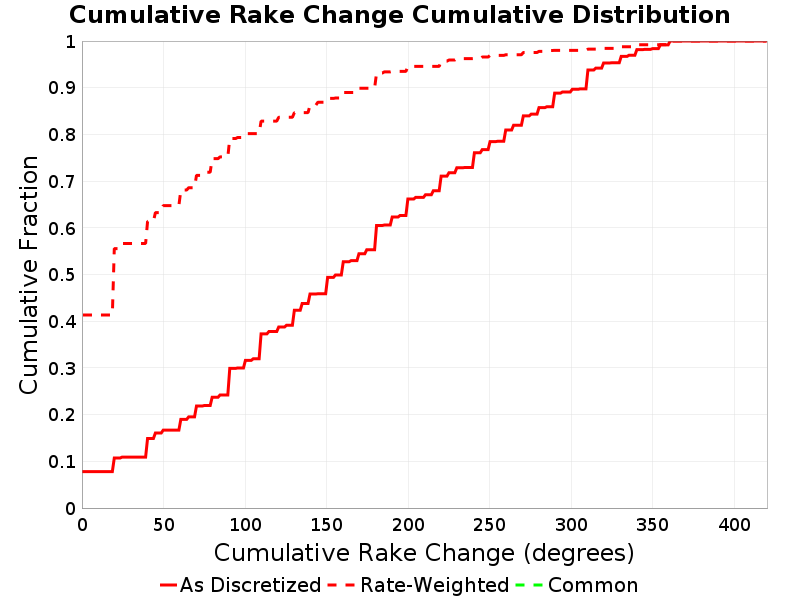

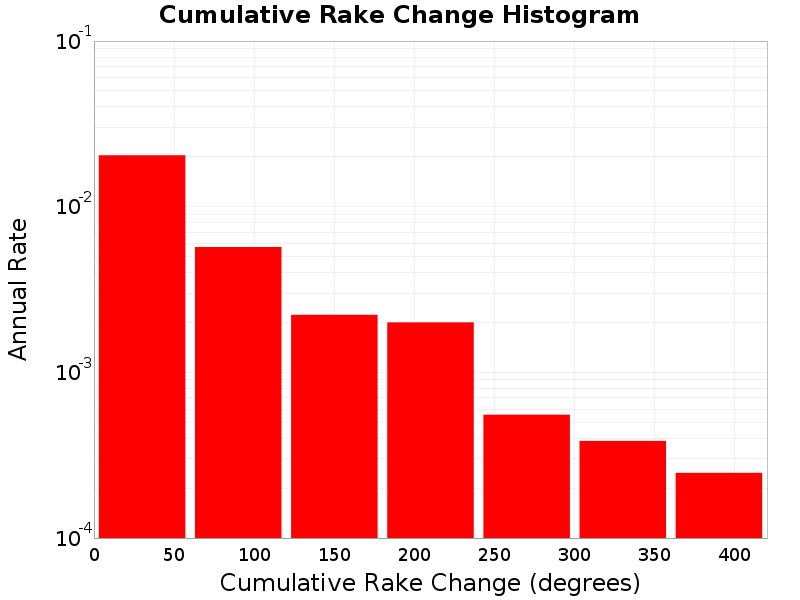

Cumulative Rake Change

(top)

Cumulative rake change for this rupture.

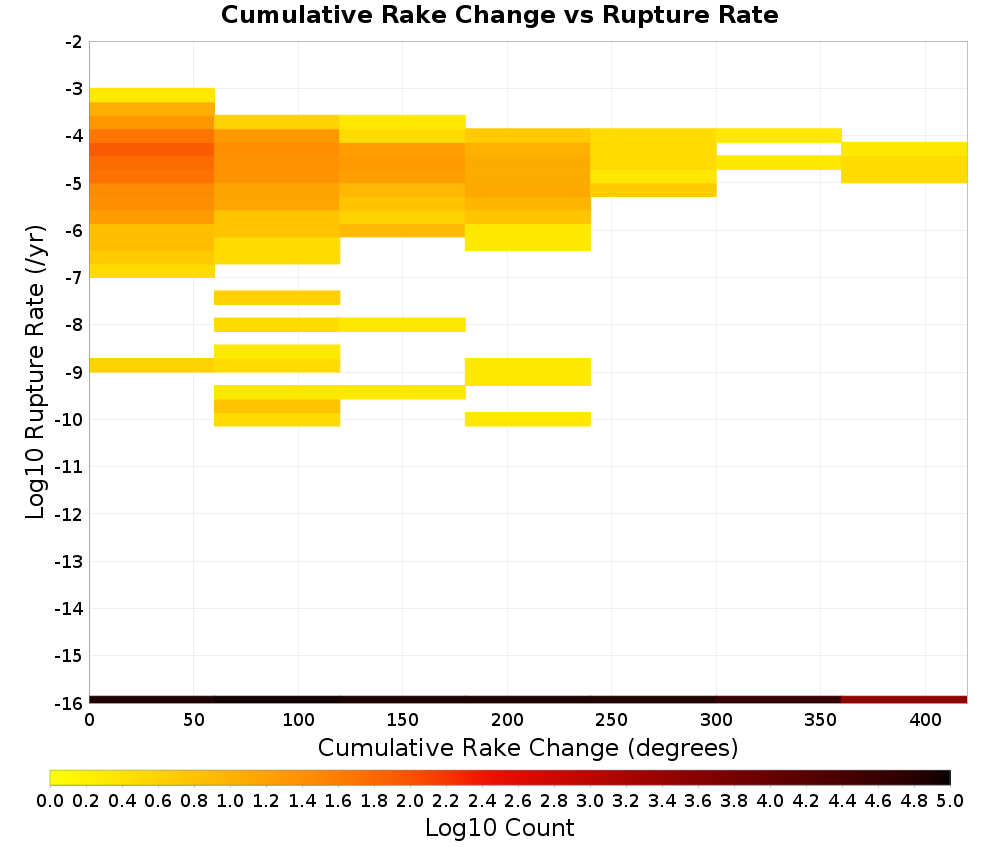

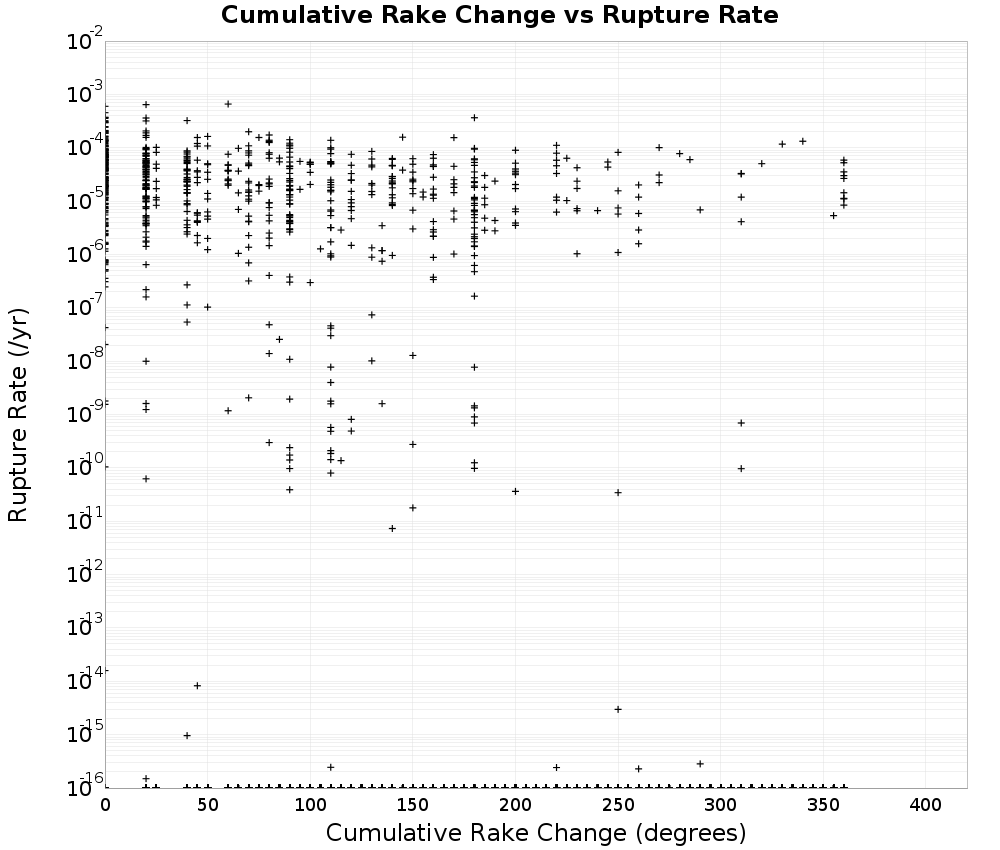

Cumulative Rake Change vs Rupture Rate

(top)

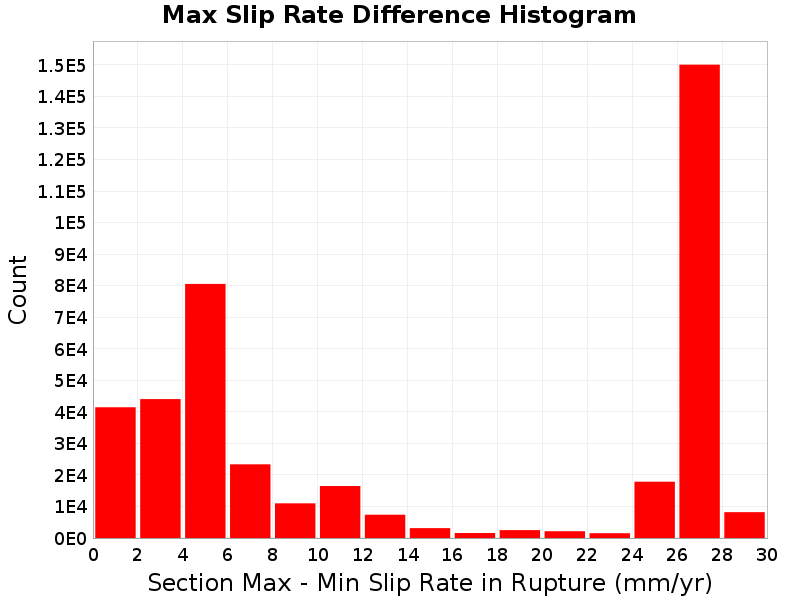

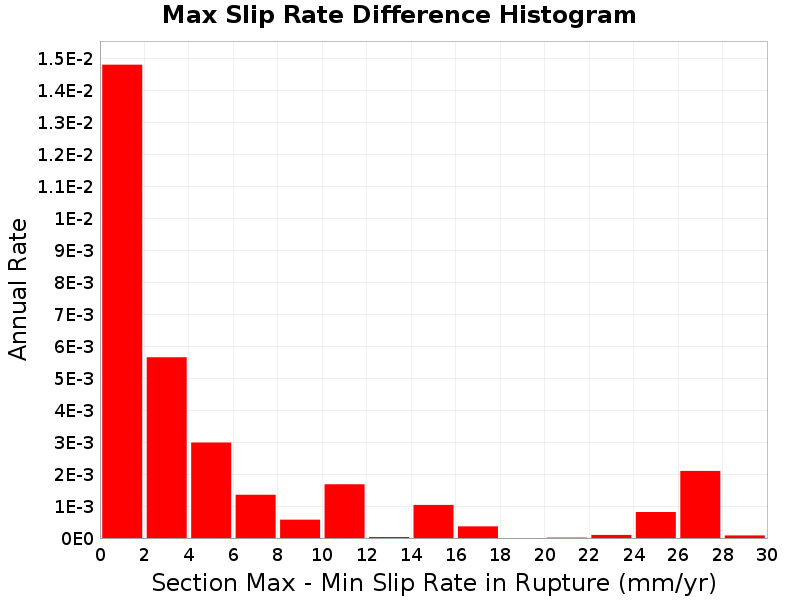

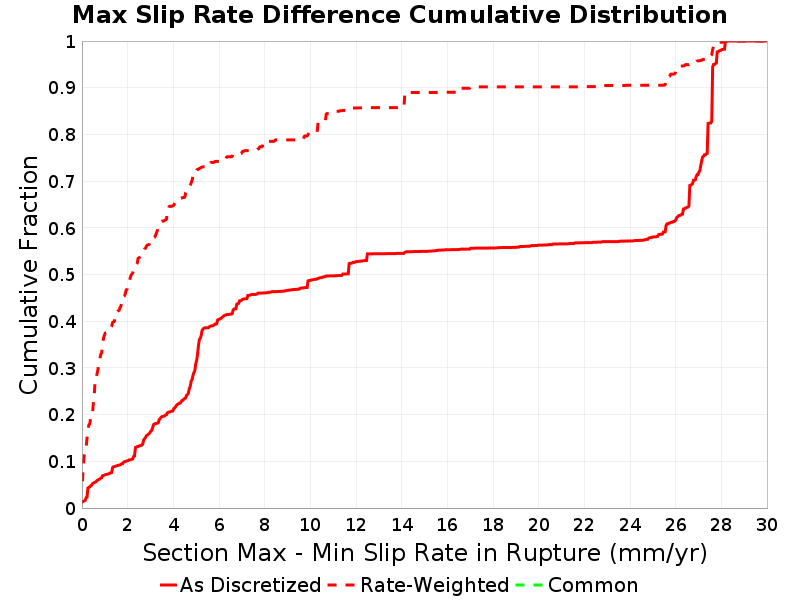

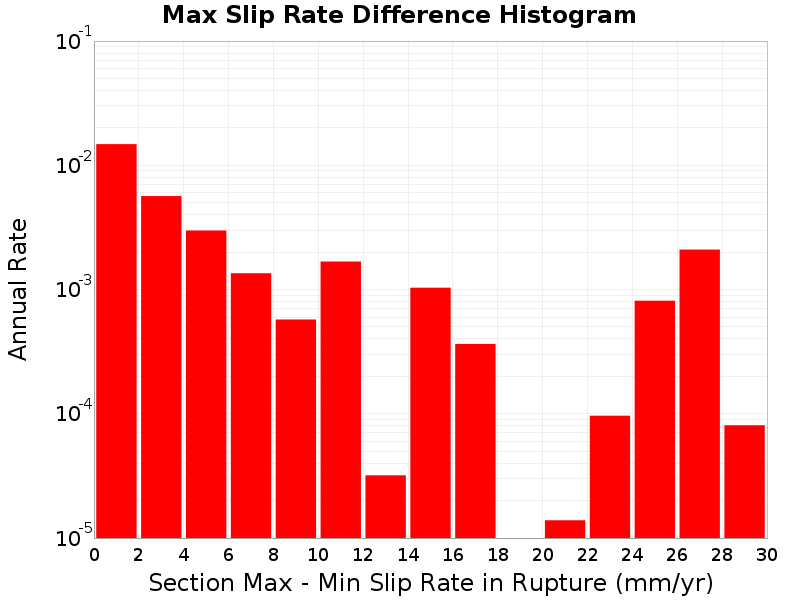

Max Slip Rate Difference

(top)

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

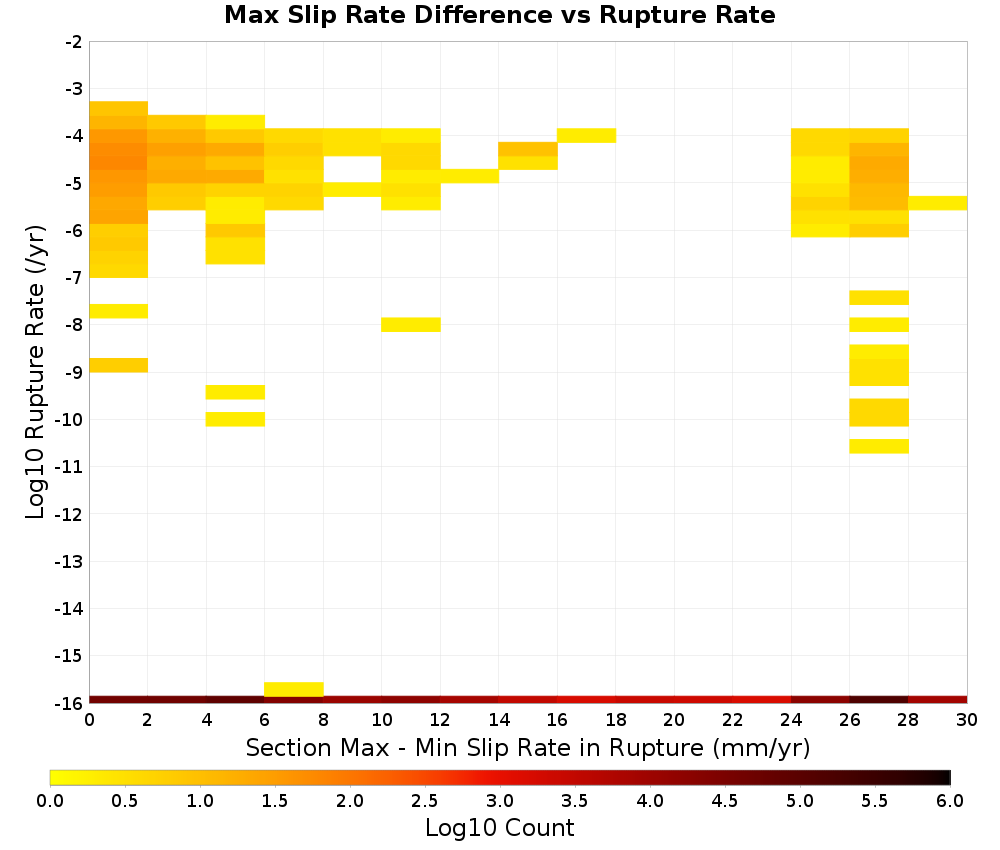

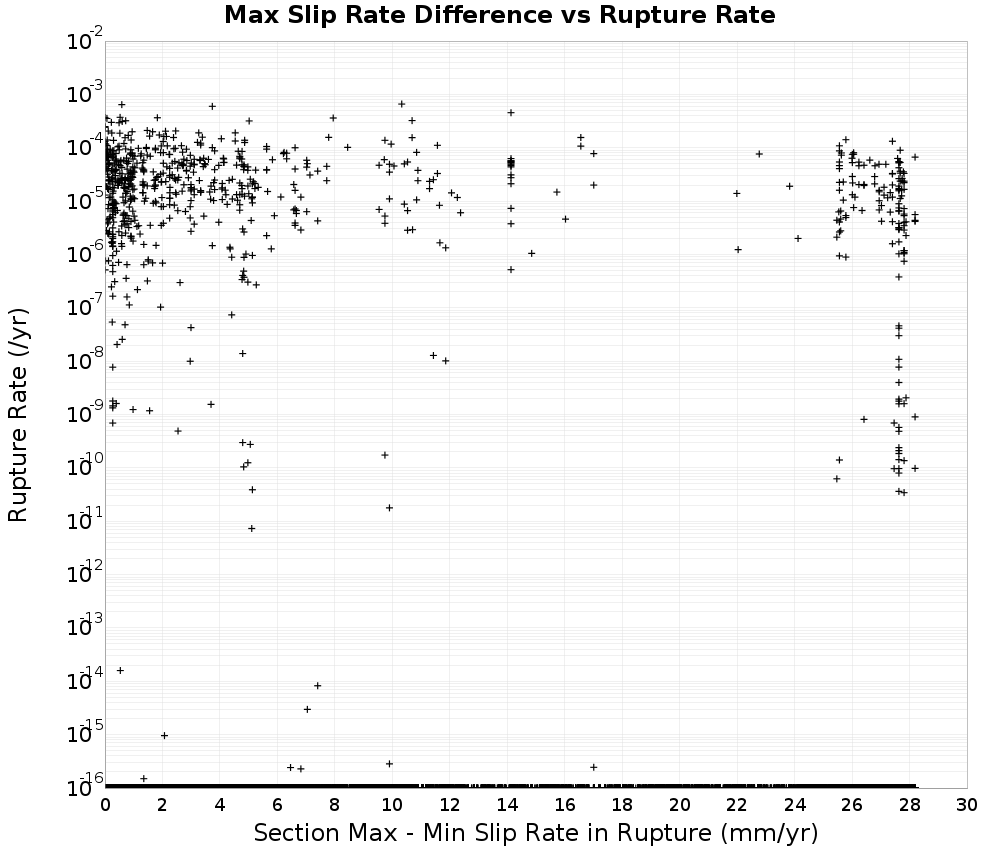

Max Slip Rate Difference vs Rupture Rate

(top)

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

Solution Modules

(top)

Fault Section Connections

(top)

Download GeoJSON

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted, with smaller clusters plotted in gray, and fully isolated faults plotted in black.

Download GeoJSON

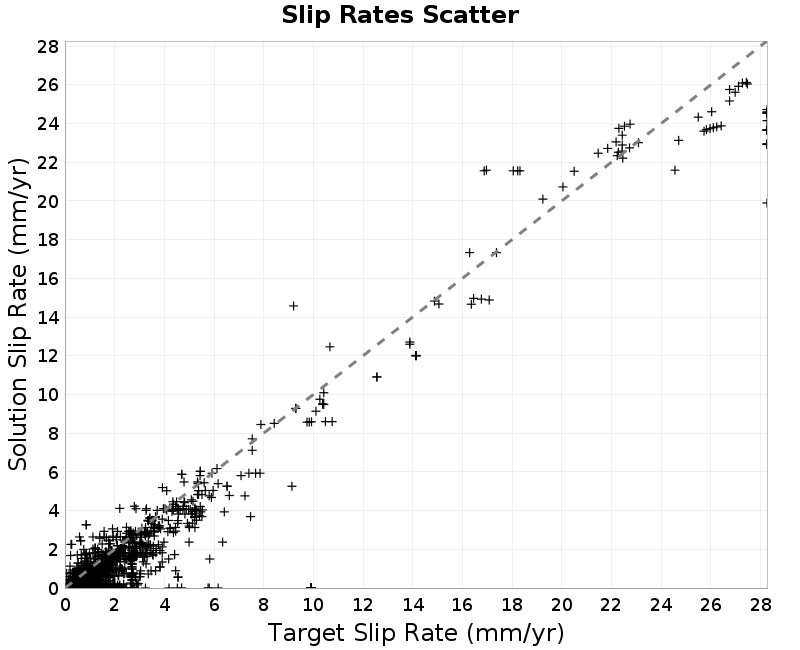

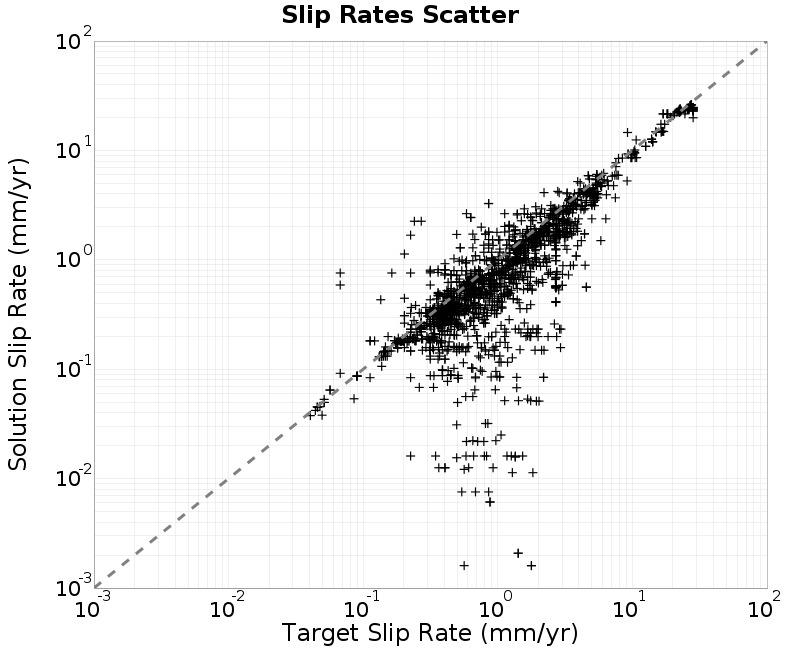

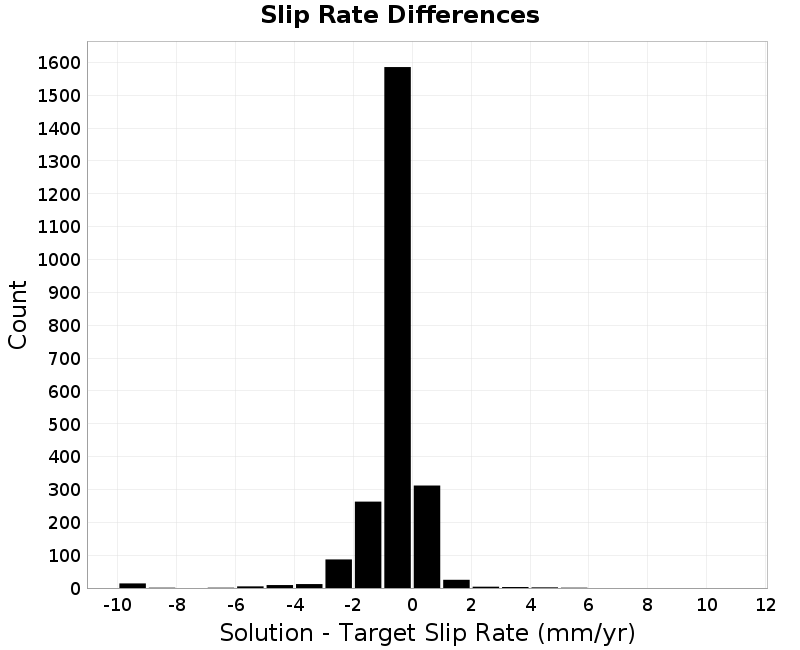

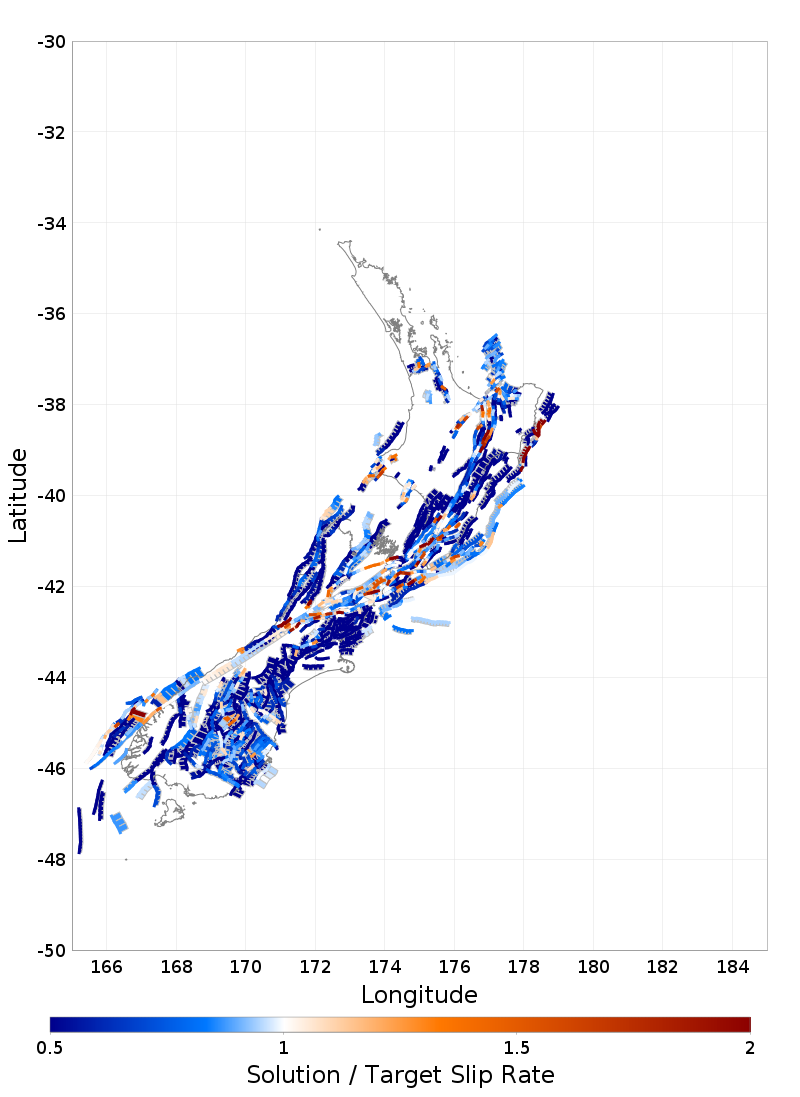

Slip Rates

(top)

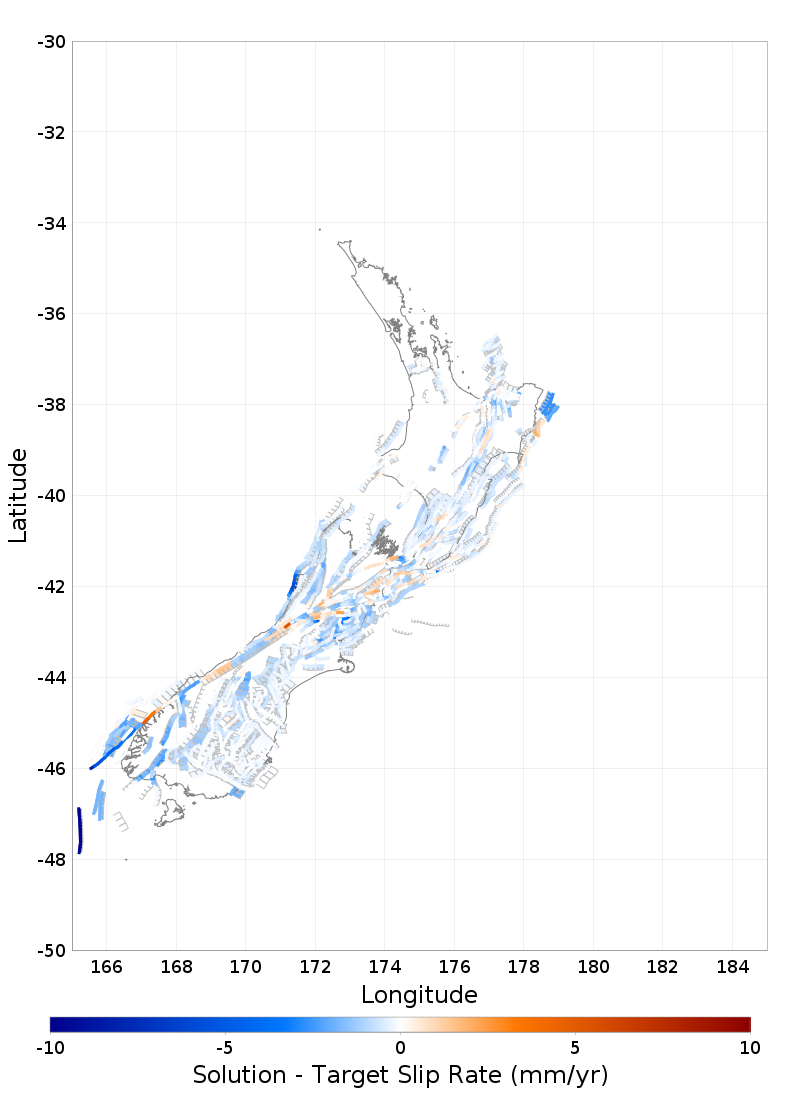

Linear Slip Rate Plots

(top)

Download GeoJSON	Download GeoJSON
Download GeoJSON	Download GeoJSON
Download GeoJSON	Download GeoJSON

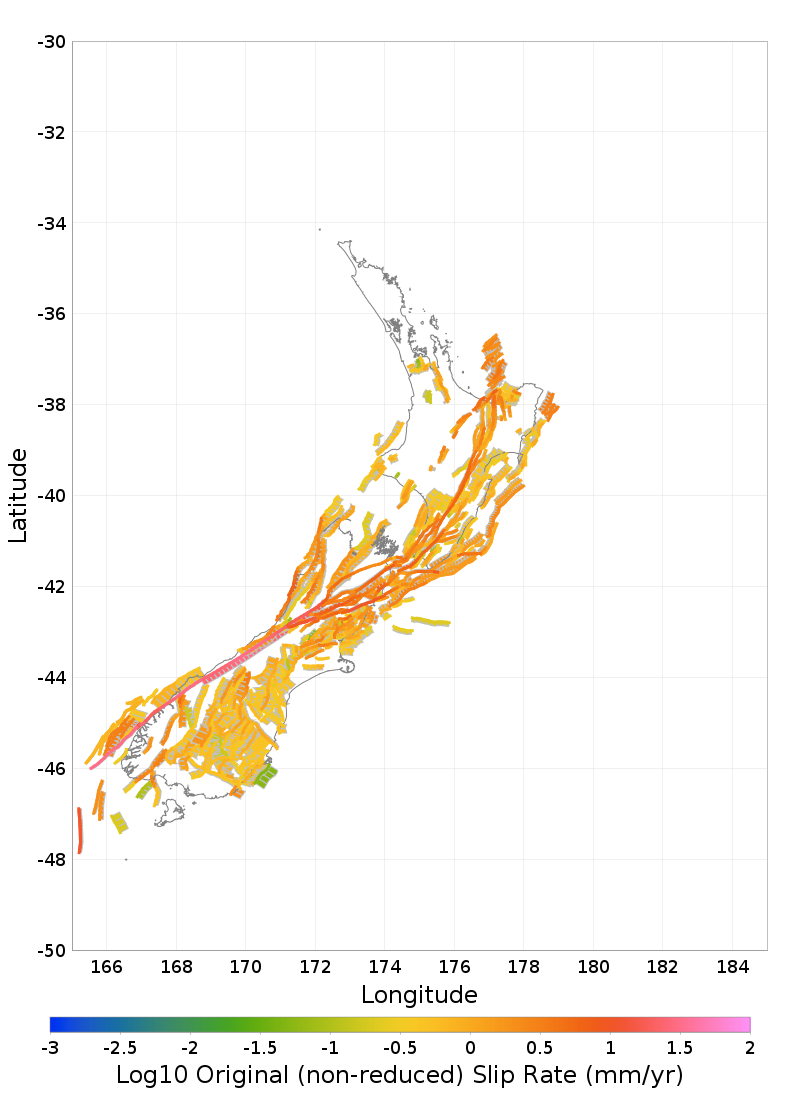

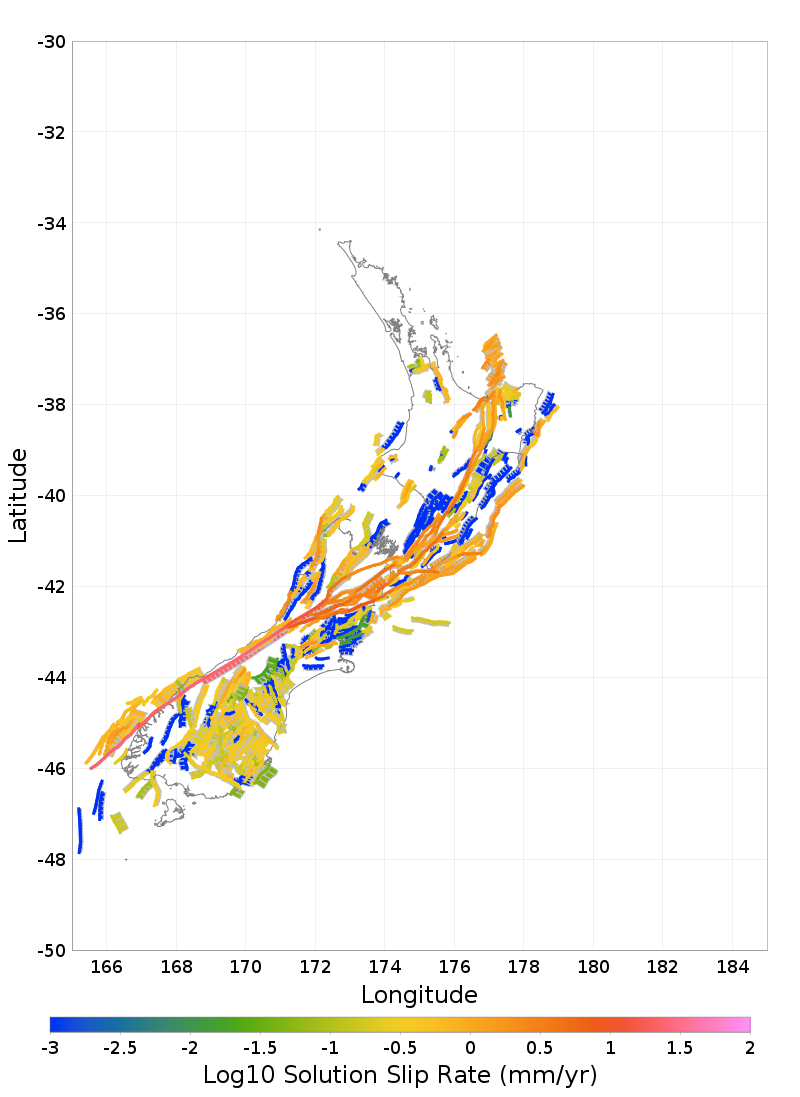

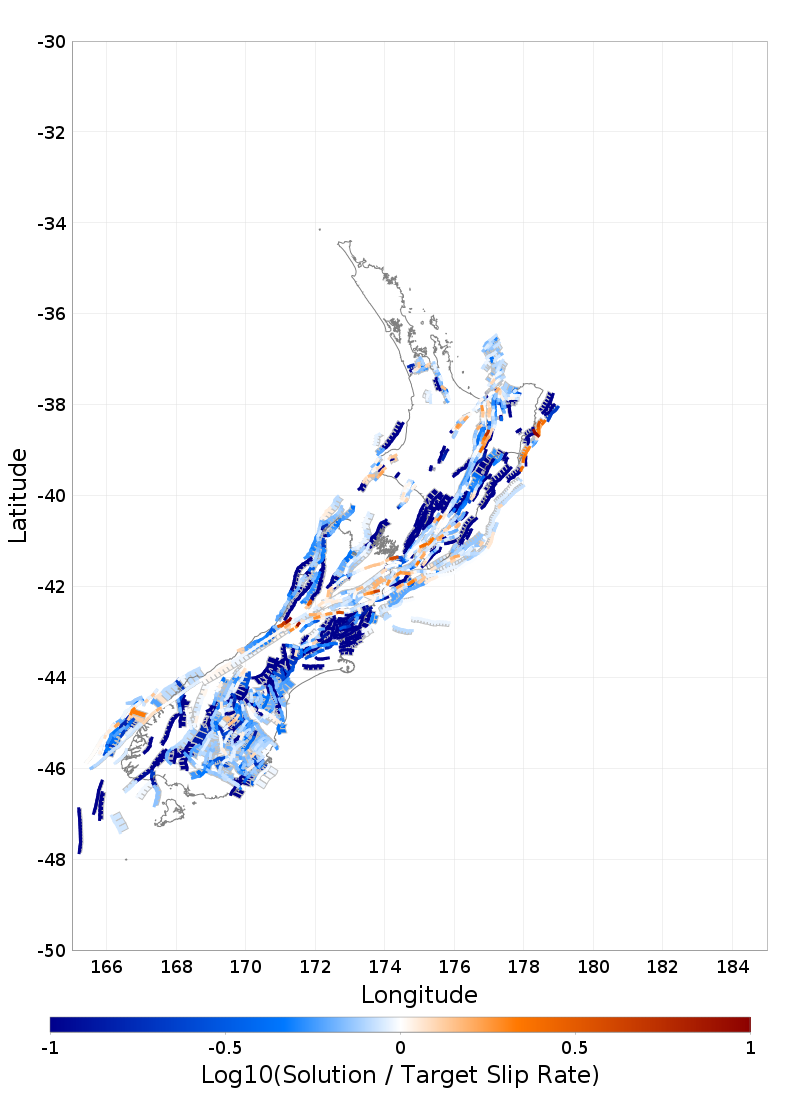

Log10 Slip Rate Plots

(top)

Download GeoJSON	Download GeoJSON
Download GeoJSON	Download GeoJSON
Download GeoJSON

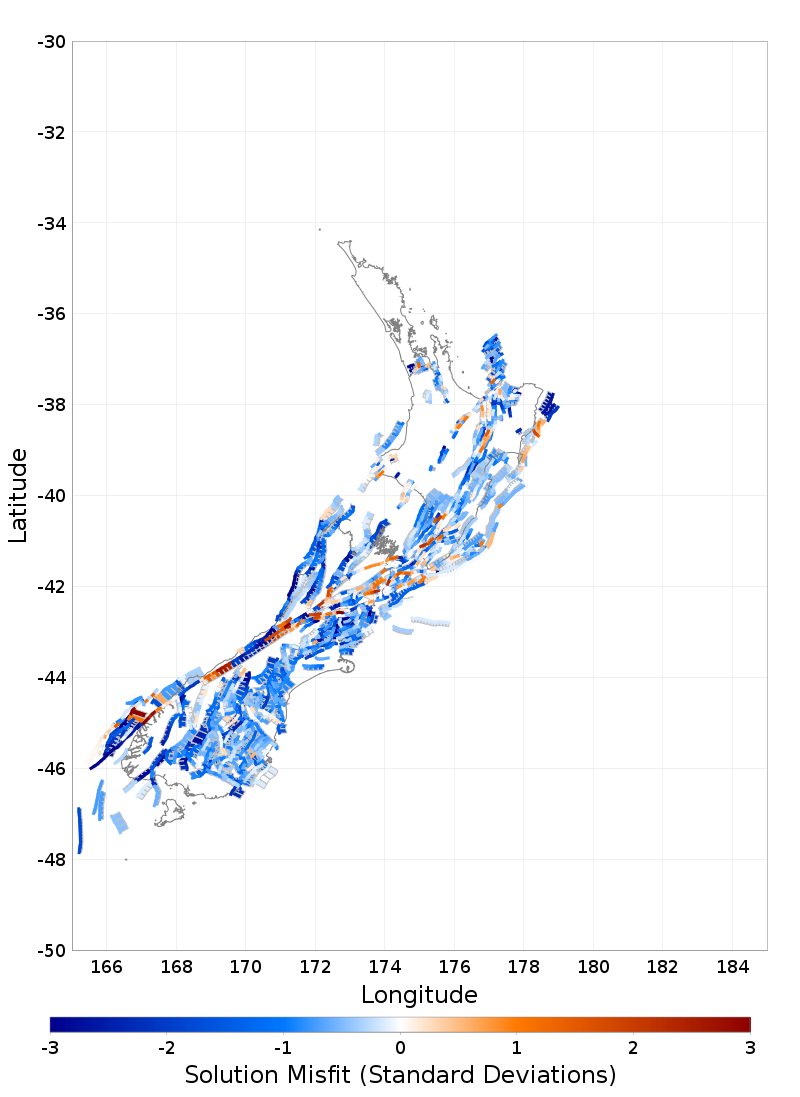

Slip Rate Std Dev Plots

(top)

Download GeoJSON	Download GeoJSON

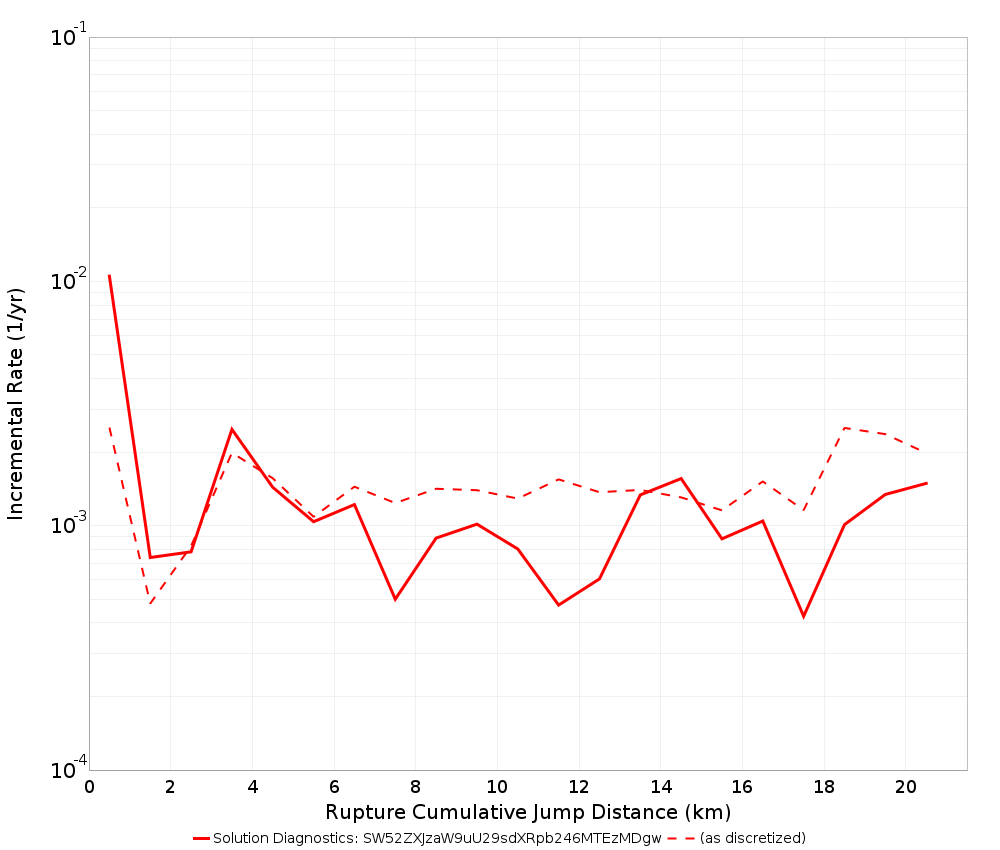

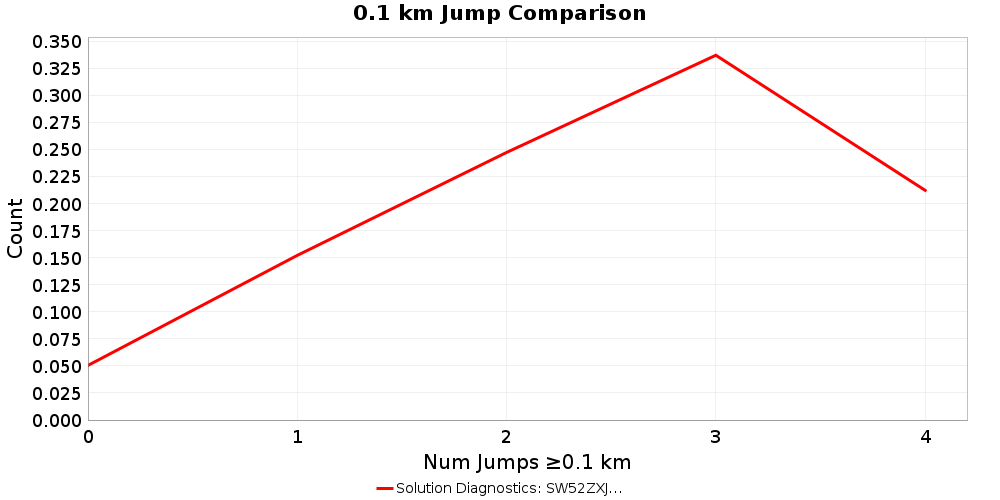

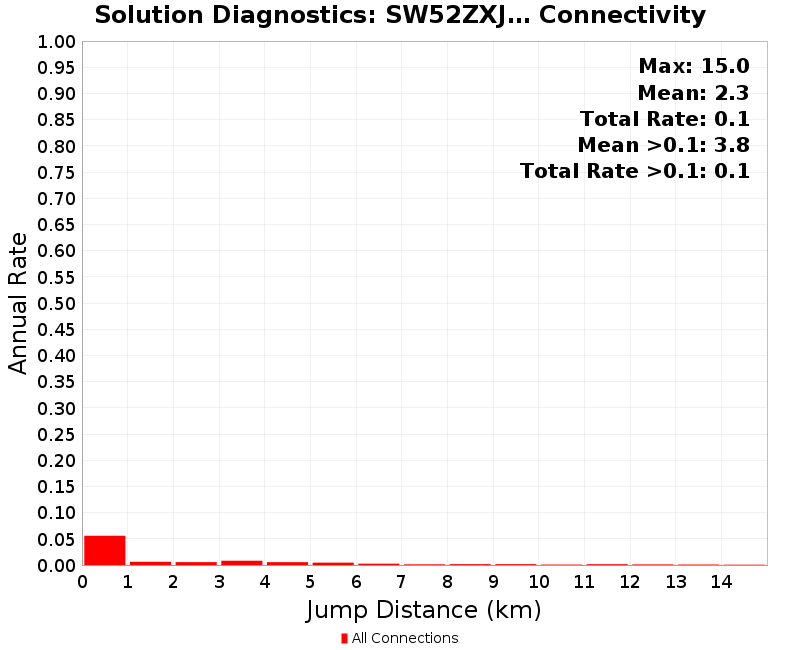

Jump Counts Over Distance

(top)

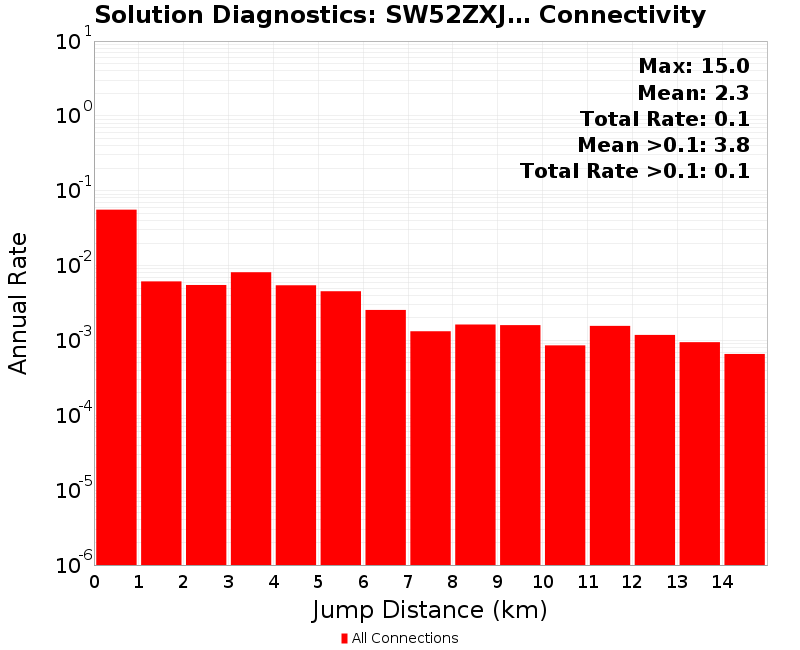

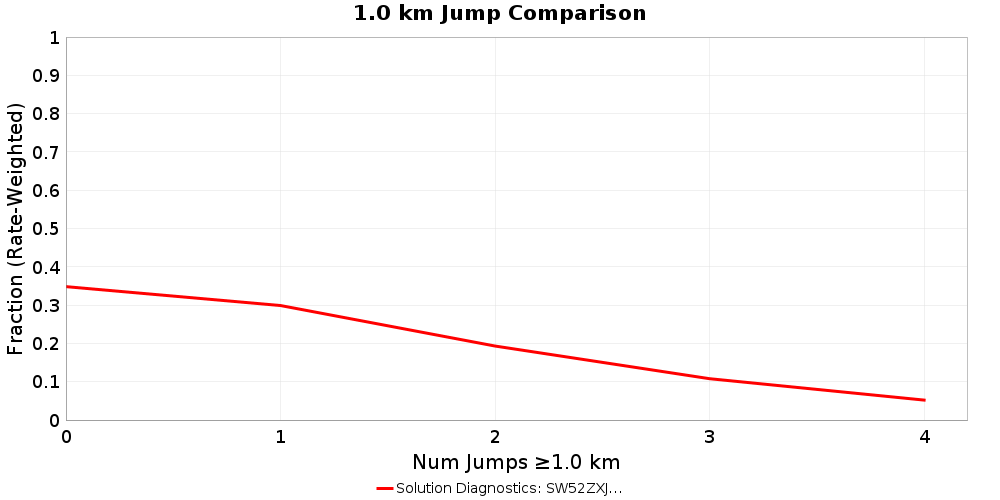

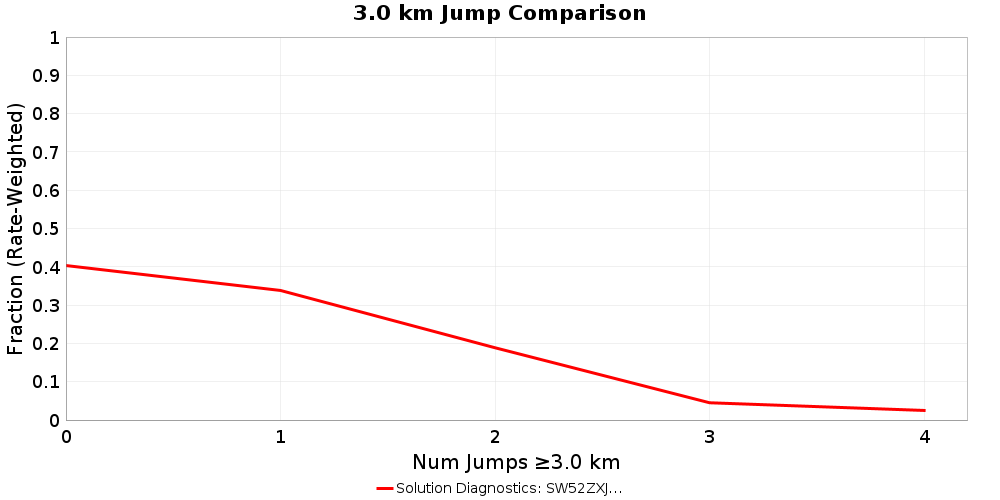

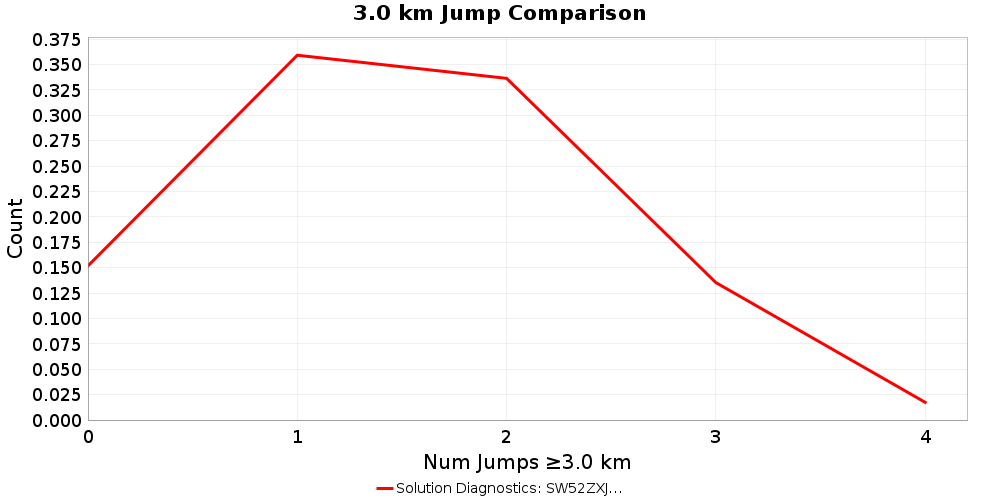

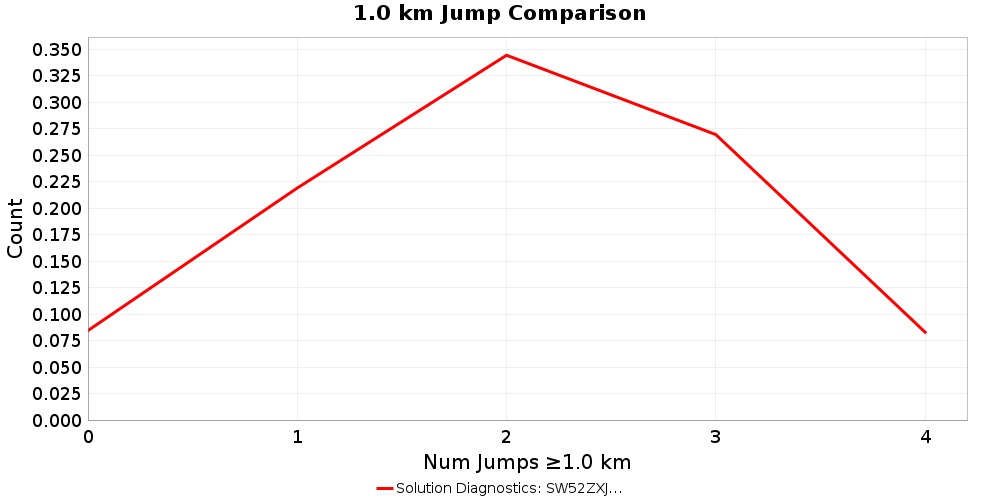

Supra-seismogenic Jump Counts

(top)

As Discretized	Rate Weighted

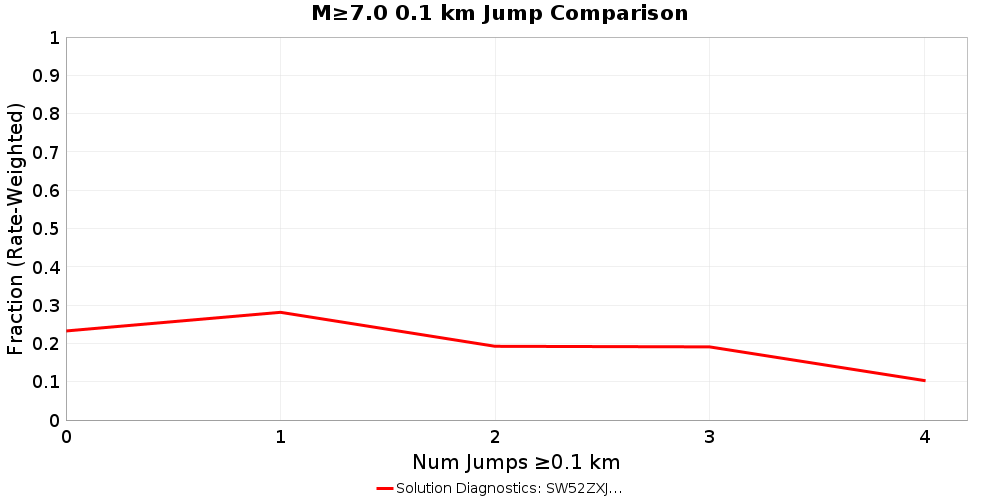

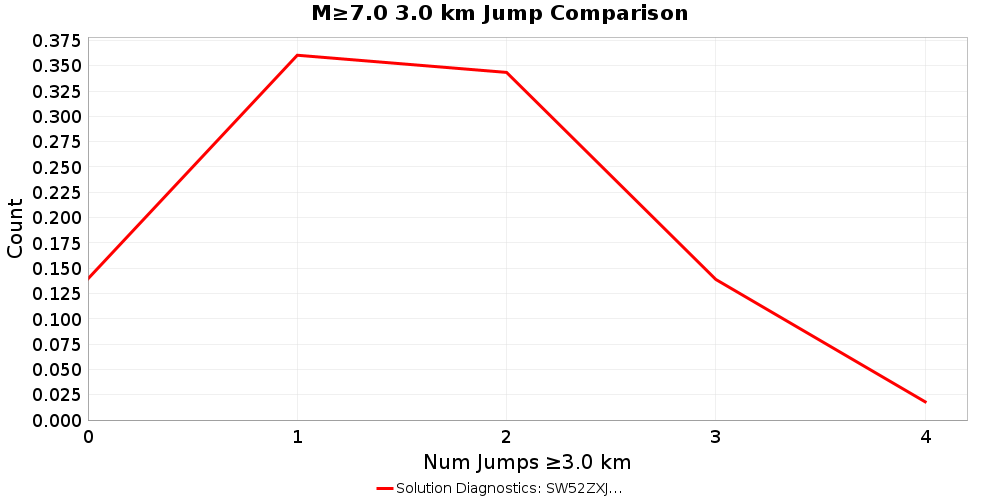

M≥7 Jump Counts

(top)

As Discretized	Rate Weighted

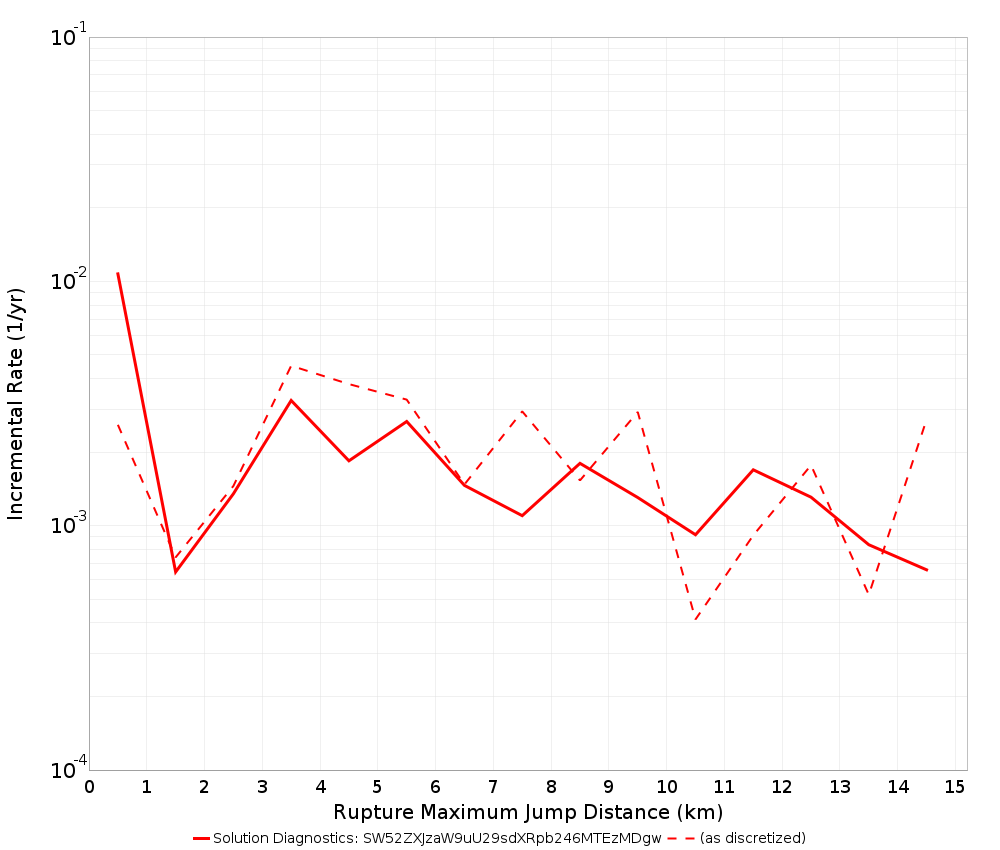

Max Jump Distance Distribution

(top)

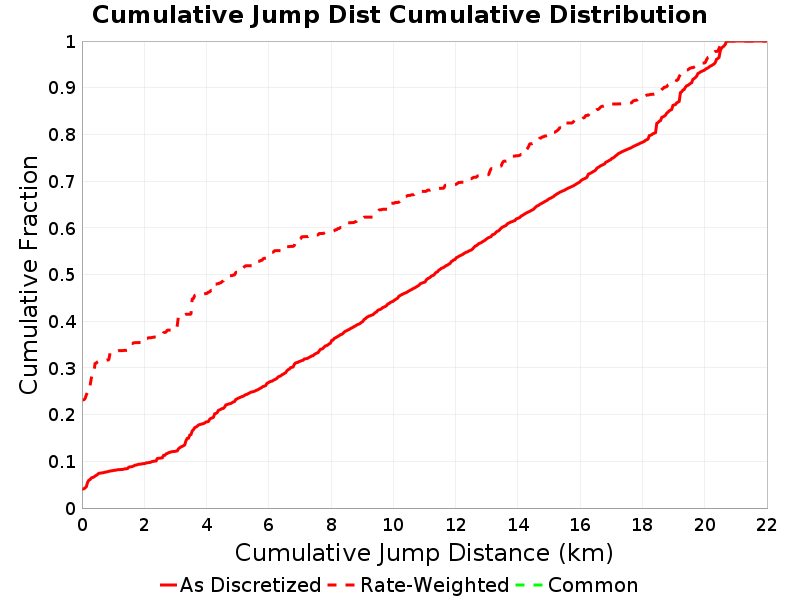

Cumulative Jump Distance Distribution

(top)

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (400 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

PGA Hazard Maps

(top)

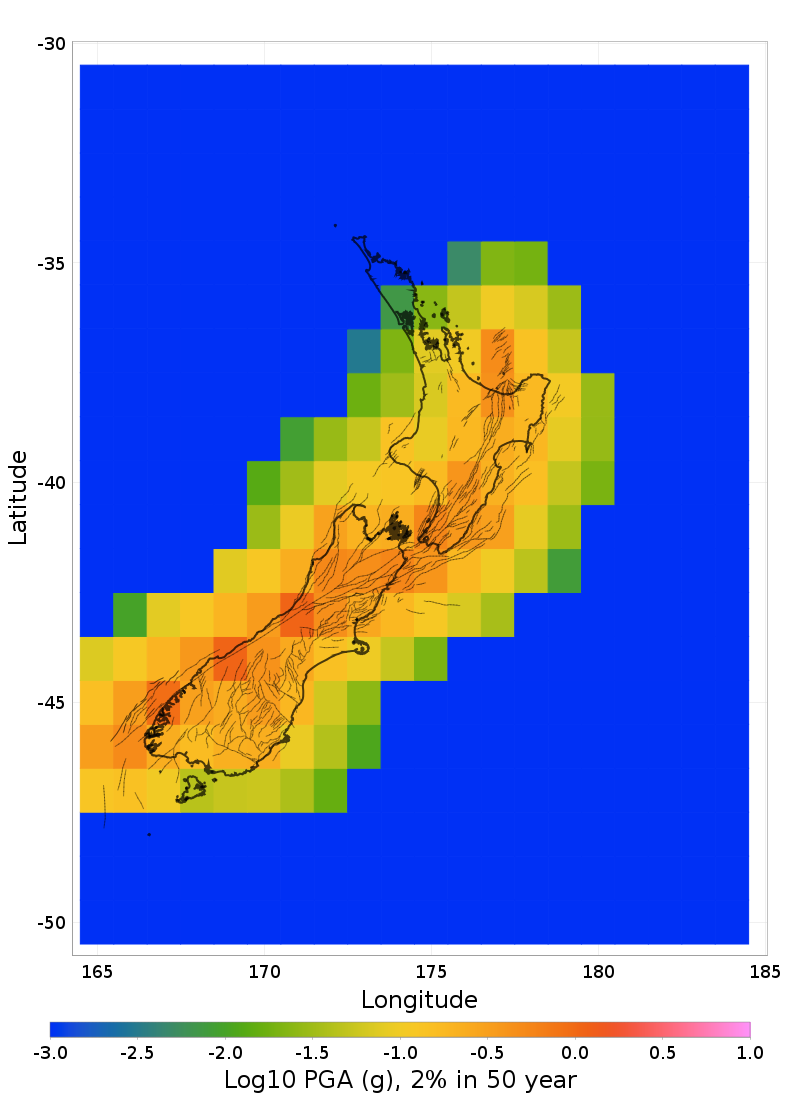

PGA, 2% in 50 year Hazard Maps

(top)

PGA, 10% in 50 year Hazard Maps

(top)

1s SA Hazard Maps

(top)

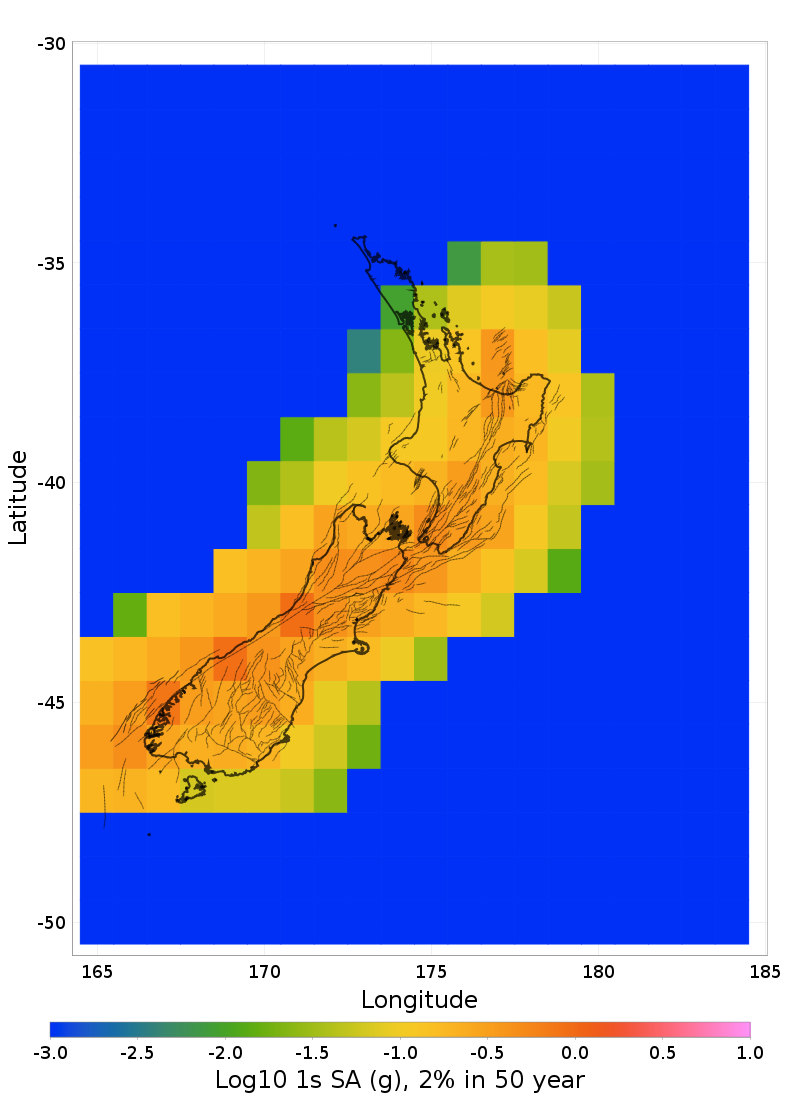

1s SA, 2% in 50 year Hazard Maps

(top)

1s SA, 10% in 50 year Hazard Maps

(top)

Named Fault Detail Pages

(top)

Parent Section Detail Pages

(top)
