Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB

Num Ruptures	398,475
Num Single-Stranded Ruptures	398,475 (100.00%)
Total Supra-Seis Rupture Rate	0.04951771
Total Supra-Seis Recurrence Interval	20.19 yrs
Total Moment Rate	2.389407e19 N-m/yr
Deformation Model Total Moment Rate	2.5757683e19 N-m/yr
Magnitude Range	[5.28,8.54]
Length Range	[1.86,1156.02] km
Rupture Section Count Range	[2,149]

Logic Tree Branch
Solution MFDs
- Total Target MFDs
- NZ_RECTANGLE Gridded Region
Simulated Annealing Energy
Rupture Rate Distribution
Participation Rates
Section b-values
- Subsection b-values
- Parent Section b-values
Rupture Scalar Histograms
Attached Modules
- Rupture Set Modules
- Solution Modules
Fault Section Connections
- Connected Clusters

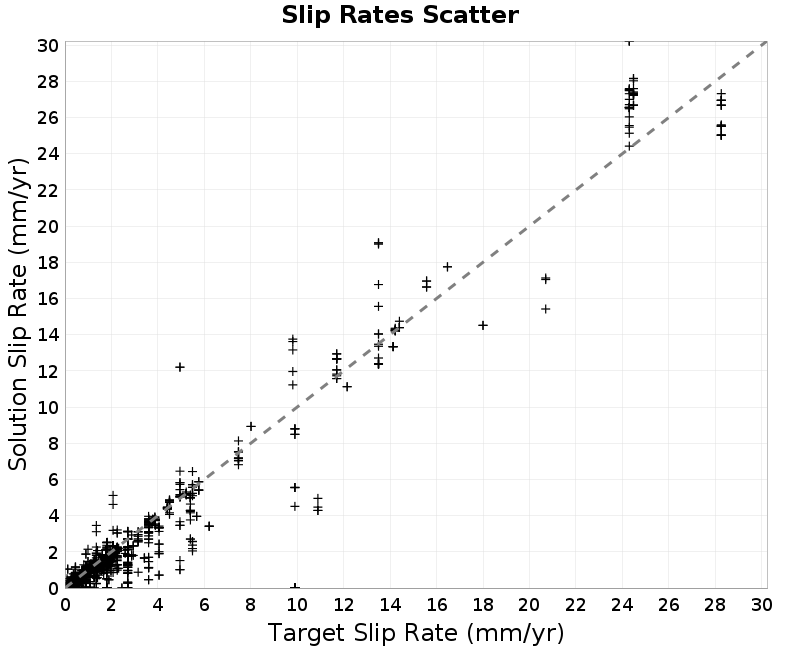

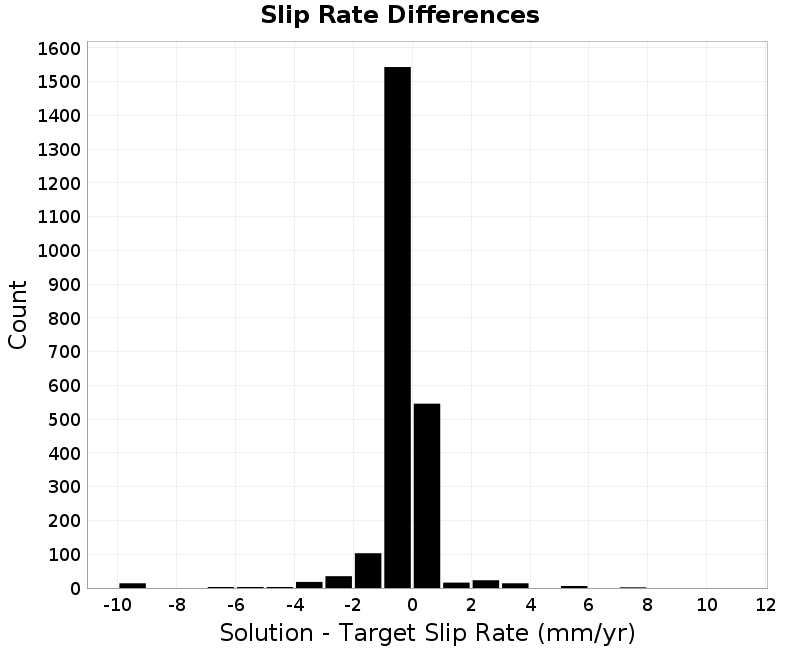

Slip Rates
Paleoseismic Data Comparison
Jump Counts Over Distance

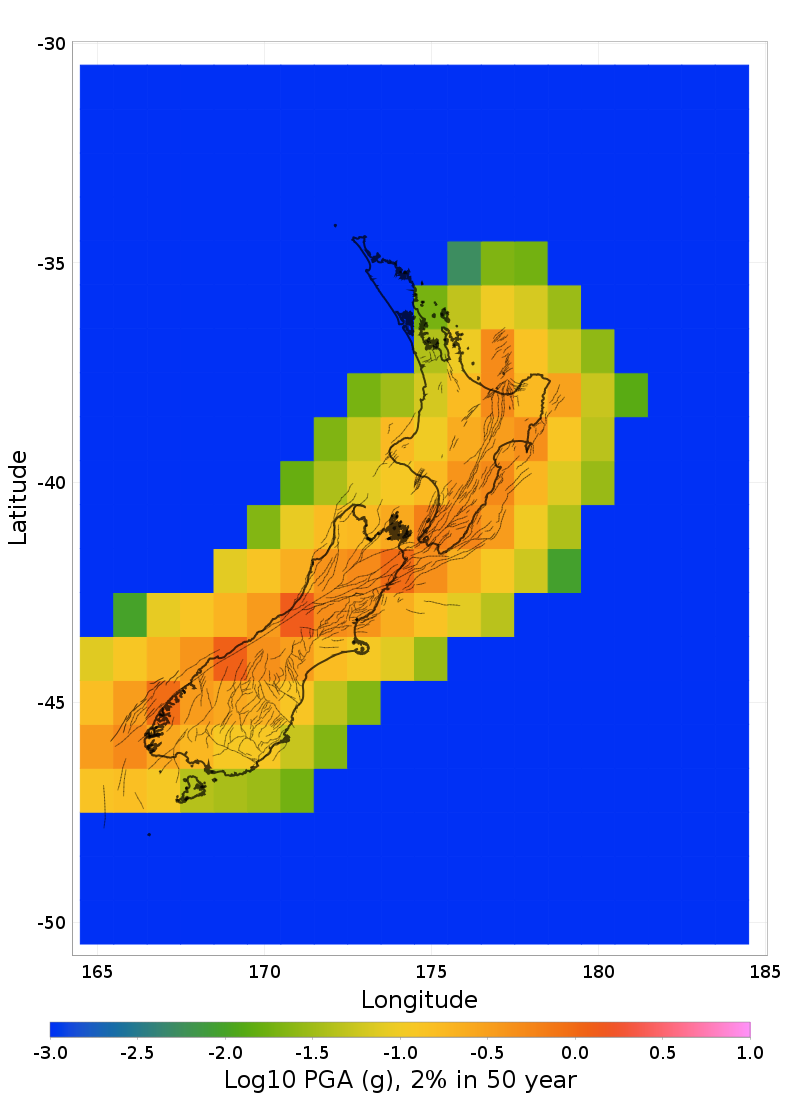

Hazard Maps
- PGA Hazard Maps
- 1s SA Hazard Maps
Parent Section Detail Pages

Logic Tree Branch

(top)

Level	Choice
Fault Model	(N/A)
Fault Regime	Fault Regime
NZSHM22_SpatialSeisPDF	NZSHM22_1346
Slip Along Rupture Model (Dsr)	Uniform
Inversion Model	Characteristic (Constrained)
NZSHM22_ScalingRelationship	NZSHM22_ScalingRelationship
NZSHM22_FaultPolyParameters	NZSHM22_FaultPolyParameters
NZSHM22_MagBounds	NZSHM22_MagBounds
NZSHM22_SlipRateFactors	NZSHM22_SlipRateFactors
NZSHM22_Regions	NZSHM22_Regions
NZSHM22_DeformationModel	FAULT_MODEL

Solution MFDs

(top)

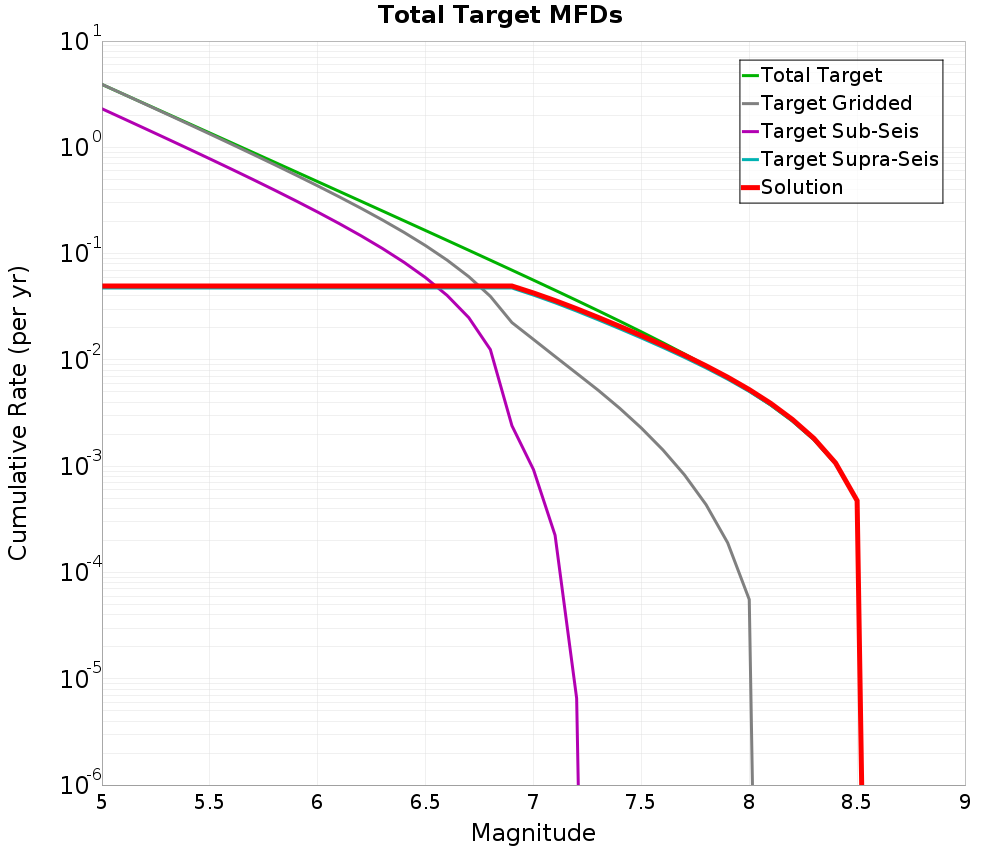

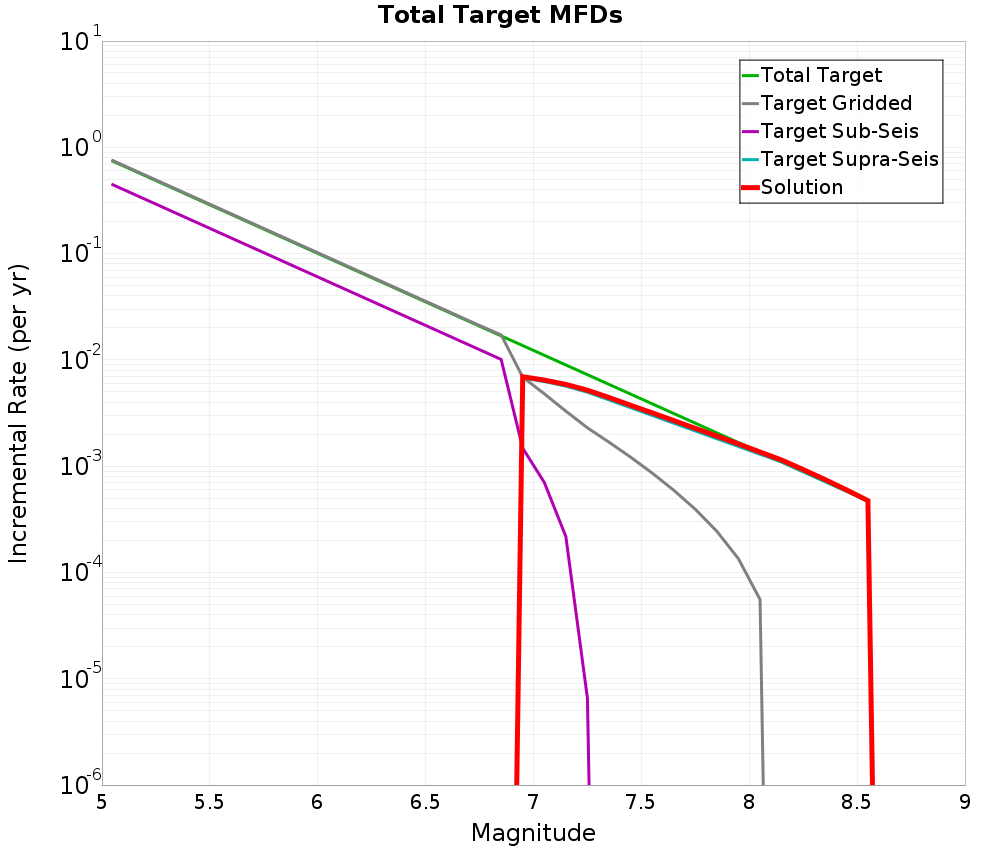

Total Target MFDs

(top)

Incremental MFDs	Cumulative MFDs

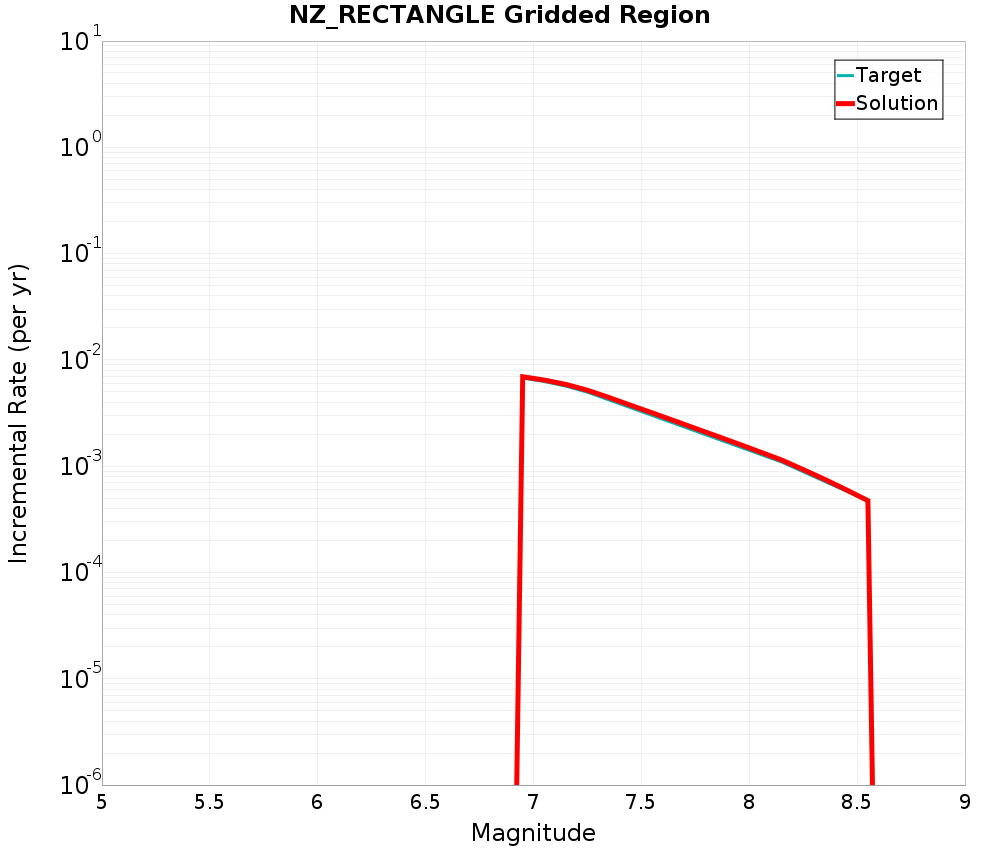

NZ_RECTANGLE Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

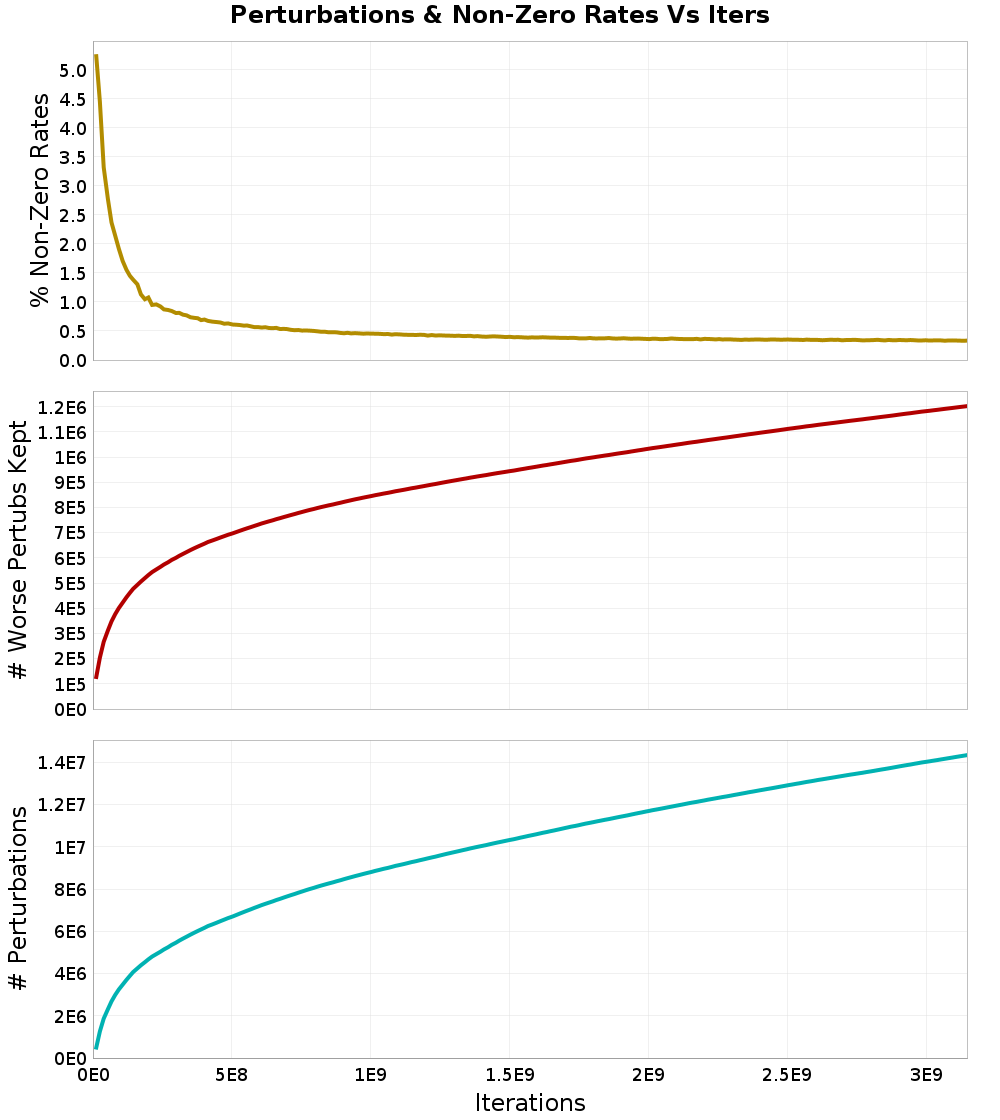

Simulated Annealing Energy

(top)

Iterations	3,146,937,765
Time	2 hours 0.5 mins
Iterations Per Sec.	435,430
Perturbations	14,341,411
# Worse Pertubations Kept	1,202,569
Iterations Per Perturb.	219
Total Energy	1327.7866

Final Energies

(top)

Energy Type	Final Energy (2 hours 0.5 mins)	% of Total	After 30 mins	1 hour	1 hour 30 mins
Total Energy	1327.7866		1332.8867	1328.9142	1328.5721
Equality Energy	1327.7866	100.00%	1332.8867	1328.9142	1328.5721
Entropy Energy	0.0	0.00%	0.0	0.0	0.0
Inequality Energy	0.0	0.00%	0.0	0.0	0.0
Uncertain Slip Rate	730.52814	55.02%	735.8982	731.9872	730.7784
Paleoseismic Event Rate	342.44696	25.79%	344.57916	343.7163	343.2217
Laplacian Smoothing (44 parents)	0.2501373	0.02%	0.2209664	0.24042954	0.24686773
Rupture Rate Minimization	0.19202602	0.01%	0.19677563	0.19145803	0.19134046
Uncertain MFD Equality	254.36935	19.16%	251.99167	252.77882	254.13385

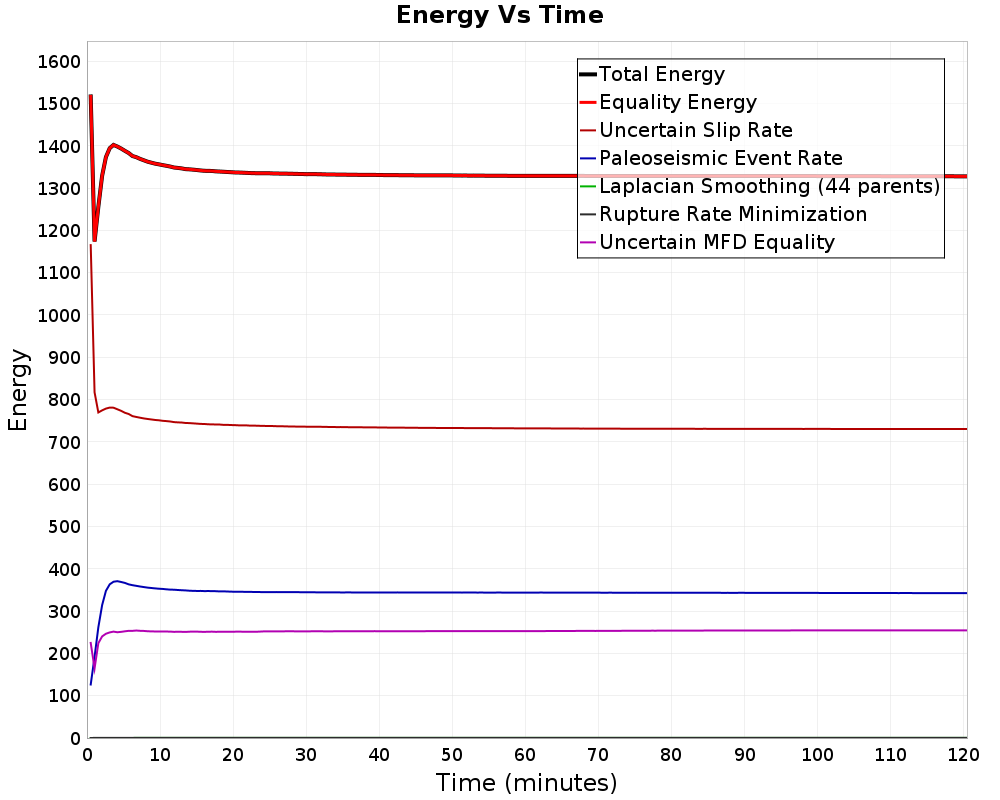

Energy Progress

(top)

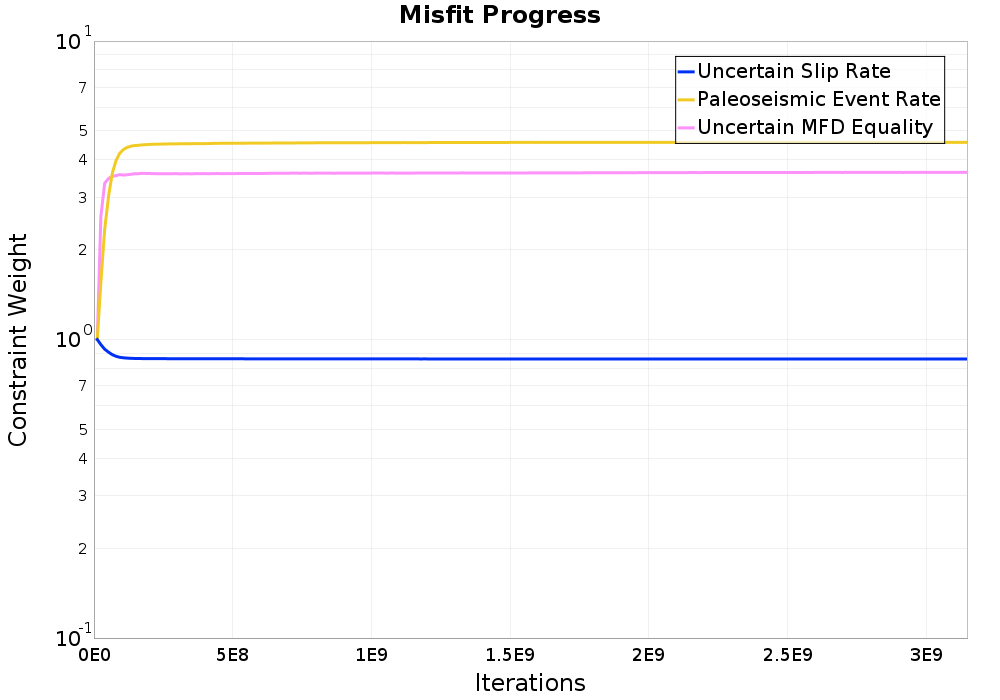

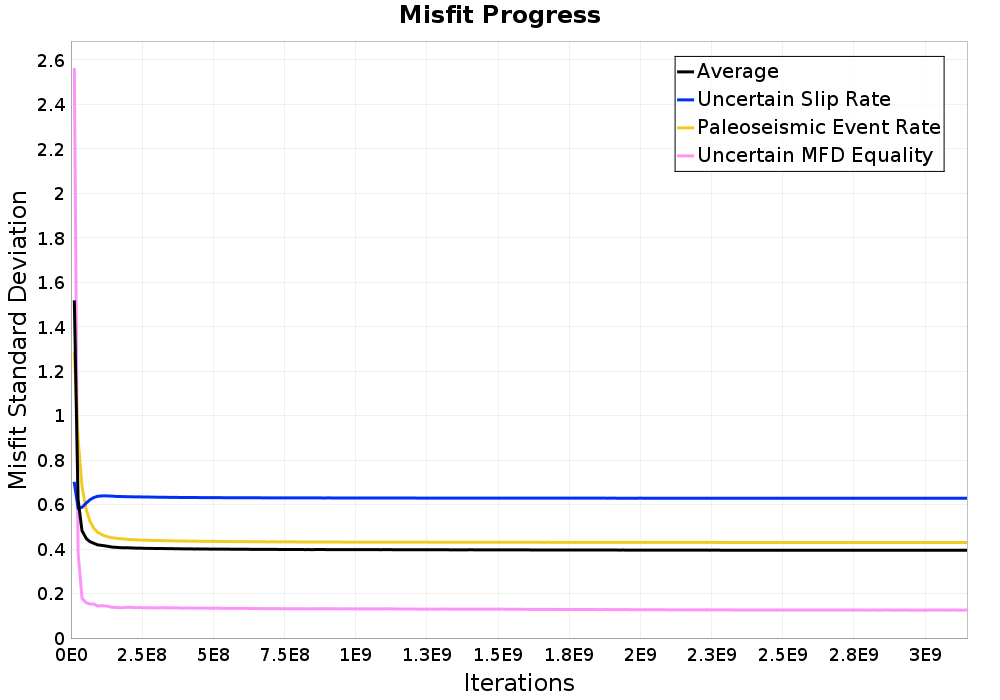

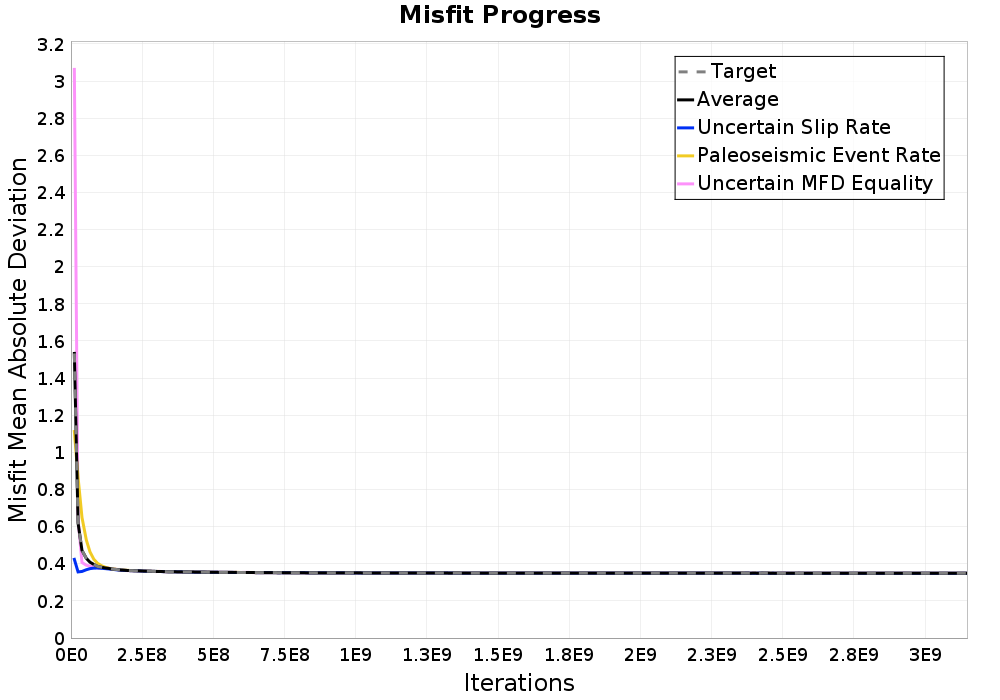

Constraint Misfit Progress

(top)

Rupture Rate Distribution

(top)

Non-zero ruptures	1,331 (0.33%)
Avg. # perturbations per rupture	35.99074
Avg. # perturbations per non-zero rupture	10774.914

Participation Rates

(top)

Supra-Seismogenic	Range: M≤6

Download GeoJSON	Download GeoJSON
M≥6	Range: M∈[6, 7]

Download GeoJSON	Download GeoJSON
M≥7	Range: M∈[7, 8]

Download GeoJSON	Download GeoJSON
M≥8

Download GeoJSON

Section b-values

(top)

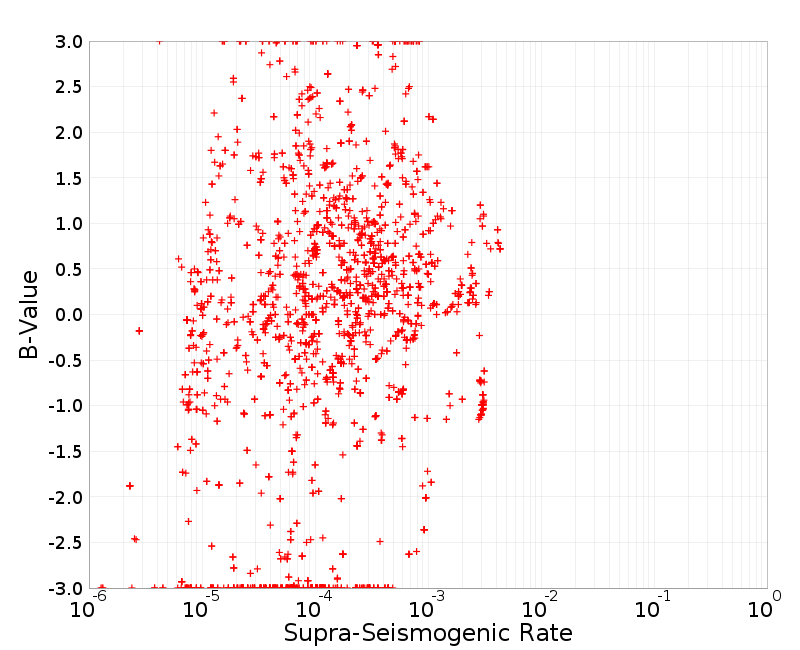

Subsection b-values

(top)

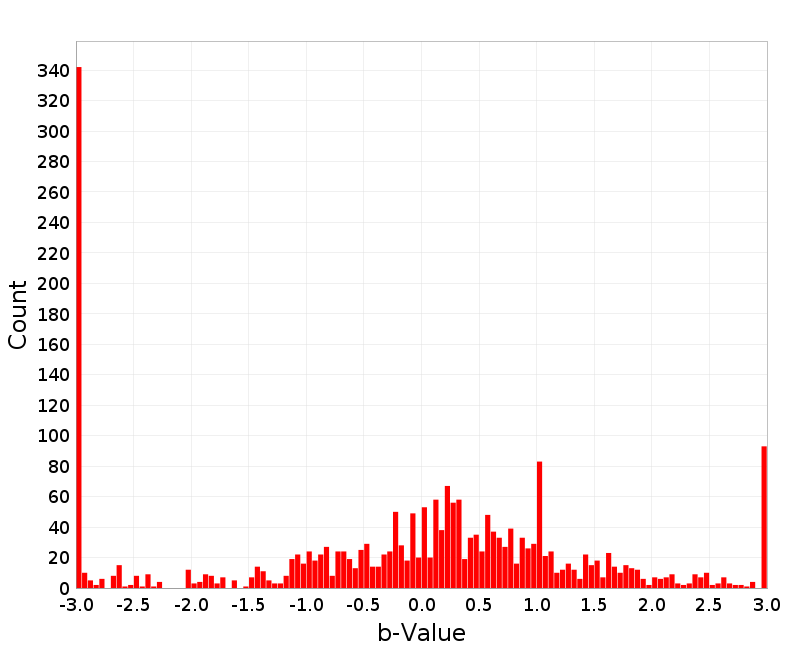

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Download b-value CSV file: sect_b_values.csv

b-Value Distribution	b-Value Rate-Dependence

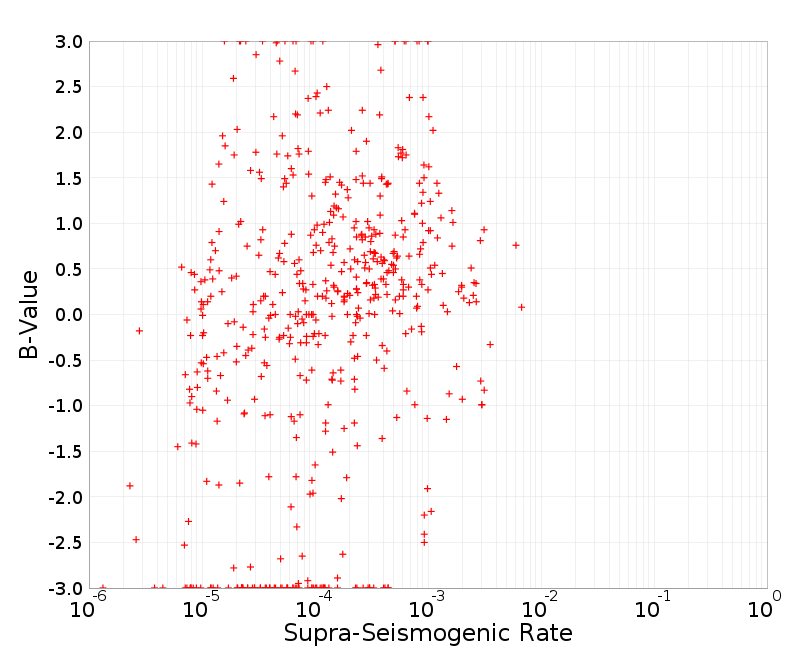

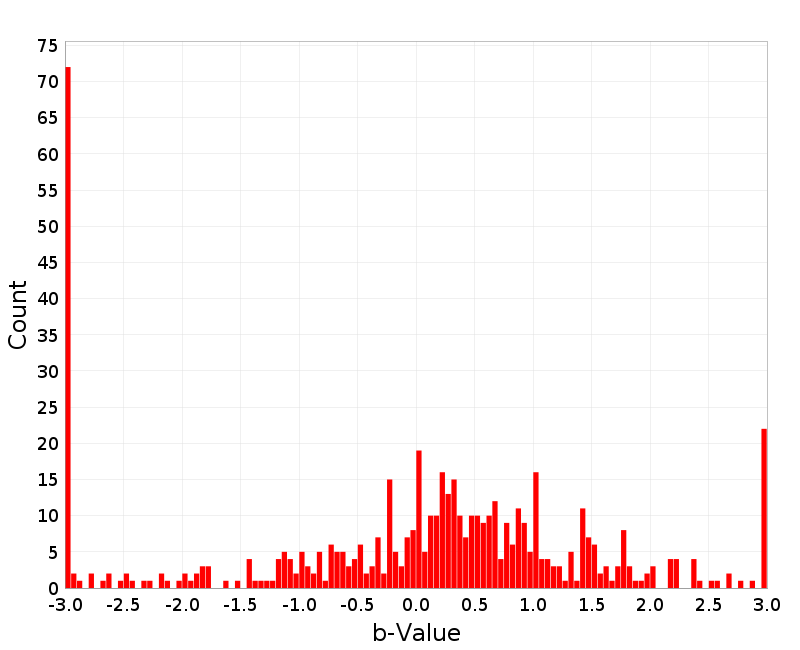

Parent Section b-values

(top)

Download b-value CSV file: parent_sect_b_values.csv

b-Value Distribution	b-Value Rate-Dependence

Rupture Scalar Histograms

(top)

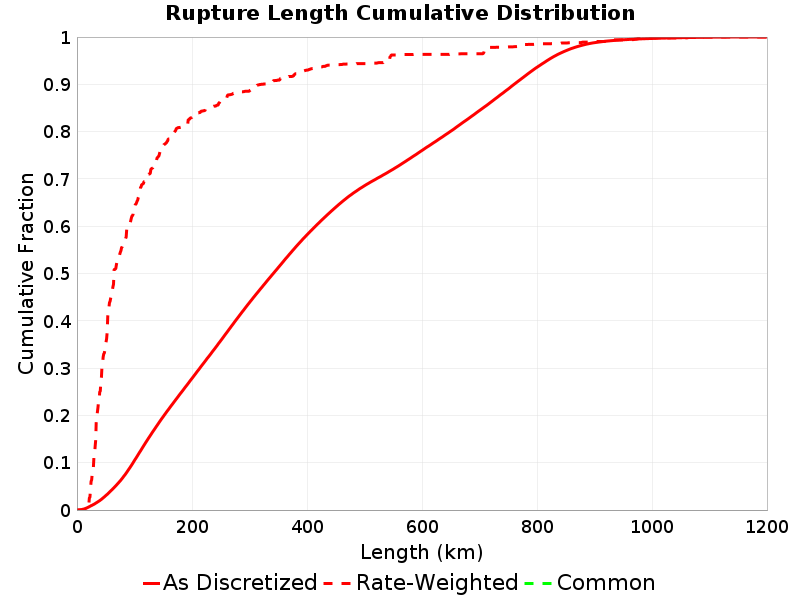

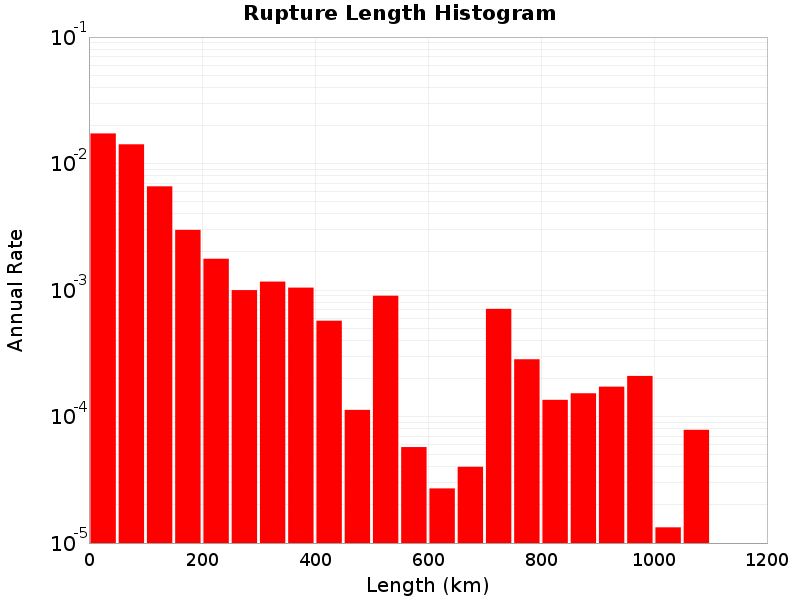

Rupture Length

(top)

Total length (km) of the rupture, not including jumps or gaps.

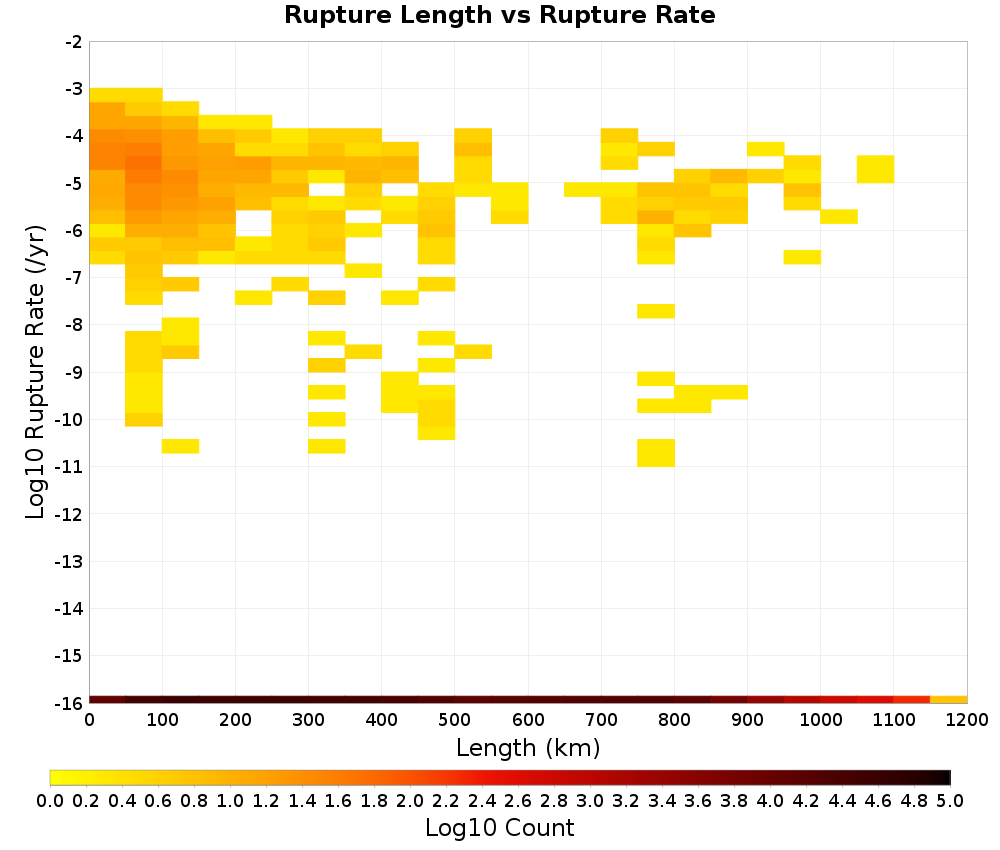

Rupture Length vs Rupture Rate

(top)

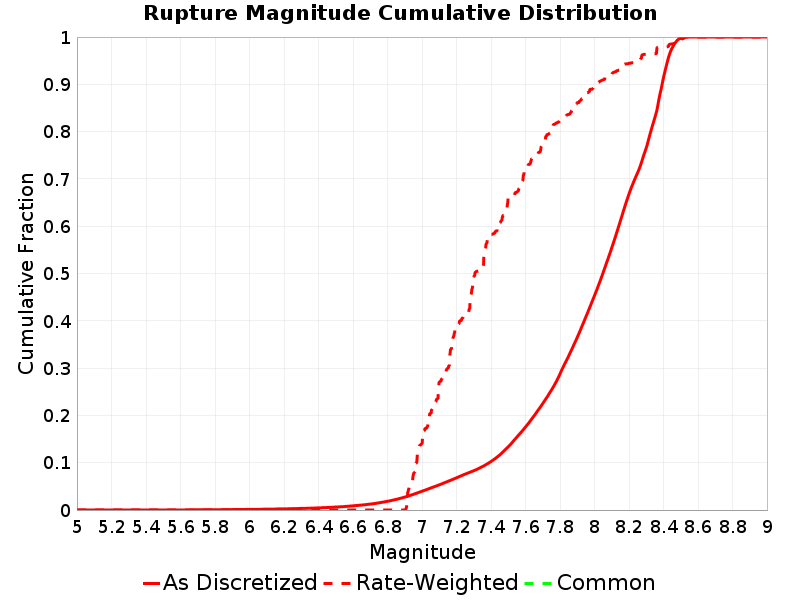

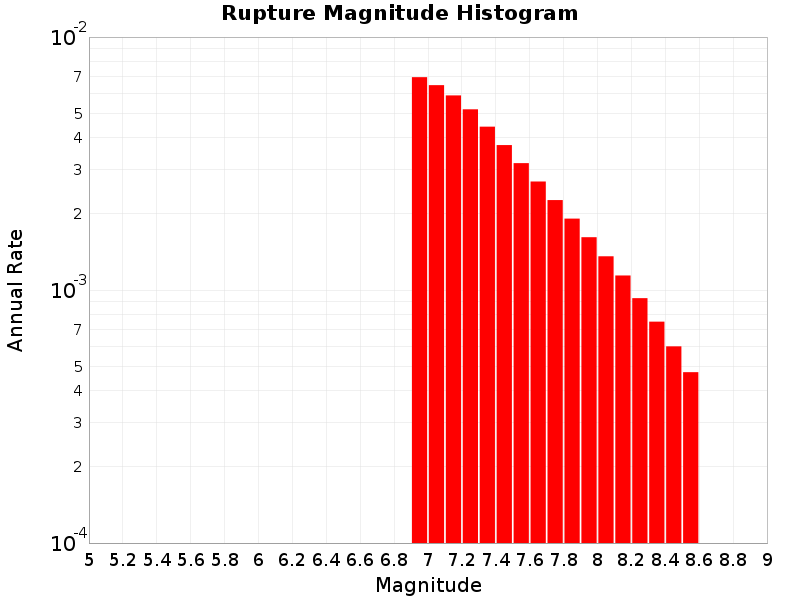

Rupture Magnitude

(top)

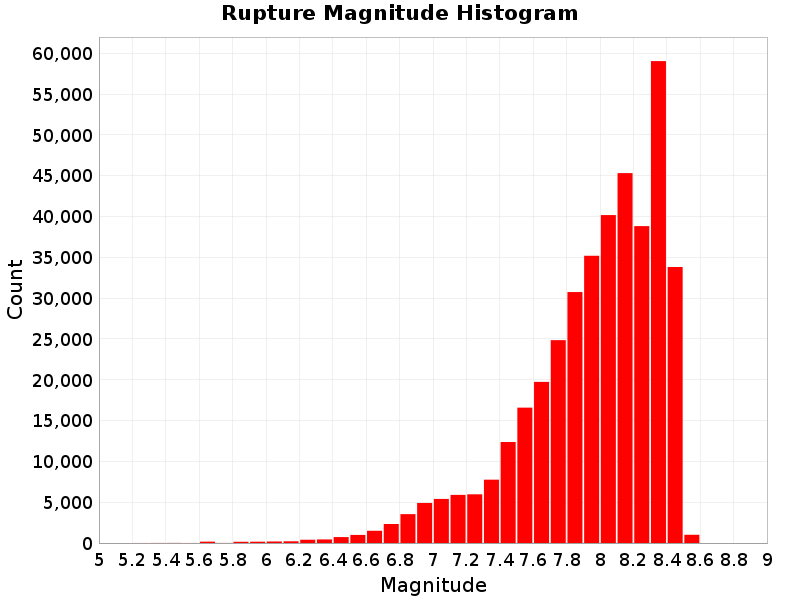

Magnitude of the rupture.

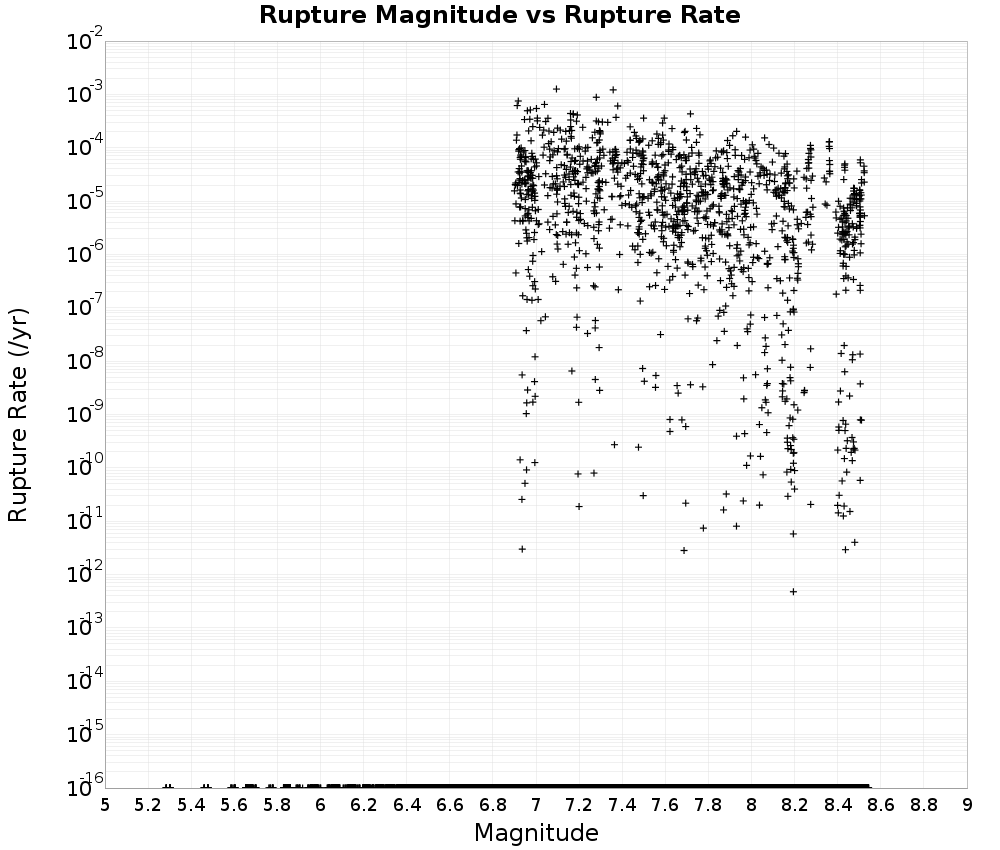

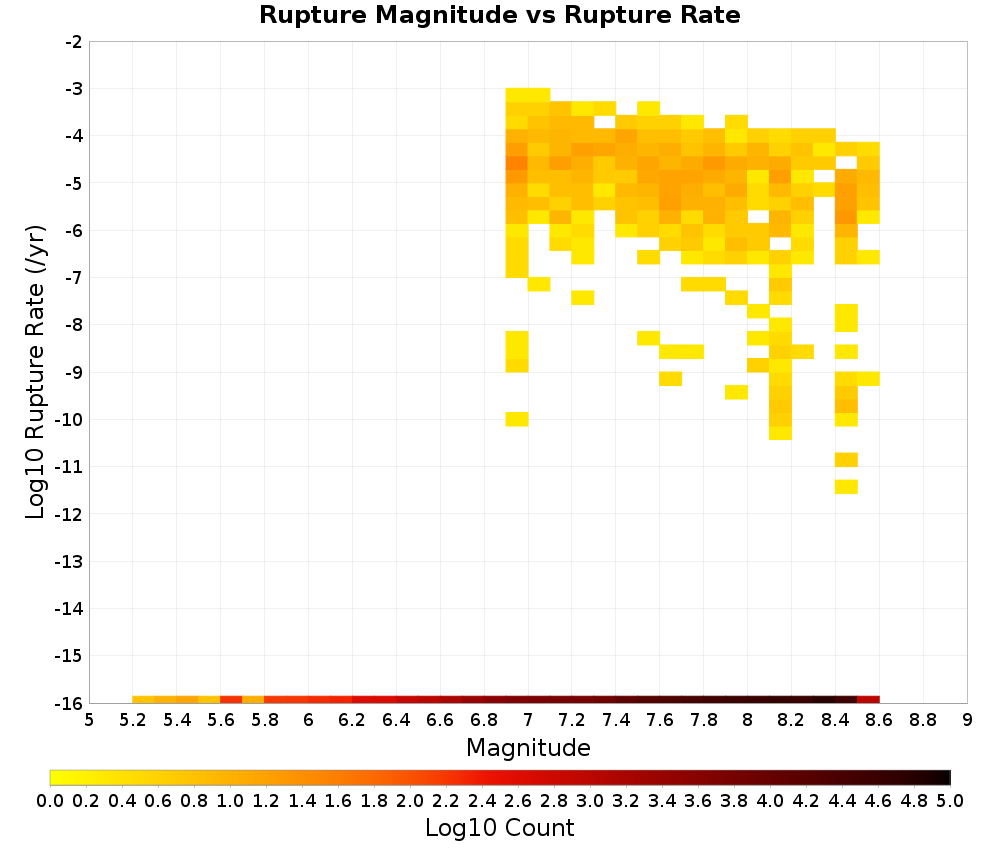

Rupture Magnitude vs Rupture Rate

(top)

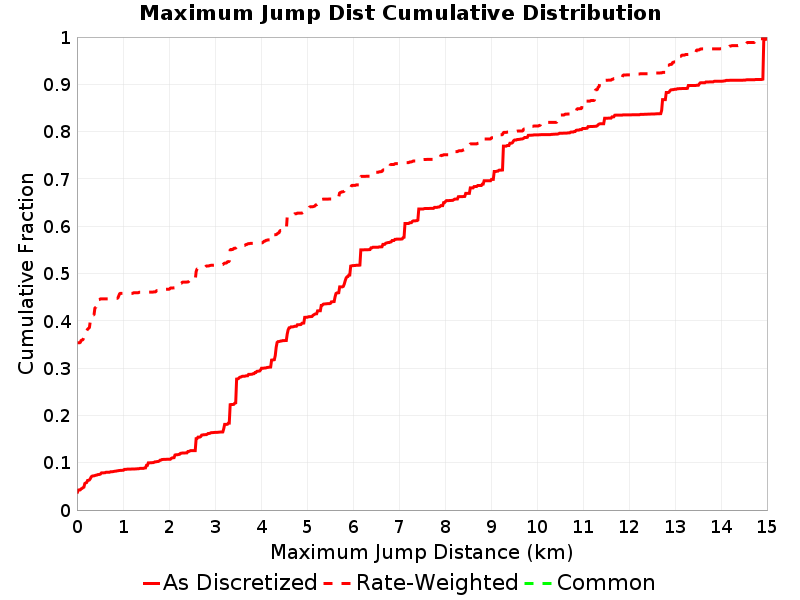

Maximum Jump Dist

(top)

The maximum jump distance in the rupture.

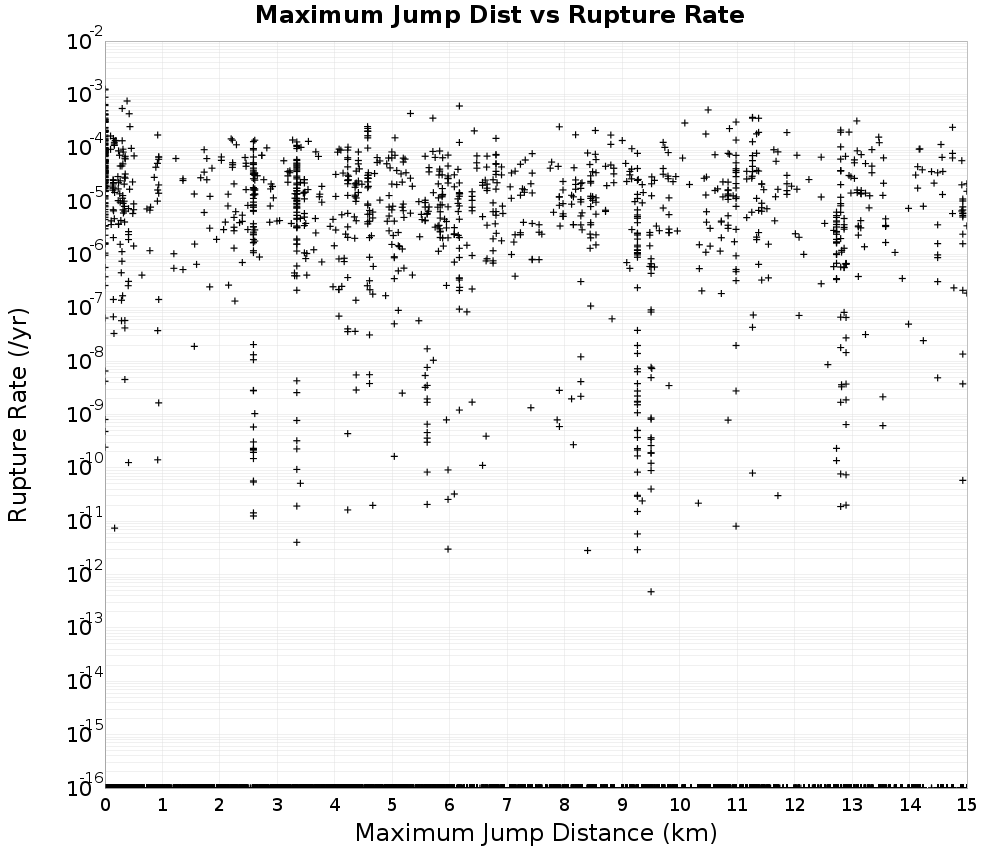

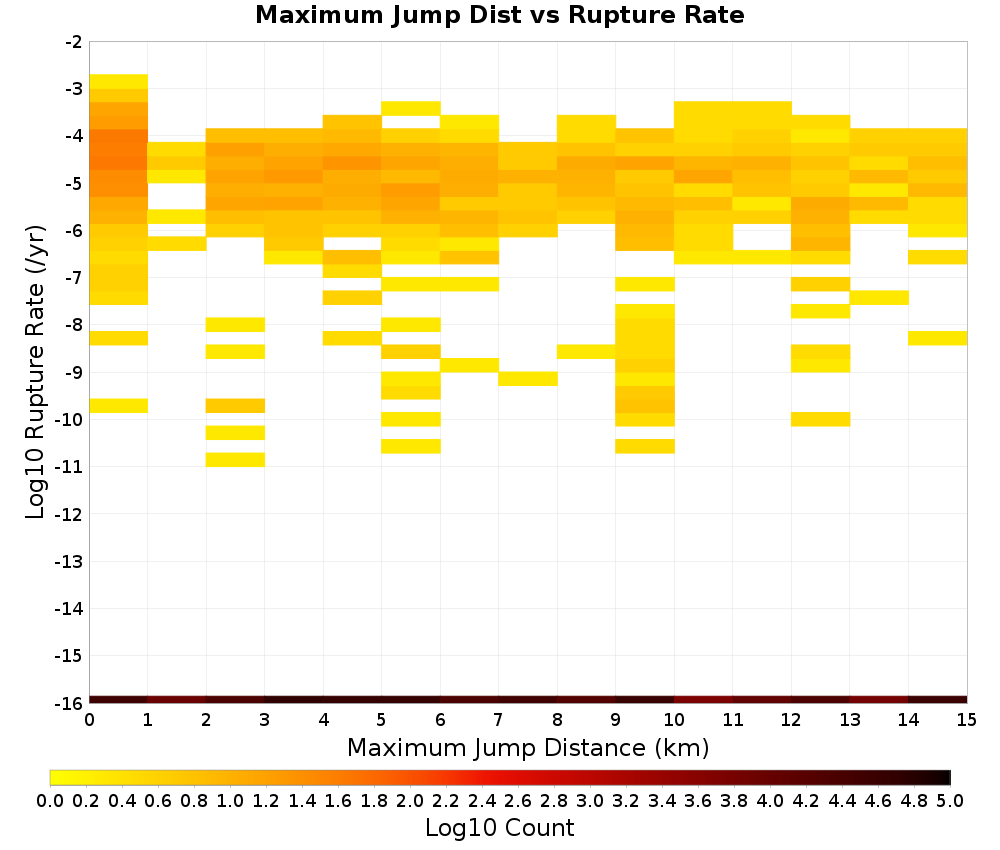

Maximum Jump Dist vs Rupture Rate

(top)

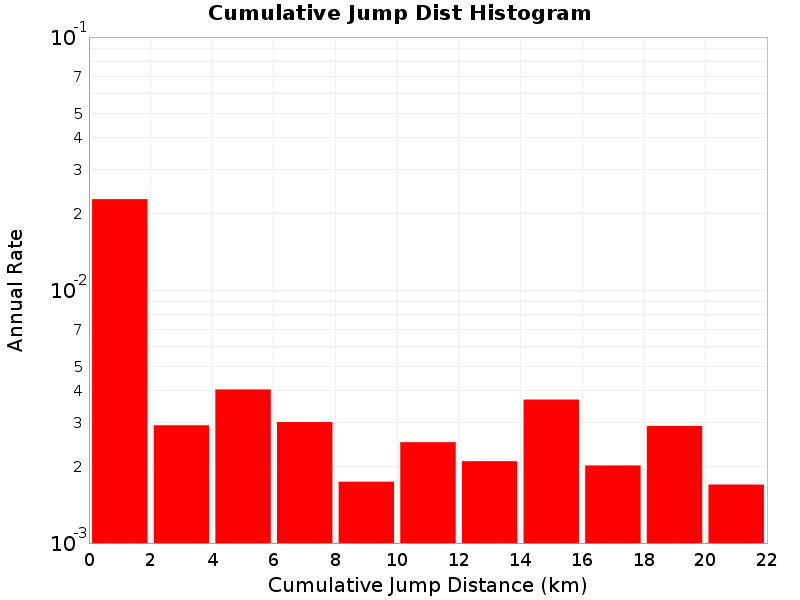

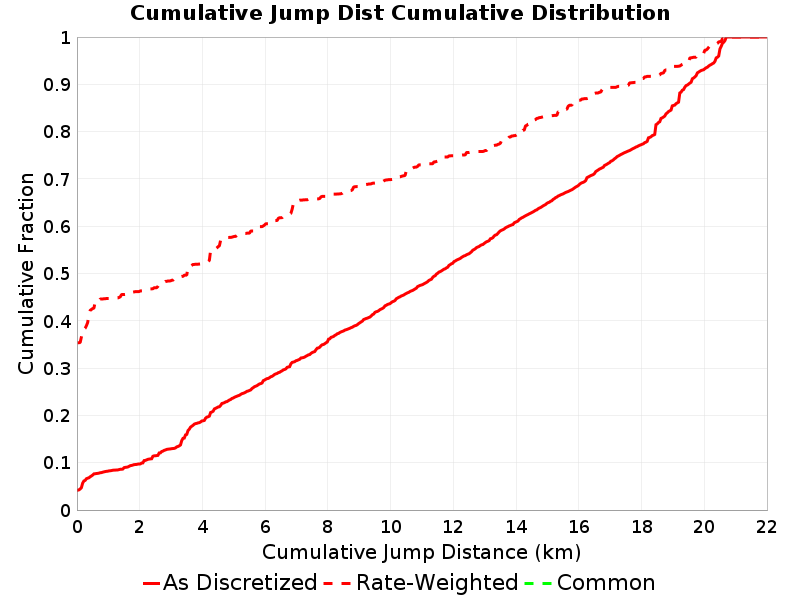

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

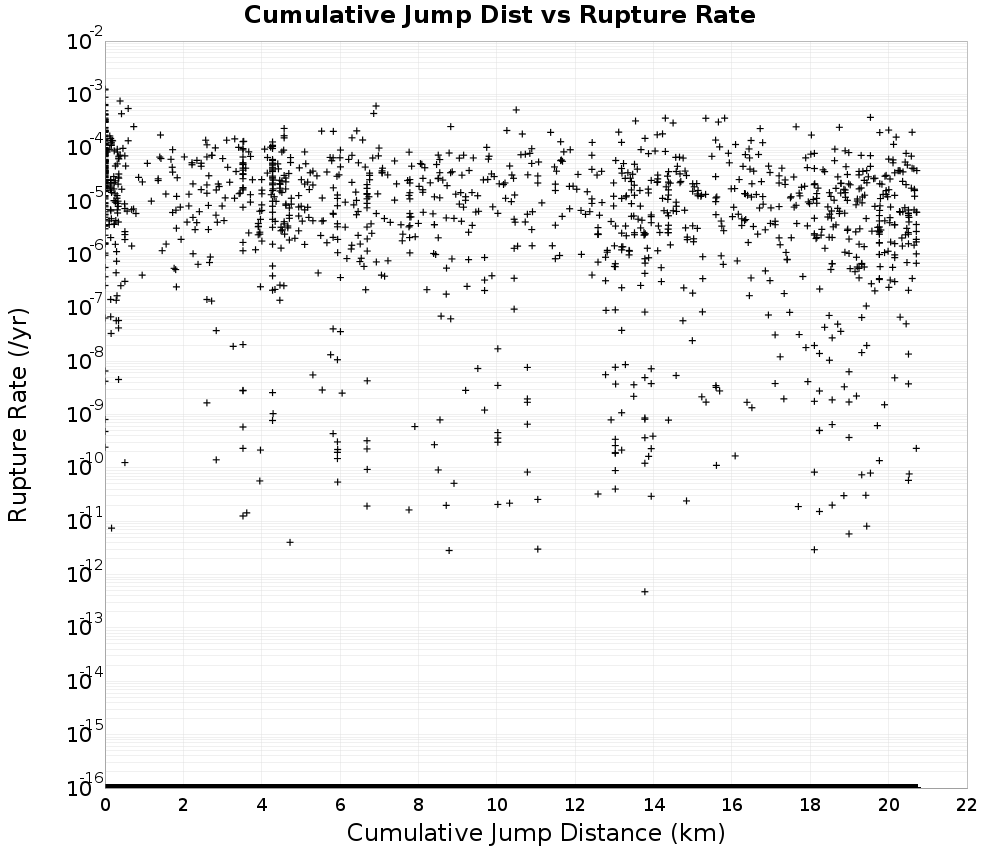

Cumulative Jump Dist vs Rupture Rate

(top)

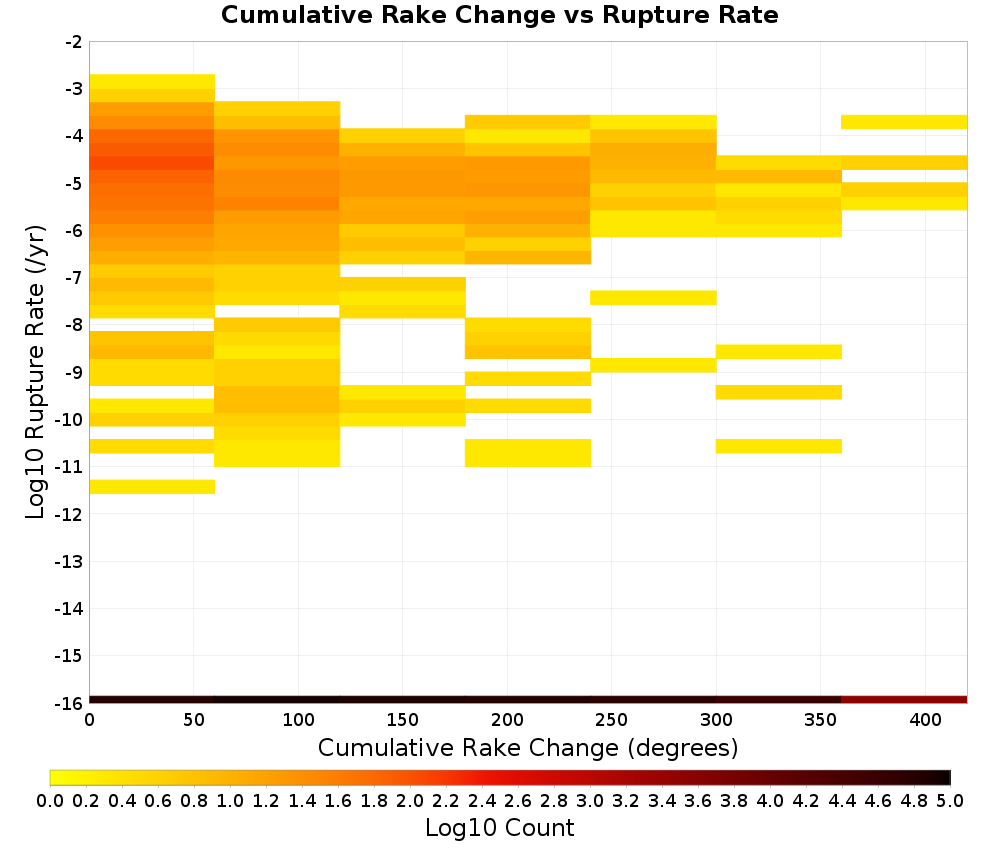

Cumulative Rake Change

(top)

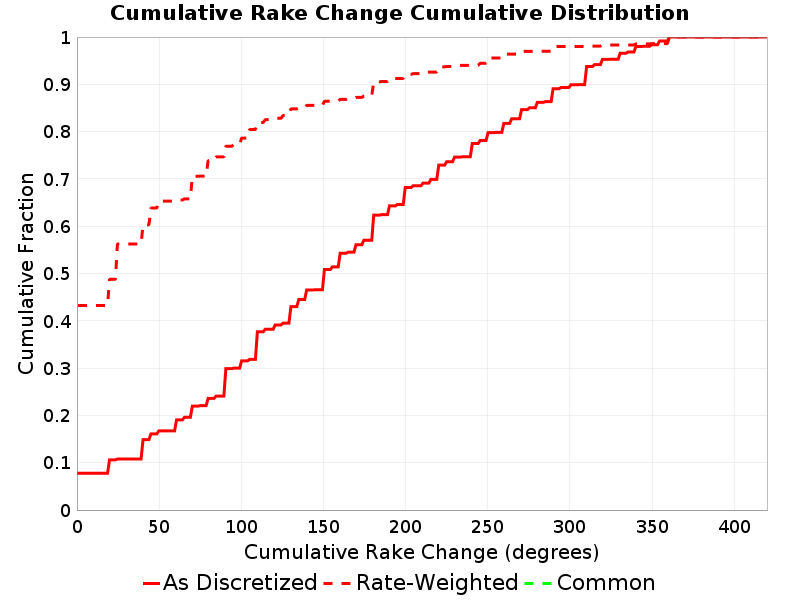

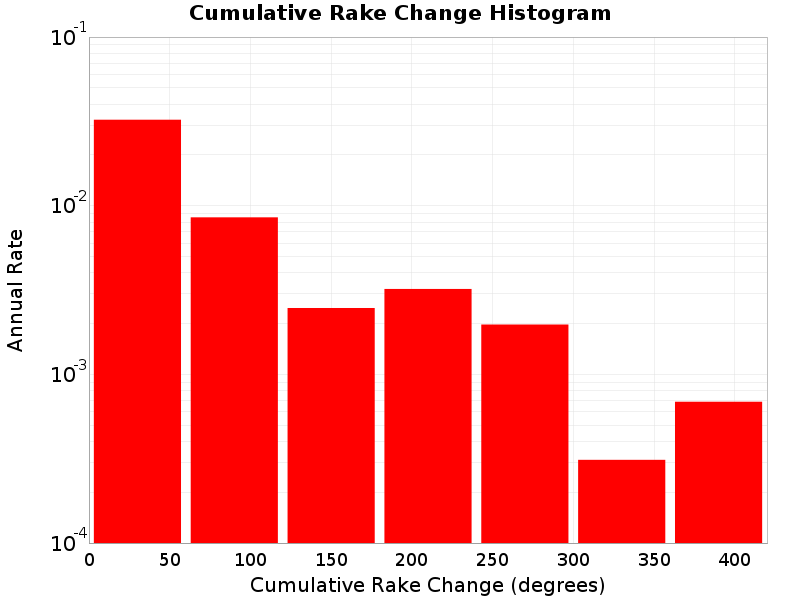

Cumulative rake change for this rupture.

Cumulative Rake Change vs Rupture Rate

(top)

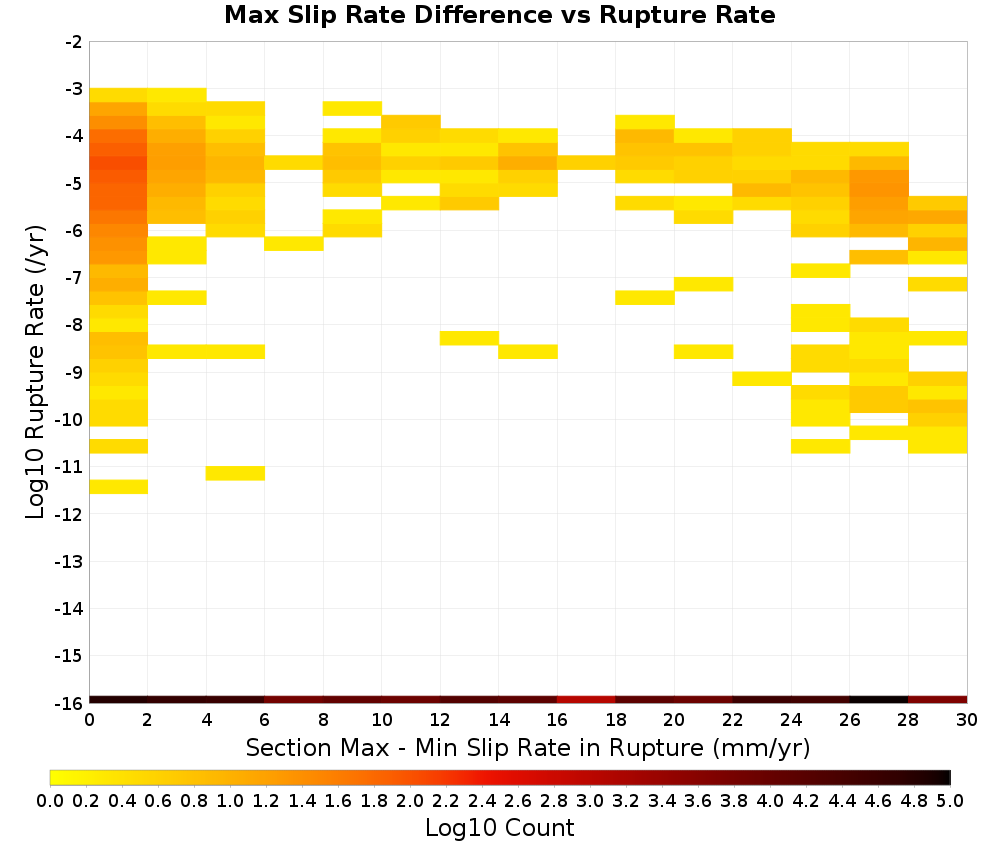

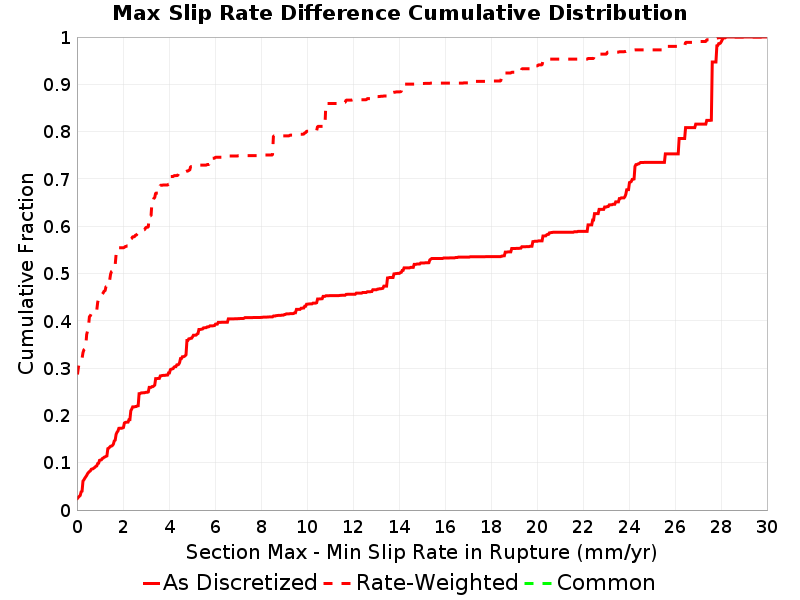

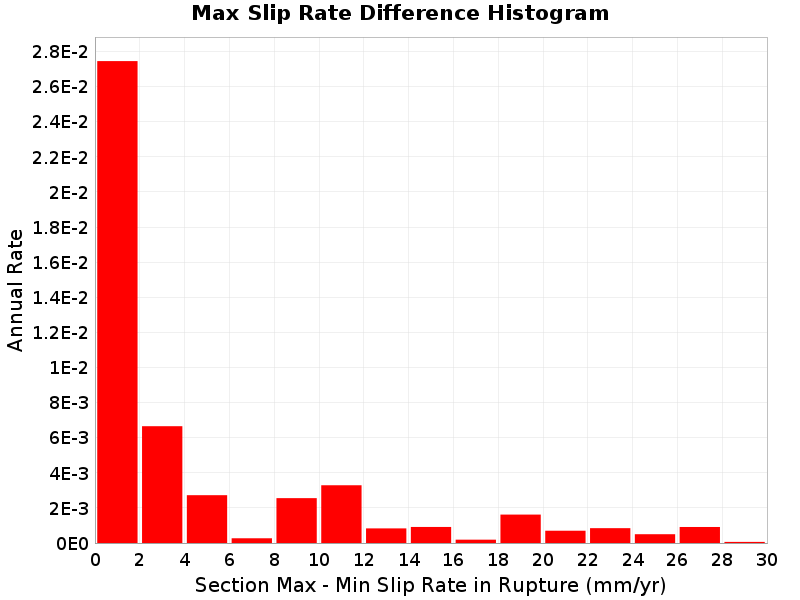

Max Slip Rate Difference

(top)

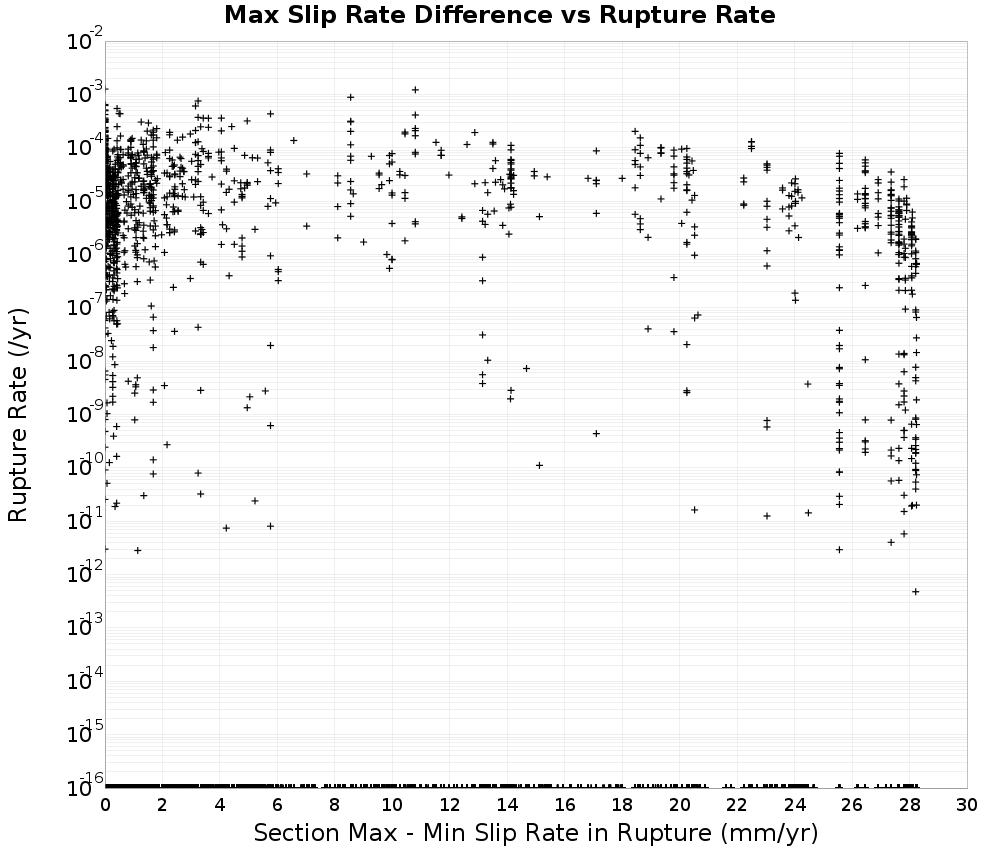

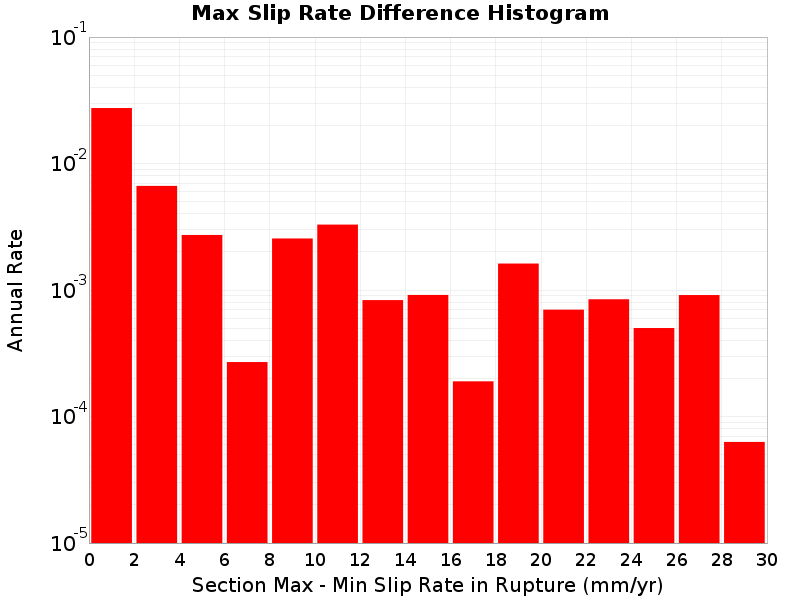

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

Max Slip Rate Difference vs Rupture Rate

(top)

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

Name	Implementing Class
Single-Strand Cluster Ruptures	`ClusterRuptures$SingleStranded`
Section Distance-Azimuth Calculator	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator`
Logic Tree Branch	`nz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch`
Polygon Fault Grid Associations	`PolygonFaultGridAssociations$Precomputed`
Rupture Connection Search	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch`
Section Slip Rates	`SectSlipRates$Precomputed`
Section Areas	`SectAreas$Default`
Inversion Target MFDs	`InversionTargetMFDs$Precomputed`
Precomputed Average Slips	`AveSlipModule$Precomputed`
Modified Section Minimum Magnitudes	`ModSectMinMags$Precomputed`
OpenSHA Build Information	`BuildInfoModule`
Uniform Slip Along Rupture	`SlipAlongRuptureModel$Uniform`
Paleoseismic Constraint Data	`PaleoseismicConstraintData`

Solution Modules

(top)

Name	Implementing Class
Annealing Progress	`org.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress`
Inversion Misfit Progress	`InversionMisfitProgress`
OpenSHA Build Information	`BuildInfoModule`
Sub-Seismogenic On-Fault MFDs	`SubSeismoOnFaultMFDs`

Fault Section Connections

(top)


Download GeoJSON

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted, with smaller clusters plotted in gray, and fully isolated faults plotted in black.


Download GeoJSON

Rank	Sections	Parent Sections	Ruptures
1	1,929 (82.83%)	456 (81.72%)	394,810 (99.08%)
2	61 (2.62%)	8 (1.43%)	1,661 (0.42%)
3	50 (2.15%)	13 (2.33%)	478 (0.12%)
4	40 (1.72%)	15 (2.69%)	684 (0.17%)
5	38 (1.63%)	15 (2.69%)	211 (0.05%)
6	26 (1.12%)	5 (0.90%)	128 (0.03%)
7	13 (0.56%)	3 (0.54%)	58 (0.01%)
8	12 (0.52%)	2 (0.36%)	55 (0.01%)
9	8 (0.34%)	2 (0.36%)	17 (0.00%)
10	4 (0.17%)	2 (0.36%)	3 (0.00%)
37 isolated	148 (6.35%)	37 (6.63%)	370 (0.09%)

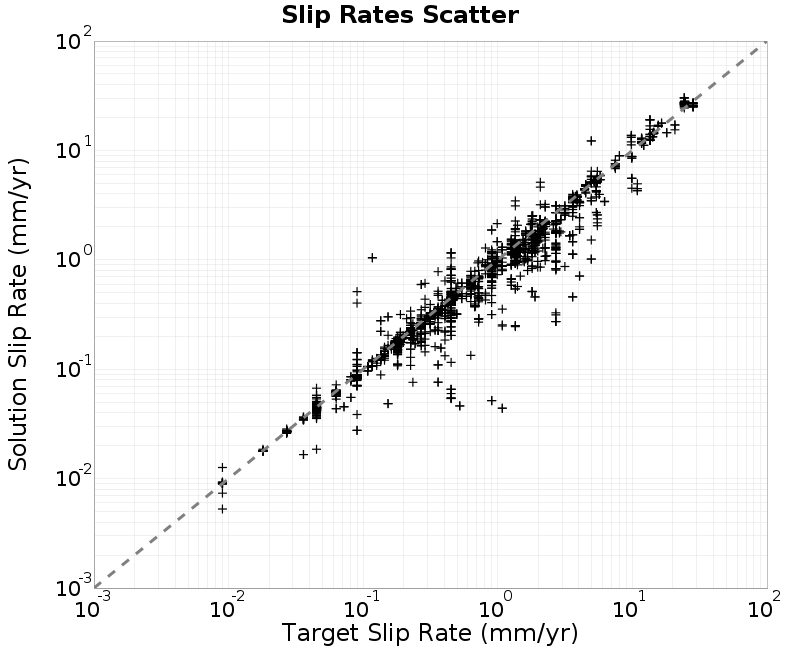

Slip Rates

(top)

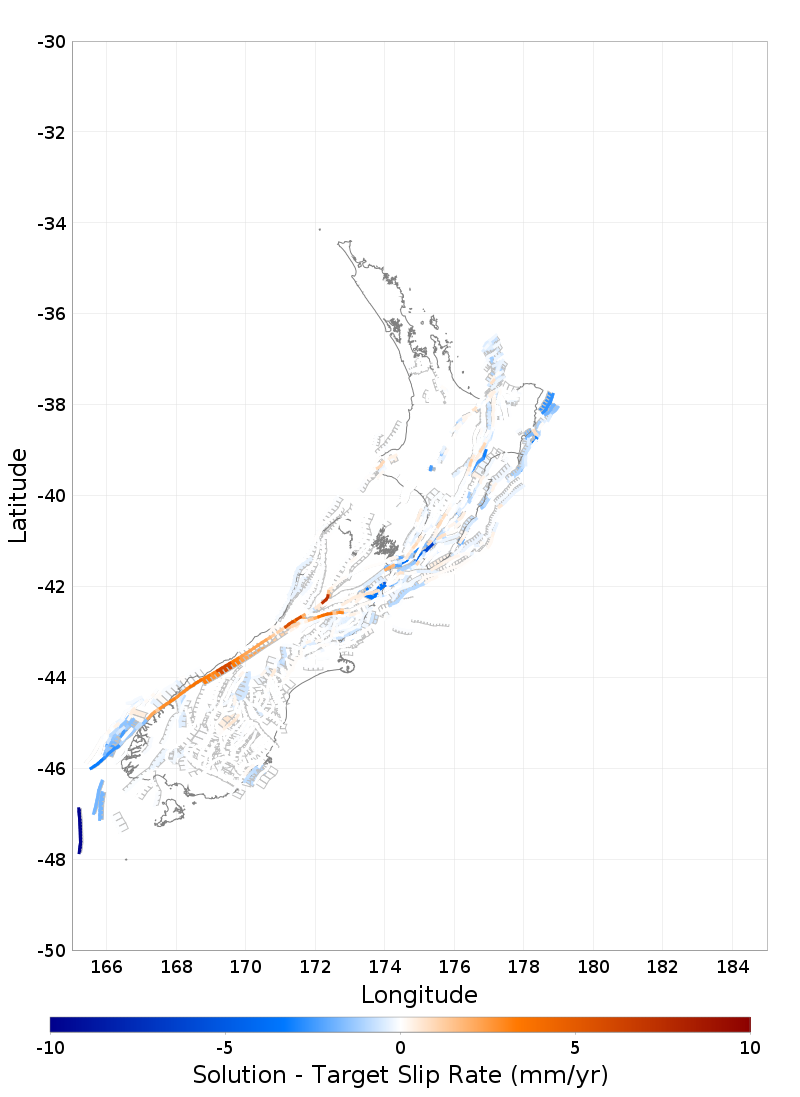

Linear Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Log10 Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON

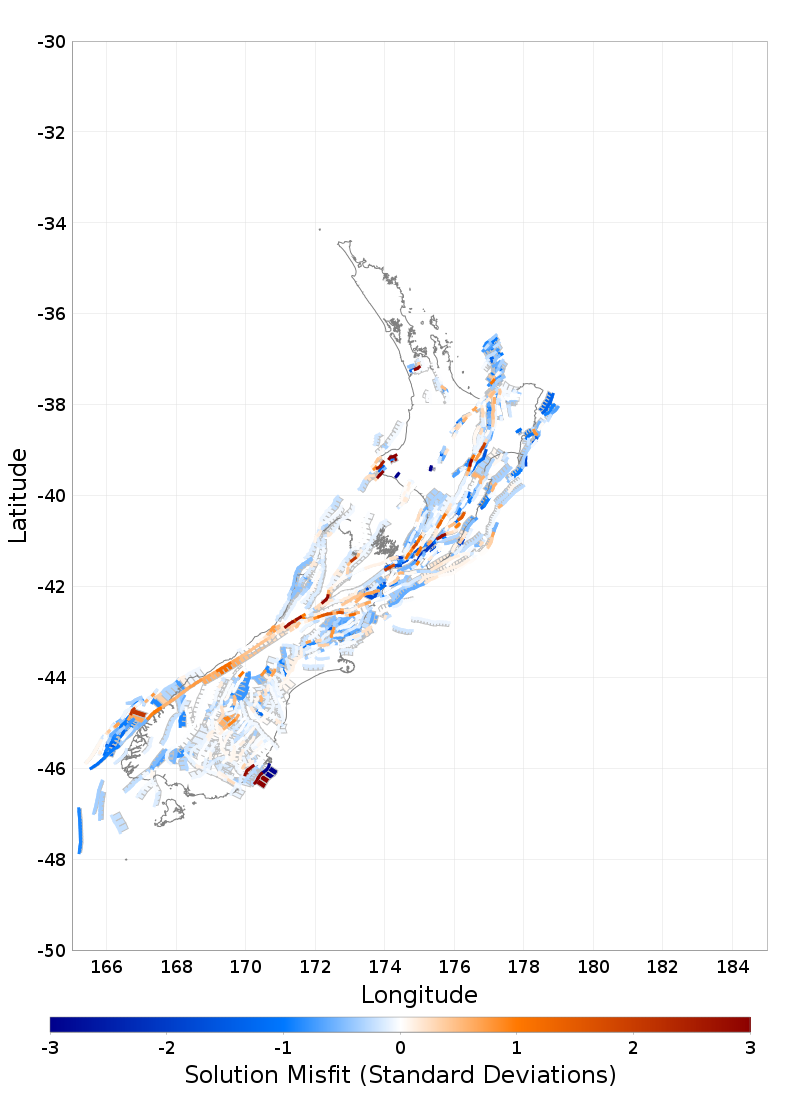

Slip Rate Std Dev Plots

(top)


Download GeoJSON	Download GeoJSON

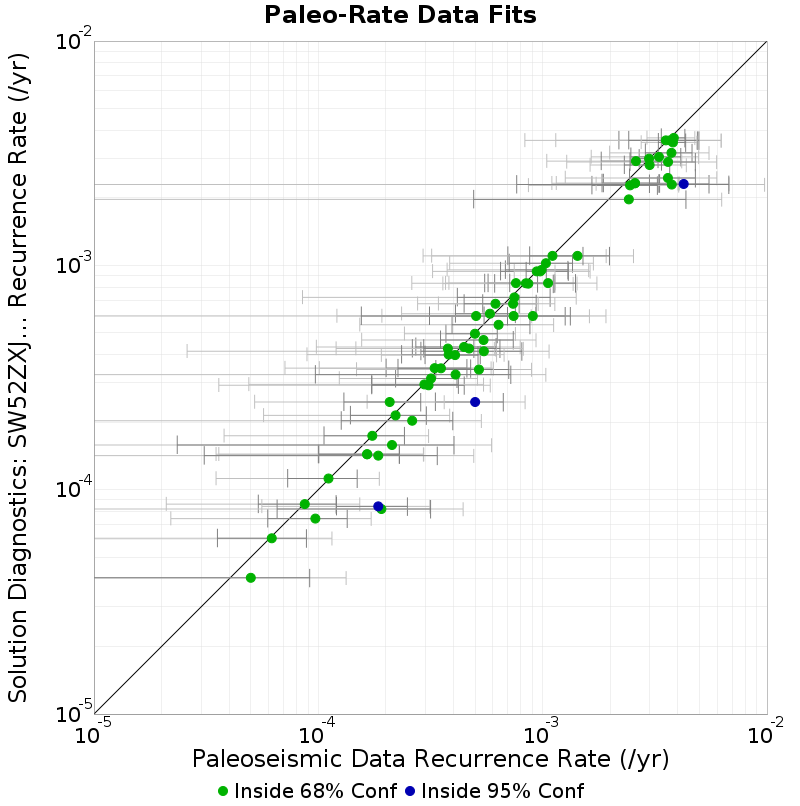

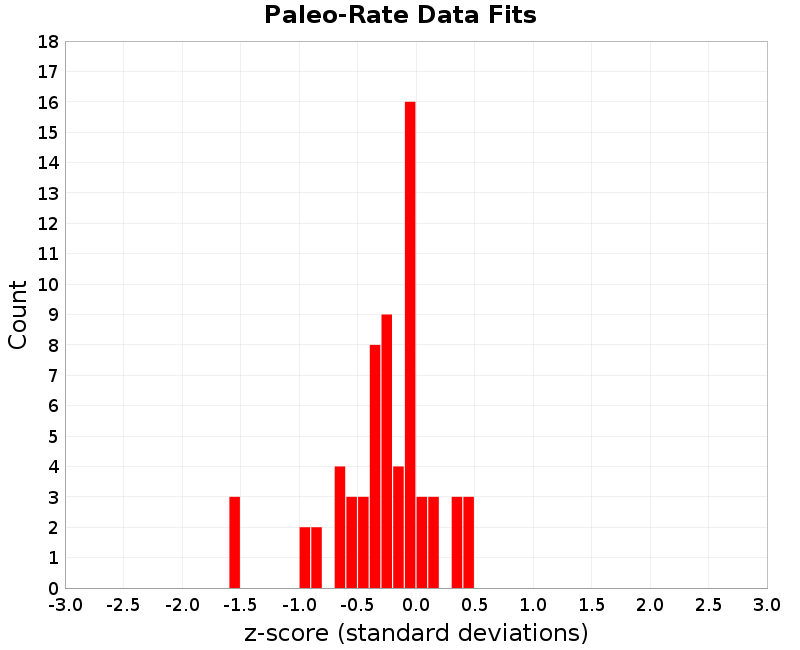

Paleoseismic Data Comparison

(top)

Paleo data comparison table. For the solution column, text is bold if within 68% bounds, italicized if within 95% bounds, and otherwise plain text. Download CSV here.

Site Name	Mapped Subsection ID	Mapped Parent Section	Constraint Mean Rate	68% Bounds	Constraint 95% Bounds	Std. Dev	Solution Rate	z-score
Alpine George to Jacksons - Hokuri Creek sections	34	Alpine: George to Jacksons	0.00298	[0.0026925, 0.0032675]	[0.002405, 0.003555]	2.875E-4	0.0029891003	0.03165293
Akatore - Big Creek trench	8	Akatore	8.7E-5	[5.4E-5, 1.2E-4]	[2.1E-5, 1.53E-4]	3.3E-5	8.6226726E-5	-0.023432564
Alpine George to Jacksons - Lake Ellery cores	40	Alpine: George to Jacksons	0.003751	[0.0028695, 0.0046325]	[0.001988, 0.005514]	8.815E-4	0.0031733818	-0.6552675
Alpine George to Jacksons - John O'Groats Wetland	32	Alpine: George to Jacksons	0.0033	[0.002473, 0.004127]	[0.001646, 0.004954]	8.27E-4	0.0030426008	-0.31124455
Alpine Jacksons to Kaniere - Lake Paringa cores	46	Alpine: Jacksons to Kaniere	0.003842	[0.0033795, 0.0043045]	[0.002917, 0.004767]	4.625E-4	0.0036983667	-0.3105586
Alpine Jacksons to Kaniere - Lake Mapourika cores	54	Alpine: Jacksons to Kaniere	0.002998	[0.0023125, 0.0036835]	[0.001627, 0.004369]	6.855E-4	0.0027994933	-0.2895795
Alpine Jacksons to Kaniere - Staples 2 trench	61	Alpine: Jacksons to Kaniere	0.003541	[0.002187, 0.004895]	[8.33E-4, 0.006249]	0.001354	0.003606165	0.048127815
Alpine Jacksons to Kaniere - Staples 3 trench	61	Alpine: Jacksons to Kaniere	0.003695	[0.0024195, 0.0049705]	[0.001144, 0.006246]	0.0012755	0.003606165	-0.06964715
Alpine Jacksons to Kaniere - Haast South trench	43	Alpine: Jacksons to Kaniere	0.002605	[0.001824, 0.003386]	[0.001043, 0.004167]	7.81E-4	0.002914329	0.39606795
Alpine Kaniere to Springs Junction - Lake Kaniere cores	71	Alpine: Kaniere to Springs Junction	0.003809	[0.003279, 0.004339]	[0.002749, 0.004869]	5.3E-4	0.0035305617	-0.52535516
Alpine Kaniere to Springs Junction - Lake Brunner cores	68	Alpine: Kaniere to Springs Junction	0.003622	[0.002451, 0.004793]	[0.00128, 0.005964]	0.001171	0.0028899233	-0.6251723
Alpine Springs Junction to Tophouse - Maruia Trench-1	90	Alpine: Springs Junction to Tophouse	0.00258	[0.001865, 0.003295]	[0.00115, 0.00401]	7.15E-4	0.0023224303	-0.3602375
Alpine Springs Junction to Tophouse - Maruia Trench-2	90	Alpine: Springs Junction to Tophouse	0.00258	[0.0018395, 0.0033205]	[0.001099, 0.004061]	7.405E-4	0.0023224303	-0.3478323
Awatere Northeast 1 - Upcot 1 trench	129	Awatere: Northeast 1	9.89E-4	[6.82E-4, 0.001296]	[3.75E-4, 0.001603]	3.07E-4	9.541243E-4	-0.11360158
Clarence Northeast - Ravine Stream exposure	436	Clarence: Northeast	4.99E-4	[3.705E-4, 6.275E-4]	[2.42E-4, 7.56E-4]	1.285E-4	4.95524E-4	-0.027050672
Cloudy 2 - Cloudy seismic lines	453	Cloudy 2	3.18E-4	[2.21E-4, 4.15E-4]	[1.24E-4, 5.12E-4]	9.7E-5	3.1306644E-4	-0.05086141
Dunstan - T04/2	512	Dunstan	2.21E-4	[1.39E-4, 3.03E-4]	[5.7E-5, 3.85E-4]	8.2E-5	2.1434556E-4	-0.08115167
Te Ikaarongamai - Pakarae River mouth	1860	Te Ikaarongamai	8.63E-4	[6.11E-4, 0.001115]	[3.59E-4, 0.001367]	2.52E-4	8.2861865E-4	-0.13643391
Gable End North - Puatai Beach trench	598	Gable End North	0.001034	[7.095E-4, 0.0013585]	[3.85E-4, 0.001683]	3.245E-4	0.0010219227	-0.037218254
Hohonu South - Lower Mikonui River exposure	701	Hohonu: South	6.2E-5	[3.55E-5, 8.85E-5]	[9.0E-6, 1.15E-4]	2.65E-5	6.071446E-5	-0.048510917
Inglewood - Egmont Road trenches	829	Inglewood	1.65E-4	[1.0E-4, 2.3E-4]	[3.5E-5, 2.95E-4]	6.5E-5	1.4381963E-4	-0.32585168
Inglewood - Everett Park trench	828	Inglewood	1.65E-4	[1.005E-4, 2.295E-4]	[3.6E-5, 2.94E-4]	6.45E-5	1.4381963E-4	-0.32837766
Kekerengu 1 - Kekerengu Trench 1	885	Kekerengu 1	0.002452	[0.001658, 0.003246]	[8.64E-4, 0.00404]	7.94E-4	0.0022725898	-0.22595751
Kina - Kina Fault trench	1357	Oaonui	5.0E-4	[3.325E-4, 6.675E-4]	[1.65E-4, 8.35E-4]	1.675E-4	2.459018E-4	-1.5170041
Lachlan 3 - Table Cape trenches	989	Lachlan 3	8.42E-4	[5.515E-4, 0.0011325]	[2.61E-4, 0.001423]	2.905E-4	8.3182676E-4	-0.035019685
Mohaka South - McCool 1 Trench	1199	Mohaka: South	3.3E-4	[2.005E-4, 4.595E-4]	[7.1E-5, 5.89E-4]	1.295E-4	3.480836E-4	0.13964164
Mokonui Southwest - Viewfield Trench	1206	Mokonui Southwest	5.2E-4	[3.34E-4, 7.06E-4]	[1.48E-4, 8.92E-4]	1.86E-4	3.431887E-4	-0.95059836
Oaonui - Oaonui coastal cliff exposure	1357	Oaonui	2.08E-4	[1.3E-4, 2.86E-4]	[5.2E-5, 3.64E-4]	7.8E-5	2.459018E-4	0.4859207
Ohariu - Taupo Swamp	1368	Ohariu	6.36E-4	[3.945E-4, 8.775E-4]	[1.53E-4, 0.001119]	2.415E-4	5.4317527E-4	-0.3843674
Ohariu - MacKays Crossing Trench	1366	Ohariu	4.46E-4	[2.72E-4, 6.2E-4]	[9.8E-5, 7.94E-4]	1.74E-4	4.3257108E-4	-0.0771778
Pihama - Pihama coastal cliff exposure	1568	Pihama	1.85E-4	[1.205E-4, 2.495E-4]	[5.6E-5, 3.14E-4]	6.45E-5	8.4246225E-5	-1.5620741
Porters Pass - Porters Pass Trench 1	1586	Porters Pass	5.82E-4	[4.085E-4, 7.555E-4]	[2.35E-4, 9.29E-4]	1.735E-4	6.08685E-4	0.15380406
Ruahine North - Davis Trenches	1702	Ruahine: North	5.45E-4	[3.505E-4, 7.395E-4]	[1.56E-4, 9.34E-4]	1.945E-4	4.6462705E-4	-0.4132286
Titri Central - Clarendon T16/03 trench	1896	Titri Central	9.7E-5	[5.95E-5, 1.345E-4]	[2.2E-5, 1.72E-4]	3.75E-5	7.431668E-5	-0.60488844
Waimana North - Moana trench	2041	Waimana: North	3.1E-4	[1.73E-4, 4.47E-4]	[3.6E-5, 5.84E-4]	1.37E-4	2.919393E-4	-0.13182986
Waimana North - Te Hoe / Hautapu Trench	2047	Waimana: South	5.47E-4	[2.865E-4, 8.075E-4]	[2.6E-5, 0.001068]	2.605E-4	4.1392486E-4	-0.51084507
Waimana North - Ahirau 1 trench	2043	Waimana: North	2.97E-4	[1.73E-4, 4.21E-4]	[4.9E-5, 5.45E-4]	1.24E-4	2.945861E-4	-0.019467046
Waipukaka - Hendricksen Trench 1	2094	Waipukaka	2.62E-4	[1.265E-4, 3.975E-4]	[-9.0E-6, 5.33E-4]	1.355E-4	2.0290827E-4	-0.43610135
Wairarapa - Turakirae Head	2104	Wairarapa: 1	3.78E-4	[2.625E-4, 4.935E-4]	[1.47E-4, 6.09E-4]	1.155E-4	4.256766E-4	0.41278455
Wairarapa - Lake Kohangapiripiri KP99-1&2	2104	Wairarapa: 1	4.7E-4	[2.95E-4, 6.45E-4]	[1.2E-4, 8.2E-4]	1.75E-4	4.256766E-4	-0.25327647
Wairarapa 3 - Tea Creek Road	2113	Wairarapa: 3	3.81E-4	[2.35E-4, 5.27E-4]	[8.9E-5, 6.73E-4]	1.46E-4	4.0016344E-4	0.13125634
Wairau - Wadsworth Trench	2127	Wairau	9.04E-4	[5.48E-4, 0.00126]	[1.92E-4, 0.001616]	3.56E-4	5.94627E-4	-0.86902523
Wairau - Dillon Trench	2127	Wairau	5.05E-4	[3.13E-4, 6.97E-4]	[1.21E-4, 8.89E-4]	1.92E-4	5.94627E-4	0.46680743
Wairau 2 - Wairau seismic lines	2134	Wairau 2	4.07E-4	[2.99E-4, 5.15E-4]	[1.91E-4, 6.23E-4]	1.08E-4	3.9797943E-4	-0.08352385
Wellington Hutt Valley 3 - Te Kopahou-1 Trenches	2208	Wellington Hutt Valley: 3	7.48E-4	[4.165E-4, 0.0010795]	[8.5E-5, 0.001411]	3.315E-4	7.19617E-4	-0.08561997
Wellington Hutt Valley 5 - KAF-1	2212	Wellington Hutt Valley: 5	7.6E-4	[5.71E-4, 9.49E-4]	[3.82E-4, 0.001138]	1.89E-4	8.332413E-4	0.38752034
Wellington Hutt Valley 5 - KAF-3	2212	Wellington Hutt Valley: 5	0.001057	[7.13E-4, 0.001401]	[3.69E-4, 0.001745]	3.44E-4	8.332413E-4	-0.6504612
Wellington Pahiatua - Dougan-1	2218	Wellington: Pahiatua	0.001106	[6.995E-4, 0.0015125]	[2.93E-4, 0.001919]	4.065E-4	0.0011019484	-0.009967037
Wellington Pahiatua - Hughes-1 Trench	2215	Wellington: Pahiatua	9.75E-4	[6.49E-4, 0.001301]	[3.23E-4, 0.001627]	3.26E-4	9.3968125E-4	-0.10833965
Wellington Pahiatua - Dougan-2	2218	Wellington: Pahiatua	0.00143	[8.75E-4, 0.001985]	[3.2E-4, 0.00254]	5.55E-4	0.0011019484	-0.59108394
Whakatane North - Te Whetu trench	2250	Whakatane: North	1.11E-4	[7.3E-5, 1.49E-4]	[3.5E-5, 1.87E-4]	3.8E-5	1.12129484E-4	0.029723283
Whakatane South - Thalassa trench	2257	Whakatane: South	3.52E-4	[2.265E-4, 4.775E-4]	[1.01E-4, 6.03E-4]	1.255E-4	3.4750148E-4	-0.03584465
Awatere Northeast 1 - Combined Taylors Pass Road trenches and Lake Jasper cores	134	Awatere: Northeast 1	9.41E-4	[8.44E-4, 0.001038]	[7.47E-4, 0.001135]	9.7E-5	9.399849E-4	-0.010464421
Hope Conway - Combined Greenburn East and West trenches	721	Hope: Conway	0.004253	[0.002992, 0.005514]	[0.001731, 0.006775]	0.001261	0.0023051114	-1.5447173
Hope Hope River - Hope Shelter trenches combined	739	Hope: Hope River	0.003617	[0.002439, 0.004795]	[0.001261, 0.005973]	0.001178	0.0024514636	-0.98941976
Poukawa - Combined Poukawa trenches	2098	Waipukurau - Poukawa	1.74E-4	[1.06E-4, 2.42E-4]	[3.8E-5, 3.1E-4]	6.8E-5	1.7381692E-4	-0.0026923676
Wairarapa 2 - Cross Creek South combined (1- 4)	2109	Wairarapa: 2	7.38E-4	[5.405E-4, 9.355E-4]	[3.43E-4, 0.001133]	1.975E-4	6.740579E-4	-0.32375744
Wairarapa 2 - Cross Creek North combined (2- 3)	2109	Wairarapa: 2	6.16E-4	[4.465E-4, 7.855E-4]	[2.77E-4, 9.55E-4]	1.695E-4	6.740579E-4	0.34252453
Flaxmore - Waimea - Tahunanui_5507_Wairoa-2 trench	580	Flaxmore - Waimea - Tahunanui	1.91E-4	[6.55E-5, 3.165E-4]	[-6.0E-5, 4.42E-4]	1.255E-4	8.197591E-5	-0.86871785
Fox Peak_4035_Trench 4	593	Fox Peak	4.09E-4	[9.7E-5, 7.21E-4]	[-2.15E-4, 0.001033]	3.12E-4	3.2585897E-4	-0.26647764
Hope Conway_666-675_Combined	722	Hope: Conway	0.003762	[7.66E-4, 0.006758]	[-0.00223, 0.009754]	0.002996	0.002291127	-0.4909456
Hope Hope River_648_Matagouri Flat	741	Hope: Hope River	0.002422	[4.925E-4, 0.0043515]	[-0.001437, 0.006281]	0.0019295	0.0019681053	-0.23523955
The Humps_5565-5696_Combined	1885	The Humps	2.13E-4	[2.35E-5, 4.025E-4]	[-1.66E-4, 5.92E-4]	1.895E-4	1.5816443E-4	-0.28936976
Wairau_5519-5522_Combined Zinke	2127	Wairau	7.42E-4	[1.555E-4, 0.0013285]	[-4.31E-4, 0.001915]	5.865E-4	5.94627E-4	-0.25127533
Waitawhiti_5369-5379_Combined	2151	Waitawhiti	1.85E-4	[3.1E-5, 3.39E-4]	[-1.23E-4, 4.93E-4]	1.54E-4	1.4180278E-4	-0.28050146
Whitemans Valley_1023_Whitemans Valley trench	2326	Whitemans Valley	5.0E-5	[8.5E-6, 9.15E-5]	[-3.3E-5, 1.33E-4]	4.15E-5	4.0468753E-5	-0.22966859

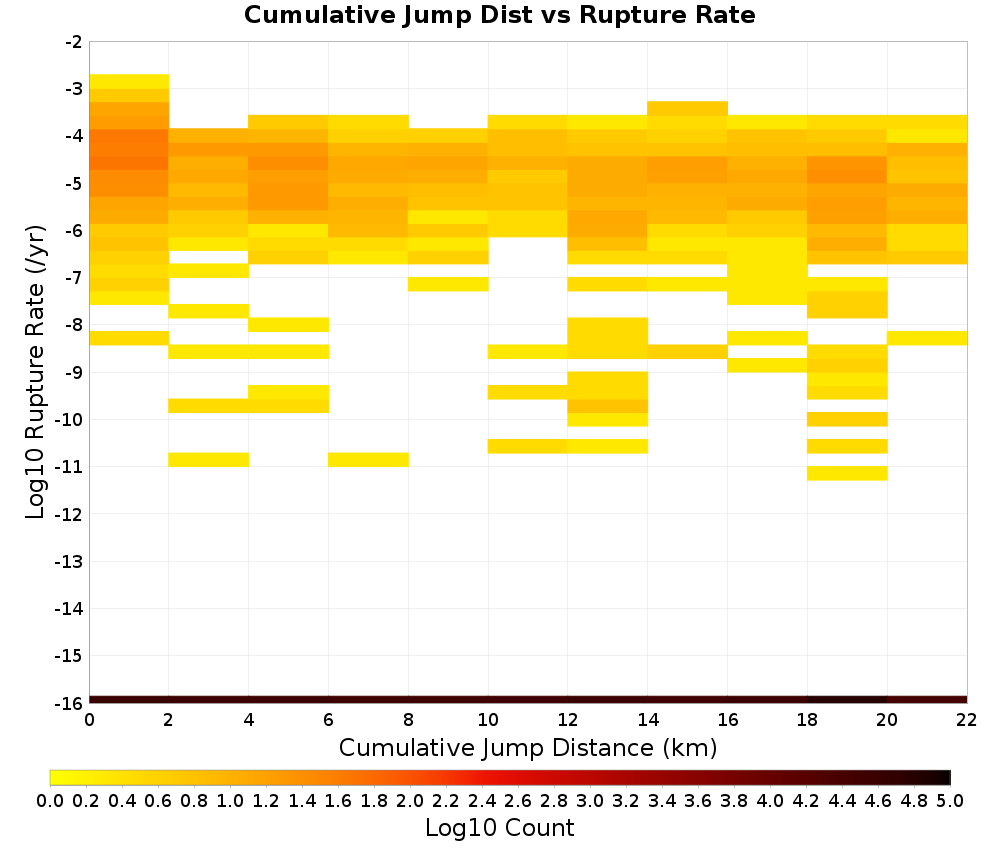

Jump Counts Over Distance

(top)

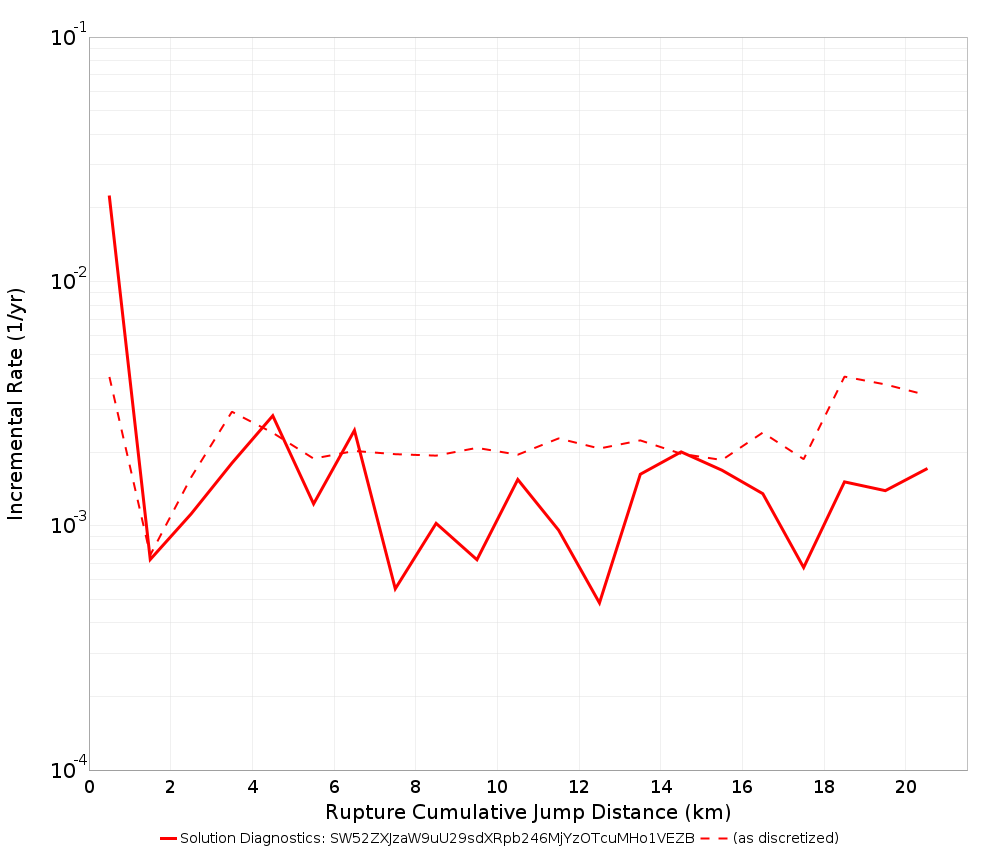

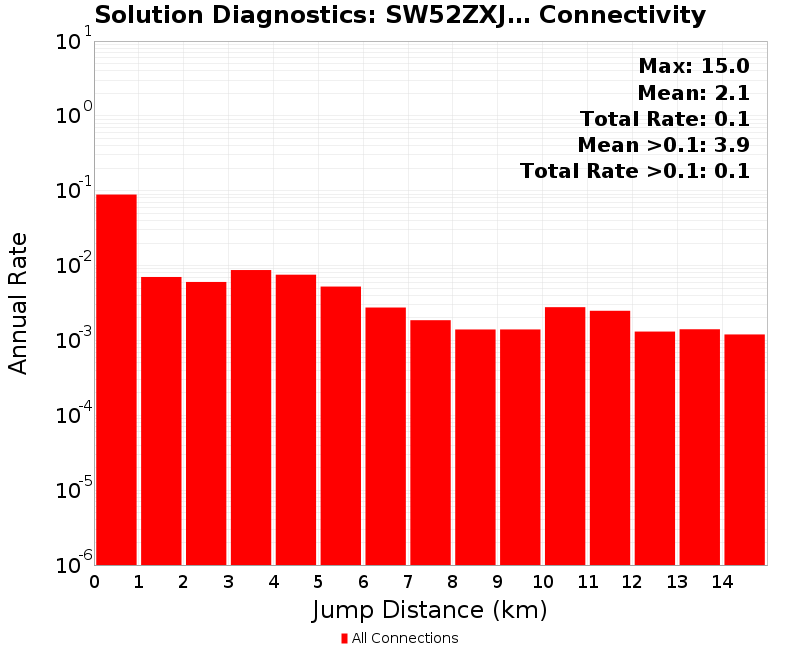

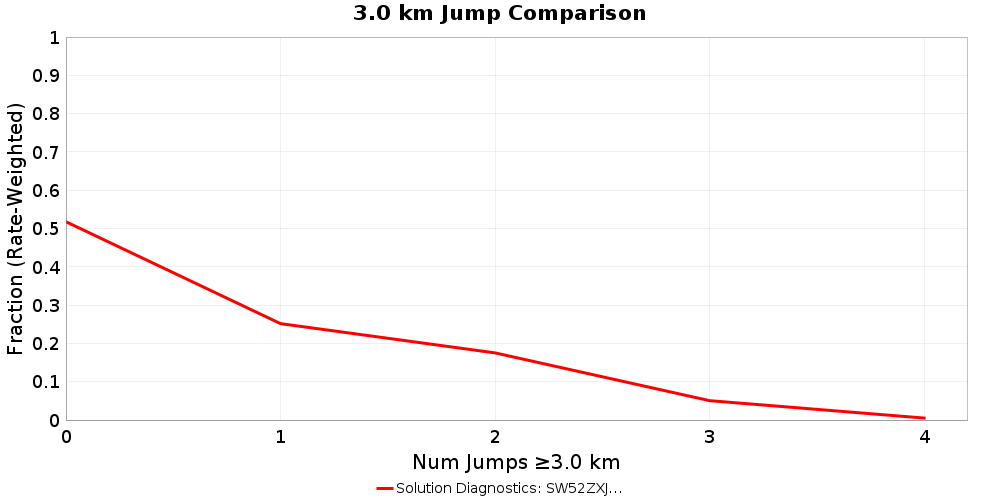

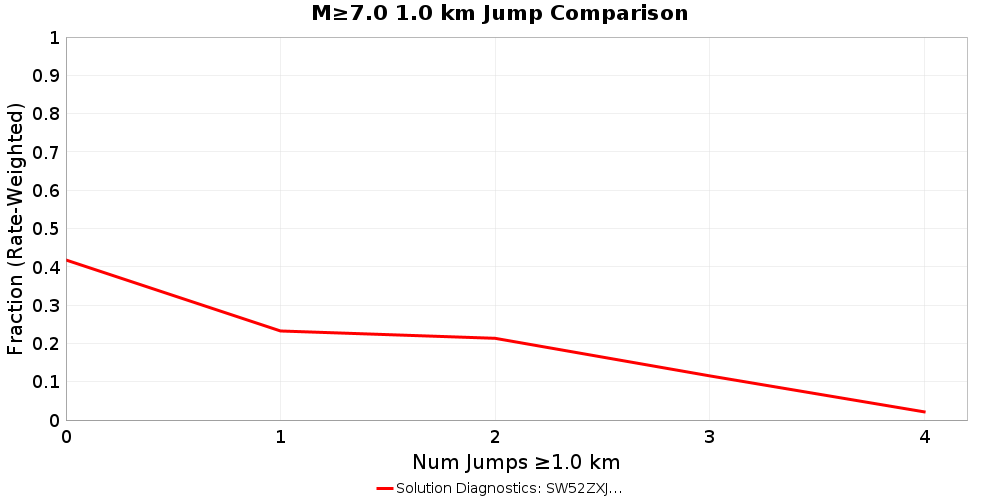

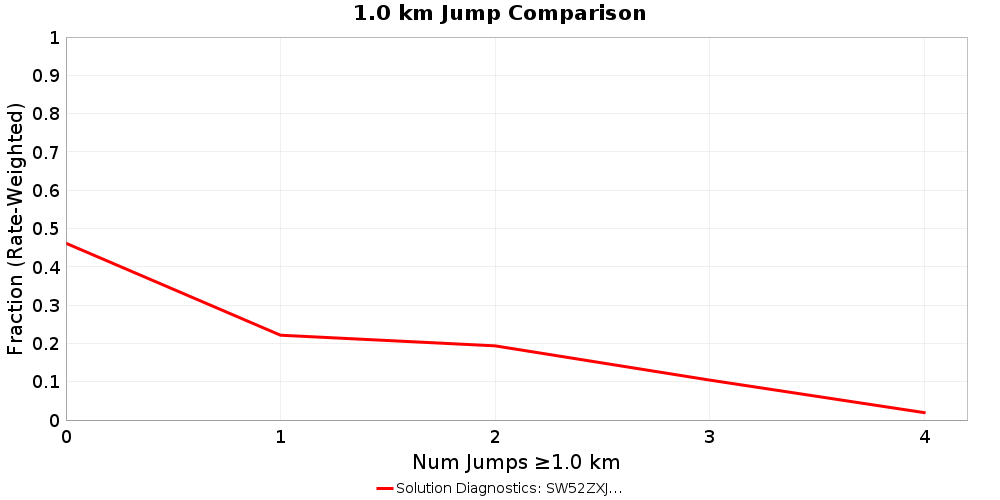

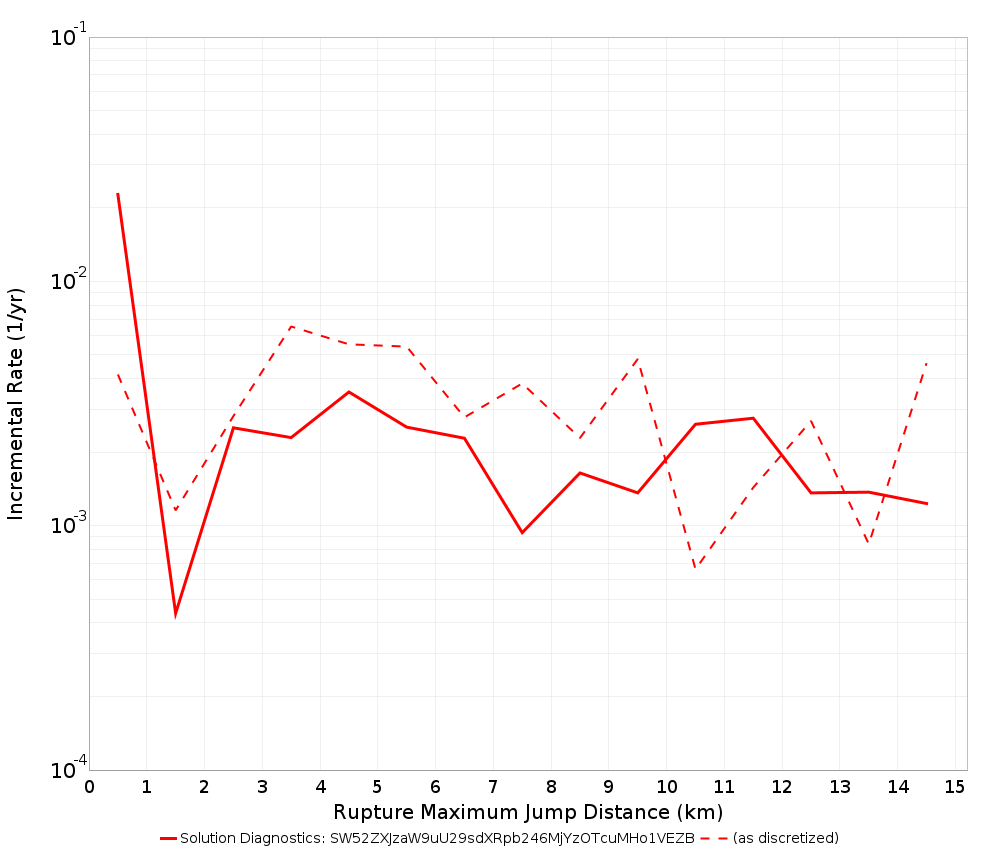

Supra-seismogenic Jump Counts

(top)

As Discretized	Rate Weighted

M≥7 Jump Counts

(top)

As Discretized	Rate Weighted

Max Jump Distance Distribution

(top)

Cumulative Jump Distance Distribution

(top)

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (400 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

Parent Section Detail Pages

(top)

Fault Section	Fault Section	Fault Section
Acton	Kaikorai	Poverty Bay
Aka Aka	Kaikoura - Mangamaunu	Pukekohe
Akatarawa	Kairakau 2	Pukerua - Shepherds Gully: 1
Akatore	Kairakau North	Pukerua - Shepherds Gully: 2
Albury	Kairakau South	Pukerua - Shepherds Gully: 3
Alexander	Kaiwara North	Puketerata
Alfredton North	Kaiwara South	Puketerata North
Alfredton South	Kakapo	Pylap
Alpine: Caswell	Kaumingi	Raggedy - Blackstone
Alpine: Caswell - South George	Kaweka	Rahotu
Alpine: George landward	Kekerengu 1	Rakaia
Alpine: George seaward	Kekerengu Bank	Ranfurly
Alpine: George to Jacksons	Kelly	Rangefront
Alpine: Jacksons to Kaniere	Kerepehi Awaiti	Rangitaiki 1
Alpine: Kaniere to Springs Junction	Kerepehi Elstow	Rangitaiki 2
Alpine: Nancy	Kerepehi Offshore	Rangitikei Offshore 1
Alpine: Resolution - Charles	Kerepehi Okoroire	Rapuwai
Alpine: Resolution - Dagg	Kerepehi Te Poi	Raukumara 16
Alpine: Resolution - Five Fingers	Kerepehi Waitoa	Raukumara 17
Alpine: Springs Junction to Tophouse	Kereu	Raukumara 18
AmberBlyth	Kidnappers Ridge	Raukumara 20
Aotea - Evans Bay	Kiri	Raukumara 21
Ararata	Kirkliston	Raukumara 24
Ariel Bank	Klondyke Moor	Raukumara 25
Ariel Bank 2	Knowles Top	Raukumara 9
Ariel East	Kohaihai	Rauoterangi
Awahokomo	Kohaihai South	Raurimu: South
Awakeri	Kongahau	Redcliffe
Awamoa	Kotare - Moutuhora	Repongaere
Awanui	Kowai - View Hill	Ridge Road - Okaia 2
Awatere: Northeast 1	Kututaruhe	Riversdale
Awatere: Northeast 2	Lachlan 1 & 2	Riversdale North
Awatere: Southwest	Lachlan 3	Roaring Lion
Backbone	Lake Heron	Roaring Meg
Balmoral	Lake Onslow	Rotoitipakau
Barefell	Leader: Central	Ruahine: Central
Barn	Leader: North	Ruahine: North
Barrier Range	Leader: South	Ruahine: South
Beacon Hill	Leedstown	Ruataniwha
Beaumont River	Lees Valley	Ruatoria South 3
Ben McLeod	Leithfield - NCVI - NCVII	Ruatoria South 4
Bidwill	Leonard Mound	Ruby Bay - Moutere
Big Ben	Levin Anticline	Sailor
Billys Ridge	Lindis River	Saunders Road
Black Hill	Little Hillfoot	Settlement
Blue Lake	Little Valley	Shepherds Gully - Mana
Blue Mountain	Livingstone	Skippers
Boby Stream	Logan Burn	Sliver Stream - Merton
BooBoo	London Hill	Snares
Braemar	Long Valley	Solander
Brothers	Lowry	South Wedge 1
Browning Pass	Lyell	South Wedge 2
Calypso 2	Lyell South	South Wedge 3-6-10
Campbell Bank	Madagascar	South Wedge 5
Campbell Hills	Madden Banks	Spey - Mica Burn
Cape Egmont: Central	Mahia 2	Springbank
Cape Egmont: North	Maimai	Spylaw
Cape Egmont: South	Maimai: North	St Stephens
Cape Foulwind 1	Maimai: South	Starvation - Ashley
Cape Foulwind 2	Makuri - Waewaepa	StoneJug
Cape Foulwind 4	Maleme	Stonewall
Cardrona - Hawea	Manahi 1	Sugarloaf
Carterton	Manahi 2	Surville
Caswell 211	Mangatangi	Takapu
Caswell High 1	Marlborough Slope 11	Taonui
Caswell High 10	Marlborough Slope 2	Tauranga Trough East 2
Caswell High 3	Marlborough Slope 3	Tauranga Trough West 2
Caswell High 4	Marlborough Slope 4	Tauru
Caswell High 5	Marlborough Slope 9	Te Anau
Caswell High 67	Martinborough	Te Arawa 1
Caswell High 8	Mascarin	Te Arawa 2
Caswell High 9	Masterton	Te Arawa 3
Catherine	Mataikona	Te Heka
CenPeg1n2	Mataikona East	Te Ikaarongamai
Central Balleny	Matata	Te Puninga
Central Wedge 1 & 2 & 3	Maunga	Te Rapa 1
Central Wedge 4 - South Wedge 411	Maungati	Te Rapa 2
Chamberlain	Maungatua - North Taieri	Te Tatua o Wairere
Chancet	McKerchar	Te Whaiti North
Cheeseman	Mid Dome	Te Whaiti South
Clarence: Central	Middle Range	Teviot
Clarence: Northeast	Milford Basin 5 to George R2	The Humps
Clarence: Southwest	Mohaka: North	Timaru Creek
Clear Hills - Waikopiro	Mohaka: South	Tin Hut
Clifton	Mokonui Northeast	Tirohanga
Cloudy 1	Mokonui Southwest	Titri Central
Cloudy 2	Monowai	Titri North
Cloudy 3	Moonlight North	Titri South
Cluden	Moonlight South	Tokomaru
Conway Trough East	Moonshine	Torlesse
Conway Trough West	Mossburn	Tuakana 6
Cross Eden	Motatapu	Tuakana 7
Dalgety	Motu	Tuapeka
Darran	Motu River	Tuatoru 1
Dingle	Motu o Kura East	Tuatoru 2
Doctors	Motu o Kura North	Tukituki Thrust
Double Hill	Motu o Kura Ridge	Turi: Central
Dreyers Rock	Motunau	Turi: North
Dromedary	Moumahaki - Okaia 4	Turi: South
Drury	Mt Arden	Tutaki
Dry River - Huangarua: 1	Mt Culverden	Upper Slope
Dry River - Huangarua: 2	Mt Lawry	Uruti Basin
Dry River - Huangarua: 3	Mt Stewart	Uruti Basin 2
Dryburgh	Mt Sutton	Uruti East - PorWest 1
Dunback Hill	Murphys Creek	Uruti North
Dunstan	NW Cardrona North	Uruti Point
EarthquakeFlat - Tumunui	NW Cardrona South	Uruti Ridge 2
Edgecumbe 1987	Needles	Vernon 1
Edgecumbe Coastal	Needles East 2	Vernon 2
Edith	Nevis	Vernon 3
Elliott	Ngatoro South 2	Vernon 4
Esk North	Ngatoro South 5	Virginia
Esk South	Nichols Rock	Volkner 3
Falstone	Norfolk	Volkner 4
Farewell	North Branch	Waewaepa
Fern Gully	North Canterbury Shelf 11	Waihemo
Fidget	North Canterbury Shelf 2	Waihi South
Fisherman 1	North Canterbury Shelf 4	Waihi West
Fisherman 2	North Mernoo E2-1	Waikaia
Fisherman 3	North Mernoo K2	Waikaka
Five Fingers	North Mernoo K3	Waikuku
Flat Stream - Glenpark	Northern Ohariu	Waimana - Waikaremoana
Flaxmore - Waimea - Tahunanui	Nukumuru - Waitotara 1-6	Waimana: North
Fowlers	Oaonui	Waimana: South
Fox Peak	Ohae 1	Waimarama 1 & 2
Gable End North	Ohae 2	Waimarama 3 & 4
Gable End South	Ohae 3	Waimate
Galloway	Ohariu	Waimea Offshore
Garibaldi	Ohariu South 1	Waiohau: North
Garvie	Ohariu South 2	Waiohau: South
Gibson	Ohena 2	Waiotahi: North
Gimmerburn	Ohena 3	Waiotahi: South
Glenbrook	Ohena 4	Waipiata
Goodger	Ohiwa 1	Waipukaka
Grampian	Okaia 3	Waipukurau - Poukawa
Grandview	Okaia 5	Wairarapa: 1
Green Island	Okupe 1	Wairarapa: 2
Greendale	Old Man	Wairarapa: 3
Hanmer	Omarama Saddle	Wairarapa: Needles
Hariki	OmihiLwrHuru	Wairata
Hauroko: North	Onepoto	Wairau
Hauroko: South	Opape 1	Wairau 2
Hawkdun	Opawa	Wairau 3
Hawke Bay 1	Opotiki 2	Wairoa North
Hawke Bay 4	Opotiki 3	Waitahuna 1
Hawke Bay 5 & 11	Opouawe - Uruti	Waitahuna 2
Hawke Bay 8	Orakeikorako	Waitaki
Hawkswood	Oruawharo - Mangatoro	Waitangi
Hedgehope	Ostler North	Waitawhiti
High Peak - Sheffield	Ostler South	Waitotara 10 & 11
Hillfoot	Otaheke North	Waitotara 8 & 9
Himatangi	Otaheke South	Wakamarama
Hohonu: South	Otaki Forks: 1	Wakamarama Offshore
Hokonui	Otaki Forks: 2	Wakarara
Hollyford	Otakiri	Wanaka
Honeycomb	Otanomomo	Warea
Hope: Conway	Otara East 1	Waverley - Okaia 1
Hope: Hanmer NW	Otara East 2	Wellington Hutt Valley: 1
Hope: Hanmer SE	Otara West 1	Wellington Hutt Valley: 2
Hope: Hanmer SW	Otara West 2	Wellington Hutt Valley: 3
Hope: Hope River	Otara West 3	Wellington Hutt Valley: 4
Hope: Hurunui	Otaraia	Wellington Hutt Valley: 5
Hope: Kakapo-2-Hamner	Pa Valley	Wellington: Pahiatua
Hope: Seaward	Paddys Ridge	Wellington: Tararua 1
Hope: Taramakau	Paeroa	Wellington: Tararua 2
Hope: Te Rapa	Pahaua	Wellington: Tararua 3
Hopkins	Pahiatua	Wendon Valley
Hororata	Pakarae	West Balleny
Horse Flat	Palliser - Kaiwhata	West Wakatipu
Houtunui	Pancake	Whakaari 4
Hump Ridge	Paparoa West	Whakatane: North
Hundalee	Paparoa West: North	Whakatane: South
Hunter Valley	Papatea	Whangamata West
Hunters	Parihaka	Whangamoa
Hurunui Peak	Patoka - Rangiora	Wharanui
Hutt Peel	Pegasus Bay	Whareama Bank
Huxley	Pihama	Wharekauhau
Hyde North	Pisa	Wheao: North
Hyde South - The Twins	Pohangina	Wheao: South
Ihaia	Point Gibson	White Creek
Inangahua	Pokeno	White Creek - buried
Inglewood	Pongaroa - Weber	White Hill
Irishman Creek	Poroutawhao	White Island 1
Jordan	Porters Pass	White Island 2
Kahurangi	Poulter	Whitemans Valley
Kaiapo	Poutu	Woodville

Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTcuMHo1VEZB

Table Of Contents

Logic Tree Branch

Solution MFDs

Total Target MFDs

NZ_RECTANGLE Gridded Region

Simulated Annealing Energy

Final Energies

Energy Progress

Constraint Misfit Progress

Rupture Rate Distribution

Participation Rates

Section b-values

Subsection b-values

Parent Section b-values

Rupture Scalar Histograms

Rupture Length

Rupture Length vs Rupture Rate

Rupture Magnitude

Rupture Magnitude vs Rupture Rate

Maximum Jump Dist

Maximum Jump Dist vs Rupture Rate

Cumulative Jump Dist

Cumulative Jump Dist vs Rupture Rate

Cumulative Rake Change

Cumulative Rake Change vs Rupture Rate

Max Slip Rate Difference

Max Slip Rate Difference vs Rupture Rate

Attached Modules

Rupture Set Modules

Solution Modules

Fault Section Connections

Connected Clusters

Slip Rates

Linear Slip Rate Plots

Log10 Slip Rate Plots

Slip Rate Std Dev Plots

Paleoseismic Data Comparison

Jump Counts Over Distance

Supra-seismogenic Jump Counts

M≥7 Jump Counts

Max Jump Distance Distribution

Cumulative Jump Distance Distribution

Hazard Maps

PGA Hazard Maps

PGA, 2% in 50 year Hazard Maps

PGA, 10% in 50 year Hazard Maps

1s SA Hazard Maps

1s SA, 2% in 50 year Hazard Maps

1s SA, 10% in 50 year Hazard Maps

Parent Section Detail Pages
