Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy

Num Ruptures	411,270
Num Single-Stranded Ruptures	411,270 (100.00%)
Total Supra-Seis Rupture Rate	0.030869113
Total Supra-Seis Recurrence Interval	32.39 yrs
Total Moment Rate	1.8645624e19 N-m/yr
Deformation Model Total Moment Rate	2.5748403e19 N-m/yr
Magnitude Range	[5.28,8.54]
Length Range	[1.86,1156.02] km
Rupture Section Count Range	[2,149]

Logic Tree Branch
Solution MFDs
- Total Target MFDs
- NZ_RECTANGLE Gridded Region
Simulated Annealing Energy
Rupture Rate Distribution
Participation Rates
Section b-values
- Subsection b-values
- Parent Section b-values
Rupture Scalar Histograms
Attached Modules
- Rupture Set Modules
- Solution Modules
Fault Section Connections
- Connected Clusters
Slip Rates
Paleoseismic Data Comparison

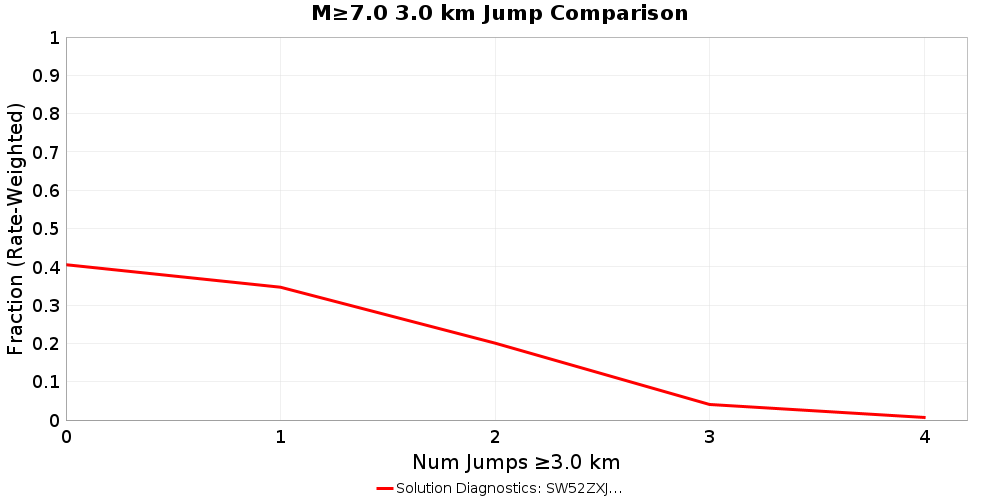

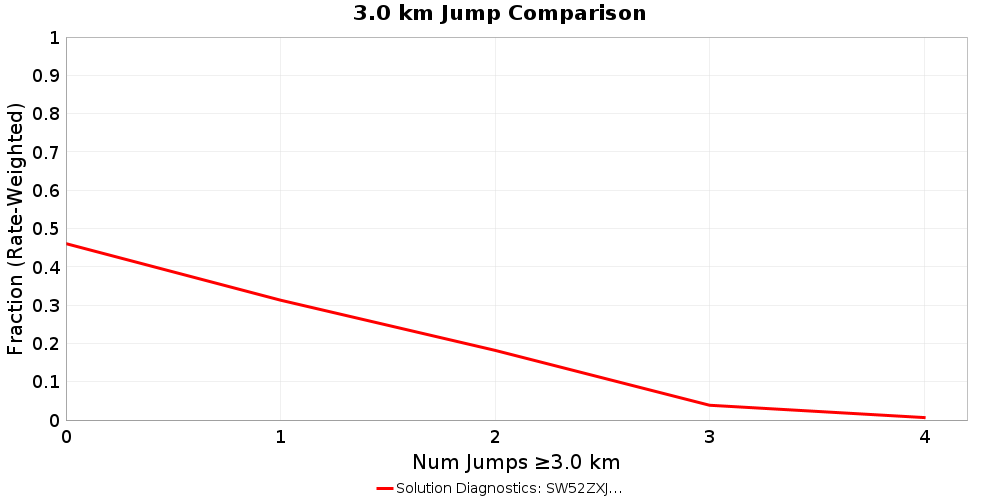

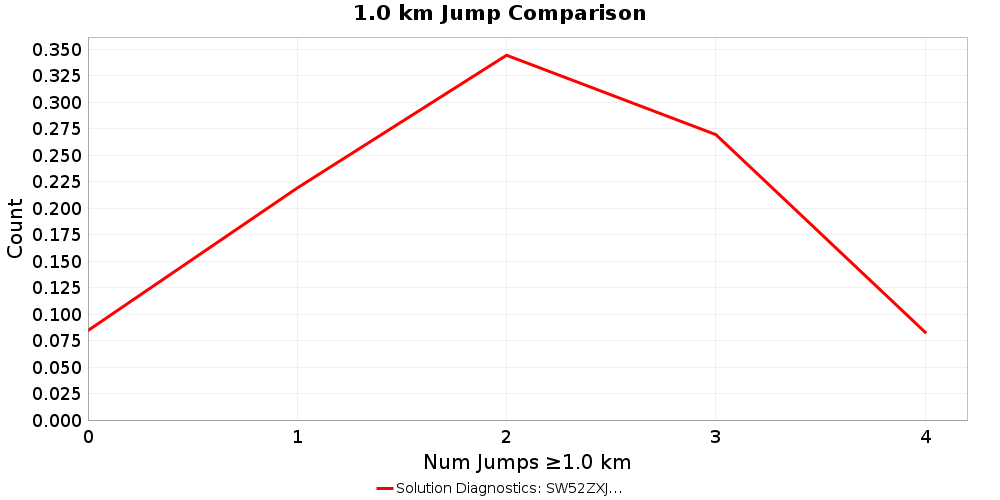

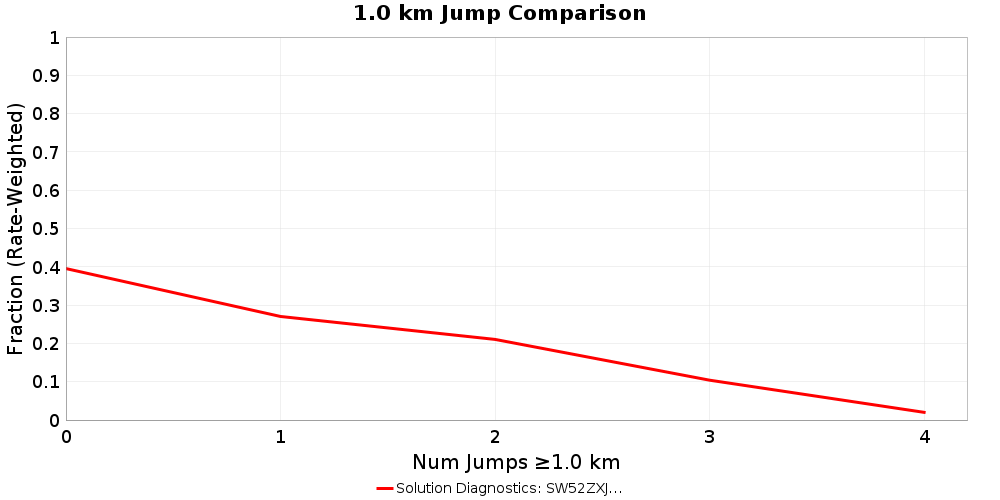

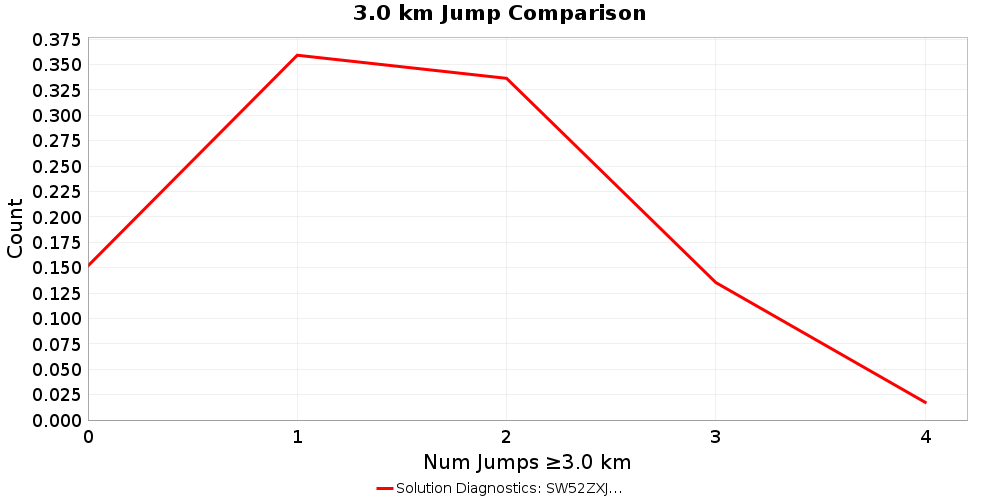

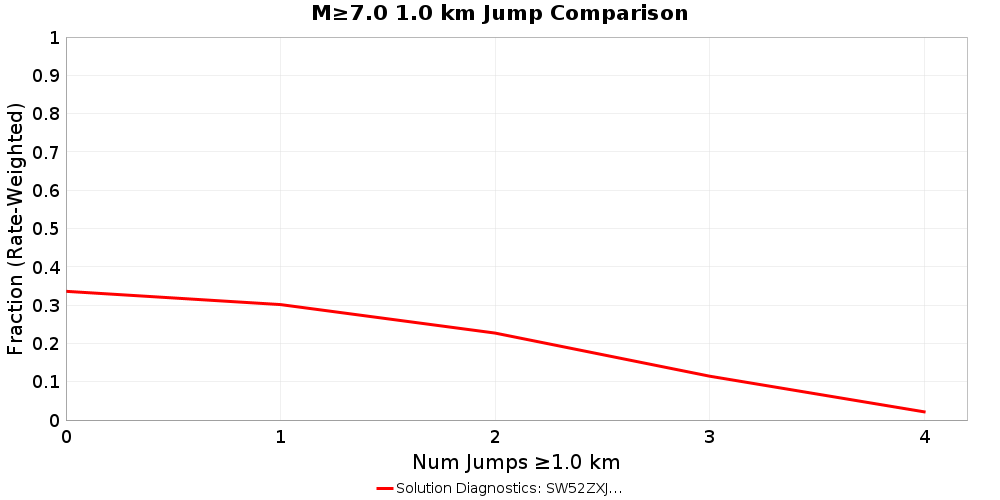

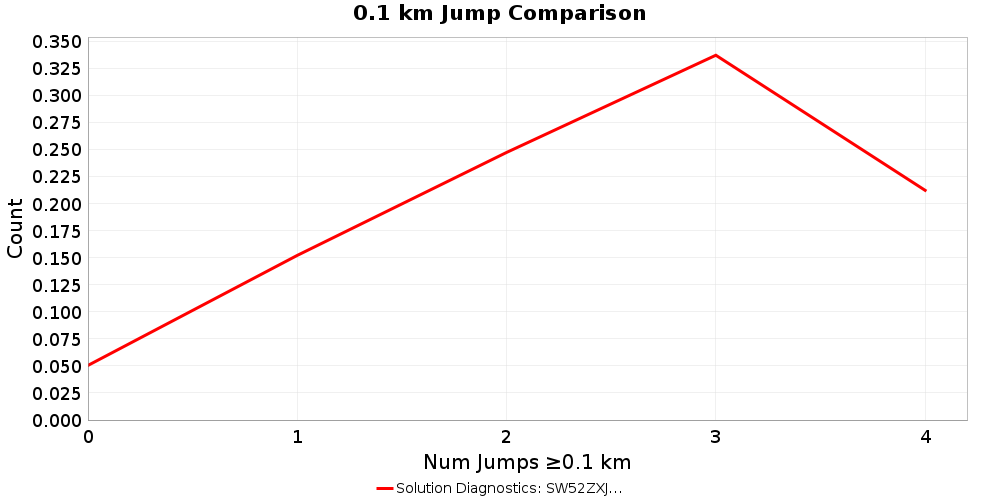

Jump Counts Over Distance

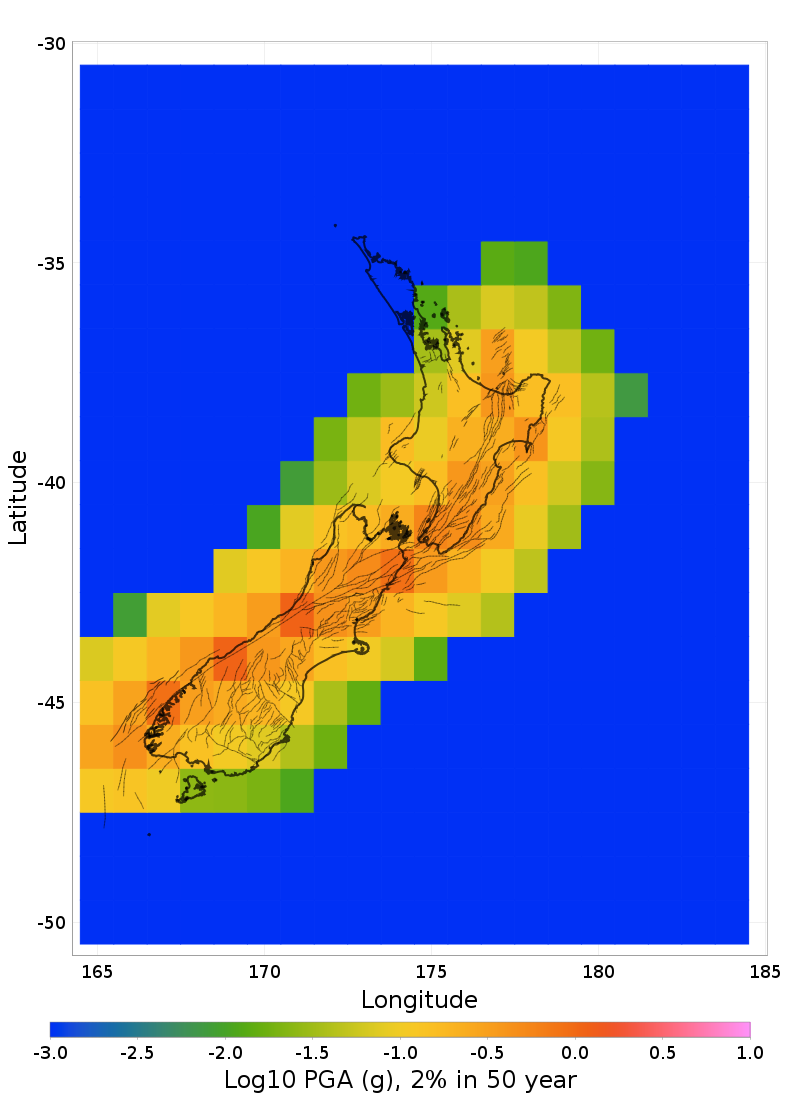

Hazard Maps
- PGA Hazard Maps
- 1s SA Hazard Maps
Named Fault Detail Pages
Parent Section Detail Pages

Logic Tree Branch

(top)

Level	Choice
Fault Model	CFM 1.0 sans TVZ faults, with Dfc depths and CFM Domains
Fault Regime	Fault Regime
NZSHM22_SpatialSeisPDF	Floor_AddoptiEEPAScomb-CRU
Slip Along Rupture Model (Dsr)	Uniform
Inversion Model	Characteristic (Constrained)
NZSHM22_ScalingRelationship	NZSHM22_ScalingRelationship
NZSHM22_FaultPolyParameters	NZSHM22_FaultPolyParameters
NZSHM22_MagBounds	NZSHM22_MagBounds
NZSHM22_SlipRateFactors	NZSHM22_SlipRateFactors
NZSHM22_Regions	NZSHM22_Regions
NZSHM22_DeformationModel	FAULT_MODEL

Solution MFDs

(top)

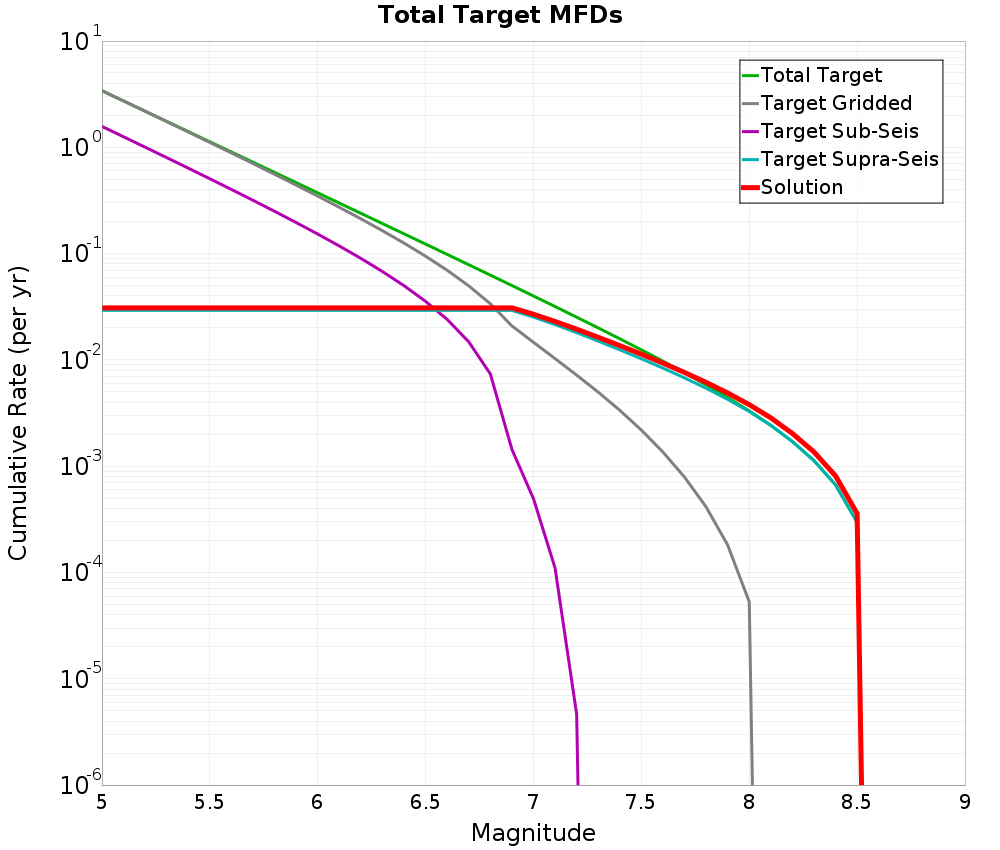

Total Target MFDs

(top)

Incremental MFDs	Cumulative MFDs

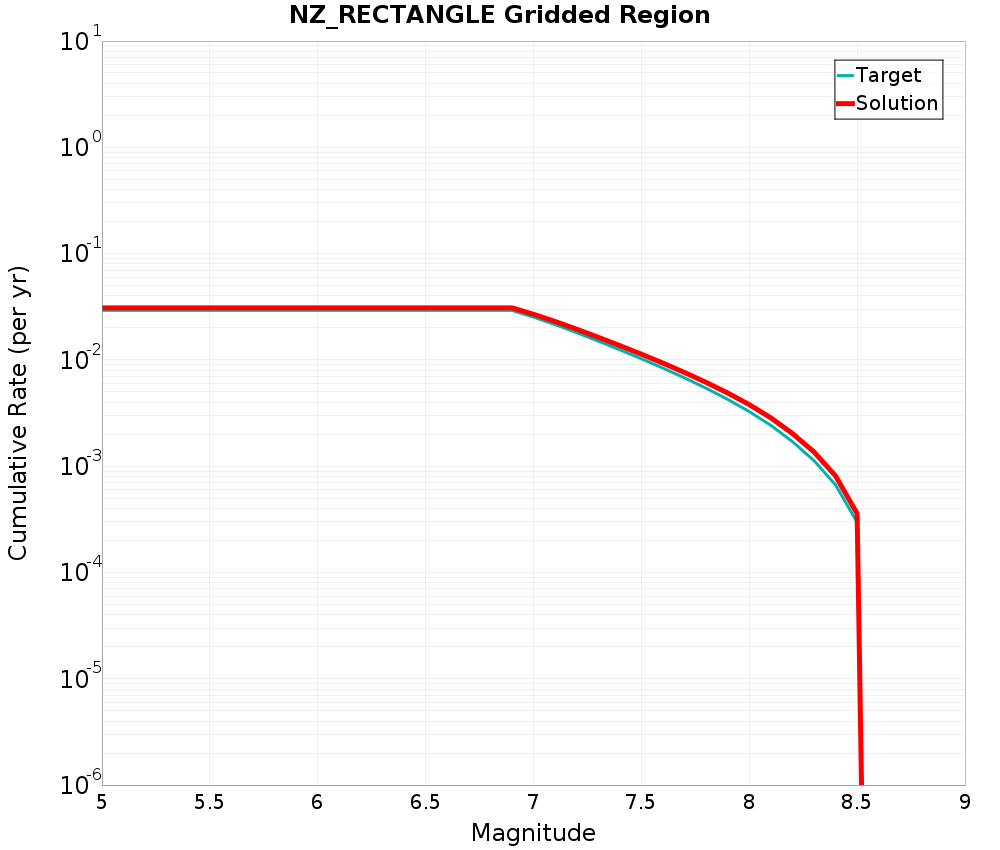

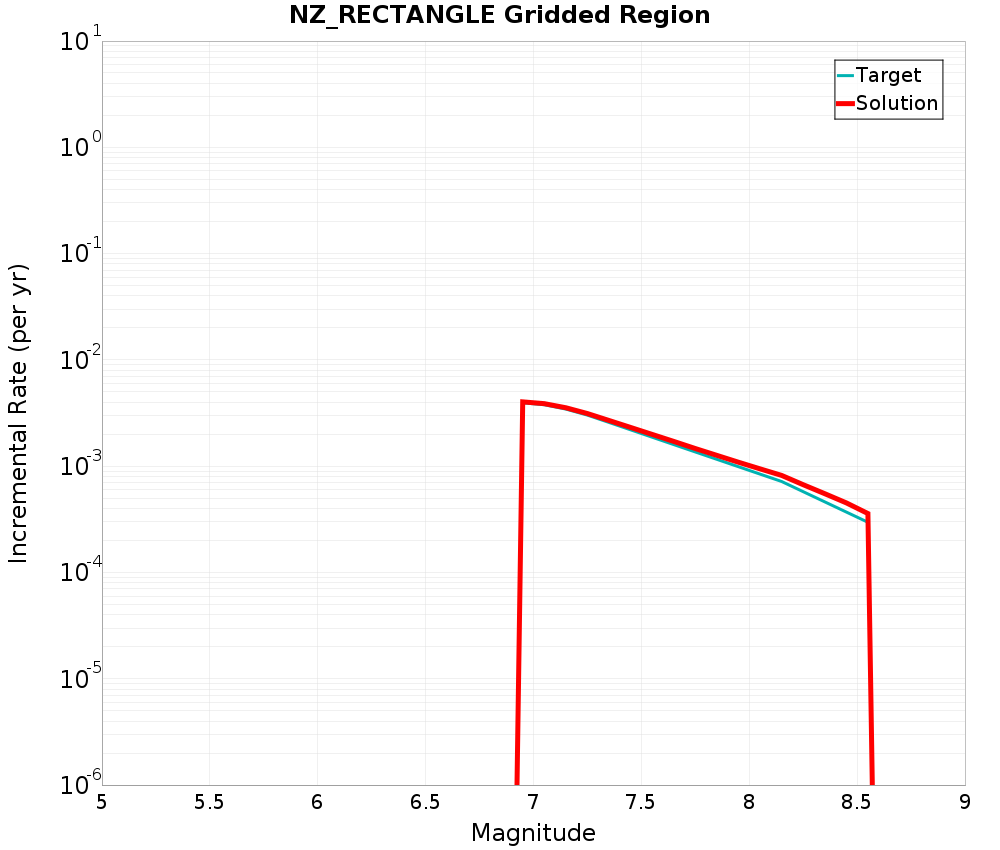

NZ_RECTANGLE Gridded Region

(top)

Incremental MFDs	Cumulative MFDs

Simulated Annealing Energy

(top)

Iterations	2,845,373,983
Time	2 hours
Iterations Per Sec.	395,183
Perturbations	11,923,209
# Worse Pertubations Kept	533,067
Iterations Per Perturb.	239
Total Energy	3149.8477

Final Energies

(top)

Energy Type	Final Energy (2 hours)	% of Total	After 30 mins	1 hour	1 hour 30 mins
Total Energy	3149.8477		3181.181	3160.4072	3153.5845
Equality Energy	3149.8477	100.00%	3181.181	3160.4072	3153.5845
Entropy Energy	0.0	0.00%	0.0	0.0	0.0
Inequality Energy	0.0	0.00%	0.0	0.0	0.0
Uncertain Slip Rate	1597.6554	50.72%	1608.368	1601.5979	1598.9058
Paleoseismic Event Rate	773.7952	24.57%	787.0904	777.66223	774.98956
Laplacian Smoothing (43 parents)	6.8345523	0.22%	7.618759	7.123555	6.882256
Rupture Rate Minimization	0.2944866	0.01%	0.28526846	0.29398468	0.29384312
Uncertain MFD Equality	771.26807	24.49%	777.81854	773.7296	772.51306

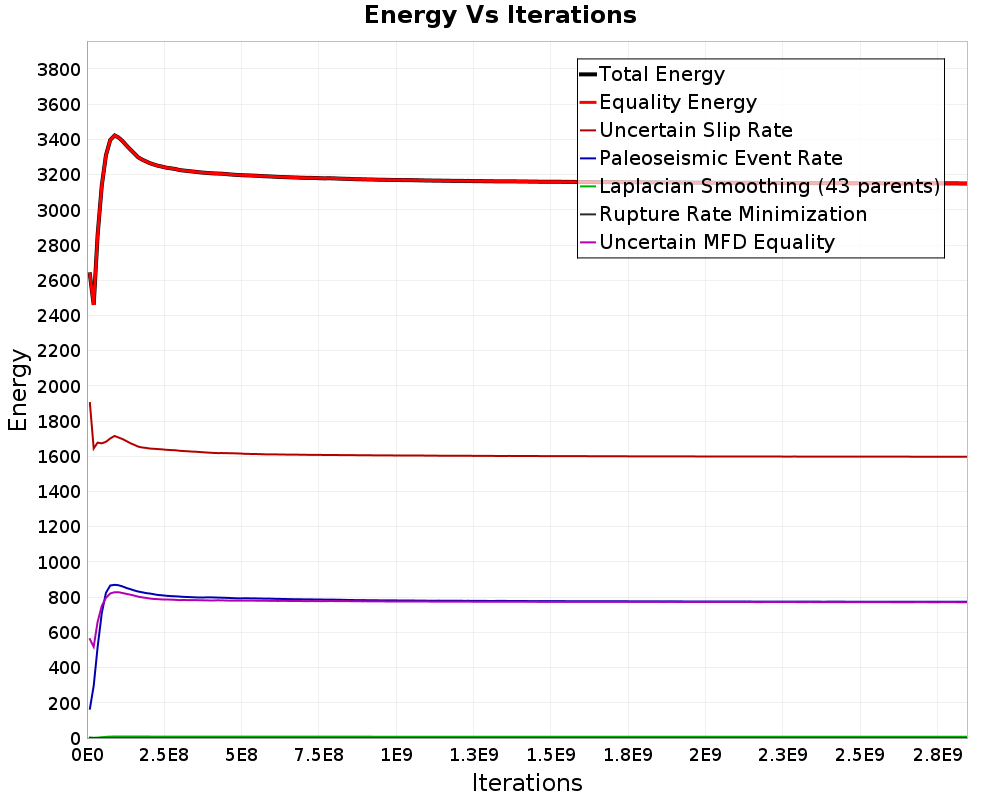

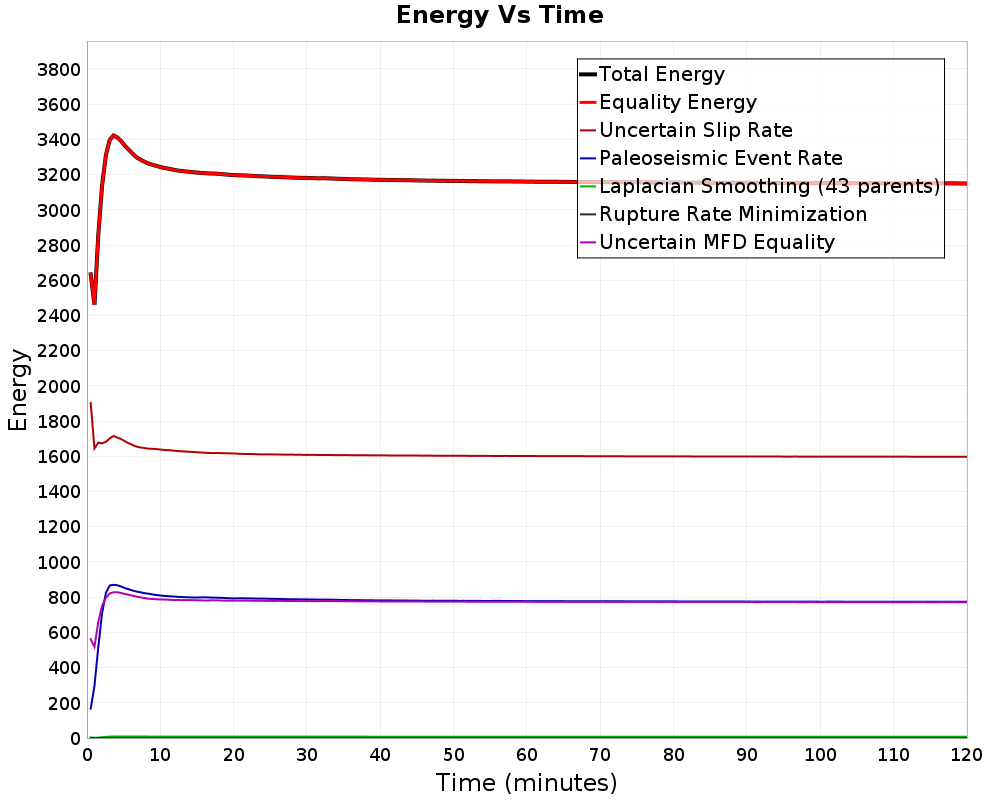

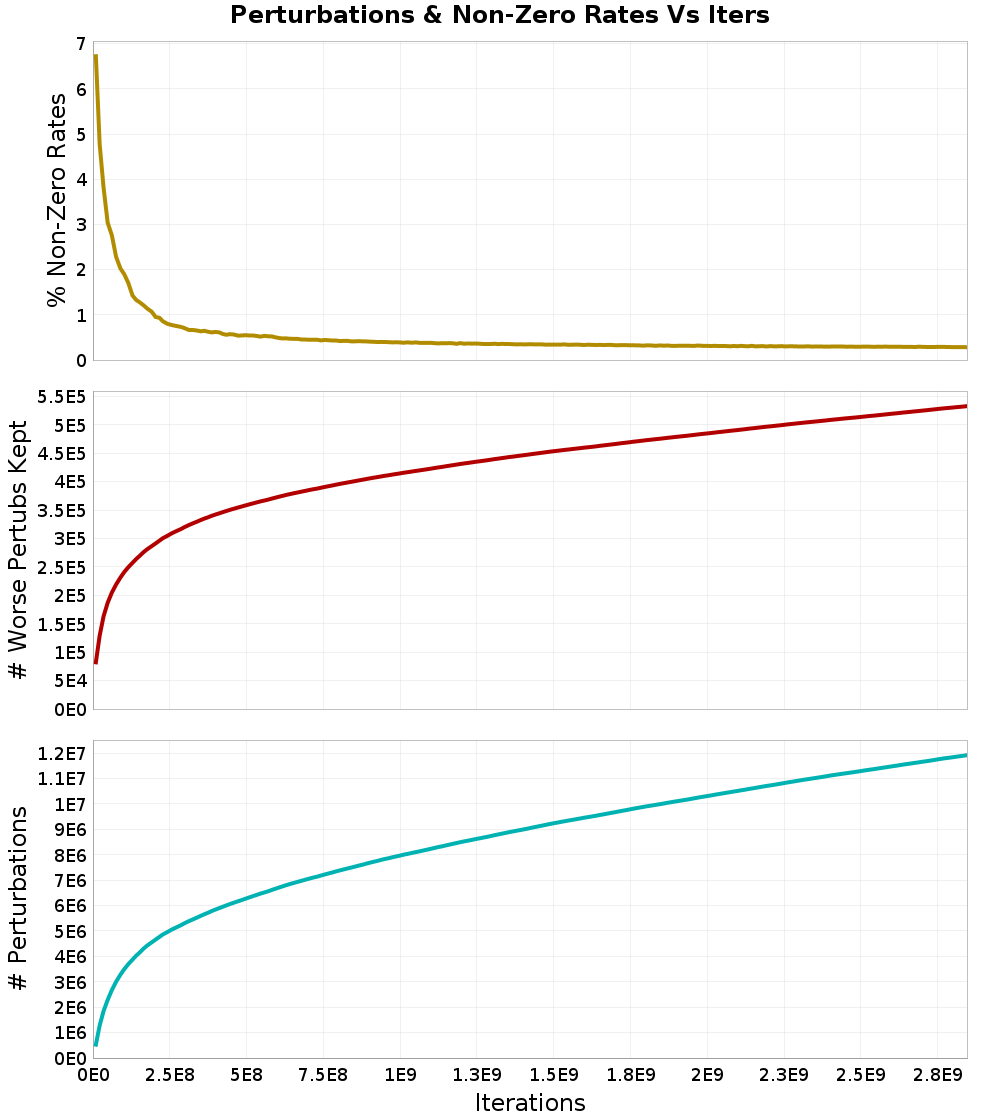

Energy Progress

(top)

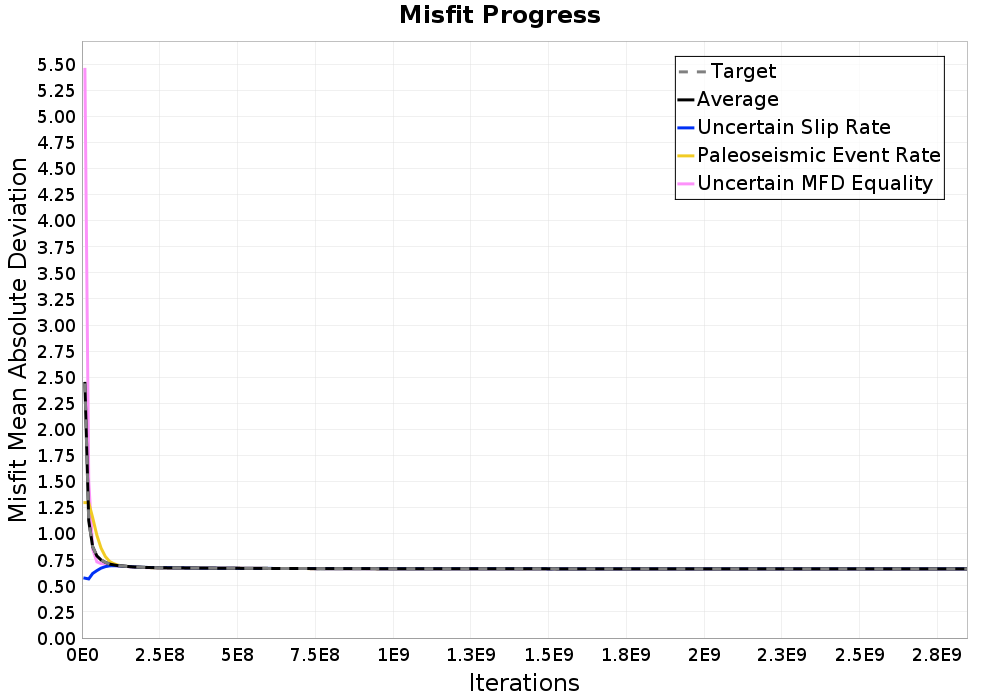

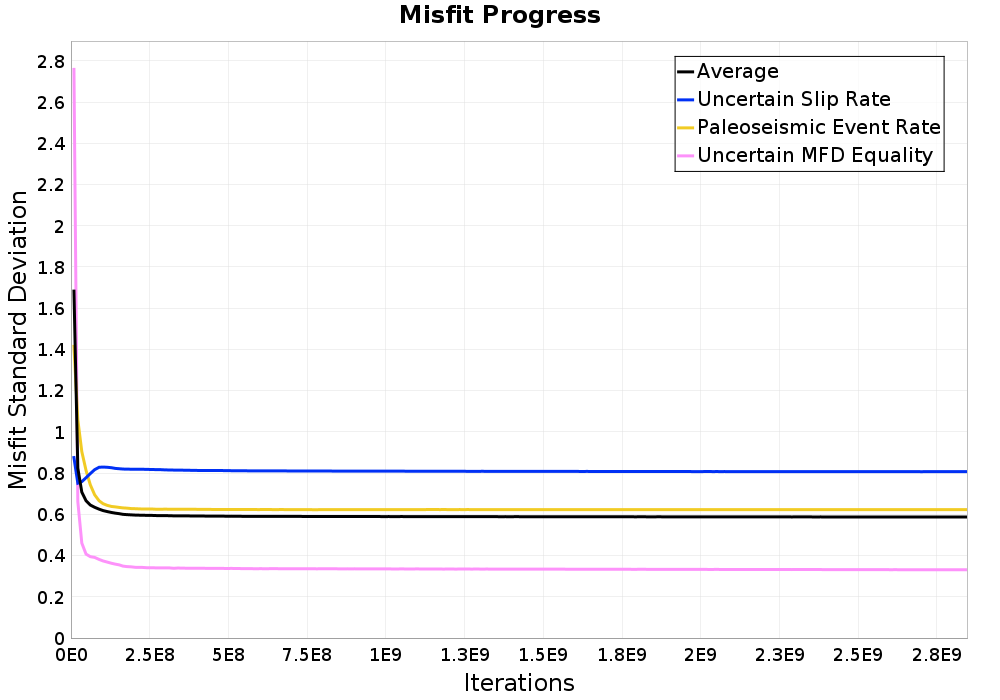

Constraint Misfit Progress

(top)

Rupture Rate Distribution

(top)

Non-zero ruptures	1,163 (0.28%)
Avg. # perturbations per rupture	28.991196
Avg. # perturbations per non-zero rupture	10252.114

Participation Rates

(top)

Supra-Seismogenic	Range: M≤6

Download GeoJSON	Download GeoJSON
M≥6	Range: M∈[6, 7]

Download GeoJSON	Download GeoJSON
M≥7	Range: M∈[7, 8]

Download GeoJSON	Download GeoJSON
M≥8

Download GeoJSON

Section b-values

(top)

Subsection b-values

(top)

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Download b-value CSV file: sect_b_values.csv

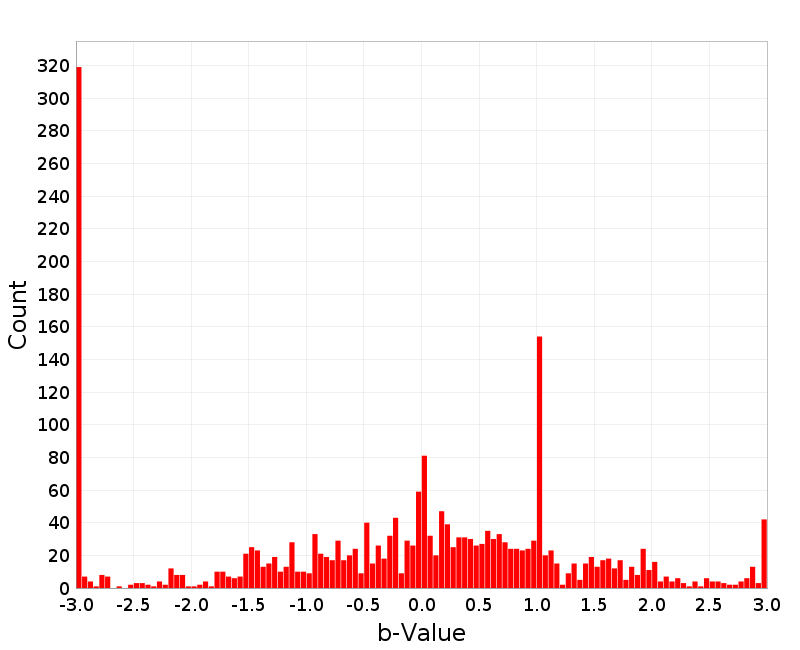

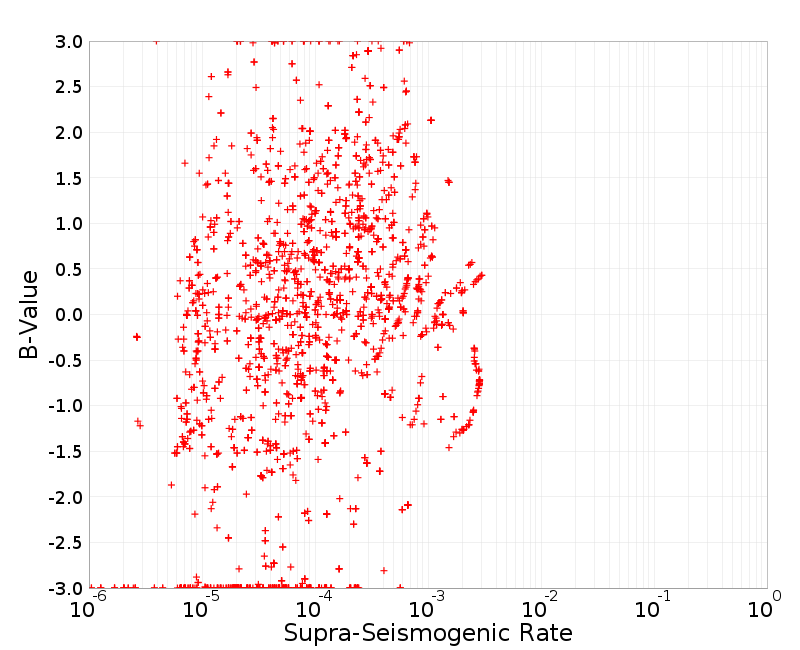

b-Value Distribution	b-Value Rate-Dependence

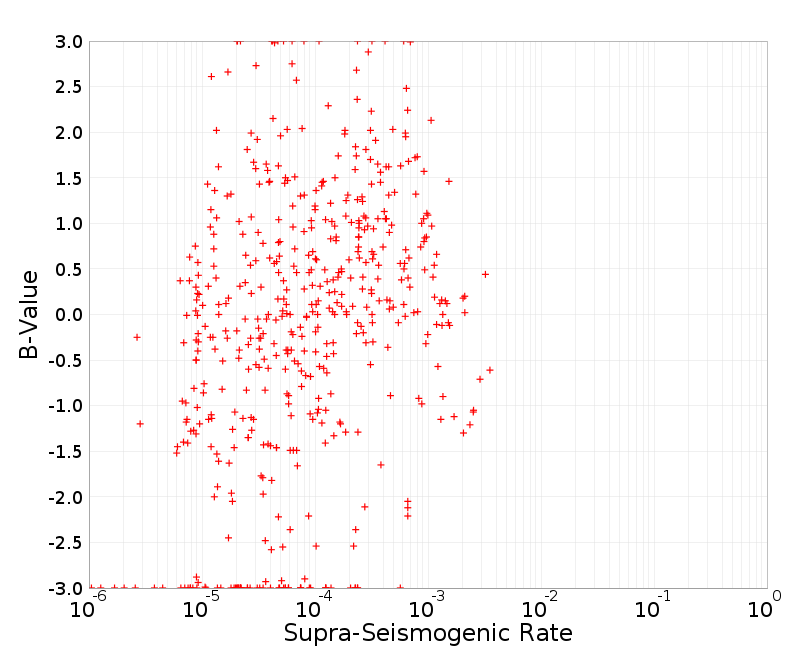

Parent Section b-values

(top)

Download b-value CSV file: parent_sect_b_values.csv

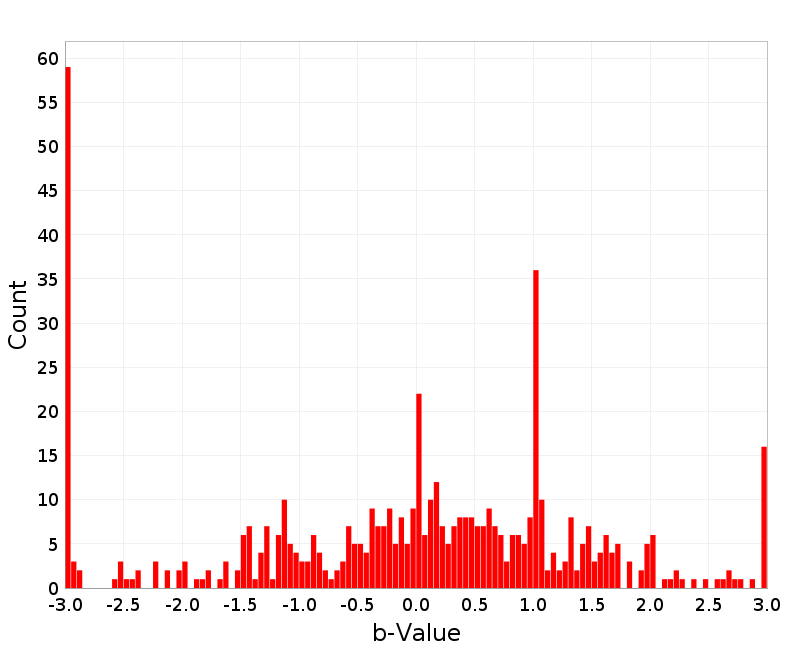

b-Value Distribution	b-Value Rate-Dependence

Rupture Scalar Histograms

(top)

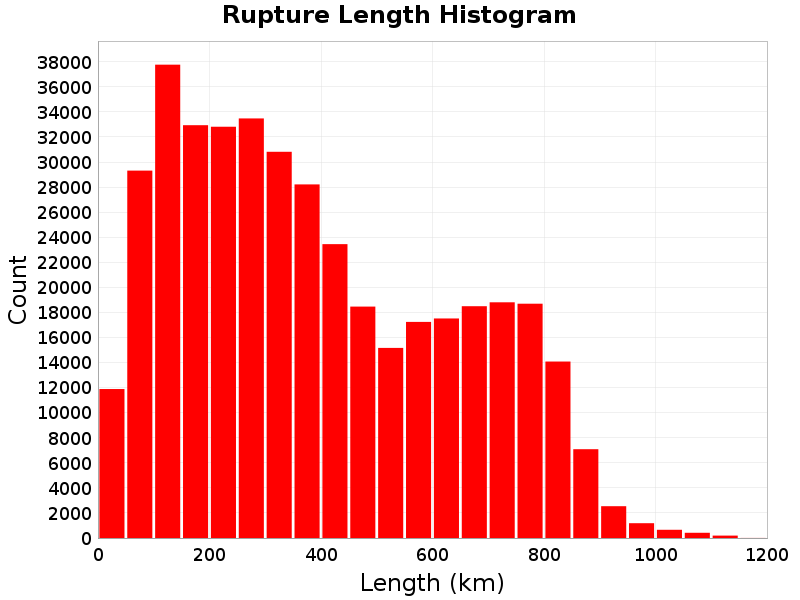

Rupture Length

(top)

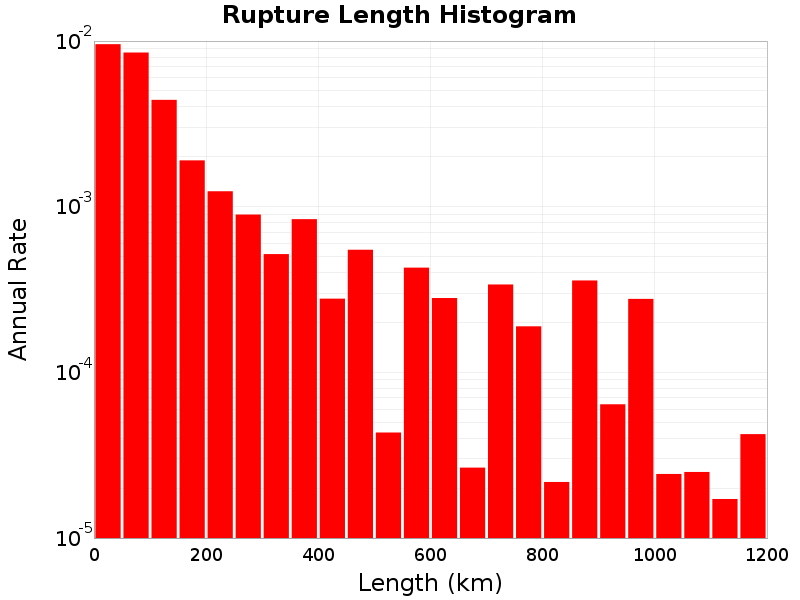

Total length (km) of the rupture, not including jumps or gaps.

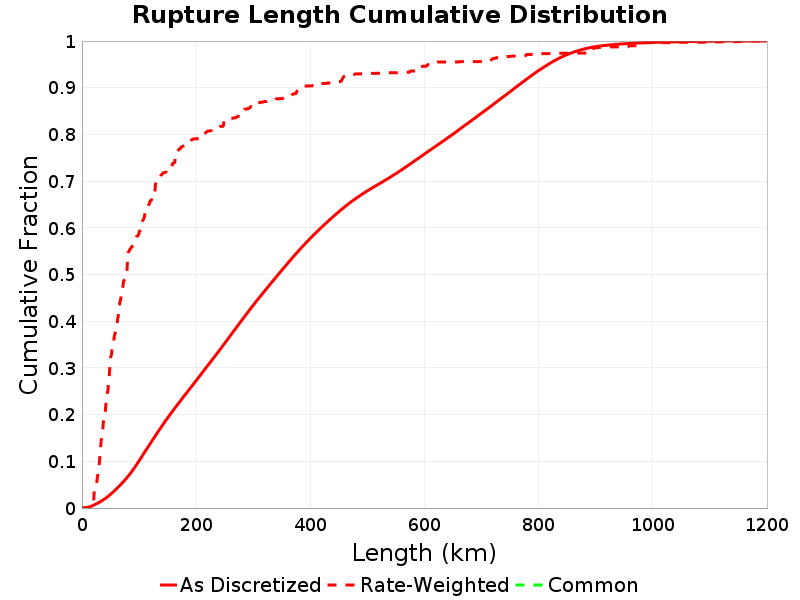

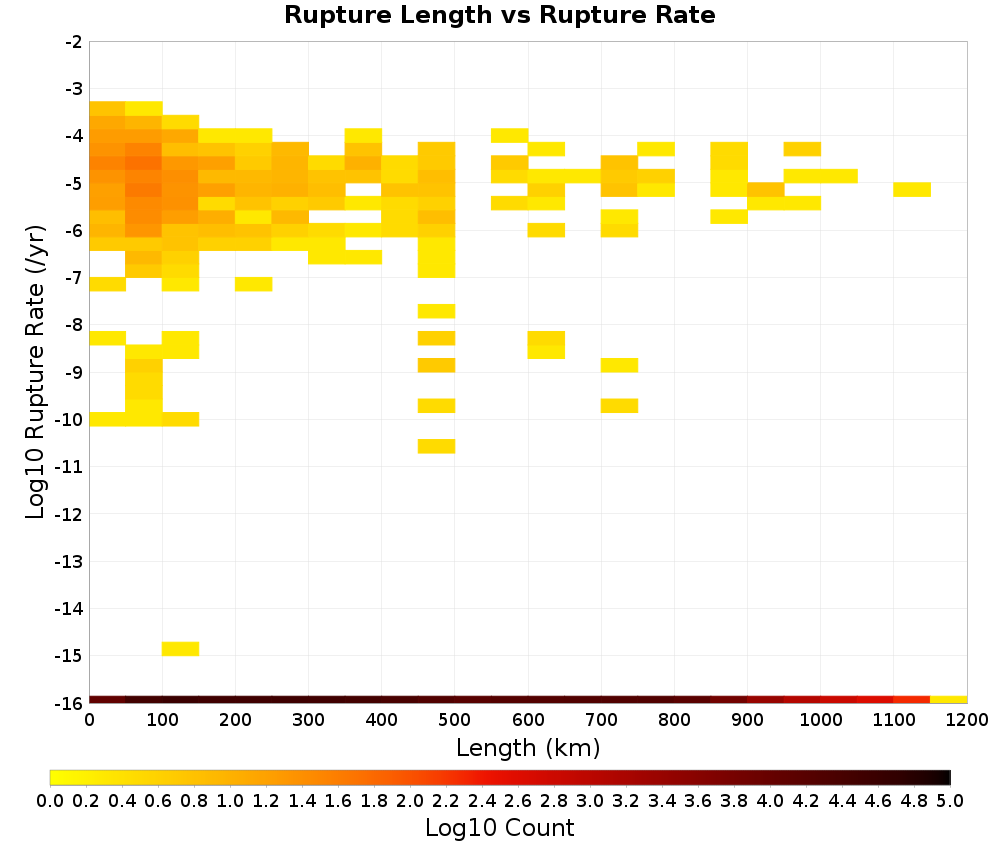

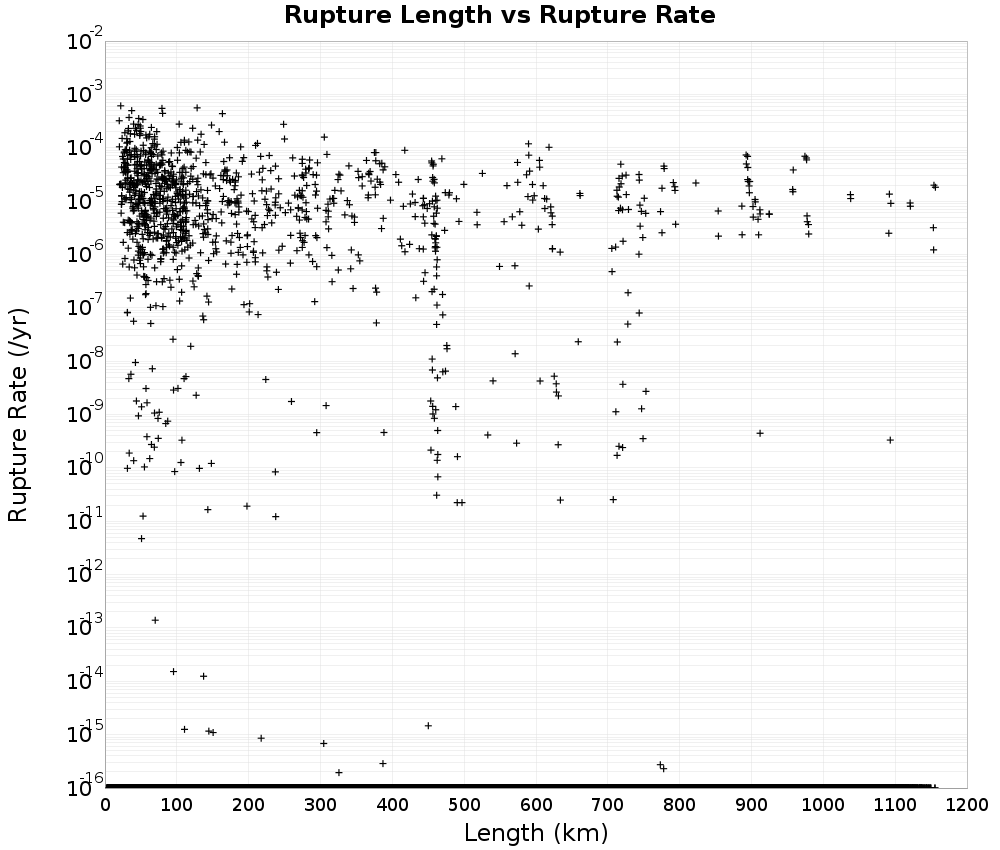

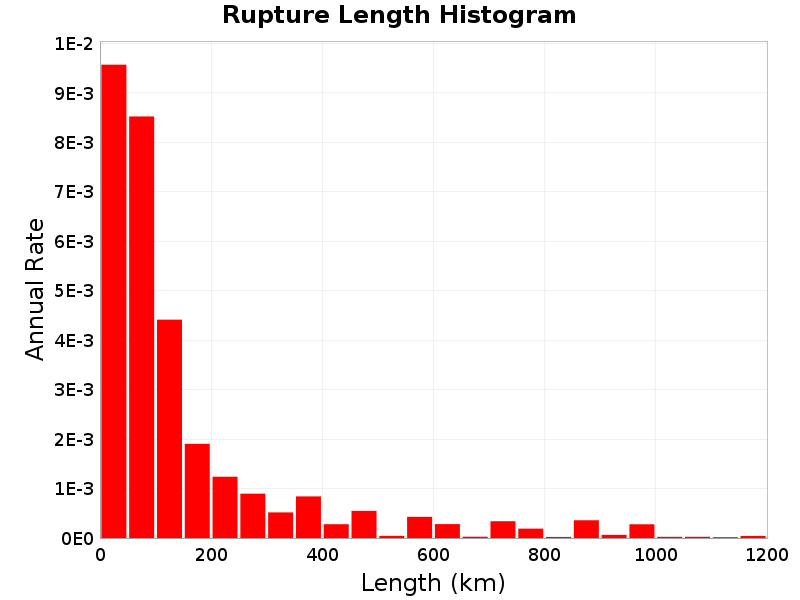

Rupture Length vs Rupture Rate

(top)

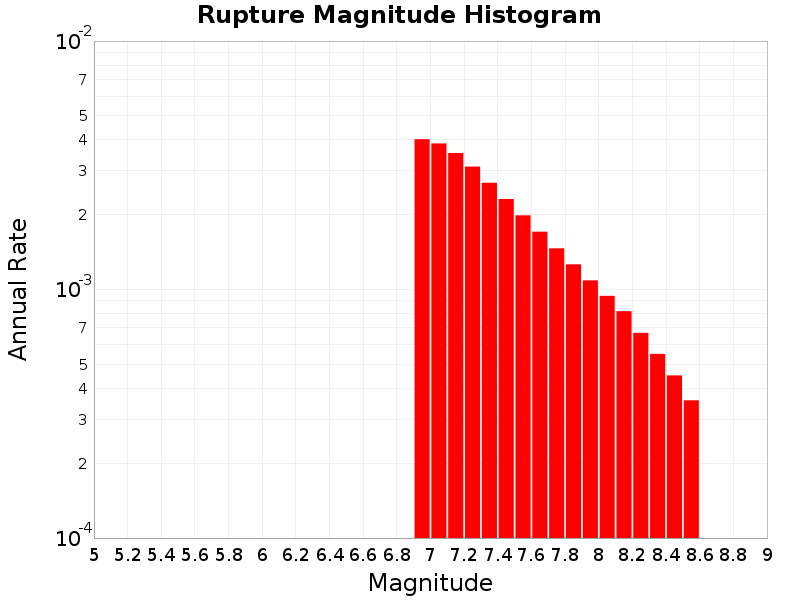

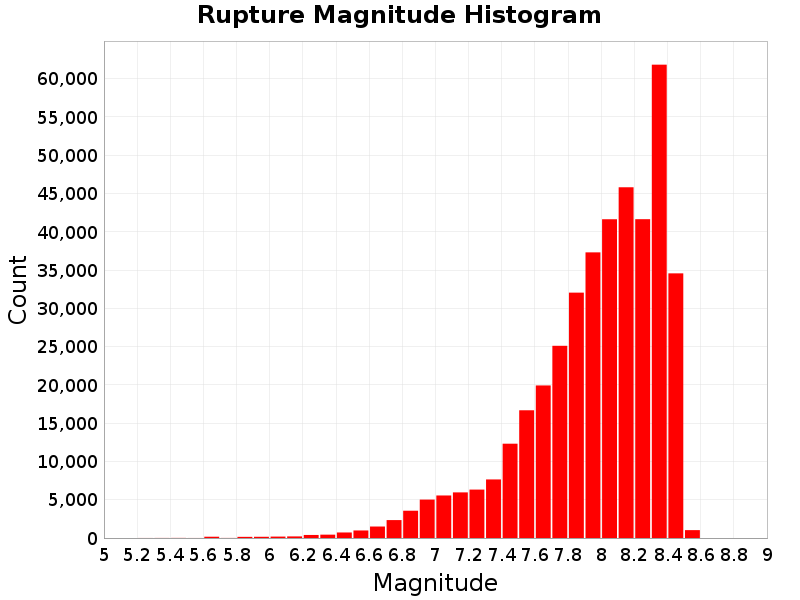

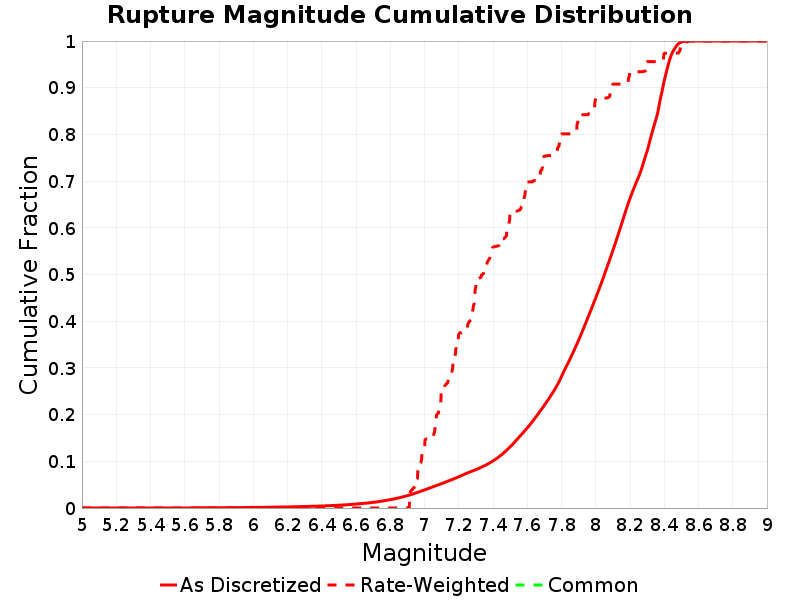

Rupture Magnitude

(top)

Magnitude of the rupture.

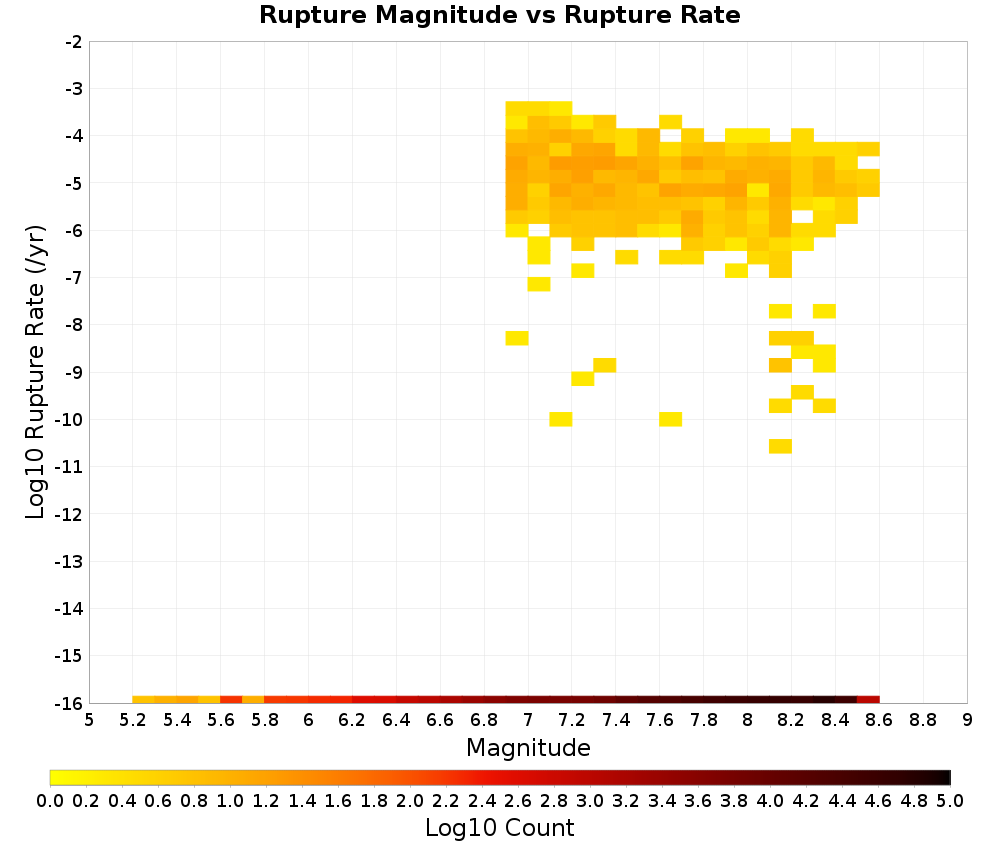

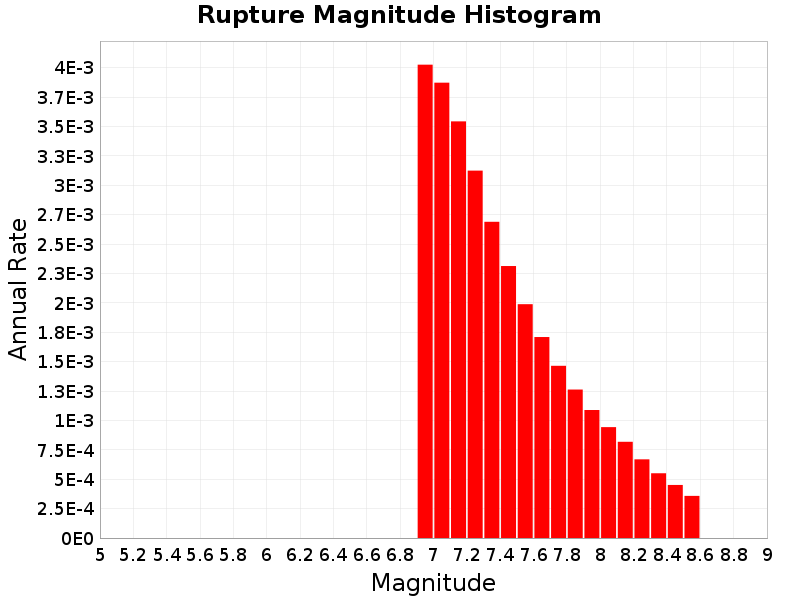

Rupture Magnitude vs Rupture Rate

(top)

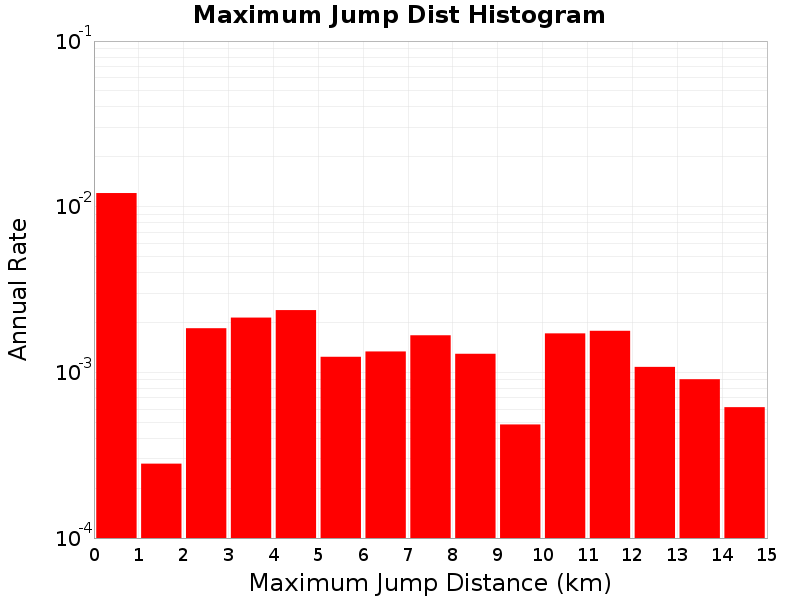

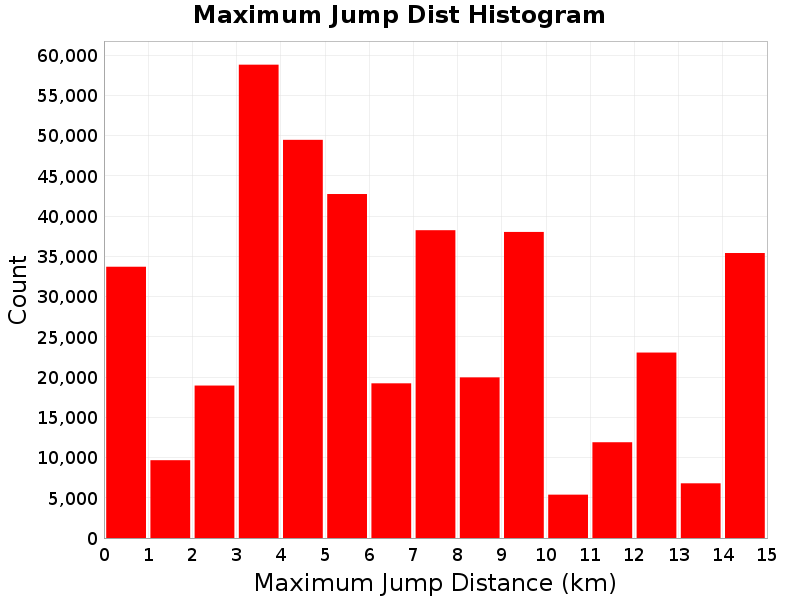

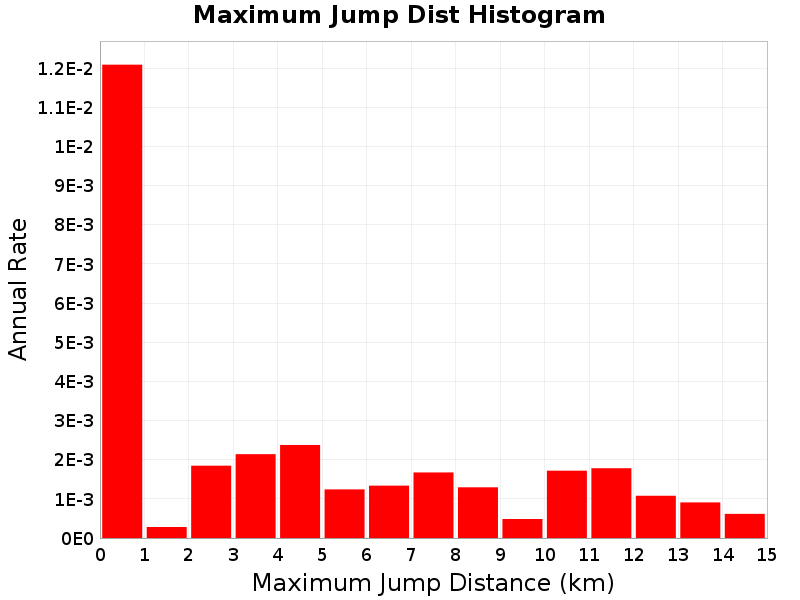

Maximum Jump Dist

(top)

The maximum jump distance in the rupture.

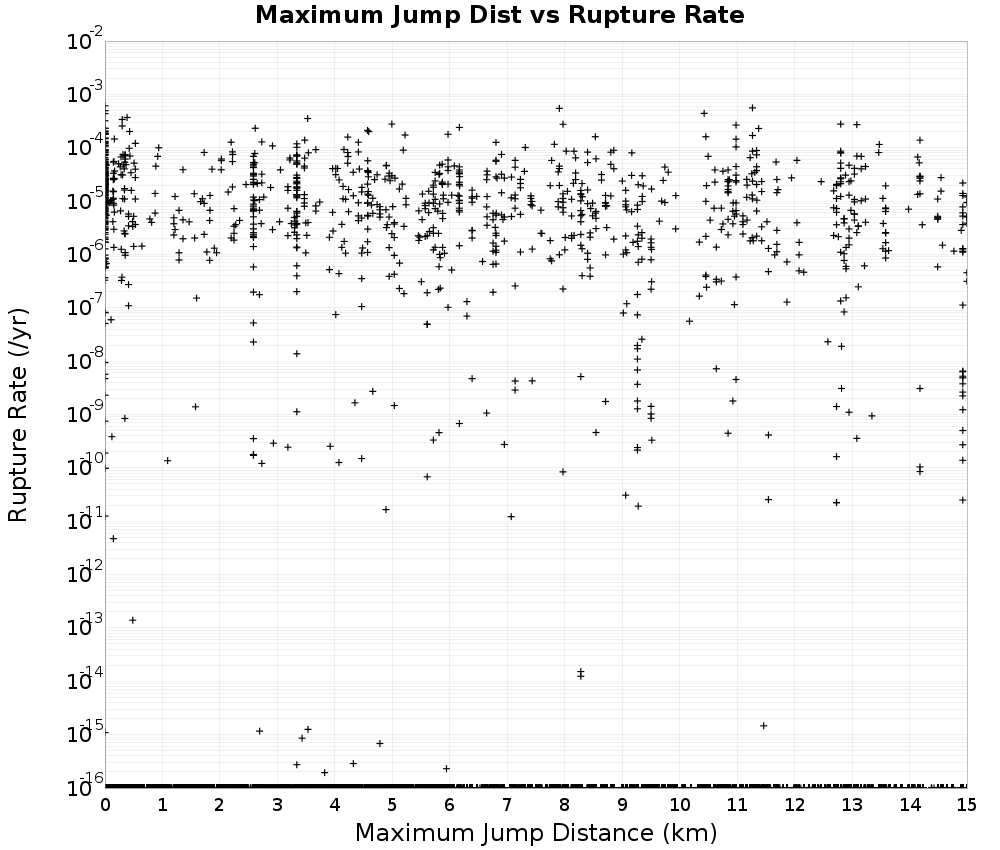

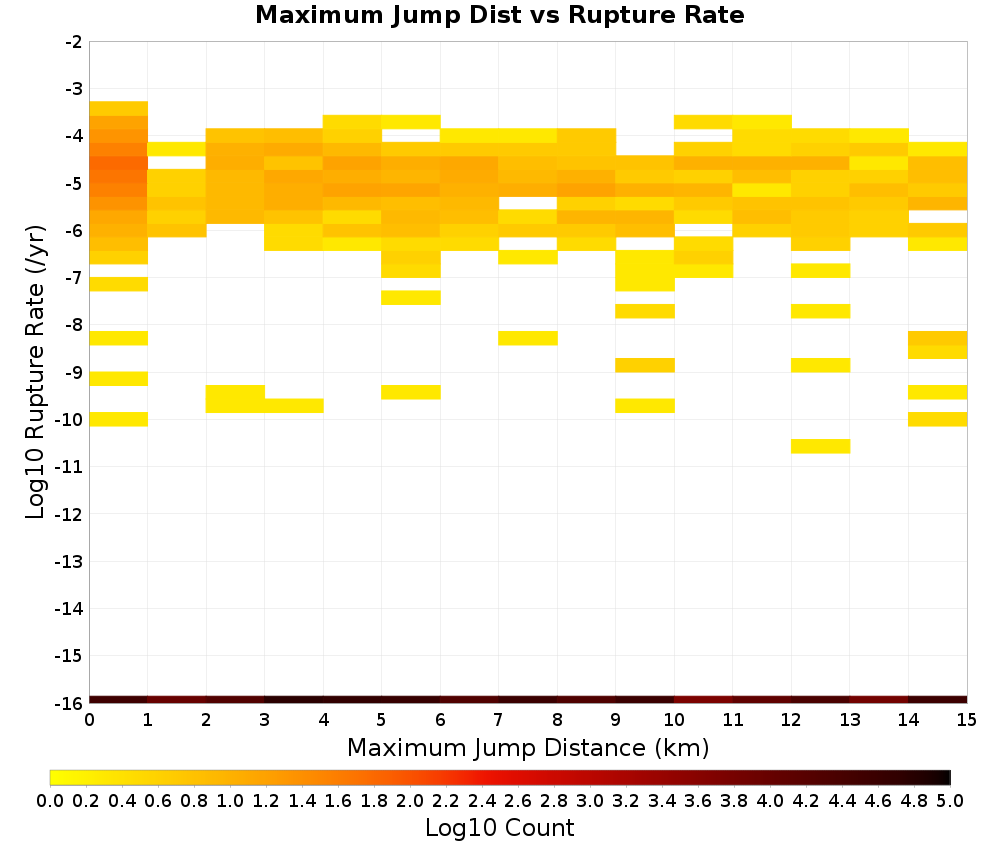

Maximum Jump Dist vs Rupture Rate

(top)

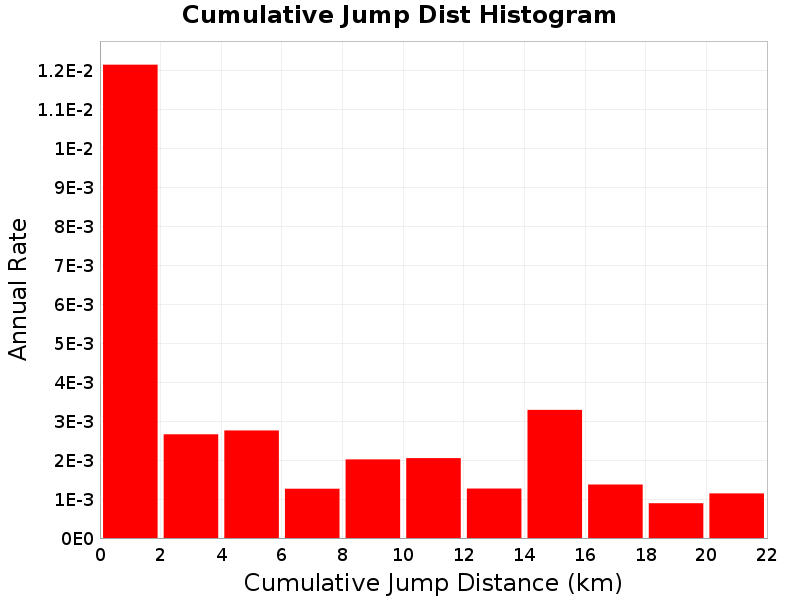

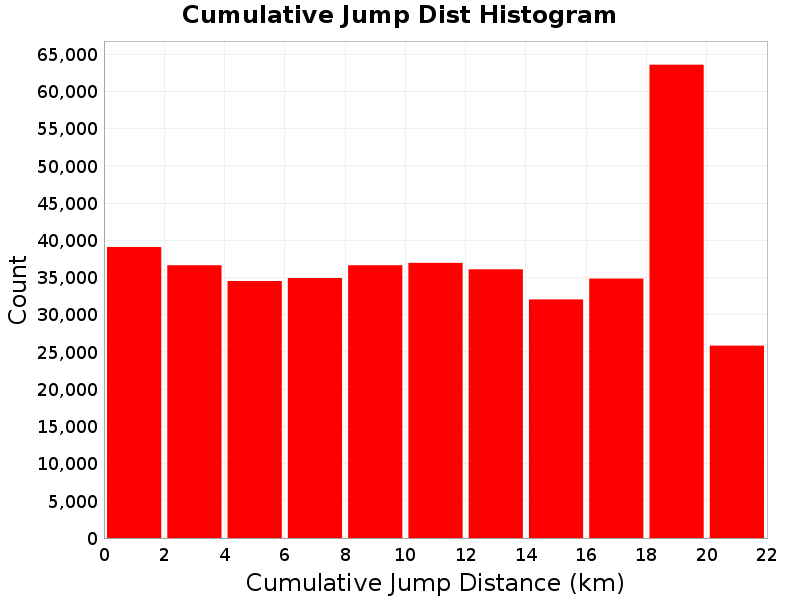

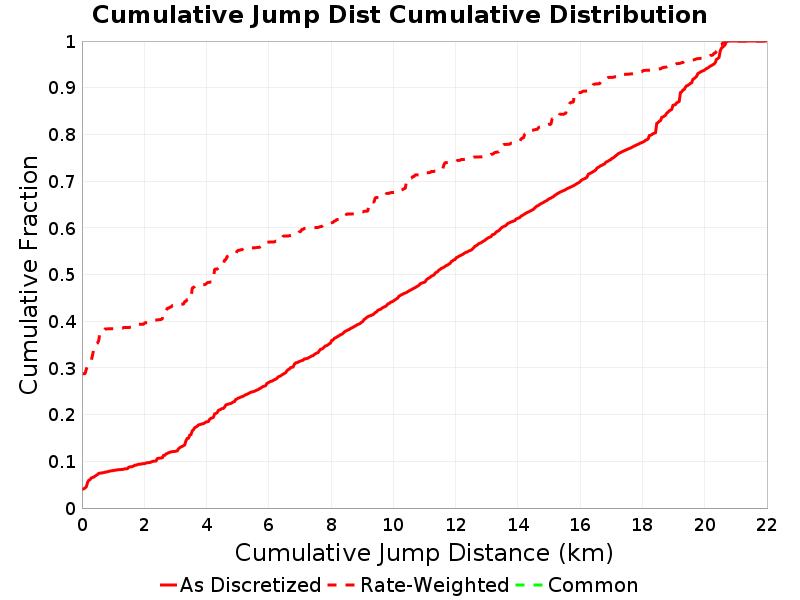

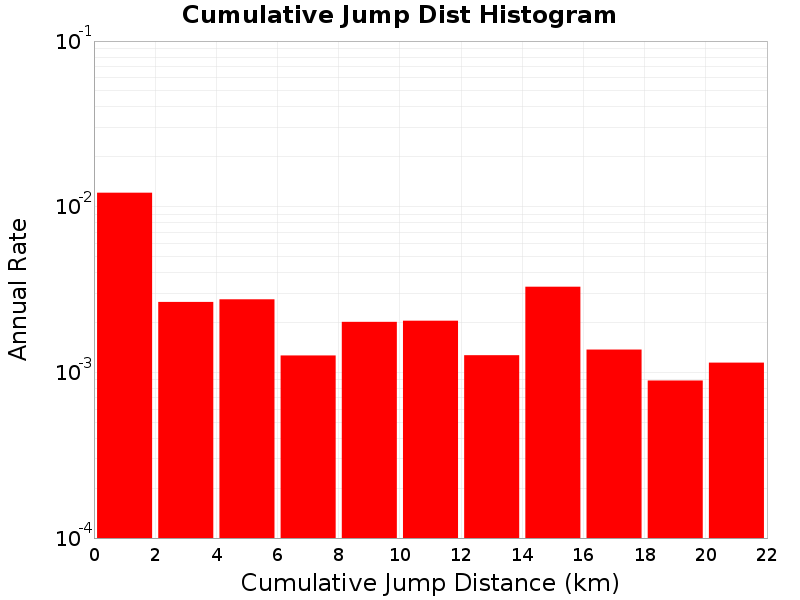

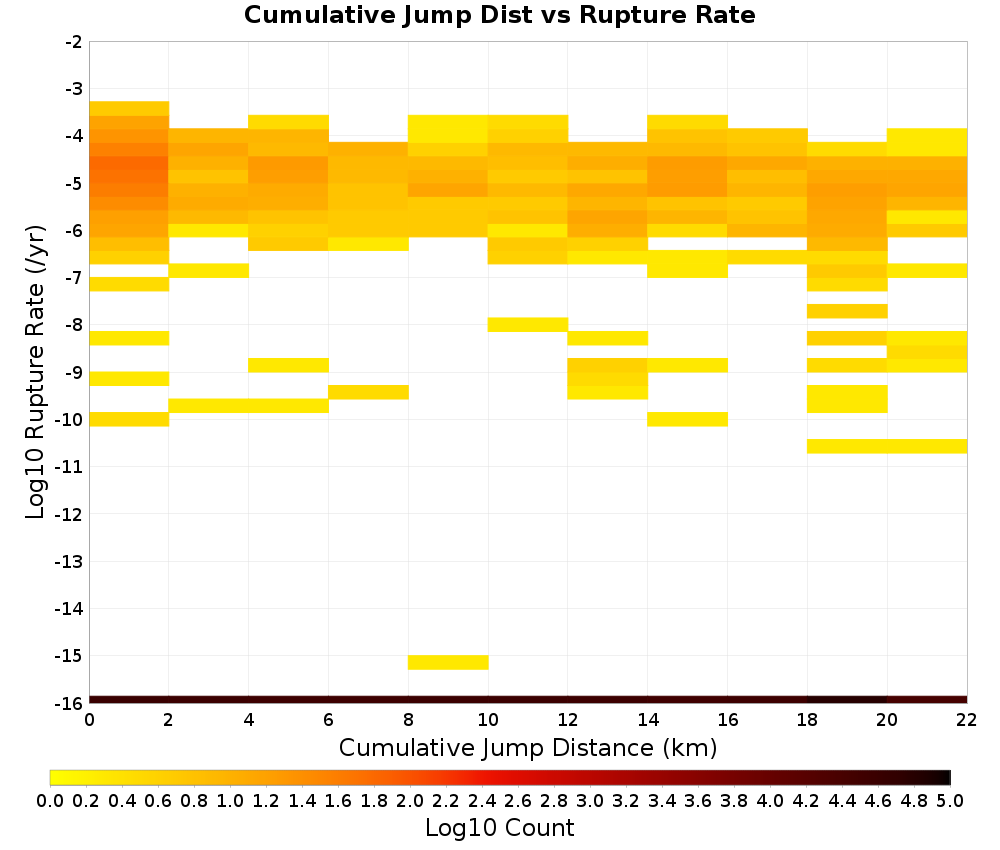

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

Cumulative Jump Dist vs Rupture Rate

(top)

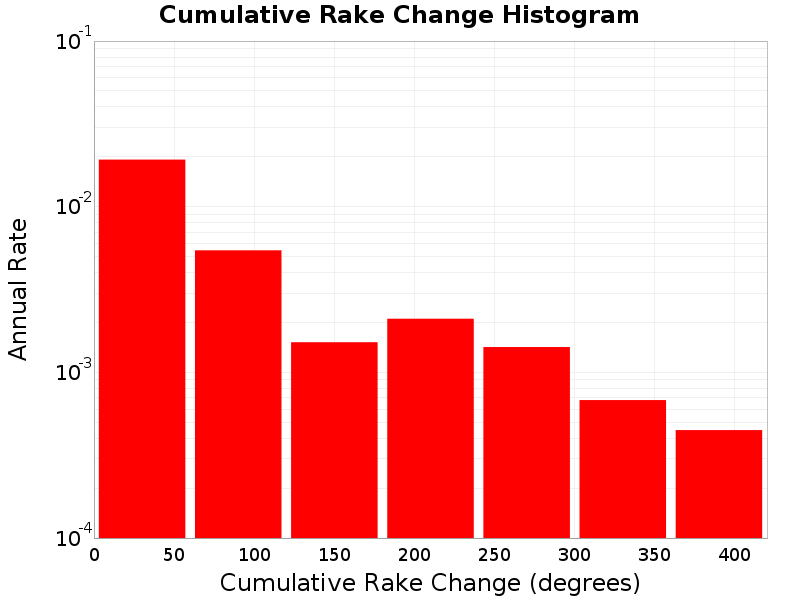

Cumulative Rake Change

(top)

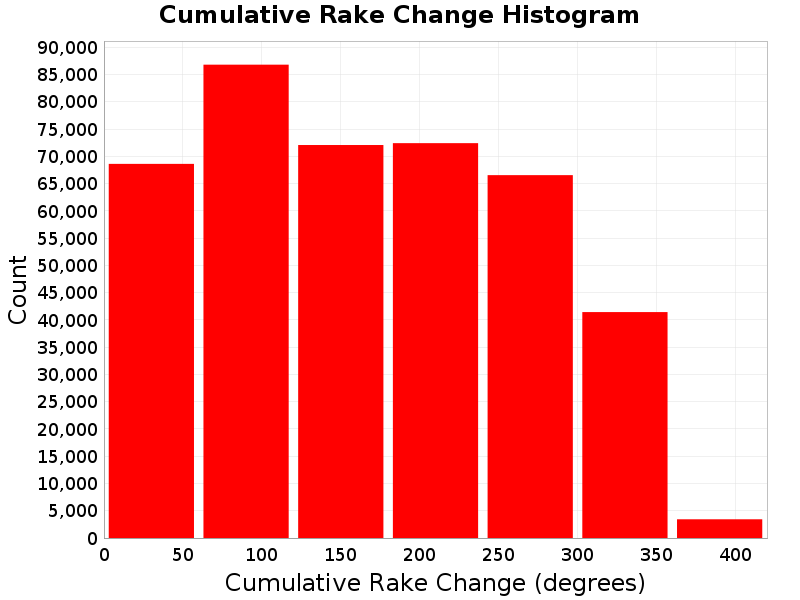

Cumulative rake change for this rupture.

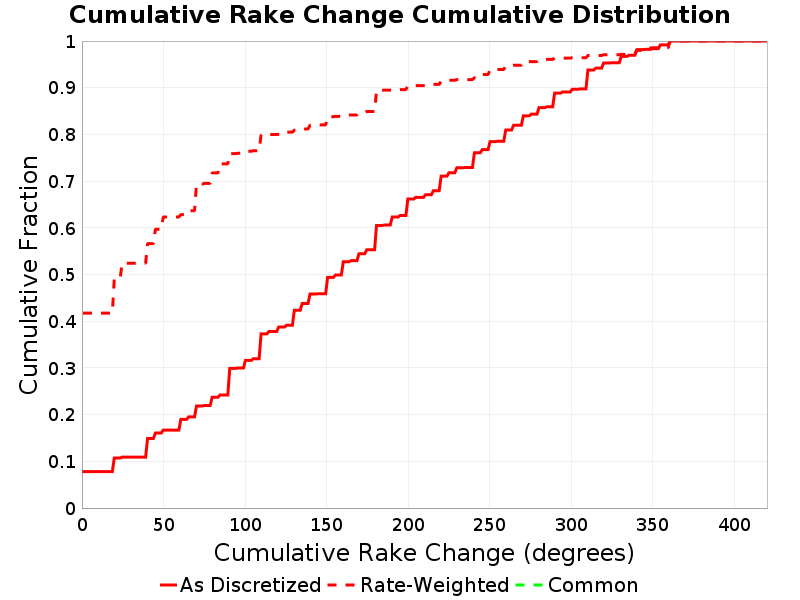

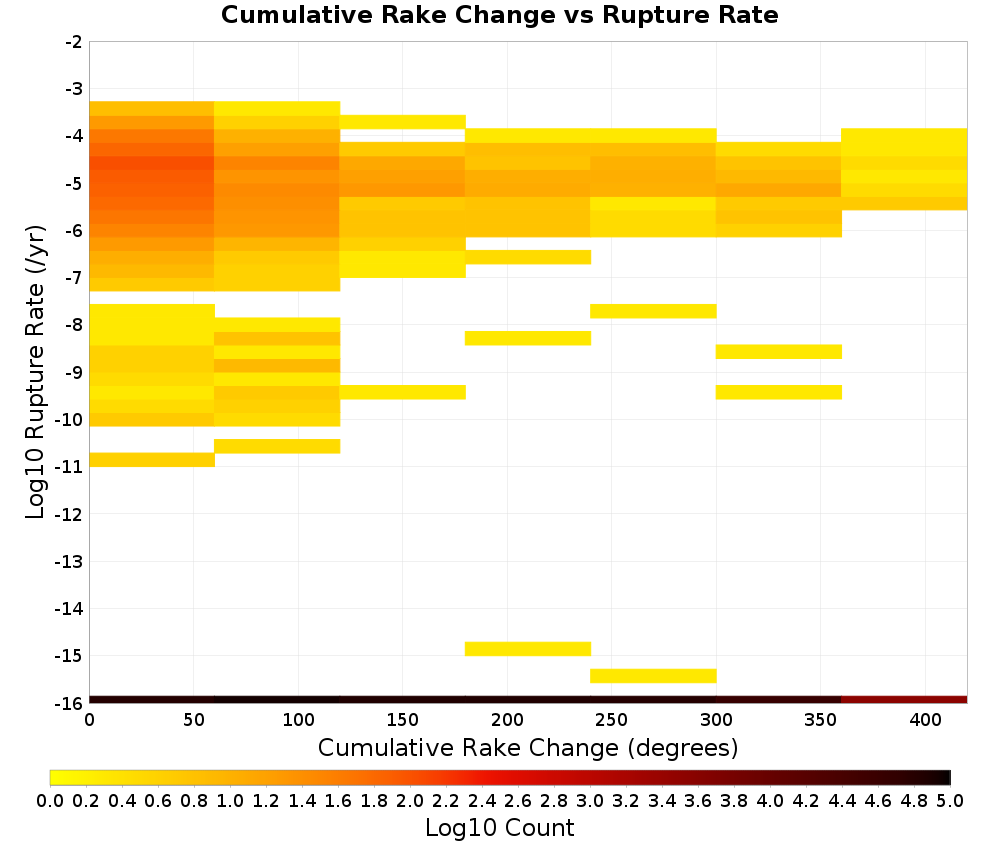

Cumulative Rake Change vs Rupture Rate

(top)

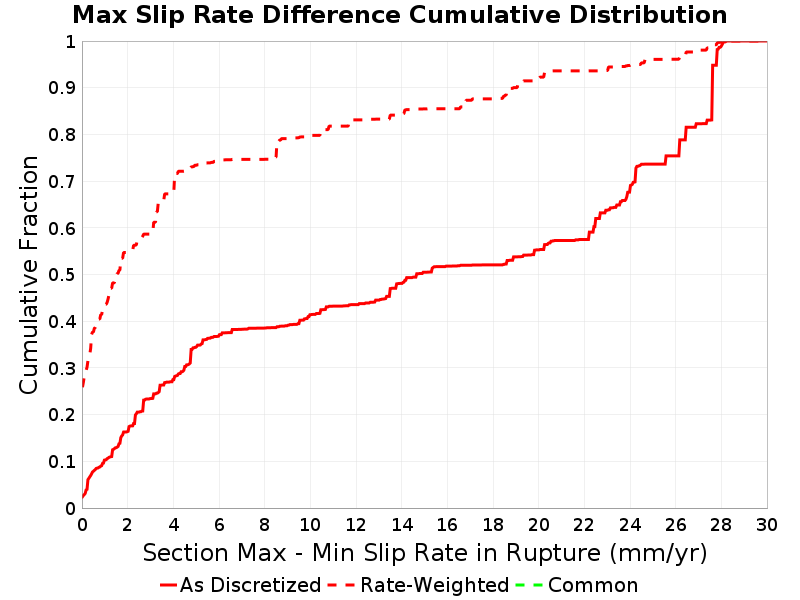

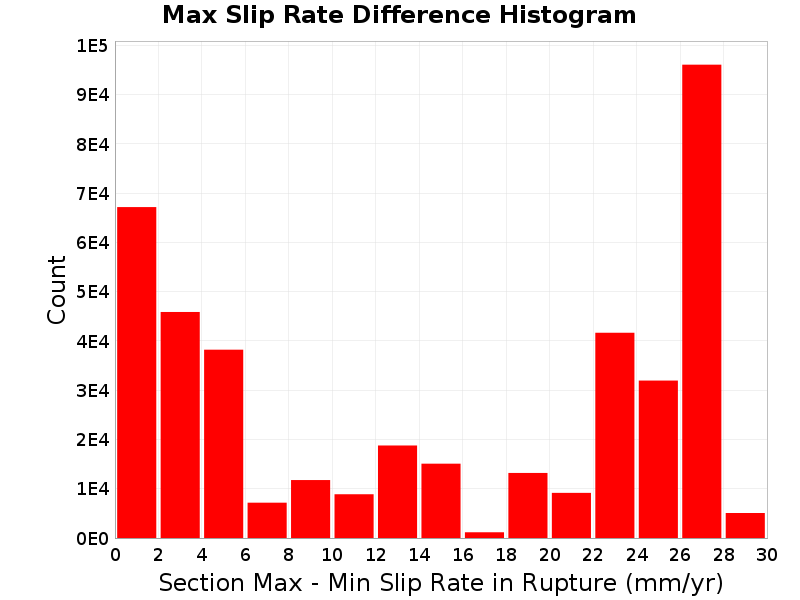

Max Slip Rate Difference

(top)

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.

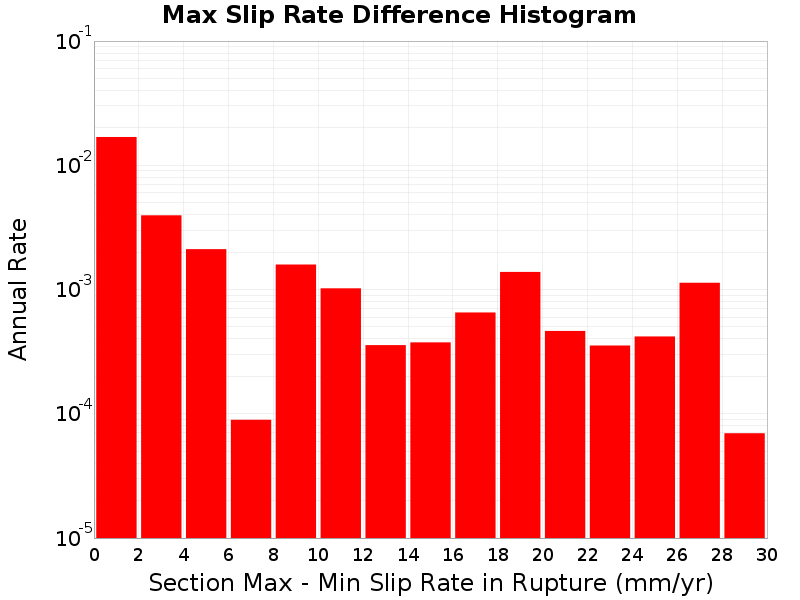

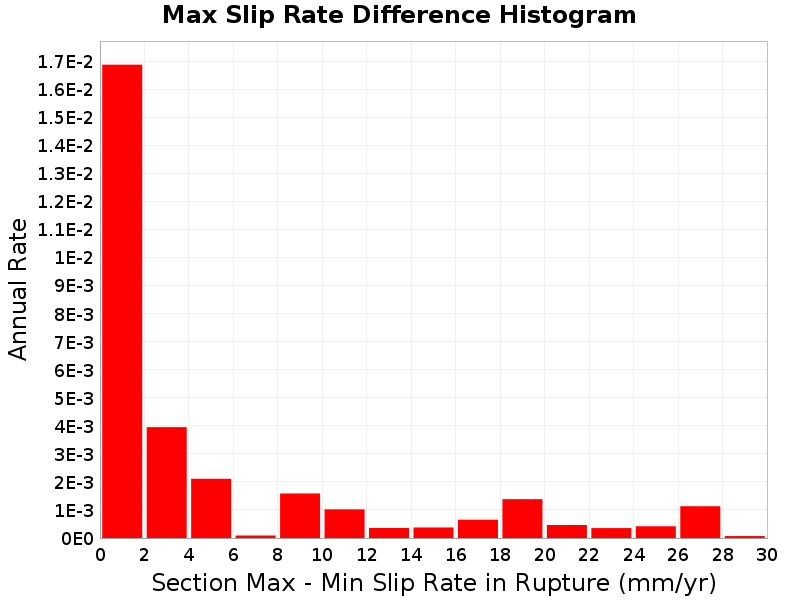

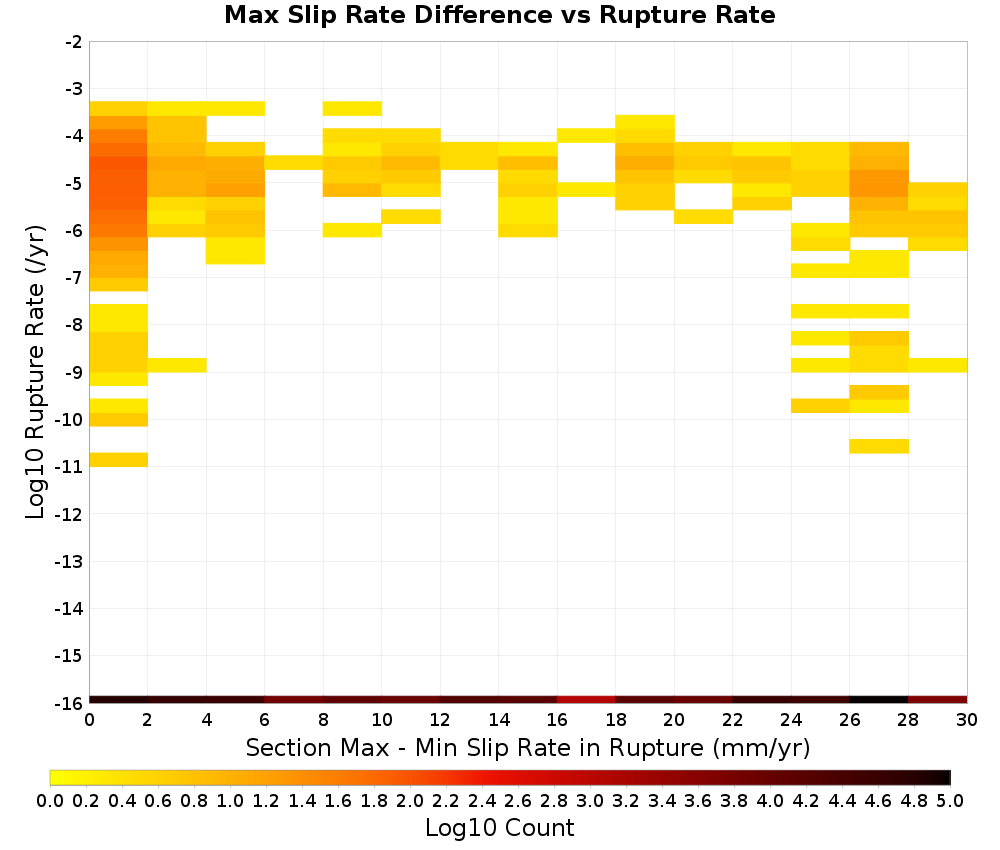

Max Slip Rate Difference vs Rupture Rate

(top)

Attached Modules

(top)

List of all modules that have been attached to this Solution.

Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.

Rupture Set Modules

(top)

Name	Implementing Class
Logic Tree Branch	`nz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch`
Named Faults	`NamedFaults`
Single-Strand Cluster Ruptures	`ClusterRuptures$SingleStranded`
Section Distance-Azimuth Calculator	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator`
Polygon Fault Grid Associations	`PolygonFaultGridAssociations$Precomputed`
Rupture Connection Search	`org.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch`
Section Slip Rates	`SectSlipRates$Precomputed`
Section Areas	`SectAreas$Default`
Inversion Target MFDs	`InversionTargetMFDs$Precomputed`
Precomputed Average Slips	`AveSlipModule$Precomputed`
Modified Section Minimum Magnitudes	`ModSectMinMags$Precomputed`
OpenSHA Build Information	`BuildInfoModule`
Uniform Slip Along Rupture	`SlipAlongRuptureModel$Uniform`
NZSHM22_TvzSections	`nz.cri.gns.NZSHM22.opensha.inversion.NZSHM22_TvzSections`
Paleoseismic Constraint Data	`PaleoseismicConstraintData`

Solution Modules

(top)

Name	Implementing Class
Annealing Progress	`org.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress`
Inversion Misfit Progress	`InversionMisfitProgress`
OpenSHA Build Information	`BuildInfoModule`
Sub-Seismogenic On-Fault MFDs	`SubSeismoOnFaultMFDs`

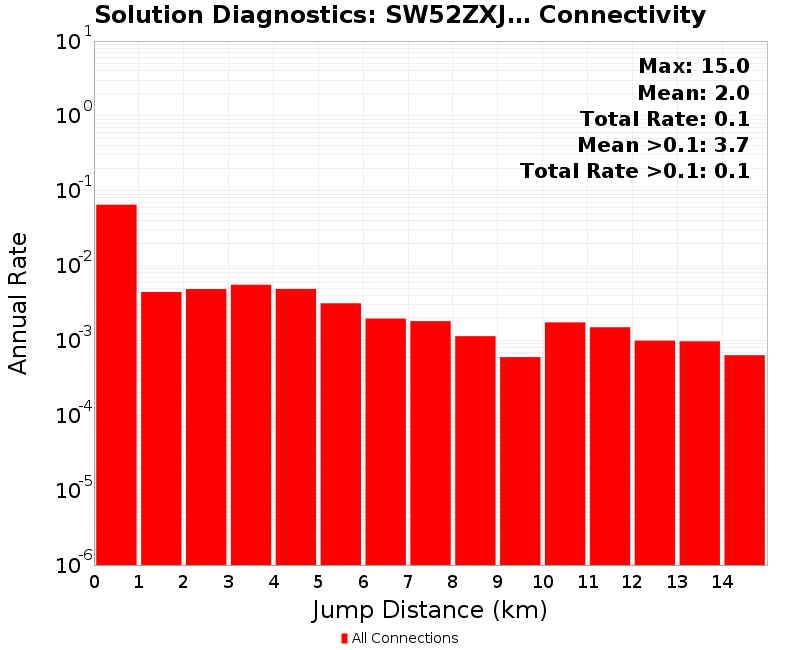

Fault Section Connections

(top)


Download GeoJSON

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted, with smaller clusters plotted in gray, and fully isolated faults plotted in black.


Download GeoJSON

Rank	Sections	Parent Sections	Ruptures
1	1,925 (82.80%)	455 (81.69%)	407,110 (98.99%)
2	61 (2.62%)	8 (1.44%)	2,151 (0.52%)
3	50 (2.15%)	13 (2.33%)	483 (0.12%)
4	40 (1.72%)	15 (2.69%)	684 (0.17%)
5	38 (1.63%)	15 (2.69%)	211 (0.05%)
6	26 (1.12%)	5 (0.90%)	128 (0.03%)
7	13 (0.56%)	3 (0.54%)	58 (0.01%)
8	12 (0.52%)	2 (0.36%)	55 (0.01%)
9	8 (0.34%)	2 (0.36%)	17 (0.00%)
10	4 (0.17%)	2 (0.36%)	3 (0.00%)
37 isolated	148 (6.37%)	37 (6.64%)	370 (0.09%)

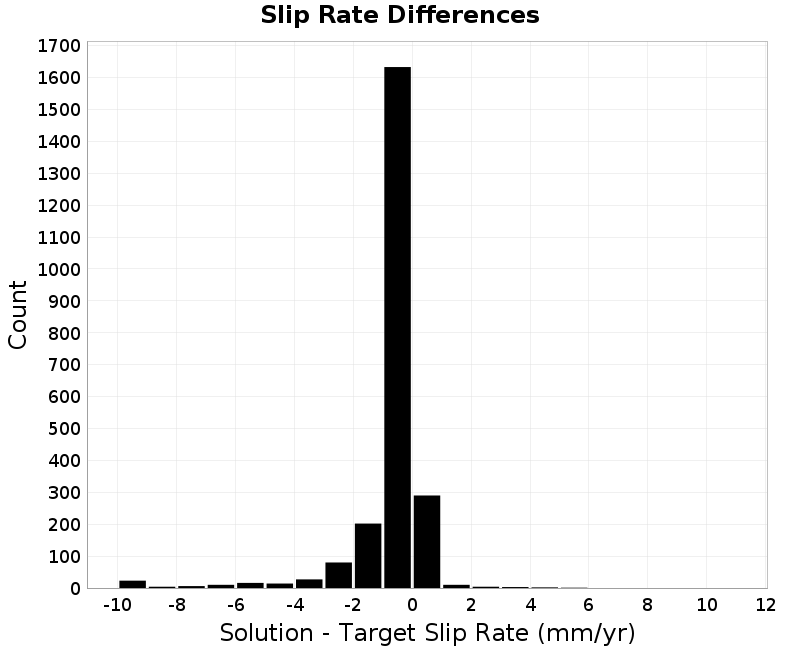

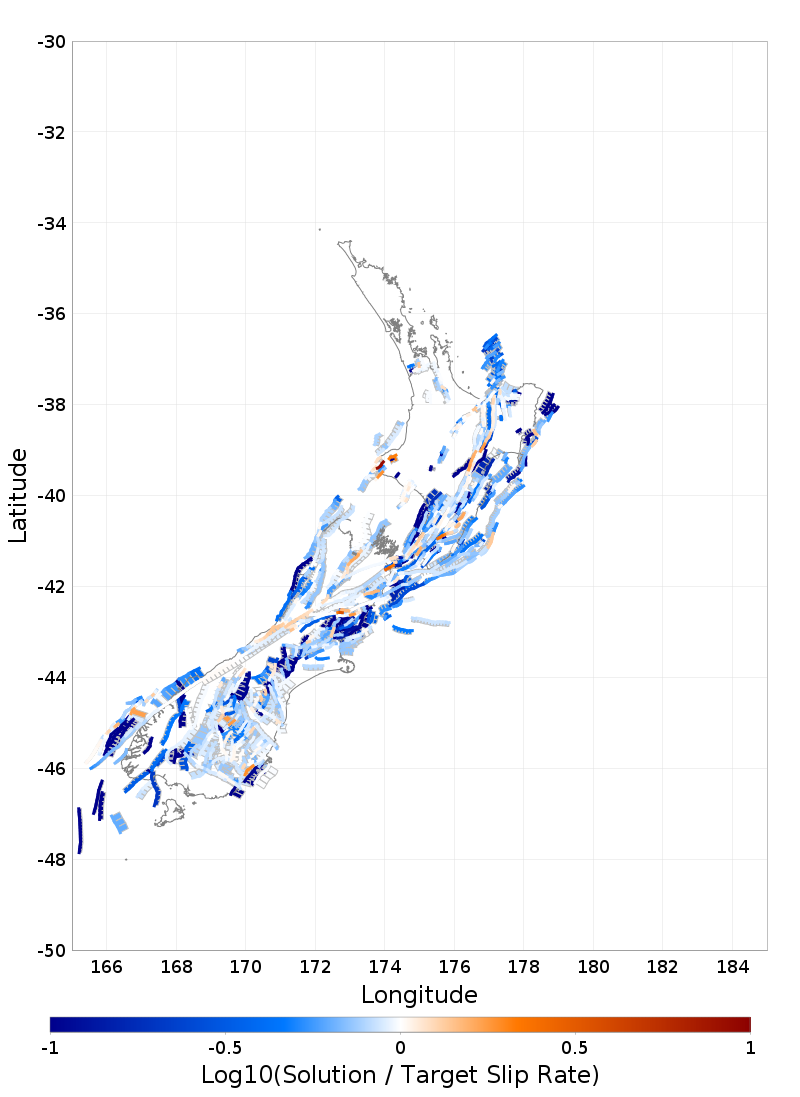

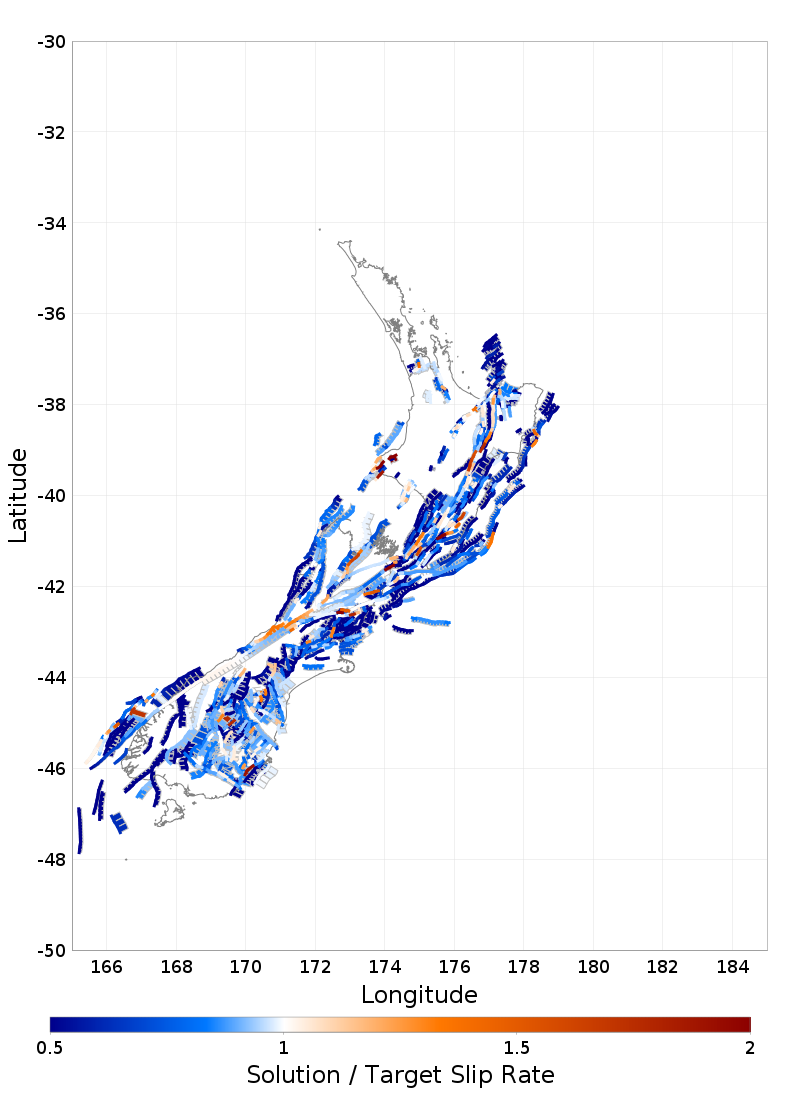

Slip Rates

(top)

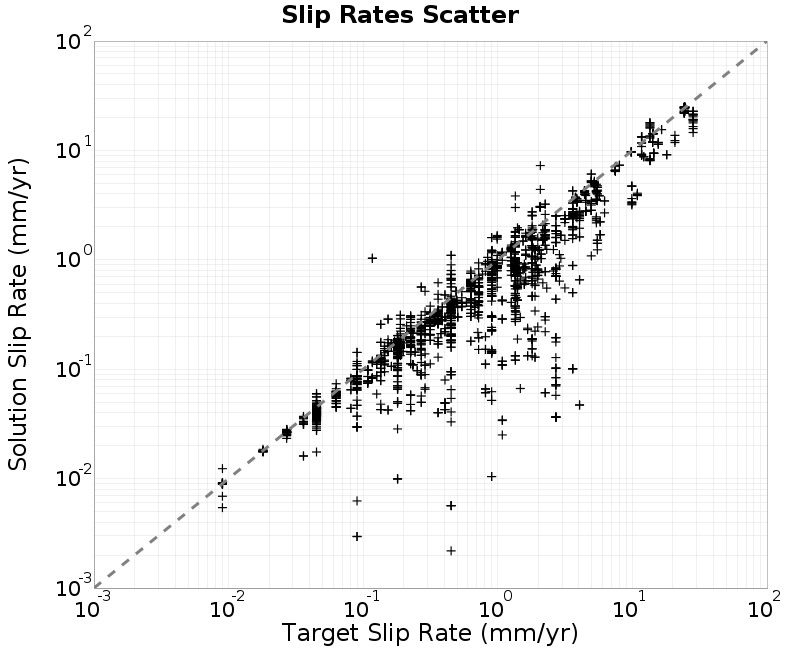

Linear Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Log10 Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON

Slip Rate Std Dev Plots

(top)


Download GeoJSON	Download GeoJSON

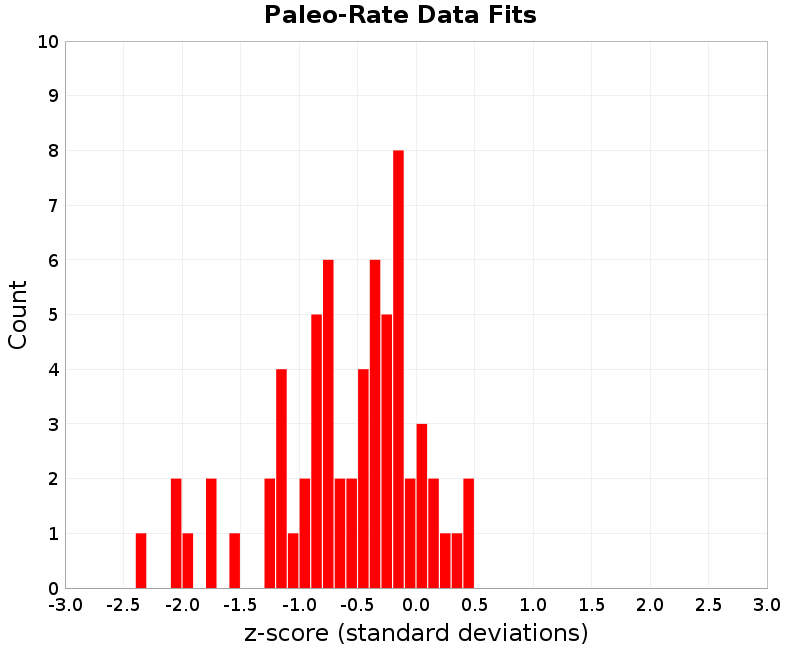

Paleoseismic Data Comparison

(top)

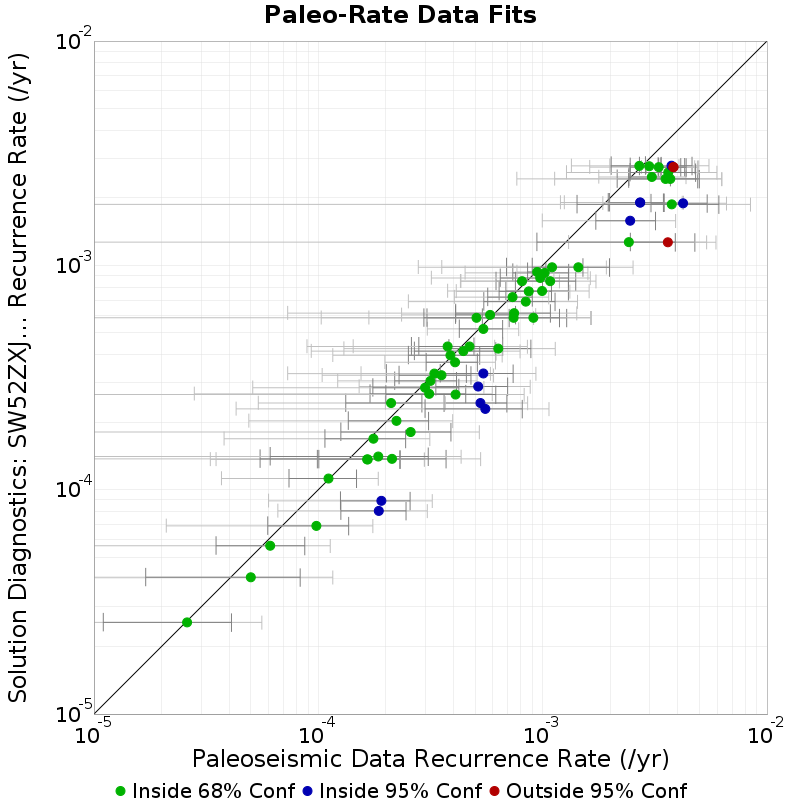

Paleo data comparison table. For the solution column, text is bold if within 68% bounds, italicized if within 95% bounds, and otherwise plain text. Download CSV here.

Site Name	Mapped Subsection ID	Mapped Parent Section	Constraint Mean Rate	68% Bounds	Constraint 95% Bounds	Std. Dev	Solution Rate	z-score
Alpine George to Jacksons - Hokuri Creek sections	34	Alpine: George to Jacksons	0.002985	[0.0027, 0.00327]	[0.002415, 0.003555]	2.85E-4	0.0027659142	-0.7687224
Akatore - Big Creek trench	8	Akatore	2.6E-5	[1.1E-5, 4.1E-5]	[-4.0E-6, 5.6E-5]	1.5E-5	2.5607202E-5	-0.026186567
Alpine George to Jacksons - Lake Ellery cores	40	Alpine: George to Jacksons	0.003752	[0.002872, 0.004632]	[0.001992, 0.005512]	8.8E-4	0.002780061	-1.1044762
Alpine George to Jacksons - John O'Groats Wetland	32	Alpine: George to Jacksons	0.003291	[0.002456, 0.004126]	[0.001621, 0.004961]	8.35E-4	0.0027395228	-0.6604517
Alpine Jacksons to Kaniere - Lake Paringa cores	46	Alpine: Jacksons to Kaniere	0.003831	[0.003366, 0.004296]	[0.002901, 0.004761]	4.65E-4	0.002743302	-2.339136
Alpine Jacksons to Kaniere - Lake Mapourika cores	54	Alpine: Jacksons to Kaniere	0.003067	[0.002423, 0.003711]	[0.001779, 0.004355]	6.44E-4	0.0024771912	-0.91585225
Alpine Jacksons to Kaniere - Staples 2 trench	61	Alpine: Jacksons to Kaniere	0.00353	[0.0021485, 0.0049115]	[7.67E-4, 0.006293]	0.0013815	0.0024275247	-0.7980277
Alpine Jacksons to Kaniere - Staples 3 trench	61	Alpine: Jacksons to Kaniere	0.003706	[0.0024185, 0.0049935]	[0.001131, 0.006281]	0.0012875	0.0024275247	-0.9929905
Alpine Jacksons to Kaniere - Haast South trench	43	Alpine: Jacksons to Kaniere	0.002697	[0.00202, 0.003374]	[0.001343, 0.004051]	6.77E-4	0.0027752148	0.11553139
Alpine Kaniere to Springs Junction - Lake Kaniere cores	71	Alpine: Kaniere to Springs Junction	0.003825	[0.003289, 0.004361]	[0.002753, 0.004897]	5.36E-4	0.0027373245	-2.0292454
Alpine Kaniere to Springs Junction - Lake Brunner cores	68	Alpine: Kaniere to Springs Junction	0.003629	[0.002453, 0.004805]	[0.001277, 0.005981]	0.001176	0.002594139	-0.8799839
Alpine Springs Junction to Tophouse - Maruia Trench-1	62	Alpine: Kaniere to Springs Junction	0.002719	[0.001984, 0.003454]	[0.001249, 0.004189]	7.35E-4	0.0019052037	-1.1072059
Alpine Springs Junction to Tophouse - Maruia Trench-2	62	Alpine: Kaniere to Springs Junction	0.002721	[0.0019605, 0.0034815]	[0.0012, 0.004242]	7.605E-4	0.0019052037	-1.0727105
Awatere Northeast 1 - Upcot 1 trench	129	Awatere: Northeast 1	9.94E-4	[6.855E-4, 0.0013025]	[3.77E-4, 0.001611]	3.085E-4	7.684752E-4	-0.7310368
Clarence Northeast - Ravine Stream exposure	436	Clarence: Northeast	5.44E-4	[4.25E-4, 6.63E-4]	[3.06E-4, 7.82E-4]	1.19E-4	5.2057486E-4	-0.19685012
Cloudy 2 - Cloudy seismic lines	453	Cloudy 2	3.16E-4	[2.19E-4, 4.13E-4]	[1.22E-4, 5.1E-4]	9.7E-5	3.0531138E-4	-0.110191904
Dunstan - T04/2	512	Dunstan	2.23E-4	[1.36E-4, 3.1E-4]	[4.9E-5, 3.97E-4]	8.7E-5	2.0262806E-4	-0.2341603
Te Ikaarongamai - Pakarae River mouth	1856	Te Ikaarongamai	8.67E-4	[6.395E-4, 0.0010945]	[4.12E-4, 0.001322]	2.275E-4	7.655588E-4	-0.44589546
Gable End North - Puatai Beach trench	598	Gable End North	0.001021	[7.36E-4, 0.001306]	[4.51E-4, 0.001591]	2.85E-4	9.25239E-4	-0.33600357
Hohonu South - Lower Mikonui River exposure	701	Hohonu: South	6.1E-5	[3.5E-5, 8.7E-5]	[9.0E-6, 1.13E-4]	2.6E-5	5.6239936E-5	-0.18307942
Inglewood - Egmont Road trenches	829	Inglewood	1.66E-4	[1.005E-4, 2.315E-4]	[3.5E-5, 2.97E-4]	6.55E-5	1.364184E-4	-0.45162746
Inglewood - Everett Park trench	828	Inglewood	1.65E-4	[9.9E-5, 2.31E-4]	[3.3E-5, 2.97E-4]	6.6E-5	1.364184E-4	-0.43305454
Kekerengu 1 - Kekerengu Trench 1	885	Kekerengu 1	0.002455	[0.0017255, 0.0031845]	[9.96E-4, 0.003914]	7.295E-4	0.0015805856	-1.1986489
Kina - Kina Fault trench	1357	Oaonui	5.28E-4	[3.635E-4, 6.925E-4]	[1.99E-4, 8.57E-4]	1.645E-4	2.4331168E-4	-1.7306281
Lachlan 3 - Table Cape trenches	989	Lachlan 3	8.41E-4	[5.465E-4, 0.0011355]	[2.52E-4, 0.00143]	2.945E-4	6.889198E-4	-0.5164013
Mohaka South - McCool 1 Trench	1199	Mohaka: South	3.29E-4	[2.01E-4, 4.57E-4]	[7.3E-5, 5.85E-4]	1.28E-4	3.2924293E-4	0.001897802
Mokonui Southwest - Viewfield Trench	1206	Mokonui Southwest	5.16E-4	[3.34E-4, 6.98E-4]	[1.52E-4, 8.8E-4]	1.82E-4	2.8826197E-4	-1.2513078
Oaonui - Oaonui coastal cliff exposure	1357	Oaonui	2.11E-4	[1.325E-4, 2.895E-4]	[5.4E-5, 3.68E-4]	7.85E-5	2.4331168E-4	0.41161373
Ohariu - Taupo Swamp	1368	Ohariu	6.34E-4	[3.82E-4, 8.86E-4]	[1.3E-4, 0.001138]	2.52E-4	4.2535848E-4	-0.8279426
Ohariu - MacKays Crossing Trench	1366	Ohariu	4.43E-4	[2.68E-4, 6.18E-4]	[9.3E-5, 7.93E-4]	1.75E-4	4.146893E-4	-0.1617754
Pihama - Pihama coastal cliff exposure	1564	Pihama	1.86E-4	[1.26E-4, 2.46E-4]	[6.6E-5, 3.06E-4]	6.0E-5	8.040332E-5	-1.7599447
Porters Pass - Porters Pass Trench 1	1582	Porters Pass	5.83E-4	[4.09E-4, 7.57E-4]	[2.35E-4, 9.31E-4]	1.74E-4	6.011804E-4	0.104485065
Ruahine North - Davis Trenches	1698	Ruahine: North	5.44E-4	[3.495E-4, 7.385E-4]	[1.55E-4, 9.33E-4]	1.945E-4	3.2958403E-4	-1.1023958
Titri Central - Clarendon T16/03 trench	1892	Titri Central	9.8E-5	[5.95E-5, 1.365E-4]	[2.1E-5, 1.75E-4]	3.85E-5	6.894898E-5	-0.7545719
Waimana North - Moana trench	2037	Waimana: North	3.12E-4	[1.7E-4, 4.54E-4]	[2.8E-5, 5.96E-4]	1.42E-4	2.674321E-4	-0.31385854
Waimana North - Te Hoe / Hautapu Trench	2043	Waimana: South	5.55E-4	[2.99E-4, 8.11E-4]	[4.3E-5, 0.001067]	2.56E-4	2.2910246E-4	-1.2730373
Waimana North - Ahirau 1 trench	2039	Waimana: North	2.99E-4	[1.75E-4, 4.23E-4]	[5.1E-5, 5.47E-4]	1.24E-4	2.847885E-4	-0.11460895
Waipukaka - Hendricksen Trench 1	2090	Waipukaka	2.58E-4	[1.26E-4, 3.9E-4]	[-6.0E-6, 5.22E-4]	1.32E-4	1.8067956E-4	-0.5857609
Wairarapa - Turakirae Head	2100	Wairarapa: 1	3.77E-4	[2.6E-4, 4.94E-4]	[1.43E-4, 6.11E-4]	1.17E-4	4.34783E-4	0.49387175
Wairarapa - Lake Kohangapiripiri KP99-1&2	2100	Wairarapa: 1	4.72E-4	[2.805E-4, 6.635E-4]	[8.9E-5, 8.55E-4]	1.915E-4	4.34783E-4	-0.19434467
Wairarapa 3 - Tea Creek Road	2109	Wairarapa: 3	3.88E-4	[2.52E-4, 5.24E-4]	[1.16E-4, 6.6E-4]	1.36E-4	3.9718492E-4	0.06753616
Wairau - Wadsworth Trench	2123	Wairau	9.09E-4	[5.385E-4, 0.0012795]	[1.68E-4, 0.00165]	3.705E-4	5.8366655E-4	-0.878093
Wairau - Dillon Trench	2123	Wairau	5.07E-4	[3.05E-4, 7.09E-4]	[1.03E-4, 9.11E-4]	2.02E-4	5.8366655E-4	0.37953737
Wairau 2 - Wairau seismic lines	2130	Wairau 2	4.07E-4	[3.025E-4, 5.115E-4]	[1.98E-4, 6.16E-4]	1.045E-4	3.696703E-4	-0.35722196
Wellington Hutt Valley 3 - Te Kopahou-1 Trenches	2204	Wellington Hutt Valley: 3	7.46E-4	[4.095E-4, 0.0010825]	[7.3E-5, 0.001419]	3.365E-4	6.1204436E-4	-0.39808518
Wellington Hutt Valley 5 - KAF-1	2208	Wellington Hutt Valley: 5	8.09E-4	[6.195E-4, 9.985E-4]	[4.3E-4, 0.001188]	1.895E-4	8.498949E-4	0.21580409
Wellington Hutt Valley 5 - KAF-3	2208	Wellington Hutt Valley: 5	0.00108	[7.56E-4, 0.001404]	[4.32E-4, 0.001728]	3.24E-4	8.498949E-4	-0.710201
Wellington Pahiatua - Dougan-1	2214	Wellington: Pahiatua	0.001101	[6.9E-4, 0.001512]	[2.79E-4, 0.001923]	4.11E-4	9.80255E-4	-0.29378352
Wellington Pahiatua - Hughes-1 Trench	2211	Wellington: Pahiatua	9.75E-4	[6.47E-4, 0.001303]	[3.19E-4, 0.001631]	3.28E-4	8.7849464E-4	-0.29422364
Wellington Pahiatua - Dougan-2	2214	Wellington: Pahiatua	0.001442	[8.985E-4, 0.0019855]	[3.55E-4, 0.002529]	5.435E-4	9.80255E-4	-0.8495769
Whakatane North - Te Whetu trench	2246	Whakatane: North	1.11E-4	[7.4E-5, 1.48E-4]	[3.7E-5, 1.85E-4]	3.7E-5	1.12103786E-4	0.02983197
Whakatane South - Thalassa trench	2253	Whakatane: South	3.54E-4	[2.29E-4, 4.79E-4]	[1.04E-4, 6.04E-4]	1.25E-4	3.2373465E-4	-0.24212271
Awatere Northeast 1 - Combined Taylors Pass Road trenches and Lake Jasper cores	134	Awatere: Northeast 1	9.45E-4	[8.565E-4, 0.0010335]	[7.68E-4, 0.001122]	8.85E-5	9.341955E-4	-0.1220852
Hope Conway - Combined Greenburn East and West trenches	721	Hope: Conway	0.004226	[0.00304, 0.005412]	[0.001854, 0.006598]	0.001186	0.0018902055	-1.9694725
Hope Hope River - Hope Shelter trenches combined	739	Hope: Hope River	0.003614	[0.0024595, 0.0047685]	[0.001305, 0.005923]	0.0011545	0.0012670218	-2.0328958
Poukawa - Combined Poukawa trenches	2094	Waipukurau - Poukawa	1.76E-4	[1.07E-4, 2.45E-4]	[3.8E-5, 3.14E-4]	6.9E-5	1.6870192E-4	-0.10576923
Wairarapa 2 - Cross Creek combined	2105	Wairarapa: 2	7.34E-4	[5.69E-4, 8.99E-4]	[4.04E-4, 0.001064]	1.65E-4	7.216825E-4	-0.07465146
Flaxmore - Waimea - Tahunanui_5507_Wairoa-2 trench	580	Flaxmore - Waimea - Tahunanui	1.91E-4	[1.255E-4, 2.565E-4]	[6.0E-5, 3.22E-4]	6.55E-5	8.918125E-5	-1.5544847
Fox Peak_4035_Trench 4	593	Fox Peak	4.09E-4	[2.0E-4, 6.18E-4]	[-9.0E-6, 8.27E-4]	2.09E-4	2.6546937E-4	-0.6867494
Hope Conway_666-675_Combined	722	Hope: Conway	0.003762	[0.001423, 0.006101]	[-9.16E-4, 0.00844]	0.002339	0.0018700649	-0.80886495
Hope Hope River_648_Matagouri Flat	741	Hope: Hope River	0.002422	[9.425E-4, 0.0039015]	[-5.37E-4, 0.005381]	0.0014795	0.0012687963	-0.77945507
The Humps_5565-5696_Combined	1881	The Humps	2.13E-4	[5.5E-5, 3.71E-4]	[-1.03E-4, 5.29E-4]	1.58E-4	1.372052E-4	-0.47971386
Wairau_5519-5522_Combined Zinke	2123	Wairau	7.42E-4	[2.955E-4, 0.0011885]	[-1.51E-4, 0.001635]	4.465E-4	5.8366655E-4	-0.35461017
Waitawhiti_5369-5379_Combined	2147	Waitawhiti	1.85E-4	[6.1E-5, 3.09E-4]	[-6.3E-5, 4.33E-4]	1.24E-4	1.4053062E-4	-0.35862395
Whitemans Valley_1023_Whitemans Valley trench	2322	Whitemans Valley	5.0E-5	[1.7E-5, 8.3E-5]	[-1.6E-5, 1.16E-4]	3.3E-5	4.068388E-5	-0.2823066

Jump Counts Over Distance

(top)

Supra-seismogenic Jump Counts

(top)

As Discretized	Rate Weighted

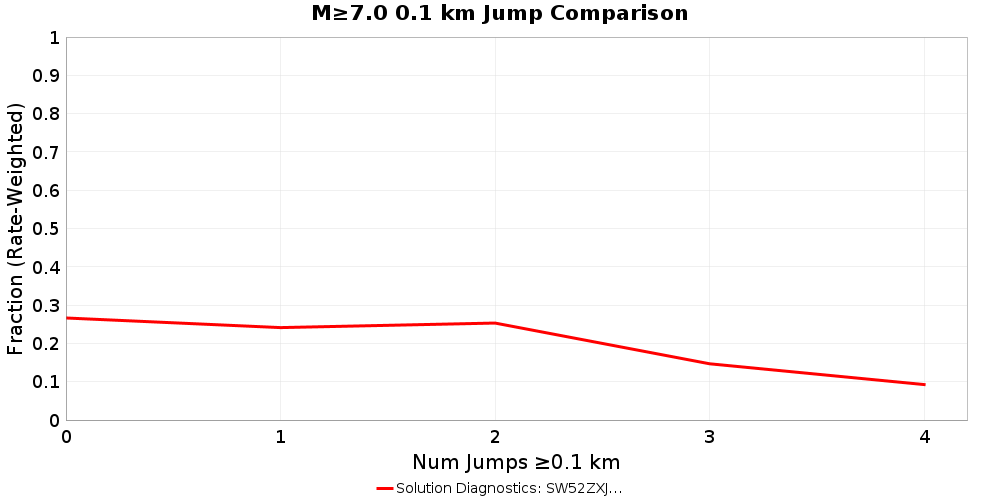

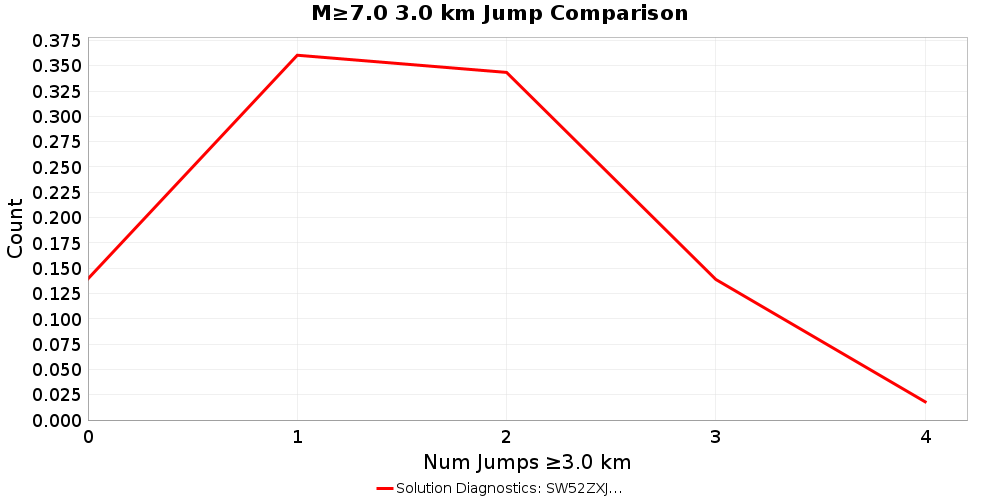

M≥7 Jump Counts

(top)

As Discretized	Rate Weighted

Max Jump Distance Distribution

(top)

Cumulative Jump Distance Distribution

(top)

Hazard Maps

(top)

Hazard map comparisons with a resolution of 1 degrees (400 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.

Named Fault Detail Pages

(top)

Fault Section	Fault Section	Fault Section
Alpine: George to Jacksons	Hope	Te Tatua o Wairere
Alpine: Jacksons to Kaniere	Kaiapo	Titri
Alpine: Kaniere to Springs Junction	Kekerengu	Waihi
Awanui	Kerepehi	Wairarapa
Awatere	Lees Valley	Wairau
Cape Egmont	Needles	Wairoa North
Dunstan	Ohariu	Wellington: Pahiatua
Edgecumbe	Ostler	Wellington: Wellington-Hutt Valley
Flaxmore - Waimea - Tahunanui	Paeroa	Whangamoa
Fox Peak	Porters Pass	White Creek
Greendale	Poutu	Akatore

Parent Section Detail Pages

(top)

Fault Section	Fault Section	Fault Section
Acton	Kaikorai	Pukekohe
Aka Aka	Kaikoura - Mangamaunu	Pukerua - Shepherds Gully: 1
Akatarawa	Kairakau 2	Pukerua - Shepherds Gully: 2
Akatore	Kairakau North	Pukerua - Shepherds Gully: 3
Albury	Kairakau South	Puketerata
Alexander	Kaiwara North	Puketerata North
Alfredton North	Kaiwara South	Pylap
Alfredton South	Kakapo	Raggedy - Blackstone
Alpine: Caswell	Kaumingi	Rahotu
Alpine: Caswell - South George	Kaweka	Rakaia
Alpine: George landward	Kekerengu 1	Ranfurly
Alpine: George seaward	Kekerengu Bank	Rangefront
Alpine: George to Jacksons	Kelly	Rangitaiki 1
Alpine: Jacksons to Kaniere	Kerepehi Awaiti	Rangitaiki 2
Alpine: Kaniere to Springs Junction	Kerepehi Elstow	Rangitikei Offshore 1
Alpine: Nancy	Kerepehi Offshore	Rapuwai
Alpine: Resolution - Charles	Kerepehi Okoroire	Raukumara 16
Alpine: Resolution - Dagg	Kerepehi Te Poi	Raukumara 17
Alpine: Resolution - Five Fingers	Kerepehi Waitoa	Raukumara 18
Alpine: Springs Junction to Tophouse	Kereu	Raukumara 20
AmberBlyth	Kidnappers Ridge	Raukumara 21
Aotea - Evans Bay	Kiri	Raukumara 24
Ararata	Kirkliston	Raukumara 25
Ariel Bank	Klondyke Moor	Raukumara 9
Ariel Bank 2	Knowles Top	Rauoterangi
Ariel East	Kohaihai	Raurimu: South
Awahokomo	Kohaihai South	Redcliffe
Awakeri	Kongahau	Repongaere
Awamoa	Kotare - Moutuhora	Ridge Road - Okaia 2
Awanui	Kowai - View Hill	Riversdale
Awatere: Northeast 1	Kututaruhe	Riversdale North
Awatere: Northeast 2	Lachlan 1 & 2	Roaring Lion
Awatere: Southwest	Lachlan 3	Roaring Meg
Backbone	Lake Heron	Rotoitipakau
Balmoral	Lake Onslow	Ruahine: Central
Barefell	Leader: Central	Ruahine: North
Barn	Leader: North	Ruahine: South
Barrier Range	Leader: South	Ruataniwha
Beacon Hill	Leedstown	Ruatoria South 3
Beaumont River	Lees Valley	Ruatoria South 4
Ben McLeod	Leithfield - NCVI - NCVII	Ruby Bay - Moutere
Bidwill	Leonard Mound	Sailor
Big Ben	Levin Anticline	Saunders Road
Billys Ridge	Lindis River	Settlement
Black Hill	Little Hillfoot	Shepherds Gully - Mana
Blue Lake	Little Valley	Skippers
Blue Mountain	Livingstone	Sliver Stream - Merton
Boby Stream	Logan Burn	Snares
BooBoo	London Hill	Solander
Braemar	Long Valley	South Wedge 1
Brothers	Lowry	South Wedge 2
Browning Pass	Lyell	South Wedge 3-6-10
Calypso 2	Lyell South	South Wedge 5
Campbell Bank	Madagascar	Spey - Mica Burn
Campbell Hills	Madden Banks	Springbank
Cape Egmont: Central	Mahia 2	Spylaw
Cape Egmont: North	Maimai	St Stephens
Cape Egmont: South	Maimai: North	Starvation - Ashley
Cape Foulwind 1	Maimai: South	StoneJug
Cape Foulwind 2	Makuri - Waewaepa	Stonewall
Cape Foulwind 4	Maleme	Sugarloaf
Cardrona - Hawea	Manahi 1	Surville
Carterton	Manahi 2	Takapu
Caswell 211	Mangatangi	Taonui
Caswell High 1	Marlborough Slope 11	Tauranga Trough East 2
Caswell High 10	Marlborough Slope 2	Tauranga Trough West 2
Caswell High 3	Marlborough Slope 3	Tauru
Caswell High 4	Marlborough Slope 4	Te Anau
Caswell High 5	Marlborough Slope 9	Te Arawa 1
Caswell High 67	Martinborough	Te Arawa 2
Caswell High 8	Mascarin	Te Arawa 3
Caswell High 9	Masterton	Te Heka
Catherine	Mataikona	Te Ikaarongamai
CenPeg1n2	Mataikona East	Te Puninga
Central Balleny	Matata	Te Rapa 1
Central Wedge 1 & 2 & 3	Maunga	Te Rapa 2
Central Wedge 4 - South Wedge 411	Maungati	Te Tatua o Wairere
Chamberlain	Maungatua - North Taieri	Te Whaiti North
Chancet	McKerchar	Te Whaiti South
Cheeseman	Mid Dome	Teviot
Clarence: Central	Middle Range	The Humps
Clarence: Northeast	Milford Basin 5 to George R2	Timaru Creek
Clarence: Southwest	Mohaka: North	Tin Hut
Clear Hills - Waikopiro	Mohaka: South	Tirohanga
Clifton	Mokonui Northeast	Titri Central
Cloudy 1	Mokonui Southwest	Titri North
Cloudy 2	Monowai	Titri South
Cloudy 3	Moonlight North	Tokomaru
Cluden	Moonlight South	Torlesse
Conway Trough East	Moonshine	Tuakana 6
Conway Trough West	Mossburn	Tuakana 7
Cross Eden	Motatapu	Tuapeka
Dalgety	Motu	Tuatoru 1
Darran	Motu River	Tuatoru 2
Dingle	Motu o Kura East	Tukituki Thrust
Doctors	Motu o Kura North	Turi: Central
Double Hill	Motu o Kura Ridge	Turi: North
Dreyers Rock	Motunau	Turi: South
Dromedary	Moumahaki - Okaia 4	Tutaki
Drury	Mt Arden	Upper Slope
Dry River - Huangarua: 1	Mt Culverden	Uruti Basin
Dry River - Huangarua: 2	Mt Lawry	Uruti Basin 2
Dry River - Huangarua: 3	Mt Stewart	Uruti East - PorWest 1
Dryburgh	Mt Sutton	Uruti North
Dunback Hill	Murphys Creek	Uruti Point
Dunstan	NW Cardrona North	Uruti Ridge 2
EarthquakeFlat - Tumunui	NW Cardrona South	Vernon 1
Edgecumbe 1987	Needles	Vernon 2
Edgecumbe Coastal	Needles East 2	Vernon 3
Edith	Nevis	Vernon 4
Elliott	Ngatoro South 2	Virginia
Esk North	Ngatoro South 5	Volkner 3
Esk South	Nichols Rock	Volkner 4
Falstone	Norfolk	Waewaepa
Farewell	North Branch	Waihemo
Fern Gully	North Canterbury Shelf 11	Waihi South
Fidget	North Canterbury Shelf 2	Waihi West
Fisherman 1	North Canterbury Shelf 4	Waikaia
Fisherman 2	North Mernoo E2-1	Waikaka
Fisherman 3	North Mernoo K2	Waikuku
Five Fingers	North Mernoo K3	Waimana - Waikaremoana
Flat Stream - Glenpark	Northern Ohariu	Waimana: North
Flaxmore - Waimea - Tahunanui	Nukumuru - Waitotara 1-6	Waimana: South
Fowlers	Oaonui	Waimarama 1 & 2
Fox Peak	Ohae 1	Waimarama 3 & 4
Gable End North	Ohae 2	Waimate
Gable End South	Ohae 3	Waimea Offshore
Galloway	Ohariu	Waiohau: North
Garibaldi	Ohariu South 1	Waiohau: South
Garvie	Ohariu South 2	Waiotahi: North
Gibson	Ohena 2	Waiotahi: South
Gimmerburn	Ohena 3	Waipiata
Glenbrook	Ohena 4	Waipukaka
Goodger	Ohiwa 1	Waipukurau - Poukawa
Grampian	Okaia 3	Wairarapa: 1
Grandview	Okaia 5	Wairarapa: 2
Green Island	Okupe 1	Wairarapa: 3
Greendale	Old Man	Wairarapa: Needles
Hanmer	Omarama Saddle	Wairata
Hariki	OmihiLwrHuru	Wairau
Hauroko: North	Onepoto	Wairau 2
Hauroko: South	Opape 1	Wairau 3
Hawkdun	Opawa	Wairoa North
Hawke Bay 1	Opotiki 2	Waitahuna 1
Hawke Bay 4	Opotiki 3	Waitahuna 2
Hawke Bay 5 & 11	Opouawe - Uruti	Waitaki
Hawke Bay 8	Orakeikorako	Waitangi
Hawkswood	Oruawharo - Mangatoro	Waitawhiti
Hedgehope	Ostler North	Waitotara 10 & 11
High Peak - Sheffield	Ostler South	Waitotara 8 & 9
Hillfoot	Otaheke North	Wakamarama
Himatangi	Otaheke South	Wakamarama Offshore
Hohonu: South	Otaki Forks: 1	Wakarara
Hokonui	Otaki Forks: 2	Wanaka
Hollyford	Otanomomo	Warea
Honeycomb	Otara East 1	Waverley - Okaia 1
Hope: Conway	Otara East 2	Wellington Hutt Valley: 1
Hope: Hanmer NW	Otara West 1	Wellington Hutt Valley: 2
Hope: Hanmer SE	Otara West 2	Wellington Hutt Valley: 3
Hope: Hanmer SW	Otara West 3	Wellington Hutt Valley: 4
Hope: Hope River	Otaraia	Wellington Hutt Valley: 5
Hope: Hurunui	Pa Valley	Wellington: Pahiatua
Hope: Kakapo-2-Hamner	Paddys Ridge	Wellington: Tararua 1
Hope: Seaward	Paeroa	Wellington: Tararua 2
Hope: Taramakau	Pahaua	Wellington: Tararua 3
Hope: Te Rapa	Pahiatua	Wendon Valley
Hopkins	Pakarae	West Balleny
Hororata	Palliser - Kaiwhata	West Wakatipu
Horse Flat	Pancake	Whakaari 4
Houtunui	Paparoa West	Whakatane: North
Hump Ridge	Paparoa West: North	Whakatane: South
Hundalee	Papatea	Whangamata West
Hunter Valley	Parihaka	Whangamoa
Hunters	Patoka - Rangiora	Wharanui
Hurunui Peak	Pegasus Bay	Whareama Bank
Hutt Peel	Pihama	Wharekauhau
Huxley	Pisa	Wheao: North
Hyde North	Pohangina	Wheao: South
Hyde South - The Twins	Point Gibson	White Creek
Ihaia	Pokeno	White Creek - buried
Inangahua	Pongaroa - Weber	White Hill
Inglewood	Poroutawhao	White Island 1
Irishman Creek	Porters Pass	White Island 2
Jordan	Poulter	Whitemans Valley
Kahurangi	Poutu	Woodville
Kaiapo	Poverty Bay

Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMy

Table Of Contents

Logic Tree Branch

Solution MFDs

Total Target MFDs

NZ_RECTANGLE Gridded Region

Simulated Annealing Energy

Final Energies

Energy Progress

Constraint Misfit Progress

Rupture Rate Distribution

Participation Rates

Section b-values

Subsection b-values

Parent Section b-values

Rupture Scalar Histograms

Rupture Length

Rupture Length vs Rupture Rate

Rupture Magnitude

Rupture Magnitude vs Rupture Rate

Maximum Jump Dist

Maximum Jump Dist vs Rupture Rate

Cumulative Jump Dist

Cumulative Jump Dist vs Rupture Rate

Cumulative Rake Change

Cumulative Rake Change vs Rupture Rate

Max Slip Rate Difference

Max Slip Rate Difference vs Rupture Rate

Attached Modules

Rupture Set Modules

Solution Modules

Fault Section Connections

Connected Clusters

Slip Rates

Linear Slip Rate Plots

Log10 Slip Rate Plots

Slip Rate Std Dev Plots

Paleoseismic Data Comparison

Jump Counts Over Distance

Supra-seismogenic Jump Counts

M≥7 Jump Counts

Max Jump Distance Distribution

Cumulative Jump Distance Distribution

Hazard Maps

PGA Hazard Maps

PGA, 2% in 50 year Hazard Maps

PGA, 10% in 50 year Hazard Maps

1s SA Hazard Maps

1s SA, 2% in 50 year Hazard Maps

1s SA, 10% in 50 year Hazard Maps

Named Fault Detail Pages

Parent Section Detail Pages
